This article discusses flashing installation details for wood shingle or wood shake roofs. This article series discusses best practices in the selection and installation of residential roofing. This article includes excerpts or adaptations from Best Practices Guide to Residential Construction, by Steven Bliss, courtesy of Wiley & Sons. Our page top photo shows a wood shingle roof on the historic Mesier Homestead in Wappingers Falls, NY.

Also see the roofing article links at page left and our roofing home page: ROOFING INSPECTION & REPAIR.

© Copyright 2012 InspectAPedia.com, Daniel Friedman, Steve Bliss, Wiley & Sons, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

Flashing Specifications for Wood Shingle / Shake Roofs

Adapted/paraphrased with permission from Best Practices Guide to Residential Construction, chapter on BEST ROOFING PRACTICES:

Roof flashings should be at least 26-gauge, corrosion resistant sheet metal, preferably painted galvanized steel or painted aluminum.

Copper Flashing and Cedar Roofing?

Copper is a popular flashing material with wood roofs, although some experts caution against using copper in direct contact with red cedar or its runoff, since the soluble tannins in cedar can etch copper and, in extreme cases, lead to perforation of the flashing within 10 to 20 years (see also “FLASHING WALL DETAILS - Copper,” and “Metal Choices for Metal Roof Systems - Copper”).

Premature wood shingle roof failures have been documented in areas of the eastern United States that are subject to acid rain, leading the Cedar Shake and Shingle Bureau to advise against using copper flashing in areas east of the Great Lakes that are exposed to acid rain.

Another approach endorsed by the Copper Development Association is to design flashing joints with a cant or hem that holds the edge of the cedar shingle slightly away from the flashing. The gap prevents water from being wicked into the joint, bathing the copper in the acidic solution.

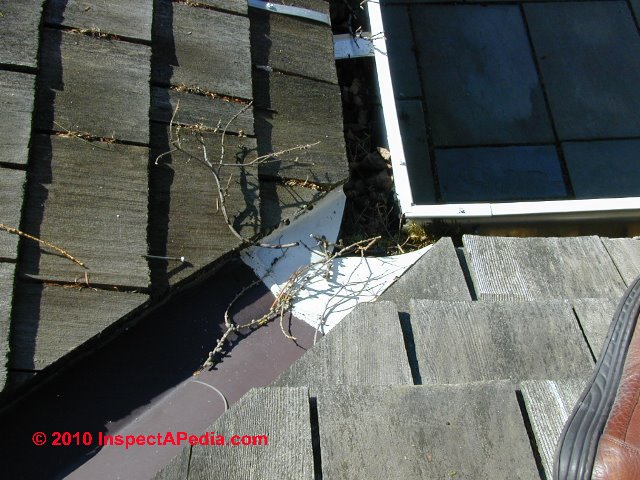

Valley Specifications for Wood Shingle/Shake Roofs

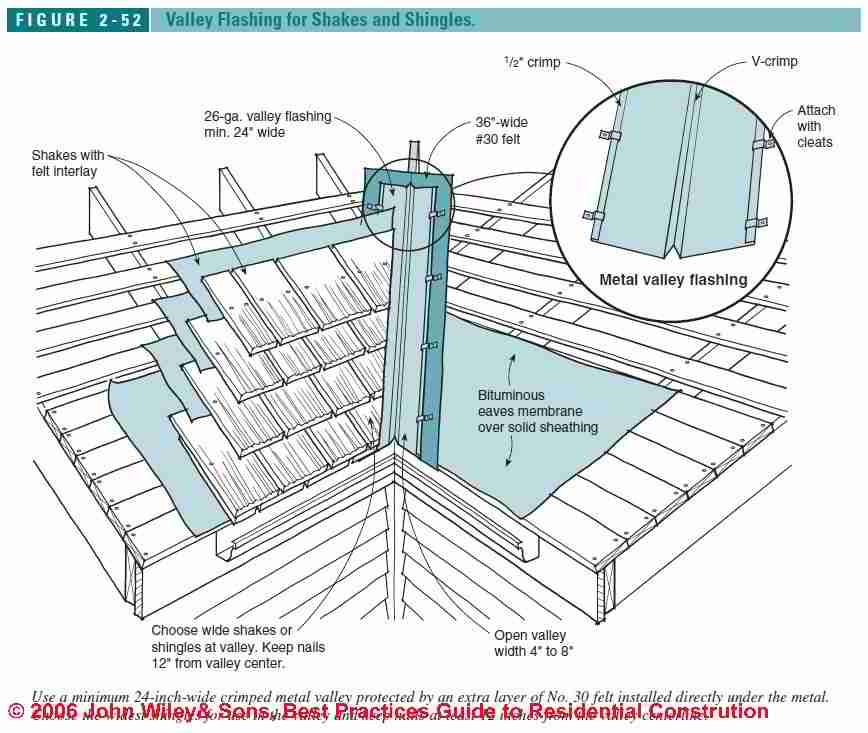

Wood roofs typically use open valley designs. While the International Residential Code (IRC) only requires the valley flashing to extend a minimum of 10 inches up each side of the valley for shingles and 11 inches for shakes, most contractors install 24- to 36-inch-wide valley flashing based on the area and pitch of the roof planes being drained.

The valley metal should be protected by an extra layer of 36-inch-wide No. 30 felt installed directly under the metal or a layer of self-adhesive bituminous membrane applied directly to the sheathing. It is best to set aside the widest shingles or shakes for use in the valley to keep nails at least 12 inches from the valley centerline (Figure 2-52 shown below.)

[Click to enlarge and add detail.]

Figure 2-46: Wood Roof Shingle installation detail (C) J Wiley, S Bliss

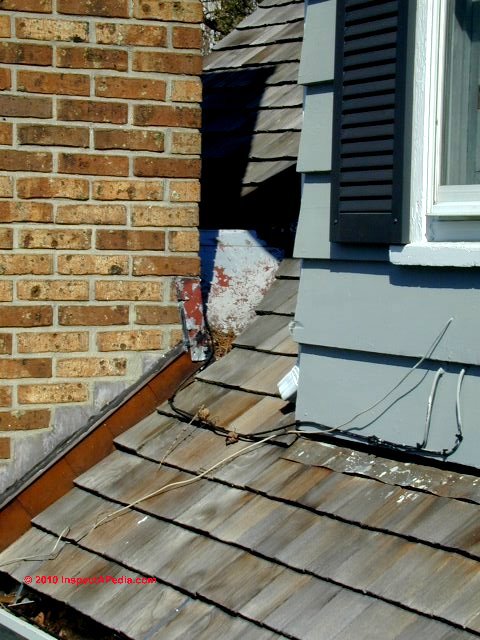

Chimneys and Skylight Flashing Specifications for Wood Shingle/Shake Roofs

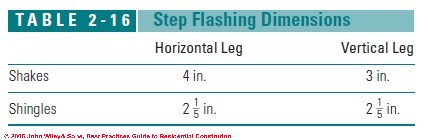

Chimneys on wood shingle or shake roofs are flashed conventionally, using step flashing on the sides in accordance with Table 2-16 below.

Use a soldered apron flashing below the chimney and a soldered head flashing at the top. Larger chimneys with significant water flow behind them should have a chimney cricket above.

-- Adapted with permission from Best Practices Guide to Residential Construction.

Resources: Roofing Materials & Equipment Suppliers

Manufacturers

Ridge Vents

Air Vent/A Gibraltar Company www.airvent.com A complete line of roof ventilation products, including shingle-over and exposed-ridge vents with exterior wind baffles and internal weather filters. Also soffit and drip edge vents and passive and powered attic turbine-type vents.

Benjamin Obdyke www.benjaminobdyke.com Shingle-over ridge vents. Low-profile Roll Vent uses nylonmatrix. Extractor vent is molded polypropylene with internal and external baffles.

Cor-A-Vent www.cor-a-vent.com Shingle-over low-profile ridge vents, including Cor-a-vent, Fold-a-vent, and X-5 ridge vent, designed for extreme weather. Corrugated core.

GAF Materials Corp. www.gaf.com Cobra vent: roll-out shingle-over ridge vent with a polyester-matrix core 102 CHAPTER 2 | Roofing

Mid-America Building Products www.midamericabuilding.com Ridge Master and Hip Master shingle-over molded plastic ridge vents with internal baffles and foam filter

Owens Corning www.owenscorning.com VentSure corrugated polypropylene ridge vents; also passive roof vents and soffit vents

Trimline Building Products www.trimline-products.com Shingle-over low-profile ridge vents, Flow-Thru battens for tile roofs

Elk Premium Building Products www.elkcorp.com Highpoint polypropylene shingle-over ridge vents

Tamko Roofing Products www.tamko.com Shingle-over ridge matrix–type Roll Vent and Rapid Ridge (nail gun version) and Coolridge, which is molded polypropylene with external and internal baffles

Venting Underlayments

Benjamin Obdyke www.benjaminobdyke.com Cedar Breather, a 3/8 -in.-thick matrix-type underlayment designed to provide ventilation and drainage space under wood roofing

More Information about Roofing Materials, Methods, Standards

Asphalt Roofing Manufacturers Association (ARMA) www.asphaltroofing.org

Cedar Shake and Shingle Bureau www.cedarbureau.org

Metal Roofing Alliance www.metalroofing.com

Tile Roofing Institute www.tileroofing.org

#######

-- Adapted with permission from Best Practices Guide to Residential Construction.
