Need for Acclimatization of Wood Flooring Before Installation
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers nor with topics or services discussed at this website.
This article explains the effects of moisture on wood floors and reviews the proper moisture levels necessary when working with or installing a wood floor. This article series discusses and provides a best construction practices guide to the selection and installation of building interior surface materials, carpeting, doors, drywall, trim, flooring, lighting, plaster, materials, finishes, and sound control materials. This article includes excerpts or adaptations from Best Practices Guide to Residential Construction, by Steven Bliss, courtesy of Wiley & Sons.
Also see INTERIORS of buildings, our home page for information about all topics relating to building interiors.
Understanding and controlling moisture levels is the key
to success with wood flooring. The conventional wisdom
of acclimating wood flooring to job-site conditions can
cause more harm than good if the job site is not sufficiently
dry when the flooring arrives.
Wood flooring installed in very dry conditions and later
exposed to high moisture levels can cause problems such as
cupping, particularly with wider planks. In extreme cases,
the swelling planks crush the wood fibers along their edges,
leaving a permanent “compression set.” Gaps appear when
the flooring returns to its normal moisture content.
Wood is a hygroscopic material,
meaning that it picks up or gives off moisture to the air
until it reaches equilibrium with the relative humidity.
As
it absorbs or releases moisture, the wood swells or shrinks
(see Figure 5-6).
Finishes and sealers on the wood slow
this process, but do not stop it.
Most hardwood flooring is kiln-dried and delivered
with a moisture content (MC) of about 7.5%, which is
approximately the equilibrium moisture content for wood
at 70°F and 40% relative humidity—typical indoor conditions
for most of the U.S.
Need for Acclimatization of Wood Flooring Before Installation
While much has been written about
acclimating wood flooring to the job site before installation,
in most cases it is the job site that should be dried out
before the wood is delivered. If dry wood flooring is
brought onto a wet job site, the flooring will swell as it
adjusts, creating unsightly gaps when it shrinks back to
normal levels.
Our photo of an exploded wood floor in an old gymnasium (below a roof leak) demonstrates that the effects of excessive moisture on an installed wood floor can be extreme. Details are at FLOOR WOOD, DAMAGE DIAGNOSIS. - DF.
Before the flooring is delivered, the building should
be closed in, and all concrete, masonry, drywall, paint, and
other wet work should be thoroughly dry. The basement
should be dry and the ground sealed in any crawlspaces.
The goal is to have the indoor relative humidity and the
moisture content of the subflooring close to the levels
they will be after the home is occupied. To sufficiently dry
out the site, it may be necessary to run the heating or air conditioning
for a week or more prior to delivery of the
flooring.

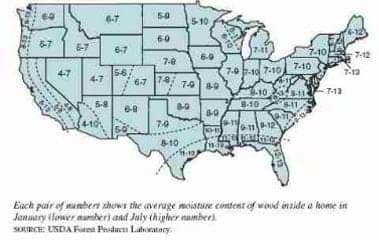

As a rule of thumb, the subflooring moisture content
should be no more than 2% over the maximum normal
level for that region based on the map in Figure 5-7, and
the flooring and subflooring should be within 2 percentage
points of each other.
A moisture meter is necessary to
determine these levels. Checking the relative humidity
with a hygrometer is also a good idea.
x
With the exception of extremely humid regions such
as the Gulf Coast, or extremely dry regions like the arid
Southwest, wood delivered at 7.5% moisture content will
be suitable for installation in a dry home.
If the flooring
needs to be acclimated, unbundle the boards and spread
them out in the rooms where they will be installed until
they reach a moisture content within the range shown in Figure 5-7 above.
