Guide to Selecting & Installing Wood Floors: Best Practices

Wood floors provide a natural warmth and beauty like no other flooring material. And new developments in finishes and engineered products have expanded their durability, versatility, and ease of installation. Still, control of moisture levels in the flooring and structure around it remains the biggest issue influencing the success of a wood flooring installation, particularly with unfinished strip flooring, but with many of the engineered products as well.

Solid Wood Strip and Plank Wood Floor Choices

Traditional unfinished 3 /4-inch hardwood strip flooring in oak or maple remains the most common wood flooring type and the best choice where heavy use and frequent refinishing are likely. While the most common species are still oak and maple, an amazing variety of domestic and imported woods have become available in recent years.

Wood Species Choices & Properties for Wood Flooring

Flooring species are rated for hardness and dimensional stability (see Table 5-4 and its continuation Table 5-4b provided just below). Wood Hardness is rated on the Janka scale, which measures the force required to push a small steel ball into the wood surface. The results are often compared to red oak, which is used as a benchmark. Unless a floor with lots of “character” caused by dents and wear marks is desired, avoid woods significantly softer than oak.

Also consider the wood’s dimensional stability. Less stable woods are likely to lead to gaps, cupping, or other problems with wider plank flooring and in regions like the Northeast, which has big seasonal swings in relative humidity. Other locations where moisture movement might be a problem include below-grade spaces, slabs-on-grade without vapor barriers, or rooms over crawlspaces. In these environments, choose a stable wood and a narrow profile to avoid problems. Laminated floors, discussed below, are often the best choice for these applications.

A number of exotic hardwood imports are also now available. Many of these are plantation-raised or logged with sustainable forestry practices, but some are not. To be sure, work with a reputable importer and look for third party certification of sustainable logging practices. For more information, contact the Forest Stewardship Council or the Smartwood program (see Buy Interior Finish Product Resources).

[Click any table or figure to see an enlarged, detailed version.]

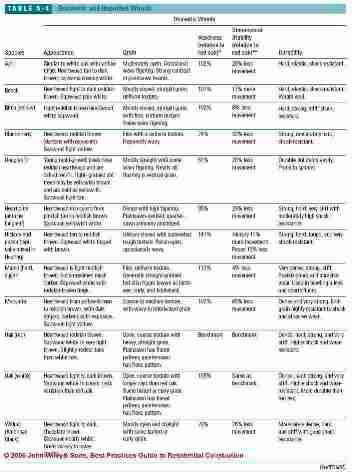

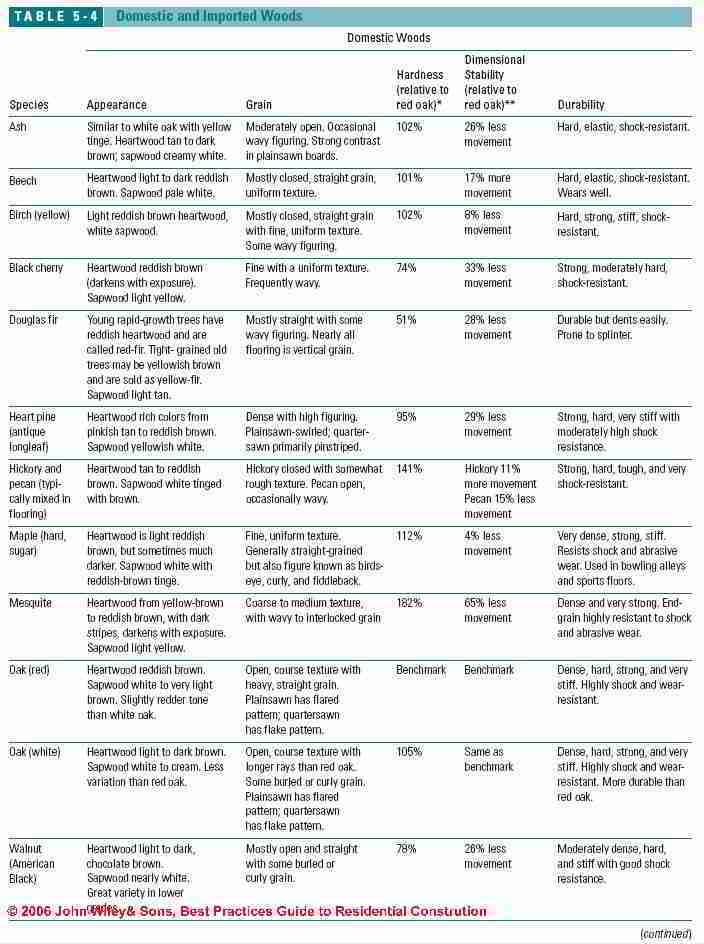

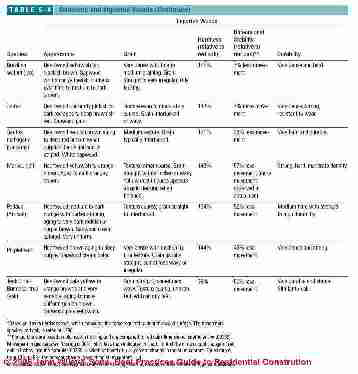

Table 5-4:Domestic and Imported Wood Species and Properties (C) J Wiley, S Bliss

Hardwood vs. Softwood Options for Wood Floors

While hardwoods are harder and more durable than softwoods in general, this is not always the case. For example, heart-pine flooring, whether antique or new (cut from the centers of longleaf southern yellow pines) is nearly as hard as oak, while black cherry, a popular hardwood flooring, is 26% softer than oak.

Other traditional softwood choices are white pine, popular for Colonial reproductions in the Northeast, and fir flooring in the Northwest. While fir flooring is dimensionally stable, wide white pine boards can be expected to swell and shrink significantly, leaving gaps in the winter months. Both are relatively soft and easy to dent, creating a rustic appearance.

Strip vs. Plank Options for Wood Floors

Narrow flooring boards up to 3 1/4-inches wide are called strips and boards 4 inches and wider are called planks. The wider the board, the greater the seasonal movement will be and the fewer the number of fasteners to resist movement.

Plank flooring over 4 or 5 inches wide has a greater tendency to shrink and leave gaps, or to swell, causing the flooring to cup or curl over time. For that reason, some manufacturers recommend additional fasteners in the face of plank flooring, either nails or countersunk screws. Also the wider the board, the more critical it is to monitor and control moisture conditions of the flooring and structure (see FLOOR, WOOD MOISTURE).

Solid Wood Flooring Grades & Properties

The best grades of wood flooring have longer pieces, fewer variations in color (more heartwood), and fewer knots and other defects. Quartersawn grades will have much better dimensional stability, with 30 to 50% less movement than plainsawn boards.

In better grades, pieces are also likely to be straighter, making life easier for the installer.

With many species, however, the visual variations in lower grades can be attractive as well as economical.

A No. 2 or No. 3 maple or cherry floor can be distinctive and striking (Figure 5-5).

-- Adapted with permission from Best Practices Guide to Residential Construction.

Resources: Manufacturers, Industry Associations, & Sources of Flooring Products

Prefinished Wood Flooring

Alloc Inc. www.alloc.com Snap-together, no-glue long-strip and single-strip laminated flooring

Anderson Hardwood Floors www.andersonfloors.com Laminated strip, nail, glue, and floating

Armstrong World Industries www.armstrong.com Bruce, Hartco, and Robbins prefinished plank and engineered strip

BHK of America www.bhkuniclic.com Snap-together, no-glue laminated wood flooring

Columbia Wood Flooring www.columbiaflooring.com Prefinished solid strip

Duro-Design www.duro-design.com Floating click-lock oak flooring

Gammapar www.gammapar.com Engineered wood strip with oil, UV-cured urethane, or acrylic-impregnated finish

Junkers Hardwood www.junkershardwood.com Floating solid strip with metal clip installation

Kahrs www.kahrs.com Laminated strip with UV-cured acrylic urethane, nail, glue, or floating

Lauzon www.lauzonltd.com Prefinished strip, laminated strip, and click-lock laminated plank

Mannington Mills www.mannington.com Laminated strip and plank with polyurethane and aluminum-oxide finish

Medallion Hardwood Flooring www.medallionhardwood.com Prefinished solid hardwood strip and plank with aluminum-oxide finish

Tarkett Wood Floors www.harris-tarkett.com Prefinished solid hardwood, laminated, and long-strip flooring

MercierWood Flooring www.mercierdurable.com Prefinished solid strip and laminated strip with aluminum-oxide finish

PermaGrain Hardwood Flooring www.permagrain.com Acrylic-impregnated laminated strip and plank

Zickgraf Hardwood Flooring www.zickgraf.com Prefinished solid strip with UV-cured urethane with diamond and aluminum oxide

Bamboo Flooring Producers & Sources

Bamtex (a division of Wood Flooring International) www.bamtex.com Laminated bamboo and palm flooring

Duro-Design www.duro-design.com Laminated bamboo flooring with durable water-based finish

Gammapar www.gammapar.com Acrylic-impregnated bamboo flooring

Hawa Bamboo Flooring www.hawabamboo.com Prefinished bamboo flooring with aluminum-oxide finish

Natural Cork www.naturalcork.com Prefinished glue-down or nail-down 3-ply bamboo planks with aluminum-oxide finish

Resilient Flooring Manufacturers List

Congoleum www.congoleum.com Vinyl sheet flooring and tiles

Domco (division of Domco Tarkett Group) www.domco.com Vinyl sheet flooring and tiles

Forbo www.forbo-flooring.com Linoleum sheet and tiles

Mannington Mills www.mannington.com Vinyl sheet flooring and tiles

Nova Distinctive Floors www.novafloorings.com Laminated linoleum surface over fiberboard and cork planks, floating installation

Tarkett www.tarkettna.com Vinyl sheet flooring and tiles

Cork Flooring Manufacturers & Sources

American Cork Products Co. www.amcork.com Prefinished parquet tiles and floating floor planks

Amorim Revestimentos (formerly Ipocork) www.wicanders.com Floating or glue-down laminated cork tiles with UV-acrylic or oil finish

BHK of America www.bhkuniclic.com Snap-together, no-glue, laminated cork flooring with UV-acrylic finish

Expanko Cork Inc. www.expanko.com Cork tiles with wax or polyurethane finish

Korq Inc. (212) 758-2593

Natural Cork www.naturalcork.com Glue-down cork tiles and floating laminated planks with UV-cured acrylic finish

Nova Distinctive Floors www.novafloorings.com Laminated cork planks with glue-down and floating click-lock installation

WECork www.wecork.com Cork tiles, sheets, and floating floors

Industry & Trade Associations for Flooring and Floor Products

American Lighting Association www.americanlightingassoc.com

Association of the Wall and Ceiling Industries www.awci.org

Carpet and Rug Institute (CRI) www.carpet-rug.org

Drywall Finishing Council www.dwfc.org

Forest Stewardship Program www.fscus.org

FloorFacts www.floorfacts.com

The Gypsum Association www.gypsum.org

National Oak Flooring Manufacturers Association (NOFMA) www.nofma.com

National Wood Flooring Association www.woodfloors.org

Painting and Decorating Contractors of America www.pdca.org Smartwood/Rainforest Alliance www.smartwood.org

-- Adapted with permission from Best Practices Guide to Residential Construction.
