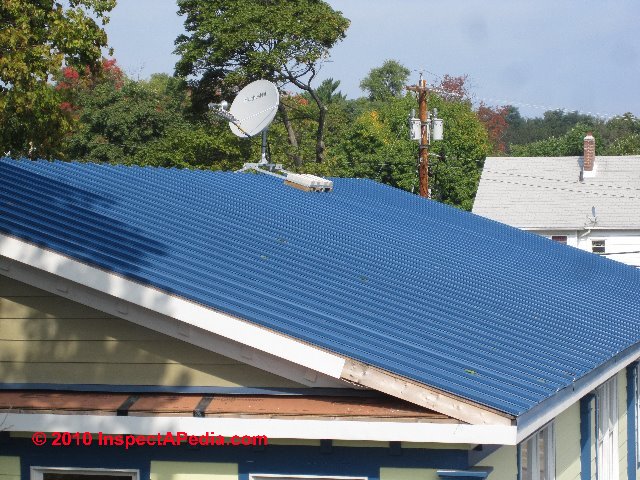

Metal roofing examples (C) Daniel Friedman Standing Seam Metal Roof Systems

Standing seam metal roofs:

This article explains the proper installation, fastening, and flashing details for standing seam metal roofs. Standing-seam roofing consists of individual panels that run the length of the roof with a high rib up each side of the panels.

The ribs overlap and lock together, concealing the fasteners and giving the roofing its name.

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.

Standing-Seam Metal Roofing Installation Practices & Details

Metal roofing examples (C) Daniel FriedmanAdapted/paraphrased with permission from Best Practices Guide to Residential Construction (Steve Bliss, J Wiley & Sons) , chapter on BEST ROOFING PRACTICES:

The hidden fasteners allow thermal movement in the panels and are less likely to leak than exposed fasteners. However, some trim pieces are still fastened with exposed screws.

The smooth surface of a standing-seam roof provides a cleaner appearance and is easier to keep clear of leaf debris than tile, wood, or other textured roofing surfaces.

Also, it can be walked on when necessary. Snow slides off easily as well, making this a popular choice in high snow regions. The cost is generally 25% to 50% more than an exposed-fastener roof of similar materials.

Materials Used in Standing Seam Metal Roofs

Standing-seam panels are 8 to 24 inches wide and available in steel, copper, and aluminum with a wide array of finishes (discussed below). Stiffening ribs may be added to wider panels to reduce waviness (oil-canning). Thicknesses for quality residential applications are typically 24 or 26 gauge, but lighter and heavier stock is also available.

Standing seam metal roof installers can form panels on-site from coil stock with portable roll-forming equipment, or they can order factory-made panels from a growing number of metal roofing manufacturers. Most factory-made panels have snaptogether seams, eliminating the need for special crimping equipment used by site fabricators. In most cases, panels are fabricated to run from eaves to ridge, eliminated the need for end lap joints.

Figure 2-42: Standing seam metal roof fasteners (C) J Wiley, S Bliss

Installation Specifications for Standing Seam Metal Roofs

Metal roofing examples (C) Daniel Friedman On new homes, most panels are installed over a solid plywood deck with minimum No. 30 felt underlayment. Metal roofing manufacturers recommend plywood rather than OSB due to plywood’s better screwholding ability.

Install the felt with plastic cap nails rather than metal buttons, which can cause corrosion when in contact with the roofing panels.

See GALVANIC SCALE & METAL CORROSION.

After installing the drip edge, install the first panel, making sure it is square to the bottom edge of the roof. If the roof is not square, pull the panel away from the rake so the first rib does not overhang the rake edge.

Later, the rake trim piece will cover any small discrepancies. If the panels have an integral screw flange, keep the screws just snug so the panels can move with temperature changes. The clips are designed to allow thermal movement.

The next panel fits over the first with an overlapping rib. Fit each panel to a line snapped up the roof, marking the edge of each panel. Without layout lines, the panels can build up an incremental error, throwing off the layout. As panels are installed and secured, the joints are easily locked together with hand pressure.

Traditional standingseam roofing required special motorized crimpers to lock the seams. While these are still used on some low-slope systems, most residential installations now use snap-together panels. Unless the layout works perfectly, the last panel will need to be cut along the opposite rake and bent with a hand seamer to form the end rib.

Reroofing Using Standing Seam Metal Roofs Over Other Roof Coverings?

Standing seam reroof over wood shingles (C) Daniel Friedman

Our standing seam barn roof re-roof photo (left) demonstrates that re-roofing with standing seam metal roofs over older buildings is a very old practice.

In this case the barn roof originally was covered with wood shingles, installed when the barn was constructed in the late 19th century in upstate New York.

Many installers will not install standing-seam roofing over existing asphalt shingles since the rough surface will tend to bind the panels and cause “oil-canning,” as the panels move with temperature changes.

One option is to install the new metal roofing over 2x4 purlins nailed through the old roofing and shimmed to form an even plane.

Follow manufacturer’s recommendations for spacing of purlins, typically no more than 24 inches on-center.





Flashing and Sealing Details for Standing Seam Metal Roofs

Figure 2-41: Metal Roof Flashing details (C) J Wiley, S Bliss

[Click to enlarge any image]

Typical standing seam metal roof flashing details are similar to those found in Figure 2-41 shown at left .

Manufacturers of preformed roofing panels provide eaves and rake flashings, ridge caps, and sidewall flashings in matching finishes, as well as coil stock for site fabrication.

Many flashings are designed with hidden fasteners; others require exposed gasketed screws. If you want to see the original installation details for the plumbing vent shown at above right, take a look at the photos and text at the bottom of our article

on PLUMBING VENT DEFECTS & NOISES.

Temporary roof vent flashing while waiting for metal roof installation (C) Daniel Friedman Eric Galow

Follow manufacturers’ recommendations regarding which sealants to use for compatibility with the roofing (typically butyl tape, or gunnable terpolymer butyl or urethane sealant).

Permanent roof vent flashing for metal roof installation (C) Daniel Friedman Eric Galow

In general, avoid acid-cure silicone (the type that smells like vinegar) as it can be corrosive to many metal finishes.

-- Adapted with permission from Best Practices Guide to Residential Construction (Steve Bliss, J Wiley & Sons) .

Resources: Roofing Materials & Equipment Suppliers

Manufacturers

Metal Roofing Suppliers

Venting Underlayments

More Information about Roofing Materials, Methods, Standards

Standing Seam Metal Roof Seam Heights

Reader Question: 20 January 2015 Jack said:

What should be the minimum height of the standing seam for a 1.5"/12 roof?

Reply:

Jack,

The flange system metal roof is typically made with a seam height of 1 1/4" - also referred to as "Eco" seam by some manufacturers.

Flat or "Dutch" or locking type standing seams range in height from a low of about 1" to 2 3/8" with taller seams generally used on lower slopes.

For relatively low slopes like the 3:12 you cite you may need to go to the higher seam height to protect against leakage, especially in a snow-climate. For roofs you describe that are as low slope as 1.5 in 12, in a snow climate where there is risk of ice dams I I question if a standing seam roof would be recommended by some manufacturers.

But Atlas Roofing describes standing seam roofing products used for low slope roofs described as sloped to 2:12 or less over solid substrate. These roofs are covered with a locking type standing seam that is 2 3/8" in height.

OPINION: Watch out: even with a tight, tall locking standing seam roof, if your low -slope roof is subject to ice dams, snow blockage or any other condition that could cause water backup-s on the roof such that the water depth can ever exceed the seam height you can expect leak trouble.

InspectAPedia is an independent publisher of building, environmental, and forensic inspection, diagnosis, and repair information provided free to the public - we have no business nor financial connection with any manufacturer or service provider discussed at our website.






ADVERTISEMENT





Reader Comments, Questions & Answers About The Article Above

Below you will find questions and answers previously posted on this page at its page bottom reader comment box.

Reader Q&A - also see RECOMMENDED ARTICLES & FAQs

On 2021-03-14 by Jeff - Metal-Era ridge vent for use on standing seam metal roofs

Metal-Era ridge vent for standing seam metal roofs, cited & discussed at Inspectapedia.com Follow up On my 2021-02-15 Question

Thank you for the hip roof vent suggestions. I realize that venting the hips could be problematic, as you noted, so I continued researching ridge vents for standing seam roofs.

I've contacted Metal-Era, who custom fabricates a well designed ridge vent system that allows up to a 6" wide cut at the ridge. Metal-Era said I could accomplish my venting needs with a 26' ridge cut 4" wide, which I have, and no need to vent the hips.

It's not an inexpensive solution, but it provides for plenty of NFA. In fact, I will probably order their 5" High-Perf ridge vent because I have plenty of soffit intake venting to feed the ridge vent.

Here is Metal-Era's website should others have a similar venting problem to solve.

Metal-Era Hi-Perf RIDGE VENT PRODUCT DESCRIPTION [PDF], Metal-Era, 600 Airport Road WaukeshaWI53188 Phone 800-558-2162 Fax 800-373-9156 Email info@metalera.com

On 2021-02-15 by (mod) - roof venting for standing seam metal roofs

@Steven Bliss,

Thank you for the comments Steve.

As we've discussed, the particular rub is how to vent hip roofs along the whole hip - which in my OPINION either we eschew, (or we skip it), or we risk leaks into the roof at the lower 1/ 3 of the hip.

As you point out the codes are not dictatorial on this point.

On 2021-02-15 by Steven Bliss on roof venting recommendations for metal roofs

Roof venting is a good thing and required by code in most areas, with exceptions made for unvented cathedral ceilings (generally a bad idea).

The building code requires an NFVA of 1 sq. ft. for each 150 sq. ft. of attic floor space.

This can be reduced to 1:300 in Climate Zones 6,7,and 8 if there is an attic vapor retarder and 40 to 50% of the ventilation is within 3 ft. of the ridge (2012/2018 IRC).

For some reason, the code does not specifically require balanced ventilation with low and high vents if you follow the 1:150 rule.

But they do recommend this as do vent manufacturers, because the vents don’t work well without it. There is some evidence that just having ridge vents can do more harm than good by depressurizing the attic, pulling moist air from inside the living space.

The ratios are based more on history than science and a lot of research (especially by William Rose) has determined that roof ventilation does a lot less than promised. Still it’s better to have roof ventilation than not. I wouldn’t sweat it however, if you can get reasonably close to the code ratios.

For hip roofs, you can use specialized hip-ridge vents, designed to not leak in rain and snow on hips. Another option is in-field vents, sometimes called box vents. These may be rectangular or round and installed every few feet across the upper portion of the roof. Their flashings will have to be adapted for metal roofing by the installer.

The main reasons for roof ventilation are to:

• Prevent ice dams

• Lower attic temperatures to prolong shingle life and reduce cooling loads.

• Remove excess moisture from the sheathing, insulation, and roof framing caused by condensation or roof leaks

Not sure what climate you are in or your roof slope, but ice dams are usually not a problem with steep-slope metal roofs, although they can still form at valleys and other roofing details that tend to hold snow.

Shingle life is not a concern for you and roof ventilation has minimal effect on cooling loads if your ceiling (or cathedral ceiling) insulation meets code.

That leaves moisture reduction. Here there is strong evidence that the best thing you can do to prevent condensation on the underside of the sheathing is to have an airtight ceiling air barrier, free of holes for recessed lighting, leaky attic hatches, and unsealed mechanical chases.

However, if your roof structure ever gets wet, whether from condensation or a flashing leak, you will need ventilation to promote drying. Without ventilation, you are more likely to grow mold and decay fungi.

The roof ventilation is there just in case. It’s a belt-and-suspenders approach, always a good idea in home construction, which is rarely done perfectly.

On 2021-02-15 by (mod) - where to find venting solutions for metal hip roofs

Standing seam metal roof hip vent from Union Corrugating - cited & discussed at InspectApedia.comJeff

Thank you for the question on how to vent a hipped roof section when you're using standing seam metal roofing. It's not an easy problem. The general approach is to vent the upper portion of the hip using a ridge-vent type product. That's a partial solution that may be the best we can do.

I've published notes on this problem across several articles - found by searching InspectApedia.com for "hip roof vent" and will list the main one below where there is a more detailed discussion of the "solution" to venting hipped roofs.

But

1. I've not reviewed all of the options provided by metal roof manufacturers

2. I'd appreciate seeing what else you think or have to say on this, and I'll ask Best Practices author Steve Bliss if he has more to add.

Please take a look at

HARD to VENT ROOF SOLUTIONS for HIPS & CATHEDRAL CEILINGS

The standing seam metal roof hip vent shown here is provided by Union Corrugating - cited in the article we recommended

On 2021-02-15 by Jeff

I am requesting estimates to replace my old composite shingle roof with a standing seam roof. The roof has a 5:12 pitch, a 41' x 68' footprint and a ridge line that is 25' long. It has a total ridges of 29 linear feet and total hip ridges of 44 linear feet.

There is plenty of soffit venting but, according to an online calculator I used, additional hip venting would be required to meet the 1,264 NFVA recommended amount beyond what the ridge venting can provide. What is the best method of venting hip "ridges" to eliminate water penetration and maximize ventilation?

On 2020-01-25 by (mod)

Elsbeth

In general I like higher seams as stronger and less likely to leak in some snow or ice dam conditions.

I would really like to know why the city limits the SS roof seam height? They must have a reason. Ask them and tell me.

Bottom line: I trust the roofer AND the roofing product manufacturer. Go to the manufacturer and get their advice in writing and take that to the city. Surely your city (do tell us the country and city) will want your roof to be installed per the manufacturer's instructions.

On 2020-01-25 by Elsbeth McPhee

My husband and I are building a new home with a standing seam metal roof. Our roof will have a 5:12 pitch with the longest panels at 42'. City ordinance says we must use 24-gauge metal with a maximum seam height of 1". Our builder and roofer, however, are concerned that a 1" seam on our roof will result in oil canning, leaking, and lower durability overall. In your opinion, is a 1" seam sufficient or should we be concerned? Thank you.

On 2016-03-05 by (mod)

Riley,

I use gutters, downspouts, and snow guards - all of which can be searched and read about AD inspectapedia.com

Alternatively you can put down gravel and Barry geotextiles reading Roof village away from the building and today lite - a more costly and troublesome alternative that is sometimes required below metal roofs in high snow areas.

On 2016-03-03 by Riley

Our home has a standing seam steel roof with a 12x12 pitch. Heavy rain runoff and deep snow deposits are a problem. What do you suggest to divert the rain & snow away from the foundation? We have a 2' over hang and 3 window wells. Thanks

Question:

(Feb 3, 2012) New Metal Suppliers - Update said:
Hi, You ought to consider updating your metal roofing suppliers. I think DuraLoc is out of business. Players not included are Metro Roof Products and EDCO Products....both good, well distributed firms.

Question: underlayment for metal roofs installed atop existing roof surfaces?

AUTHOR:Anonymous (no email)

COMMENT:We have a project which has a steel truss roof system with a structural metal deck diaphragm (B deck type for seismic requirements)installed over the steel trusses.

We want to provide a standing seam roof over the structural metal deck. Slope is 3:12 and the attic is a cold attic. Do we have to provide any underlayment between the structural deck and the standing seam roof? Or can we just install the standing seam roofing directly over the structural deck. (The structural deck grooves are running perpendicular to the slop of the roof). Any assistance for the best installation procedures will be appreciated. You can reply to this e-mail: jfil@msn.com.

Thank you,

James R.

Reply:

You will probably need to install underlayment - being safer against galvanic or other corrosive problems and you might need more. Here are some example specifications from Best Buy Metals - bestbuymetals.com but you will want to check the installation specifications for the specific brand you are buying.

Also check standing seam height alternatives. For relatively low slopes like the 3:12 you cite you may need to go to the higher seam height to protect against leakage, especially in a snow-climate.

Here is another example specification from the Summit Pacific metal sales standing seam roof installation guide:

Underlayments

Question: can I add just partial snow guards on my metal roof?

(Oct 31, 2014) Mary said:
I've had a standing seam metal roof for about 3 years, without any snow guards, on my ranch-style home in central NY. Now, with my nearly deaf mother living with me, I want to add the guards over the porch to protect her when she takes her dog out. Is there a problem with just doing the limited application rather than full coverage? Thank you.

Reply:

Mary,

We see lots of metal roofs on which installers provided snow guards ONLY over entrances or other spots where there is extra risk. As long as snow falling off of other sections of the roof are not going to cause trouble, your approach is fine.

See SNOW GUARDS on METAL ROOFS


...
