This article series discusses best practices in the selection and installation of residential roofing. This article includes excerpts or adaptations from Best Practices Guide to Residential Construction, by Steven Bliss, courtesy of Wiley & Sons. Our roof top photo shows safety precautions in place while re-coating a roof in Oslo, Norway.

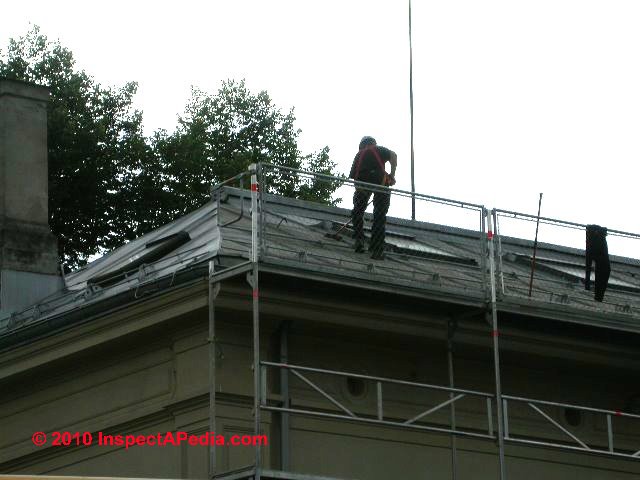

Watch out: one of the quickest ways to fall off of a metal roof is to try walking on it while painting the surface, stepping in wet paint. Speaking from experience in Dunnsville, VA. Also see the page top photo at this article for some rooftop safety precautions including scaffolding and fencing. - Ed.
While unpainted metal roofs are common on utility buildings
and some rustic homes, most homeowners prefer a
painted surface. In addition to improving the appearance, a
high-quality factory finish can significantly extend the life
of metal roofing.
The corrugated roofing at left (Hudson New York) was never painted.
In general, factory finishes are durable
and flexible enough to tolerate factory roll-forming and
bending on-site.
The best finishes carry decades-long
warranties against cracking and peeling, and “excessive”
chalking and fading (as defined by the manufacturer).
The
quality of the finish is determined by the type of resin and
the stability of the pigments.
Polyester-Resin Roof Paints for Metal Roofing
Polyester-resin paints are the least expensive
and are commonly used on exposed-fastener panels. These
have a medium to high gloss when applied, but they will
fade significantly within 5 to 7 years on surfaces exposed
to direct sun. Bright red, for example, may fade to pink.
Fading will be less noticeable on light colors, making them
a better choice. Warranties are typically for 3 to 5 years
and rarely cover fading or chalking.
Silicone-Modified Polyester Roof Coatings
SMPs (siliconemodified
polyesters) use polyester resins blended with silicone
additives to improve performance. In general, the
higher the silicone content, the more durable the finish.
These are available in medium- and high-gloss colors, and
they resist fading and chalking much better than standard
polyester paints. Warranties against excessive fading and
chalking typically run from 10 to 20 years, depending on
the formulation.
PVDF Fluoropolymer Resin Roof Paints
Based on a fluorocarbon-based resin
called PVDF, these are the most technically advanced and
most expensive finishes. Sold under the trade names Kynar
500® and Hylar 5000®, fluorocarbon-based paints provide
a smooth and dense medium-gloss finish that offers excellent
durability and long-lasting resistance to fading and
chalking, even under intense sun exposures.
The Teflon-like
coating also resists dirt retention and holds up better
in coastal environments than other finishes. The finish is
softer than SMPs, however, and can be damaged by the
roofing installers, if they are not careful. Typical warranties
run 20 years or greater, with 10- to 20-year protection
against excessive fading.
Use of Reflective Finishes for Metal Roofs to Reduce Building Air Conditioning Costs

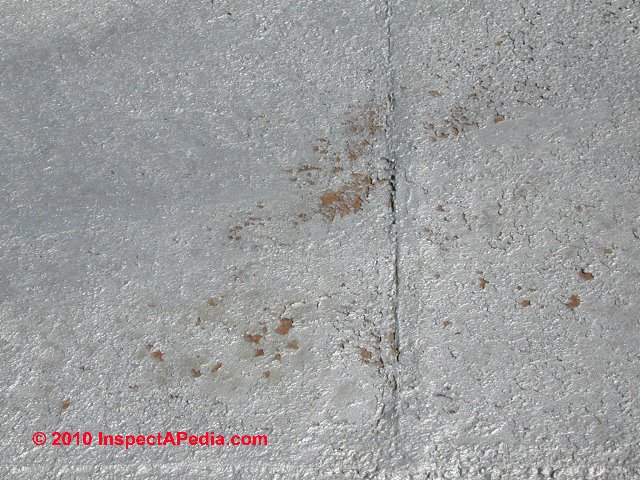

Our photo (left) shows a very common practice: painting antiqu3e metal roofs with aluminized roof coatings to reduce rusting, improve roof life, and increase reflectivity to reduce heat gain in the building in hot sunny weather.
Watch out: some roof coatings and paints and particularly some roofing cements commonly used to "patch" old rusting or leaky metal roofs may work in the short run, but contain corrosive chemicals that actually speed further metal roof corrosion.
Be sure that the coating or patch material you use on a metal roof is approved for the metal surfaces to which it is being applied. In Newburgh NY we inspected the restoration of an historic home that had made extensive use of copper roof flashing.
The most severe corrosion had occurred where and after a bituminous flashing cement had been blobbed atop of copper flashing joints.
White metal roofs can reduce
cooling loads by as much as 30%, according to tests conducted
by the Florida Solar Energy Center. More modest
savings are now available with dark colors as well by using
metal shingles coated with special paints formulated to
selectively reflect the sun’s infrared and ultraviolet
radiation.
These “Hi-R” paints are now standard options
with Hylar/Kynar® finishes. Tests indicate that aluminum
shakes with a reflective brown finish reject 30% to 40% of
the total solar radiation compared to 67% for a white metal
roof.
Granular Coatings Used on Metal Roof Shingles
Some metal shingles are available
with a textured finish consisting of crushed stone or
ceramic granules blended into an acrylic resin. These are
applied over a special primer and sealed with a clear acrylic
sealer.
The multicolored granules give the appearance of an
asphalt shingle and protect against scratching from foot
traffic. The finishes also help protect against denting from
hail and help conceal any small dents.
Classic Products
www.classicroof.com
Modular metal shingle panels and standing seam panels
Decra Roofing Systems
www.decra.com
Modular metal shingle, tile, and shake panels
Dura-Lok Roofing Systems
www.duraloc.com
Modular metal roofing shingles with granular coating
Fabral
www.fabral.com
Exposed fastener and concealed clip metal roofing
panels
Gerard Roofing Technologies
www.gerardusa.com
Modular metal shake and tile panels with granular
coating
Met-Tile
www.met-tile.com
Modular metal roof-tile panels
Atas International
www.atas.com
Modular metal shingle, tile, and standing-seam panels
Custom-Bilt Metals
www.custombiltmetals.com
Modular metal shakes and standing seam panels
Zappone Manufacturing, website www.zappone.com/
Zappone Manufacturing, 2928 North Pittsburg St. Spokane, WA 99207
1-800-285-2677, Washington State Copper Roofing Supplier of
Copper scallop shingles, copper shingles, copper bay windows, vertical walls, aluminum roof shingles
Venting Underlayments
Benjamin Obdyke
www.benjaminobdyke.com
Cedar Breather, a
3/8 -in.-thick matrix-type underlayment
designed to provide ventilation and drainage space under
wood roofing
More Information about Roofing Materials, Methods, Standards
Asphalt Roofing Manufacturers Association (ARMA)
www.asphaltroofing.org
Cedar Shake and Shingle Bureau
www.cedarbureau.org
Steven Bliss served as editorial director and co-publisher of The Journal of Light Construction for 16 years and previously as building technology editor for Progressive Builder and Solar Age magazines. He worked in the building trades as a carpenter and design/build contractor for more than ten years and holds a masters degree from the Harvard Graduate School of Education.
Excerpts from his recent book, Best Practices Guide to Residential Construction, Wiley (November 18, 2005) ISBN-10: 0471648361, ISBN-13: 978-0471648369, appear throughout this website, with permission and courtesy of Wiley & Sons. Best Practices Guide is available from the publisher, J. Wiley & Sons, and also at Amazon.com.
