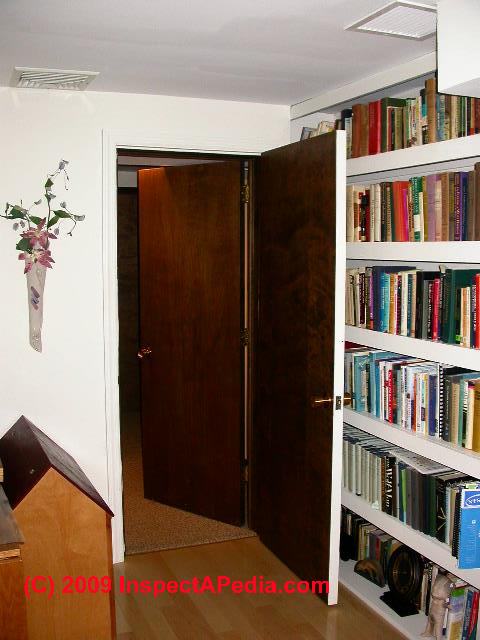

This article explains how sound flanking paths, sound leaks around and through building components, defeats incomplete attempts to reduce building sound transmission and noise levels. We include design details for sound reducing details in buildings including soundproof office doorways and doors. This article includes excerpts or adaptations from Best Practices Guide to Residential Construction, by Steven Bliss, courtesy of Wiley & Sons. The page top photograph shows a pair of solid core doors installed at the entry to an office where sound transmission and privacy are a concern. Below we provide more details about soundproofing at doorways.

© Copyright 2009 Daniel Friedman, Steve Bliss, Wiley & Sons, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use links at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

How to Cut Off Flanking Paths for Sound

Continuing from from Best Practices Guide to Residential Construction:

Sound takes the path of least resistance between rooms, through any air leaks or through rigid connections in the structure itself. These routes that bypass efforts at sound insulation are called flanking paths. These can significantly reduce the effectiveness of soundproofing efforts. Building walls with high STC ratings will do little good if sound can pass easily though electrical outlets or a thin, loosely fitting door.

For example, an ungasketed door or the equivalent of a one-inch-square hole in a wall can reduce an STC 50 wall to STC 30. Common flanking paths include:

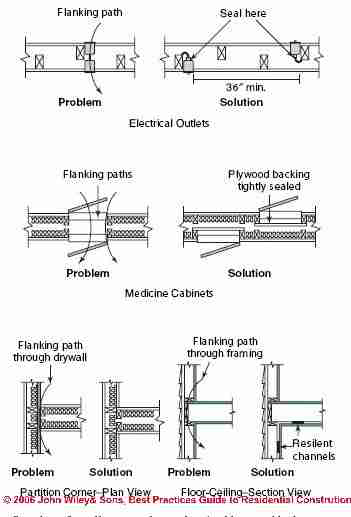

• Air leakage around partitions; around doors; and through plumbing penetrations, back-to-back medicine cabinets, unsealed electrical outlets or recessed lights (Figure at left).
• Shared ductwork between two rooms.
• Hollow-core doors and single-pane glass, which are good sound transmitters.
• With resilient channels, a few drywall screws that penetrate into the ceiling joists, undermining the decoupling system.
• With decoupled framing, a solid path through a band joist or drywall panel that provides a bypass for structure-borne sound.

Minimizing sound noise transmission flanking paths requires both good planning and workmanship. Common strategies to control flanking path for noise in buildings include:

• Avoid back-to-back holes for electrical and mechanical equipment.
• Partition wall sealants: Along partition bottoms, leave a 1/4-inch gap between the drywall and subfloor, and fill with acoustical sealant.
• Bathroom noises: On bathroom partitions, install drywall all the way to the floor before installing the tub and seal all plumbing penetrations through walls with a flexible sealant.

Design Details for Soundproof Doors & Doorways

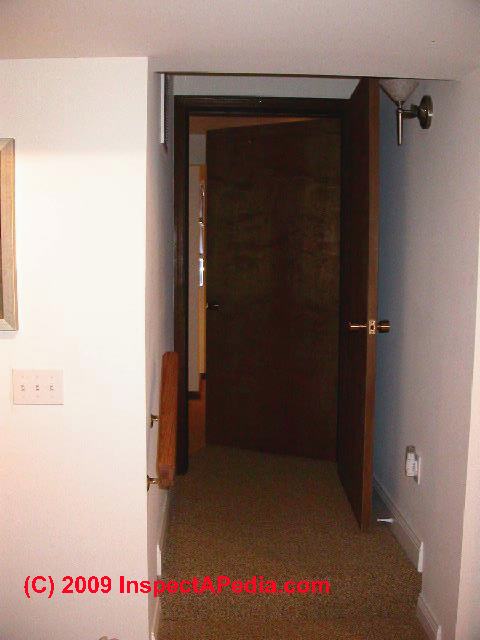

• Soundproof doorways: Upgrade to solid-core doors and add weather-stripping. Our photo (left) shows an installation of doubled solid core doors that has been found effective in minimizing sound transmission between a counseling office and its waiting room. Similar to the double sound-transmission resistant doorway shown at the top of this page, here the designer incorporated a short hallway between a waiting room and the counseling office. Outside a waiting room closet, forming one wall of the entry hall, provides additional soundproofing and privacy for this space. As we discuss below at Sound Control for Walls, closets provide additional sound transmission buffering provided their doors are solid, not louvered.

Addressing obvious flanking paths is often the most cost- effective step in soundproofing a home. Strategies such as sealing air leaks between rooms, upgrading doors, and adding weather-stripping may provide adequate sound isolation without the need for more exotic and expensive measures.

In general, sound-resistant doors should be within 10 Sound Transmission Class (STC) points of the surrounding wall. Solid-core doors are recommended for bedrooms and bathrooms.

Where higher-level sound isolation is required, you will need to add high-quality gasket-type weather-stripping and a sealed threshold. Also the gap between the door jamb and studs should be caulked or grouted to avoid sound leaks around the door. A doubled sound transmission resistant interior door installation is shown at Cut Off Flanking Sound Paths.

For even higher ratings, which might be needed for a music room, for example, double doors are required (see our Table of Sound Transmission Characteristics of Interior Doors).

-- Adapted with permission from Best Practices Guide to Residential Construction.
