Flat & low slope roof moisture & ventilation problems & solutions: this article describes roof structure, insulation, and ventilation design details to avoid moisture and condensation problems under flat and low-slope roofs.

Beware the Flat Roof: Flat Roof Moisture & Condensation Warnings, Prevention, Cures

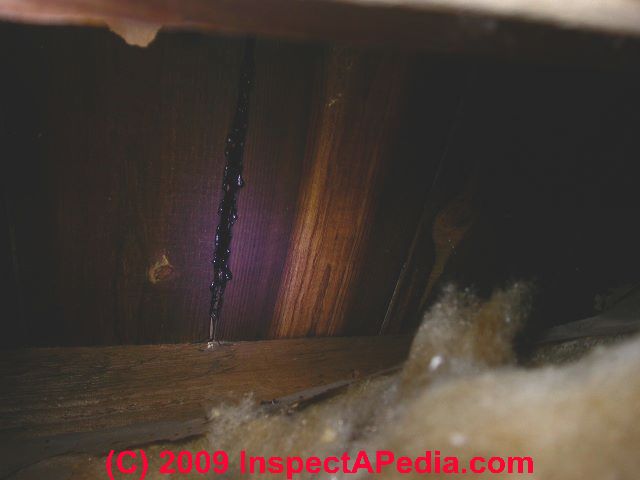

Our page top photo shows the view into the cavity of a wood-framed low-slope roof covering a building that we (DJF) inspected for mold contamination sources. Some of the fiberglass insulation kraft paper was visibly moldy; leaks over the life of the building had repeatedly wet the roof/ceiling cavity of the "cock loft" - a space between the under-side of the roof deck and separate ceiling framing below. Lab tests showed that the insulation itself had become quite moldy - a potential problem for the building occupants. The accompanying text is reprinted/adapted/excerpted with permission from Solar Age Magazine - editor Steven Bliss.

This article, "Beware the Flat Roof, it calls up a whole new breed of moisture problems" explains how to avoid moisture and condensation problems under flat-roofed and low-slope roofed buildings.

The text below paraphrases, quotes-from, updates, and comments an original article original article "Beware the Flat Roof" (see links just above) by Steven Bliss.

Flat Roof Leak Points and Condensation Problems

It's a fact that flat and low-slope roofs demand careful detailing and good workmanship. While a flat or low-slope roof can offer a long service life, 20 years or more, a small mistake can lead to a big leak. Flat roofs and low slope roofs also face potentially serious condensation problems that can in turn lead to costly rot or mold damage in buildings.

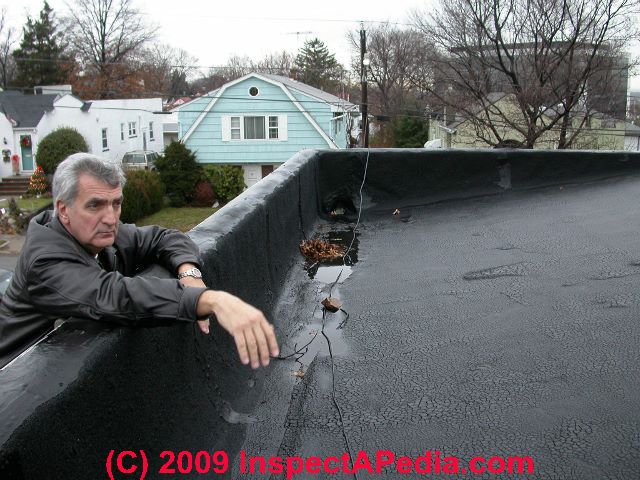

Our photograph at left shows severe alligatoring on a nearly-flat "low slope" roof that also was relying on tar and roof cement to try to stop parapet wall leaks.

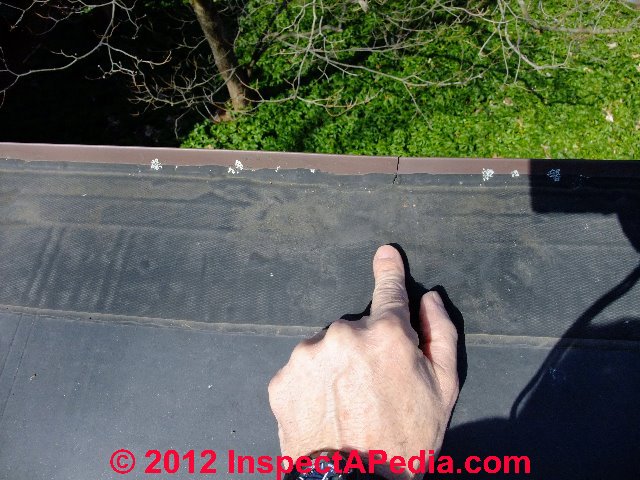

The most common flat and low slope roof leaks occur at flashings and roof penetrations such as at plumbing vents, chimneys, and roof-mounted air conditioners or heat pumps.

Very common also are leaks at parapet wall flashing and parapet wall caps. Roofing industry spokesmen say that up to 90 percent of flat and low slope roof leaks occur because of poor detailing, poor workmanship, or abuse by other tradesmen working on the roof.

Roof flashing details that are not designed to absorb thermal or other building movement ( THERMAL EXPANSION of MATERIALS for a table of the coefficient of expansion of common building materials including brick, concrete, mortar, and stone) can lead to cracked broken metal flashings that leak badly into the building.

Other flat and low slope roof leak problems are caused by lack of expansion joints or counterflashing where needed.

Relying on sealants and caulks at joints and flashing terminations on any roof, flat or sloped, is asking for trouble.

Another common source of flat and low-slope roof leaks is ponding (standing water more than 24 hours after rainfall, also see our ponding roof photo) because areas of the roof lack sufficient slope to drain. "Flat roofs" should never be built dead level.

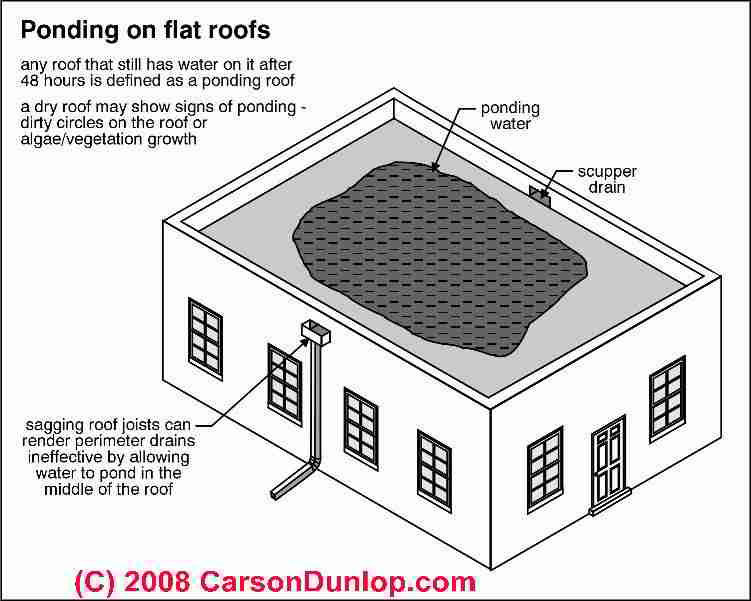

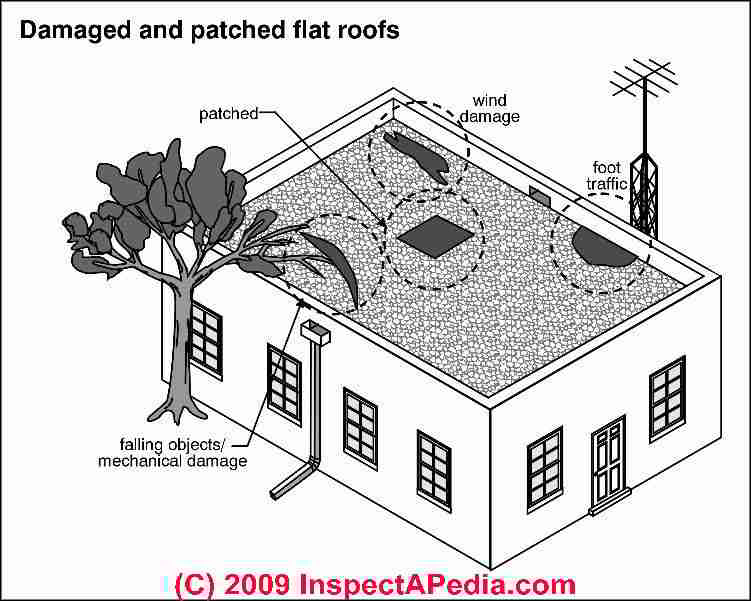

Sketch at left showing common flat roof leak points is provided compliments of Carson Dunlop.

Flat and Low Slope Insulation and Moisture Troubles

While a well-installed flat or low slope roof can keep outside rain or snow-melt out of the building, water entering the roof cavity from inside the building in the form of water vapor can be more troublesome.

For example, moisture collecting as condensation in fiberglass roof insulation may leave the insulation with serious mold contamination even though the insulation still looks "clean". (See FIBERGLASS INSULATION MOLD). Under a flat or low-slope roof, the usual rules about roof insulation and ventilation don't apply.

Two basic approaches to insulating flat roofs

This article explains methods for avoiding moisture condensation problems in compact insulated roofs that have no roof cavity space, and in steel or wood framed roofs that have a roof cavity space and that usually include insulation within the cavity space. A third flat roof insulation design approach, Inverted roof membrane systems place the roof insulation on top of, rather than below the roof membrane; these roofs have similar moisture condensation performance as the compact insulated roofs discussed just below.

1. Compact, Insulated Roofs With No Roof Cavity Space

The first roof insulation method (sketch at left) has the roof deck, rigid solid foam insulation, and the roof membrane all sandwiched tightly together in a compact "hot roof" system. These roofs have few inter-material condensation problems for two reasons: first there is little air movement within the roof system to pump moisture-laden air into the roof; and second, the roof deck and rigid insulation form a reasonable interior vapor barrier.

Often in the tight sandwiched insulated roof design, the insulation is installed on top of the structural roof deck (typically wood, corrugated steel, or poured concrete), and the roof membrane is secured through the insulation to the roof deck itself.

Roof Blisters & Use of Vents in the Roof Membrane?

Fear of condensation problems has led some roofers to add special breather vents to these compact roofs. Although breather vents are recommended by the National Roofing Contractors Association (NRCA) - one vent every 1000 square feet is specified - NRCA technical manager Wayne Tobiasson, who has studied flat roofs extensively for the U.S. Army Corps of Engineers Cold Regions Research and Engineering Laboratory (CRREL) [ca 1985 and prior], goes further and says that vents are "foolishness," particularly in roofs without vapor retarders. In these roofs, Tobiasson said, if the vents do anything, they will create problems by inducing airflow up through the ceiling from below.

What about the rooftop vents? There are two types. One-way vents only let air out under pressure, but won't let air enter the roof cavity or space. These were developed originally to cure roof membrane blistering, which was common in built-up roof membrane roofs before the advent of glass felts.

The roof blistering, however, has since been linked to voids left between the roofing layers during the roof installation process. These roof blisters are not related to moisture trapped within the roof insulation - the space that these roof vents are theoretically designed to ventilate. The solution to roof blisters seems to lie in improved roofing materials.

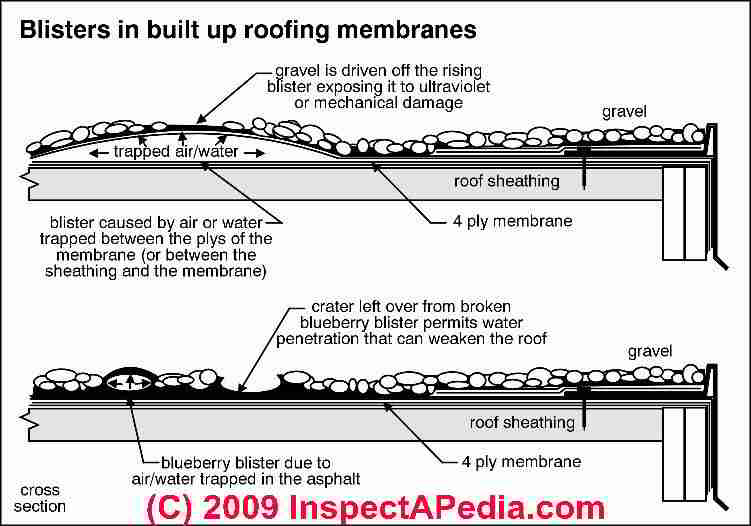

Sketch at left showing how roof blisters occur in built-up roofing membranes is provided compliments of Carson Dunlop.

NOTE-DJF: Roof membrane blisters are seen, for sure, on some membrane roofs into which water has leaked to enter between membranes and insulation.

On the question of vapor retarders, Tobiasson said that roofs with non-permeable insulation tightly sandwiched between the deck and roofing are usually free of condensation problems except in the far north or in buildings with high moisture levels.

OPINION-DJF: However even a compact-roof with good indoor vapor barrier design can suffer from under-roof moisture condensation, that is, condensation under the roof inside the occupied space, if the building interior moisture levels are excessive and proper ventilation or dehumidification are not provided. We have seen that interior condensation problem above suspended ceilings below roofs that did not have a particularly high R-value, for example. Indoor moisture contacts the cool under-side of the concrete or metal roof decking where it condenses. See HUMIDITY CONTROL & TARGETS INDOORS and see MOISTURE CONTROL in buildings for approaches to avoid excessive indoor moisture.

In roofs with vapor retarders, Tobiasson conceded that the two-way vents may have a role to play in avoiding the creation of a vapor trap between the roofing membrane and the vapor retarder. Even in these, however, he thought that the vents are unnecessary and may do more harm than good since they penetrate the roof surface - making potential roof leaks.

2. Conventional Wood or Steel-Framed Flat & Low Sloped Roof Ventilation Designs

The second type of flat or low-slope roof resembles a conventional cathedral ceiling in its construction. (Sketch at left).

An airspace is left above the ceiling insulation and below the under-side of the roof decking, and the roof is vented either around its perimeter with soffit vents (a "flat" roof) or the roof may be include intake-venting at its lower-edge through a soffit and outlet venting through a half-ridge vent or similar outlet vent along the roof's uppermost edge (a low-sloped roof).

The sketch at left shows a method for providing effective ventilation beneath a flat or low-slope building roof, using 2x4 strapping to assure that there is an airspace between the insulation and the roof deck underside.

Not shown are air inlet and outlet openings to assure that this vent provision is effective. Similar to our illustration and note at the top of this page, this flat roof ventilation design also avoids moisture condensation problems between the building material layers. However even that building design can suffer from under-roof moisture condensation if the building interior moisture levels are excessive and proper ventilation or dehumidification are not provided.

Why Flat & Low Slope Roofs Are Hard to Ventilate

The problem with "flat" roofs is that there is no chimney effect, or in a very-low-slope roof, there may be an inadequate chimney effect, to drive outside air through the vented space. On flat roofs with soffit vents, the only mechanism that might drive air thorough the vented space would be occasional wind conditions that happen to blow air against one side of the building and up through the soffit vents, across the roof, to outlet on the opposite side - a rather speculative roof venting system you'll probably agree.

Of all roofs, the framed, insulated, and poorly-vented roof is the most prone to roof-cavity and in-insulation moisture problems. Anything that can promote air movement inside the roof cavity can help reduce this moisture trap.

How to Ventilate Flat & Low Slope Roof Cavities

One approach to venting flat framed cavity roofs that was developed in Canada is to create a full roof plenum, sometimes 2 to 3 feet high above the ceiling insulation. We have seen this roof design in many New York City buildings where the space is often called a "cock loft" and where it may actually be passable as a crawl area. This plenum area is then vented, aided by a vent fan or by one or even a series of cupolas or metal roof vent towers.

A more moderate roof venting approach for the flat and low-slope roof cavity design that we have seen used successfully is shown in the sketch above: 2x4's are run across the tops of the roof rafters (the rafters are also the ceiling joists in this building design). The rafters are placed 16" on center across (at right angles to) the rafters (ceiling joists) and below the roof sheathing. This provides a 1 1/2" high air space above the rafters, permitting air to flow along the under-side of the roof decking.

For this design to work well on a low-sloped, not dead-flat roof, an outside air inlet is provided by a soffit or roof overhang built at the low end of the roof, and a roof cavity air vent outlet is provided along the high or up-slope end of the roof using a built-up half-ridge vent or, where the roof construction provides a parapet wall or even a cosmetic "gabled roof" on the very front end of the building (something added by the designer for cosmetic reasons), that space can provide an ideal vent air outlet path provided you make sure that the roof space over the building has an open air path into and through that taller component to the outside.

How to Keep Moisture Out of Flat & Low Slope Roofs

The real key to avoiding moisture and condensation problems in low slope and flat roofs, though, is to keep moisture out of the ceiling in the first place.

Fix the roof leaks: this includes defects in the roof membrane, leaks at penetrations, at parapet walls, and at any other flashings on flat and low slope roofs. Our photo (left) shows a leaky parapet wall that had been patched but continued to leak along the side of a low-slope nearly flat roof. Here is Carson Dunlop's sketch of unreliable roof parapet flashing.
Use a continuous air / vapor barrier. It's most important job is to control airflow through ceiling penetrations, especially in high moisture areas such as over baths and kitchens. When roof cavity moisture problems are found they are often found over a kitchen or a bathroom with a hole in the ceiling left around a leaky ceiling fan.
Electrical and plumbing penetrations of the ceiling, such as for recessed lights (pot lights), electrical junction boxes, even hanging light fixtures, as well as pipe penetrations, form critical ceiling leaks that send moisture into the ceiling or roof space. Seal these openings with great care.
Since modern tighter homes are more prone to higher indoor humidity in all areas, and since older homes may also have high indoor moisture from basement or crawl space water entry or from plumbing leaks, be sure that the ceiling vapor barrier is carefully sealed at every penetration.
Correct or eliminate improper indoor moisture sources: Address outside leaks into the building such as gutters spilling water along the foundation wall.
Use indoor dehumidification if you've eliminated all building leaks but indoor humidity remains too high (perhaps due to cooking, long hot steamy showers, or other lifestyles that dump lots of moisture indoors). See HUMIDITY CONTROL & TARGETS INDOORS and see MOISTURE CONTROL in buildings for approaches to avoid excessive indoor moisture.
Another concern with flat roofs is how well they dry out if a leak or severe condensation problem does occur. One- and two-way vents have been shown to be of little use in drying out a wet roof or roof cavity. But full ventilation (discussed above) will provide some roof drying.
In winter the wood in a roof structure will store a great deal of moisture. The next summer it gives this moisture up. This seasonal moisture storage mechanism in buildings might handle moderate winter-time condensation with no difficulty (if no unusual moisture sources or leaks are present). Wood has served us well in many old buildings as a winter moisture reservoir. As long as it gets a chance to dry out seasonally, wood will continue to do a good job indefinitely.

Here we include solar energy, solar heating, solar hot water, and related building energy efficiency improvement articles reprinted/adapted/excerpted with permission from Solar Age Magazine - editor Steven Bliss.

Original article in PDF form:

Beware the Flat Roof: Flat Roof Moisture & Condensation - PDF version, use your browser's back button to return to this page
Beware the Flat Roof: Flat Roof Moisture & Condensation - part 2

Frequently Asked Questions (FAQs) about moisture & condensation in flat & low-slope roofs

Question: What's the best way to fix flat and low slope roof moisture problems?

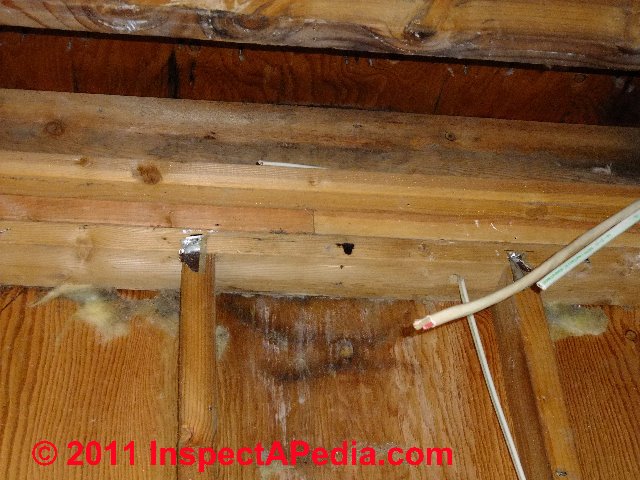

Our photo (below left) shows a small clue traced to a roof leak and insect damage in a New York home. This example of subtle leak signs that lead to moisture troubles in low slope roofs is an example but is not the particular home discussed just below.
