Building Air Leaks & Heat Loss Analysis for Basements, Living Areas, & HVAC Duct Systems InspectAPedia®  -     Basement heat loss, convection loops, and energy savings inspection equipment Using infra red scans for finding basement heat loss Building heat loss & energy efficiency tools & procedures How to find and seal building air leaks, how to find and correct points of un-wanted building heat loss or heat gain Blower door data for a leaky house compared to a tight house Using smoke guns or tubes for finding building air leaks Solar Age Magazine Articles on Renewable Energy, Energy Savings, Construction Practices

This article series discusses finding and curing basement heat loss points, a step in how to find points of heat loss and air leaks in buildings using a variety of tools and inspection methods including infra red, smoke tests, visual inspection, and tests. This detailed article accompanies a building weatherization and energy-savings company through a detailed building inspection for heat loss points and air leaks. The author accompanied Princeton Energy Partners as they used the blower door, thermal imaging, smoke guns, and visual inspection to pinpoint building air leaks, convective loops, heat loss points, air infiltration and air exfiltration on a building.

Our page top photo shows the website author using a smoke tester to view air movement into an un-insulated wall cavity. Readers should also see AIR BYPASS LEAKS as well as HEAT LOSS in BUILDINGS and HEAT LOSS INDICATORS. For advice on sealing against air leans during new building construction, see AIR LEAK MINIMIZATION.

Contact us to suggest text changes and additions and, if you wish, to receive online listing and credit for that contribution.

© Copyright 2009 Daniel Friedman, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use links at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

Basement Heat Loss, Duct System Air Leaks, Living Space Heat Loss, & Special Heat Loss Targets in Buildings

Continuing from Attic Energy Losses - InfraRed, the previous section of the article series HEAT LOSS DETECTION TOOLS,This article explains how to survey a building for air and heat loss or gain points in basements and crawl spaces and how to correct them. Readers should also see our article focusing on BASEMENT HEAT LOSS.

As we introduced above, in this article the author, Steven Bliss, accompanies a building weatherization and energy-savings company through a detailed building inspection for heat loss points, convective loops, and air leaks. The author accompanies Princeton Energy Partners as they use thermal imaging, smoke guns, and visual inspection to pinpoint building air leaks, heat loss points, air infiltration and air exfiltration on a building. The importance of setting priorities for sealing these points of energy wasted is emphasized and discussed, and sketches as well as photographs of common points of building heat loss, or unwanted heat gain, and air leaks are provided.

• Building Heat Loss & Air Leaks - use your browser's back button to return to this page
• Building Heat Loss & Air Leaks - part 2
• Building Heat Loss & Air Leaks - part 3
• Building Heat Loss & Air Leaks - part 4

The text below paraphrases, quotes-from, updates, and comments an original article, "House Doctors with Better Medicine, Princeton Energy Partners use the latest diagnostic tools to comb a house for the major causes of heat loss. Their findings are often astonishing. Their strong prescriptions bring results', Steven Bliss, (see links just above) from Solar Age Magazine and written by Steven Bliss.

Basement Energy Loss Detected by Visual Inspection & Infra Red Scan Identifies Major Air Leaks in a Home's Basement

In the basement the crew find and seal the bottom of a plumbing chase and a missing window that was concealed behind a makeshift wall panel. A coal chute is found and sealed. See BASEMENT HEAT LOSS for more details.

We -DJF- recommend investigating and correcting building moisture sources such as wet or damp crawl spaces and basements. We have found this same convection current moving moisture and air between a wet basement and the attic in interior partitions both in older homes and even in brand new modular homes whose mating-walls were not sealed against such air-flow. See MOISTURE CONTROL in BUILDINGS. for more details.

Where both top and bottom of leaky interior partition walls or modular home mating walls are accessible, we seal at both ends in leaky homes.

Un-wanted Air Movement in Duct Systems

With the building pressurized using the blower door, a smoke test in this home showed air movement into a heating supply duct. The duct system should be a closed circuit, with the same induced pressure (from the air handler unit) throughout - a difficult leak to seal in an older home whose ducts are concealed in finished floors, walls, ceilings.

In other buildings we -DF- have found major duct leaks such as a partially or even entirely disconnected duct sections blowing warm air into the crawl space instead of the living room, or blowing cool air into an attic knee wall space instead of the bedrooms below. On a hot summer day the coolest place in that last home was inside the attic knee wall space! Look for major duct leak defects such as these, or if installing new HVAC ducting, be sure that the ducts and all connections are properly routed and sealed.

See LEAKY DUCT CONNECTIONS and DUCT SYSTEM DEFECTS, problems with the air duct system, air filters, supply registers, return air registers, for more details on tuning up HVAC air ducts.

Air Leaks & Energy Loss Points in the Living Space of a Home: cold corners, closets, kitchen soffits, plumbing chases, windows

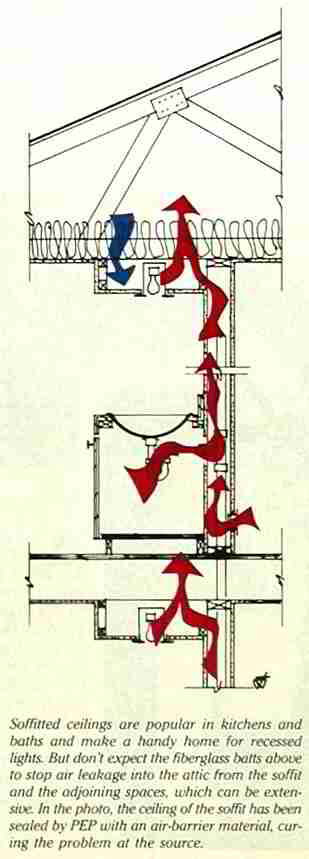

In the house proper, occupants may already be aware of a "cold corner" in a bedroom or a closet on an exterior wall that often suffers from recurrent mold growth. Air leaks through kitchen cabinets and interior soffits can be very significant heat loss points in buildings. An infrared scan or invasive inspection can identify this energy loss location. Sealing the connection between the cabinet soffit and the building's exterior wall reduced building air leakage by 20 percent at a townhouse investigated by the experts in the original article given here. The sketch at left demonstrates how a kitchen soffit can become a heat pump, moving warm air (red arrows) and heat into a cold attic space while bringing cold air down into the living area. A small soffit over a kitchen cabinet may not look like much until you discover that it is drawing air from all kinds of wall and ceiling spaces. Leaky exterior door thresholds were found and sealed in this home, and air leaks around a second floor plumbing access panel were found and sealed as well. Addressing leaky windows can be a major expense if window replacement is being considered. The opinion of the energy savings crew for the home studied in this article was that only 30 to 30 percent of air leakage is at windows in most cases: the crew goes after the 70 to 80 percent of leaks that in their view "... must be coming from elsewhere". [OPINION-DF: we're not sure that these percentages are accurate for many homes, and we suspect that a combination of air leaks and single-glazing makes windows on homes a dominant energy loss problem second only to uninsulated homes with empty wall cavities and attic floors.] But we agree [DF] that before replacing windows on older homes there are steps that can significantly reduce air leaks at those locations: On other buildings we have had success with simpler measures such as finding and sealing air leaks around window frames and trim. In a slightly more aggressive measure for curing window leaks, we removed window weights (that move up and down in a hollow cavity along side window frames in older homes), insulated those spaces, and installed new window tracks whose spring-loaded sides permitted windows to be opened and shut safely and snugly. Installing high quality storm windows over older leaky window sashes can also be cost effective. But in the home studied for this article, even before considering the large expense of window repair or replacements, sealing the other leaks discussed in this article reduced the air infiltration rate by 25 percent.

Find These High Priority Targets & Hidden Leak Points to Save Heating & Cooling Energy Costs

Beyond simple caulking and weatherstripping, it is important to look at the whole building - moisture and moisture sources, air quality, heating and ventilation equipment, and HVAC controls - in order to determine what steps will be most cost-effective in saving energy for that particular building.

In older, multi-family buildings with primitive heating controls, shell tightening may fail to lower fuel costs if indoor temperatures are quite uneven between building areas.

If after weathersealing, the tenants on the south side of a building get too warm (during the heating season) and respond by opening their windows, that effect increases the drafts and convection currents in the building, making other areas (and tenants) too cold. The cold tenants turn up their thermostat even higher. The correct solution may be a more intelligent heating control, and possibly insulation between the tenant areas.

We -DF- see this problem particularly in two-story multi-family homes with an upstairs and downstairs tenant and a single heating system with a single thermostat located on the first floor. The upstairs tenants are too hot and the downstairs tenants are too cold. Slowing warm air movement between floors by insulation and sealing may be helpful, but an optimum solution includes separate heating zones and zone controls, or even separate heating systems entirely, permitting accurate heating cost apportionment among the tenants. In Europe BTU monitoring and accurate heating cost apportionment among tenants is required by law.

Air leaks at Attic Hatches, Attic Stair Tops, Whole House Fans

As the PEP pair of photographs show at left, viewed through an infrared scanner, hot air leaks (light colored areas in the left-most photograph) show up around the attic hatch (recognizable in the photo at immediate left) and within the top of the hall end partition. This thermogram was taken in summer with the house depressurized.

Air leaks at whole house fans can be very significant heat loss points in buildings as well, as our photograph at left shows. Failing to provide an effective cover for a whole house ceiling-mounted fan in the uppermost ceiling of a home is about like leaving the upstairs windows open in the dead of winter. But be careful not to remember to remove the fan cover before turning on the fan again in hot weather, or disaster, even a fire, could result. Insulation voids are distressingly common in attics even where lots of insulation has been installed. Sometimes it's an installation error, more often the voids occur when someone performs wiring or plumbing work and fails to replace insulation that was removed. Insulation voids also pump heat to the cold attic and thus to outside.

Here we include solar energy, solar heating, solar hot water, and related building energy efficiency improvement articles reprinted/adapted/excerpted with permission from Solar Age Magazine - editor Steven Bliss.
