Insulation Location: Best Locations for Building Insulation InspectAPedia®  -     Here we describe the best location to place building insulation for heating & cooling energy savings and construction cost savings Cape-style building roof & attic knee wall insulation advice Crawl space insulation placement advice, & Basement insulation advice Insulation advice for attached building spaces such as mudrooms & Insulation advice for sunspaces Insulation advice for interior walls, stairs, plumbing fixtures

This article discusses the optimum placement of building insulation. This article explains that the location of building insulation is as important as its quantity. Sketch at page top and accompanying text are reprinted/adapted/excerpted with permission from Solar Age Magazine - editor Steven Bliss.

Readers concerned about termite damage associated with foam, fiberglass, or other building insulation materials should see Insects & Foam Insulation and TERMITE SHIELDS vs TERMITICIDE. Readers interested in the mold resistance properties of foam insulation should see Icynene Foam Spray Insulation.

© Copyright 2009 Daniel Friedman, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use links at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

Where to Insulate Buildings

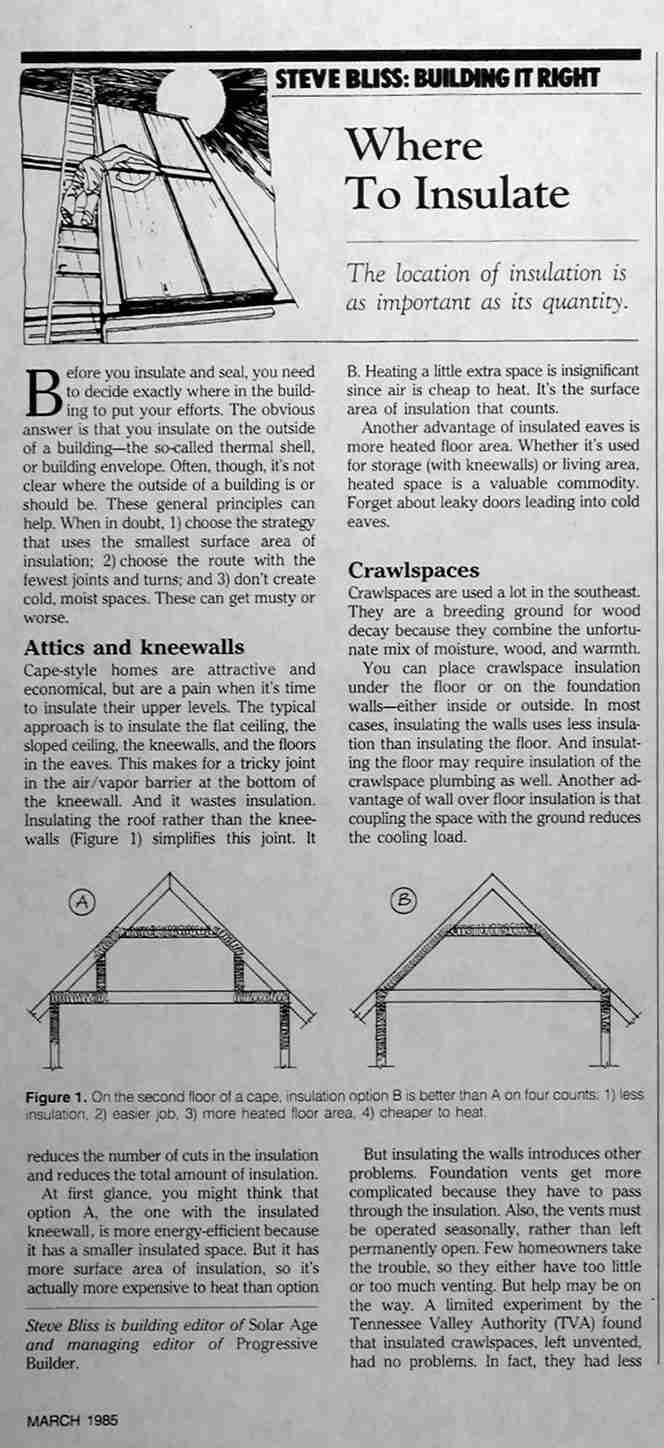

"Where to insulate: the location of building insulation is as important as its quantity" - links to the original article in PDF form immediately below are followed by an expanded/updated online version of this article.

• Where to Insulate in Cape Cod style homes & where to Insulate in crawl spaces - PDF form, use your browser's back button to return to this page
• Where to Insulate - PDF form, part 2 addresses basement insulation, mudroom insulation, insulation for sunspaces, and insulation for "interior bumps" or discontinuities in buildings such as stairways, cabinets, kitchen soffits, or plumbing chaseways.

This article explains the best options for insulating Cape-style homes, showing the heating and energy savings that come from proper placement of the building insulation. Next the article discusses the best placement for insulation in crawl spaces.

We add cautions about mold, moisture traps, and termite damage in crawl spaces depending on how insulation is installed.

Insulation Advice for Cape Style Homes

In the Cape-style under-roof insulation and ventilation plan suggested in this article and illustrated at page top, insulation location shown as option (B) at the right side of the sketch is the preferred insulation placement for a Cape-Cod home because

1. Less total insulation is required
2. The installation is easier
3. A larger area of heated floor space is provided.
4. The building heating costs will be less because there is less surface area through which heat may escape to cold spaces or to outdoors. Building and insulating knee walls (option (A) at page top) requires a larger insulated area so it is actually more costly to heat a building with this design.

But in any under-roof insulation scheme beware of these common Cape Cod insulation problems:

• Under-roof ventilation: be sure to provide an adequate eaves-to-ridge air path as well as actual soffit intake and ridge outlet vent openings. See ATTIC VENTILATION and see ROOF VENTILATION SPECIFICATIONS for details. If you don't think roof venting is needed, see ROOF VENTING NEEDED?
• Air leaks that defeat the building insulation scheme - see FRAMING DETAILS for BETTER INSULATION for details of how to avoid air leaks in buildings of this design

Insulation Advice for Crawl Spaces

Crawlspaces are common in homes in the southeastern U.S. as well as in some west coast cities such as Los Angeles. Crawl spaces are a breeding ground for wood decay and mold because they combine a mixture of moisture, wood, and warmth. As Mr. Bliss points out in part 1 of the article above, less insulation will be required to insulate the crawl space walls and building rim joist than to insulate under the floors.

In cold climates insulating the floor may also require extra insulation on plumbing to protect it from freezing in the colder crawl area. In warm weather insulating the floor loses the cooling effect of its location over the cooler ground surface.

In the crawl space insulation detail (sketch at left), beware of:

• Crawl space moisture problems: contemporary best building practices call for installation of a 6-mil poly vapor barrier over dirt floors of crawl spaces; run the poly at least part-way up the foundation wall sufficient to cover the portion of the wall that is below-grade.

  Crawl space ventilation does not necessarily reduce crawl space moisture levels and in some weather conditions it can actually increase crawl space moisture, condensation, and mold risks. That's why modern best construction practice converts crawl spaces from the old "vented" design to new "closed, conditioned space". Just be sure to also identify and correct roof drainage or surface runoff problems that are sending water into the crawl area.
• Hidden termite damage to the building - we have found termites and on occasion other wood destroying insects attacking the building sills, rim joist, and floor framing when the poly vapor barrier and insulation extend from the floor to the building wooden sills. Insulation provides a hidden path from soil top into the wood framing. In the sketch, the use of poly under the insulation reduces but does not eliminate this risk.
• Hidden mold contamination in buildings can be severe when fiberglass insulation is used in damp locations such as crawl spaces. See Crawlspace Mold Advice and see FIBERGLASS MOLD.

Additional links to articles on good crawl space design and solving crawl space problems are provided below.

Insulation Advice for Full Basements

Mr. Bliss prefers insulation on the basement interior for the same reason that apply to crawl spaces, including avoiding frozen pipes. He suggests using a section of rigid foam insulation to separate off hard-to-insulate basement locations such as steel bulkhead basement walkout doors. Our photograph (left) shows sytrofoam insulating foam board used on the inside of a basement foundation wall. We prefer to use solid foam insulation in any below-grade location that is at risk of period high moisture, because our field and lab work have shown up frequent hidden toxic mold reservoirs in fiberglass insulation that has been used in those locations. See Mold in Fiberglass Insulation for details.

Insulation Advice for Mudrooms

In the articles above, the author suggests that attached spaces such as mudrooms that get frequent use should be inside the building's thermal envelope. If a mudroom is excluded from the building envelope of conditioned space (heated, dried, or seasonally cooled and dehumidified), there is an increased risk of mold since the rooms receive household moisture but little heat.

If the mudroom or airlock entry space is used rarely, such as an enclosed porch, you can go either way - insulating it or not, but if an attached room on a house is left unheated, besure that it is also isolated from the home's moisture by proper placement of vapor barriers.

Insulation Advice for Sunspaces

Mr. Bliss points out that sunspaces are always insulated from the outdoors, but asks "... should they be insulated from the house?"

In climates that have frequent periods of cold and cloudy weather, it's a good idea to insulate and seal between the sunspace and the house - assuming that you are not trying to keep heat in the sunspace to keep plants alive through cold weather. If plants are being maintained in a sunspace you may need to heat that area as well.

Insulation between the house and the sunspace can be less than that in other house walls facing directly outdoors because of the buffering effect of the sunspace. But the air space between the sunspace and the house should be tight to keep greenhouse moisture from entering and causing mold or other problems in the main building.

In sunny climates that can keep the sunspace mass warm all winter, uninsulated walls between the sunspace and the main building are fine. Night insulation is a good idea for these sunspaces since the sunspace glass is part of the thermal envelope.

Insulation Tips for Stairwells and Other Interior Discontinuities or "Bumps" in a House

Interior walls, built-in cabinets, stairs, and plumbing fixtures can disrupt the continuity of the building's thermal envelope or shell. Good planning during construction can avoid these problems by making sure that insulation and vapor barriers are properly placed. In retrofits to older buildings it's not so easy, Mr. Bliss notes.

For insulation retrofit on older buildings don't forget to watch for, evaluate, and if appropriate open and insulate these areas. A common example that we see on older homes is the failure to insulate below attic stairs whose ceiling is exposed to the otherwise heated and insulated main area of the home.

In our attic stairwell photo (left) the house exterior wall and the area underneath the stairs themselves were uninsulated, leaking heat out of this home.
