Comparing Energy Efficiency of Low-E Glass vs Quad Glazing
The question-and-answer article below paraphrases, quotes-from, updates, and comments an original article from Solar Age Magazine and written by Steven Bliss. Readers should also see SUNGAIN, FILMS, LOW-E GLASS for details about use of Sungain film on windows and window film selection and installation, and see WINDOWS & DOORS our home page for window and door information. Contact us to suggest text changes and additions and, if you wish, to receive online listing and credit for that contribution.
PVC Vinyl Window Warping Q&A
Question: What are the facts about the occurrence of shrinkage and warping in PVC or Solid Vinyl Windows?
A window salesperson suggested to me that triple glazing with low-emissivity (low-e) glass would be better than quad glazing (two layers of 3M Sungain film) for sunspace (or greenhouse) windows.
He maintained that the low-e window units would make the room feel warmer because it would reflect the long-wave radiation (heat) back into the room.
Which window glazing product, low-E glass or 3M Sungain films, would be better for this application? - Roger Saunders, Hollis NH
Answer: It Depends ...
 The answer to the question of which window glazing approach will perform better depends on the type of room and its intended use, according to H. J. Koester of Weather Shield, a company that makes both types of window glazing.
Choosing Window Glazing for Optimum Comfort
If the sunspace is a direct extension of the living area and comfortable sitting conditions are of greater importance than solar gain, he suggests that the low-e glass would be a better value due to its higher R-value and lower cost.

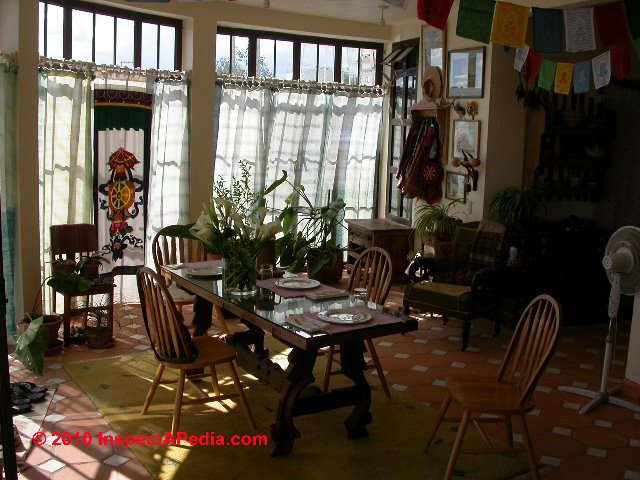

Our photo above-left shows a very high-gain passive solar home in San Miguel de Allende, Mexico. This could have been an installation where comfort weighed more heavily than the need for optimizing for solar heat.
Choosing Window Glazing for Optimum Solar Gain - Solar Heating
For a heat-producing sunspace, he says that the quad glazing approach with Sungain film would be a better approach, because of its higher solar transmittance and small sacrifice in R-value.
Efficient Window Glazing Specifications
- Weather Shield's Triple Low-e glass has a solar transmittance of 0.52 to 0.55 and an R-value of 4.34 (for the 1 1/2-inch unit).
- For quad glazing, the transmittance is 0.63 and the R-value is 3.85.
- While the quad-glazed (Sungain film) window is a better solar performer, it is also more expensive by 10-20 percent (1985 prices - check current numbers- Ed).
- As in all window glazing decisions, it boils down to a series of tradeoffs.
- Weather Shield's Low-e glass is the hard-coat type, imported from Belgium. Its performance measures may not apply to comparable U.S.-made window glass.
For more up to date information about the performance of films to increase solar collector efficiency, see SOLAR COLLECTOR FILMS
As we discuss in more detail at SUNGAIN, FILMS, LOW-E GLASS, here is a quick comparison of window types and their efficiencies:
| Comparison of Window Type Energy Efficiencies1 |
| Window Type |
U-Value2 |
| Single-glazed standard glass |
1.13 |
| Double-glazed, 1/2" air space |
0.56 |
| Triple-glazed, 2 1/2" air spaces |
0.34 |
| Low-E, double glazed, 1/2" air space |
0.33 |
| Heat Mirror, double glazed, 1/2" air space |
0.23 |
1. Popular Science Magazine in 1982
2. U-value is the measurement of heat transmission through a material - it's the reciprocal of R-value. R-value is a material's resistance to heat transfer.
This article is reprinted/adapted/excerpted with permission from Solar Age Magazine - editor Steven Bliss.
Original article
...
