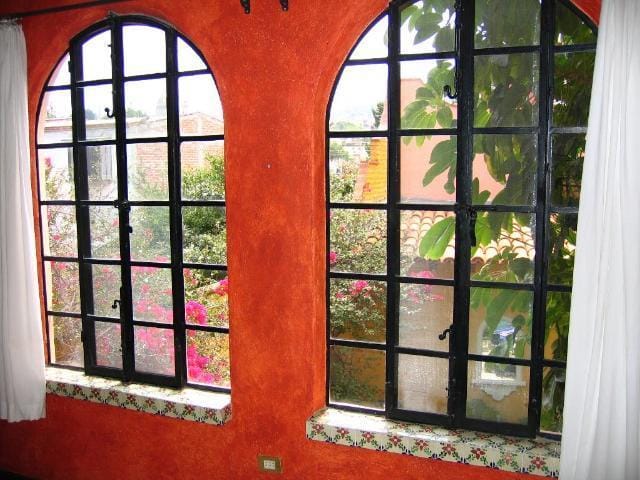

Sun shade reduces solar gain in Mexico (C) Daniel Friedman

Passive Solar Design Handbook Q&A
InspectAPedia®  -

  • Q&A: combination solar systems involving water well, direct gain, and Trombe wall in one building
  • How to calculate solar energy savings fraction for passive solar systems
  • Solar design handbook questions and answers
  • Solar Age Magazine Articles on Renewable Energy, Energy Savings, Construction Practices
Our site offers impartial, unbiased advice without conflicts of interest. We will block advertisements which we discover or readers inform us are associated with bad business practices, false-advertising, or junk science. Our contact info is at InspectAPedia.com/appointment.htm.

This article discusses the Passive Solar Design Handbook leaves some passive solar evaluation (solar energy savings fraction) questions that are answered by an expert. Accompanying text is reprinted/adapted/excerpted with permission from Solar Age Magazine - editor Steven Bliss. Our page top photo shows windows admitting morning solar gain in a nearly-balanced-energy passive solar home in San Miguel de Allende, Guanajuato, Mexico.

Readers concerned with accurate calculation of the "percent solar" and similar energy savings assessments should see PASSIVE SOLAR HEAT PERFORMANCE. Readers should also see SOLAR HOUSE EVALUATION. Contact us to suggest text changes and additions and, if you wish, to receive online listing and credit for that contribution.

© Copyright 2009 Daniel Friedman, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use links at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

Passive Solar Design Questions for Combination Solar Systems

The question-and-answer article about passive solar design for combination systems that combine a water well source, direct solar gain, and a Trombe wall, quotes-from, updates, and comments an original article, (see links just above) from Solar Age Magazine and written by Steven Bliss.

Question: I have questions concerning the Passive Solar Design Handbook.

For a house with a combination solar system, that is, combining a water well, direct solar gain, and a Trombe wall in one building, how does one go about finding the solar savings fraction?

Do the calculations take into account internal gains? -- Richard Glaser, Glenwood Springs CO

Answer:

If the passive solar designed building has more than one type of energy system, divide the building load coefficient by the combined areas of all the passive solar energy system types to get a single Load Collector Ratio (LCR).

Using that LCR, determine the solar savings fraction for each alternative energy system type. This amounts to assuming that the entire solar wall is first one type, then the next, and so forth.

The final solar savings fraction is the average of each fraction weighted according to the percentage each solar energy system represents in the combined solar collector area.

The solar fraction calculation procedure is explained well enough in Volume III of the Passive Solar Design Handbook.

The LCR method of assessing the solar savings fraction does not take into account heat gains from people, lights, or appliances. For a closer look at the passive solar design method and for the answers to many other questions you may have about it, Solar Age Magazine published a series of articles beginning in May 1983.

List of Passive Solar Design Key Reference Books including Online Texts

The first three passive solar design handbook links below are to free, online documents.

  • Passive Solar Design Handbook Volume I, the Passive Solar Handbook Introduction to Passive Solar Concepts, in a version used by the U.S. Air Force - online version available at this link and from the USAF also at wbdg.org/ccb/AF/AFH/pshbk_v1.pdf
  • Passive Solar Design Handbook Volume II, the Passive Solar Handbook Comprehensive Planning Guide, in a version used by the U.S. Air Force - online version available at this link and from the USAF also at wbdg.org/ccb/AF/AFH/pshbk_v2.pdf [This is a large PDF file that can take a while to load]
  • Passive Solar Handbook Volume III, the Passive Solar Handbook Programming Guide, in a version used by the U.S. Air Force - online version available at this link and from the USAF also at wbdg.org/ccb/AF/AFH/pshbk_v3.pdf
  • The Passive Solar Design and Construction Handbook, Steven Winter Associates (Author), Michael J. Crosbie (Editor), Wiley & Sons, ISBN 978-047118382 or 0471183083 is available at Amazon.com and via the The Passive Solar Design and Construction Handbook, Steven Winter Associates (Author), Michael J. Crosbie (Editor), Wiley & Sons, ISBN 978-047118382 or 0471183083 is available at Amazon.com and via the InspectAPedia Bookstore

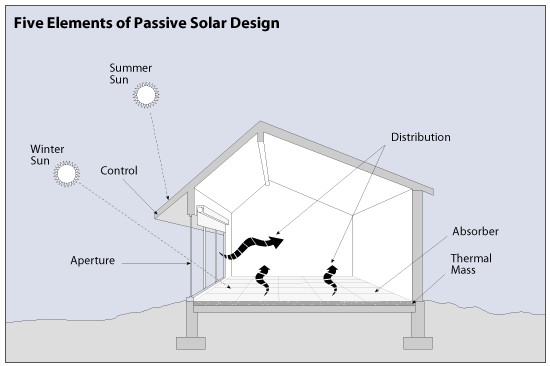

  • "Passive Solar Home Design", U.S. Department of Energy, describes using a home's windows, walls, and floors to collect and store solar energy for winter heating and also rejecting solar heat in warm weather.

Here we include solar energy, solar heating, solar hot water, and related building energy efficiency improvement articles reprinted/adapted/excerpted with permission from Solar Age Magazine - editor Steven Bliss.

Share this Article

...

Technical Reviewers & References

  • Daniel Friedman - principal author/editor of the InspectAPedia® Website
  • InspectAPedia Bookstore lists recommended books, organized by topic & available for purchase. Most of our articles also include a list of recommended books for the specific article topic as well as other references, and information sources.
  • Critique, contributions wanted: Contact Us to suggest corrections or additions to articles at this website, and if you wish, to receive online listing and credit as a contributor. Particular thanks are due to the many experts and also consumers who read and critique technical articles at InspectAPedia.com.
  • Additional technical contributors & reference sources for this article are listed below.
