Photograph of paint failure details

Paint Failure Photos - Site
InspectAPedia®  -

  • Field & Lab photographs re Private Party Paint Failure Report 10/9/2006 - Daniel Friedman
  • These onsite paint failure photographs help explain the cause of paint peeling, cracking, chalking, and other paint problems on buildings
Our site offers impartial, unbiased advice without conflicts of interest. We will block advertisements which we discover or readers inform us are associated with bad business practices, false-advertising, or junk science. Our contact info is at InspectAPedia.com/appointment.htm.

This document presents field and lab annotated photographs of severe paint failure on a wood sided pre-1900 building in New York. After a painter skim-coated old paint on the wood siding using 40 gallons of Sherwin Williams C-70 crack and hole filler (not a recommended use of this product), a rapid and extensive failure of the new painted surfaces was evident in less than 90 days. Readers should also see Paint Failure Case Photographs-SITE and then Paint Failure Case Photographs-LAB, and see PAINT & STAIN GUIDE, EXTERIOR for a guide to the selection and proper application of paints and stains on exterior wood surfaces.

Extensive stripping and surface preparation will be required to restore the building. The skim-coat product, a substance intended for small crack and hole filling, was used in violation of the manufacturer's instructions.

© Copyright 2010 Daniel Friedman, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use the links at page left to navigate this document or to go to Other Website Topics. Green links show where you are in our document & website.

Paint Failure Site Photos (selected) - numbers refer to citations in lab sample table

-- Daniel Friedman

The accompanying photographs taken in our forensic lab provide examples of paint contaminants or other conditions associated with paint failures that can be of assistance to analysts investigating paints on buildings, artifacts, and works of art.

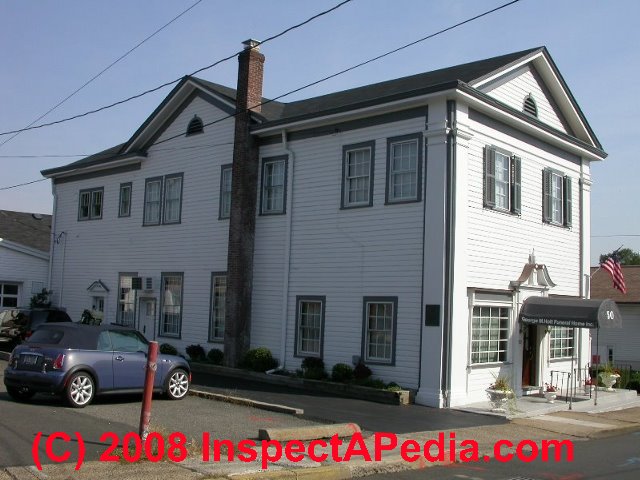

Pre-1900 wood sided building in New York's Hudson Valley, site photo providing context for the close-up photographs of exterior paint problems shown below.

Photograph of paint failure details

Site 025 loose, alligatored paint low on walls, an insecure surface that needed to be stripped prior to painting.

Photograph of paint failure details

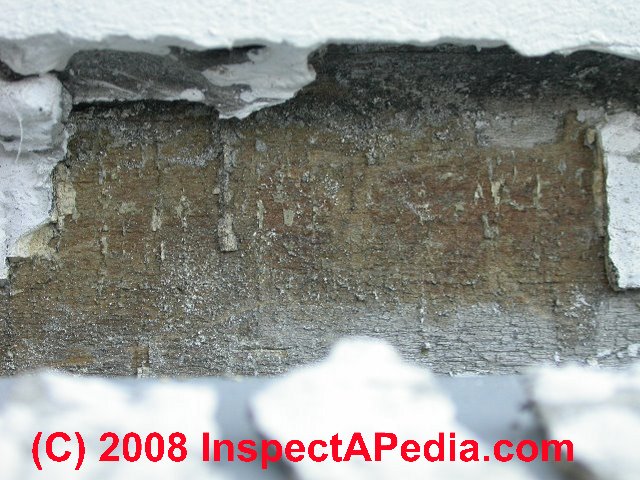

Site 031 surface of wood clapboard below loose falling-off alligatored paint - this condition was not visible in most areas due to the skim-coating.

Photograph of paint failure details

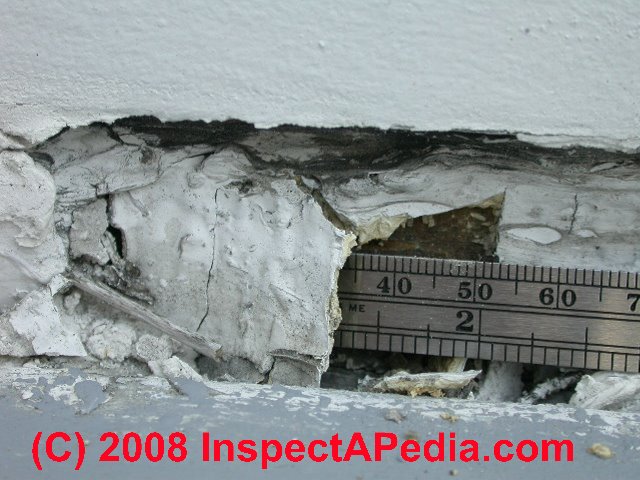

Site 032 Demonstrating that skim coat was applied over loose failing and alligatored paint on the building exterior wall

Photograph of paint failure details

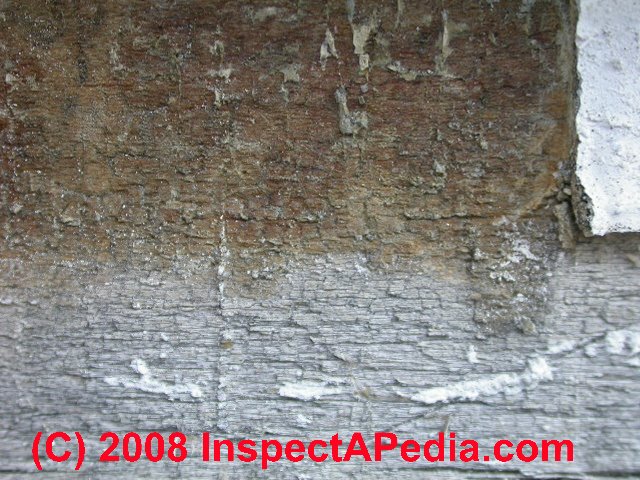

Site 034 wall surface below failed paint. The light colored wood in lower photo has been exposed to weather following paint failure.

Photograph of paint failure details

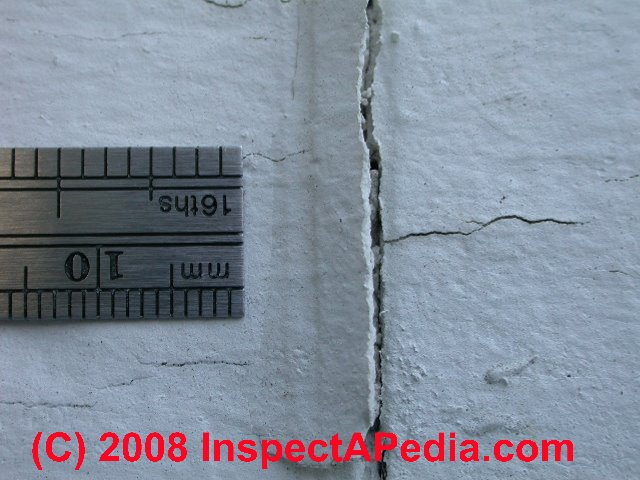

Site 035 shows improper use of skim coat material at clapboard butt joint -specifically advised-against by the coating manufacturer.

Photograph of paint failure details

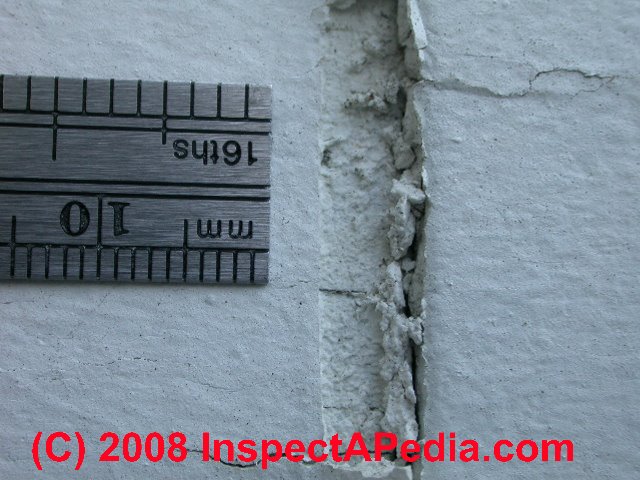

Site 036 shows loose falling off skim coat and paint at clapboard butt joint

Photograph of paint failure details

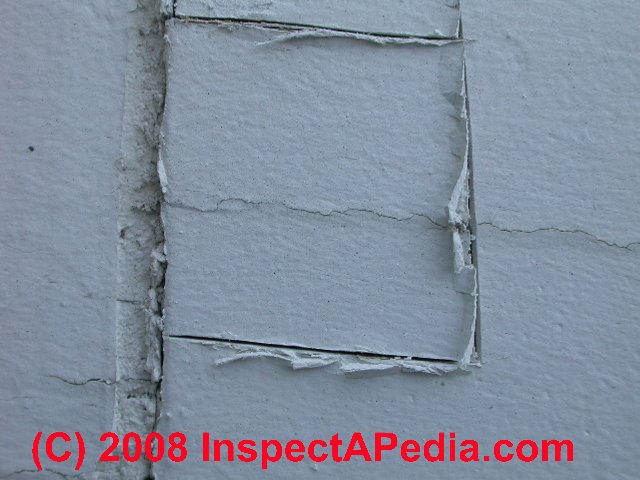

Site 039 preparing an adhesion test in the painted surface near a failed butt joint

Photograph of paint failure details

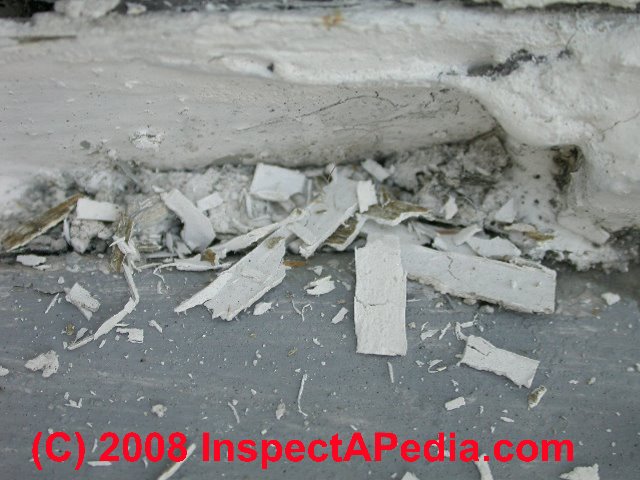

Site 043 paint adhesion test in process

Photograph of paint failure details

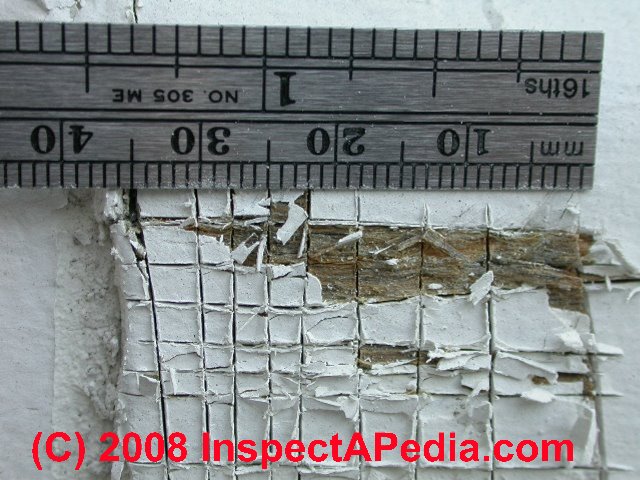

Site 044 paint adhesion test in process

Photograph of paint failure details

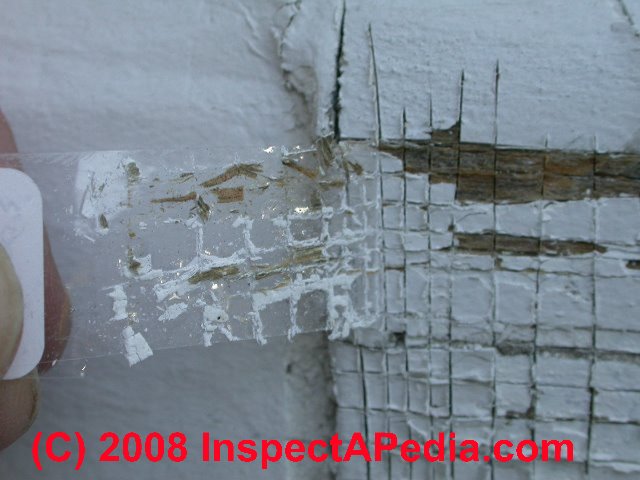

Site 048 paint adhesion test showing removal of new paint from old surface, varying by closeness of the razor cuts

Photograph of paint failure details

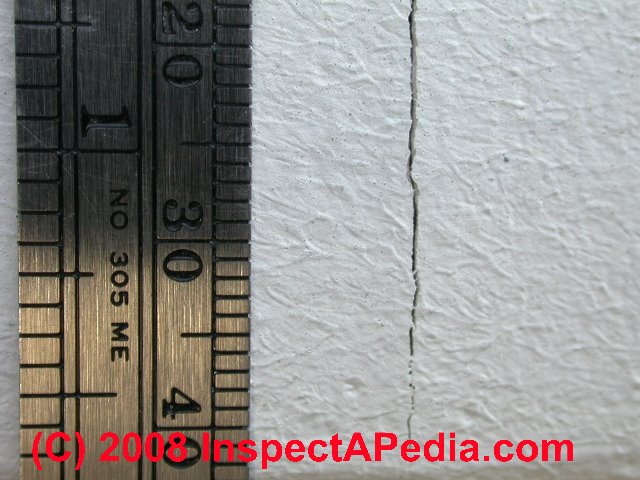

Site 050 example of vertical crack in skim coated material; also note the pattern of paint finish indicating that a paint roller was used to apply paint.

Photograph of paint failure details

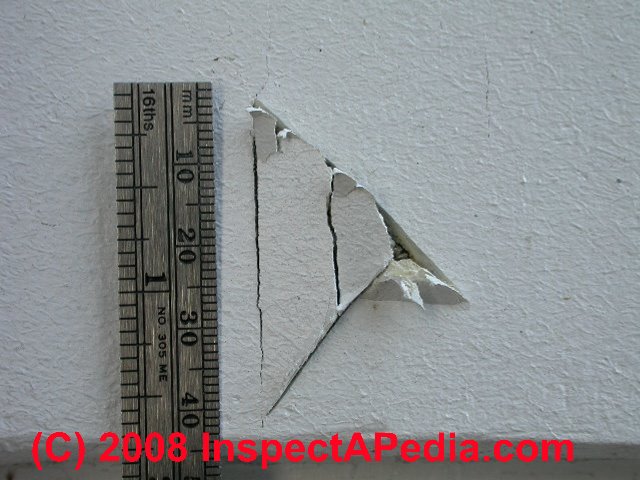

Site 052 preparing an investigative razor cut to the right of a pre-existing vertical crack in skim coated painted building

Photograph of paint failure details

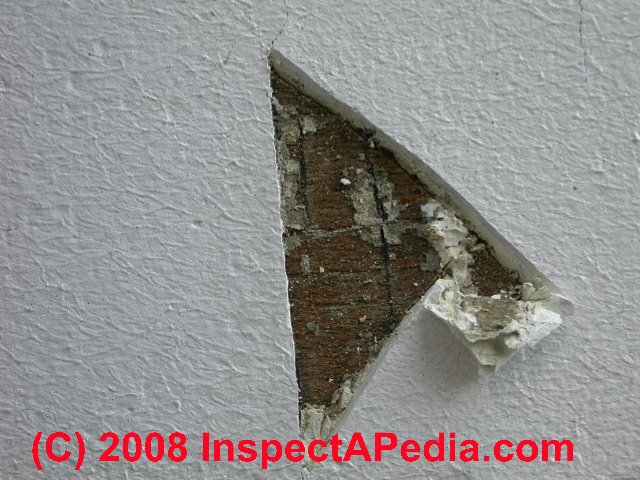

Site 054 exploring vertical crack in skim coated painted building

Photograph of paint failure details

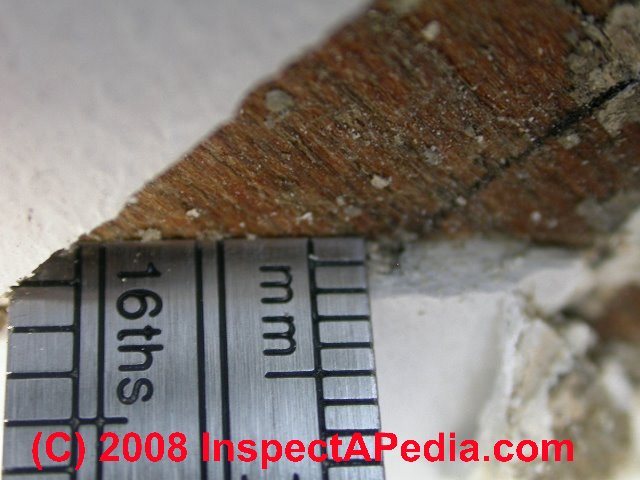

Site 059 depth of skim coat plus old and new paint exceeds 2mm

Photograph of paint failure details

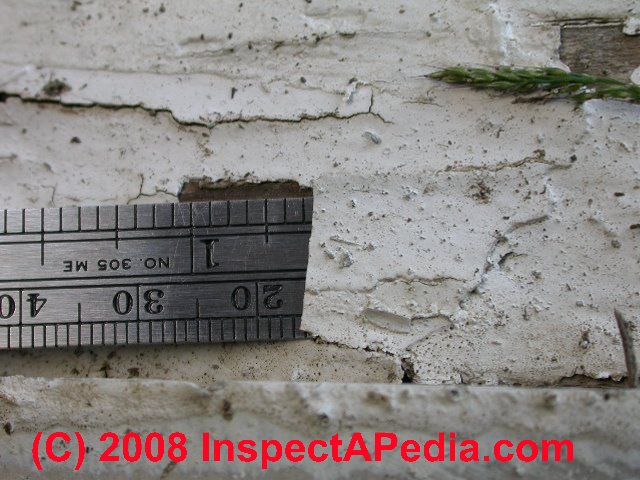

Site 064 evidence of painting over dirt on siding low on building walls

Photograph of paint failure details

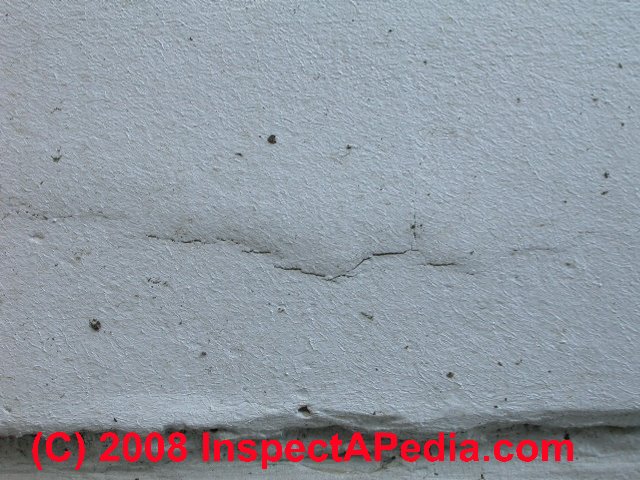

Site 067 failure of edge of skim coat over old paint

Photograph of paint failure details

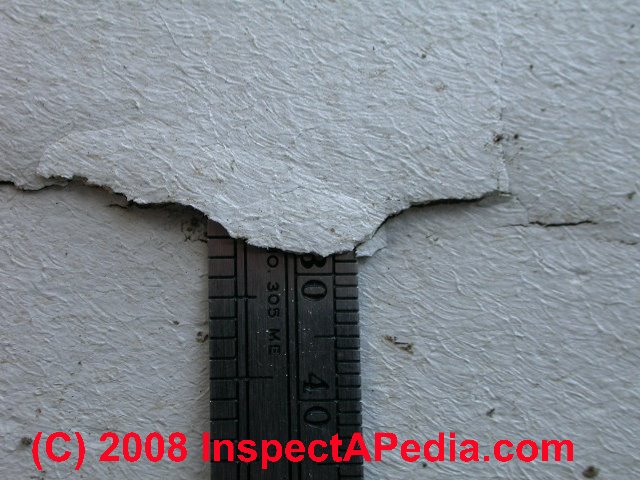

Site 069 measuring depth of failed skim coat and paint on building wall

Photograph of paint failure details

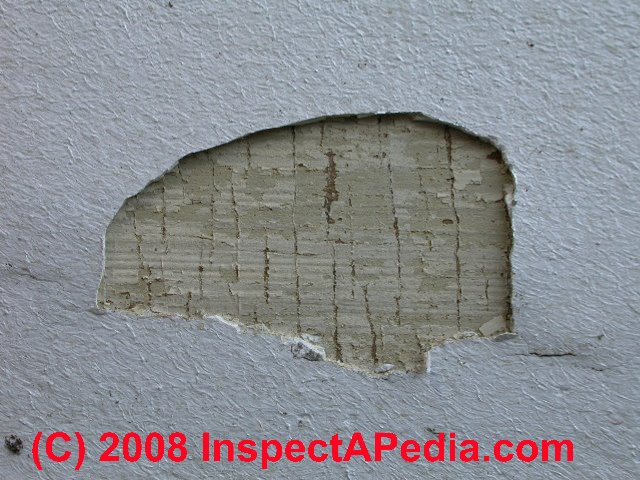

Site 070 skim coat and new paint falling off reveal adhered older paint layers, confirming that paint failure was not due to moisture push from building interior conditions

Photograph of paint failure details

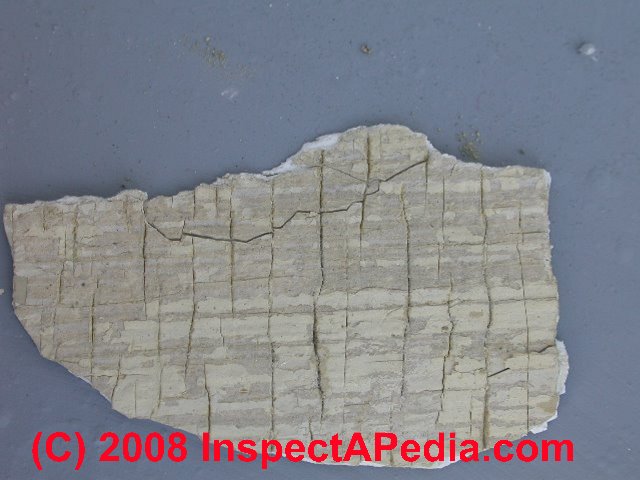

Site 071 back surface of failed paint chip can be examined for evidence of failure cause

Photograph of paint failure details

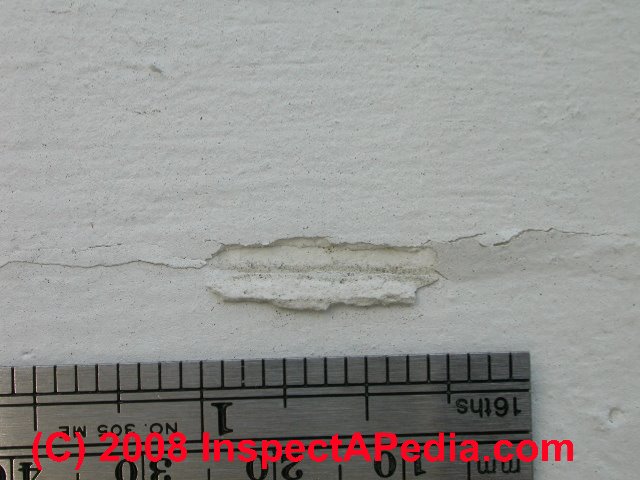

Site 078 example of failure in skim coat painted surface

Photograph of paint failure details

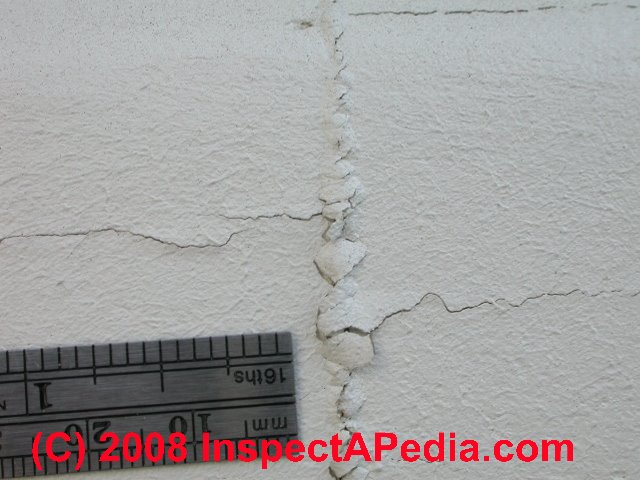

Site 079 example of failure of skim coated over clapboard butt joint

Photograph of paint failure details

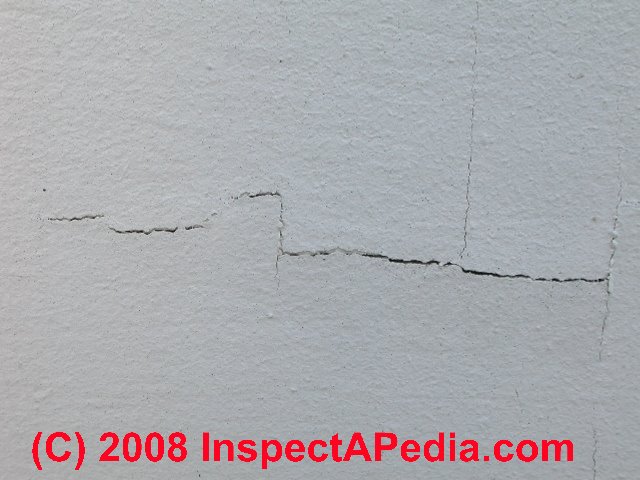

Site 081 example of horizontal cracking in coating applied over clapboards before painting

Photograph of paint failure details

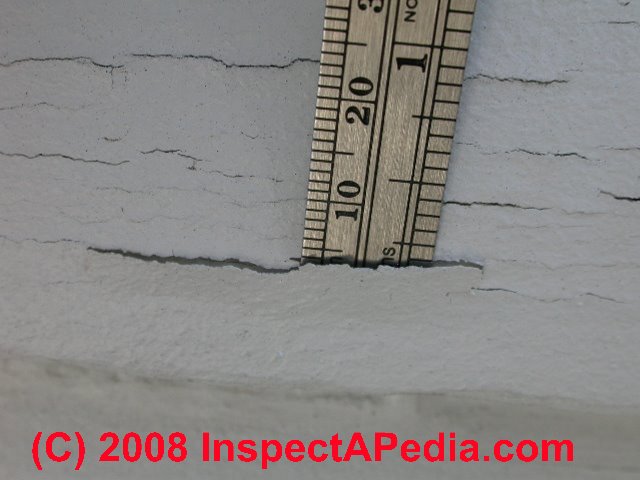

Site 083 probing multiple cracks in painted surface

Photograph of paint failure details

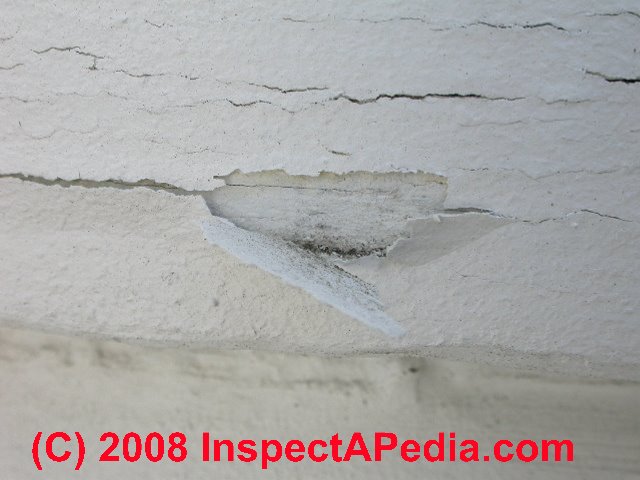

Site 084 new paint adhesion failure over skim coat

Photograph of paint failure details

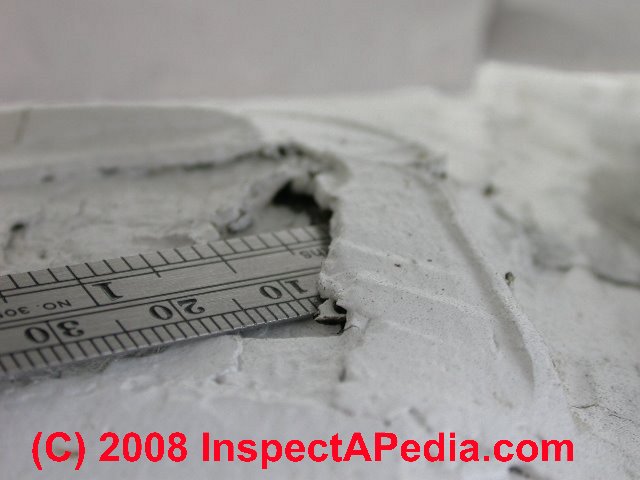

Site 091 example of thick skim coat over loose old paint

Photograph of paint failure details

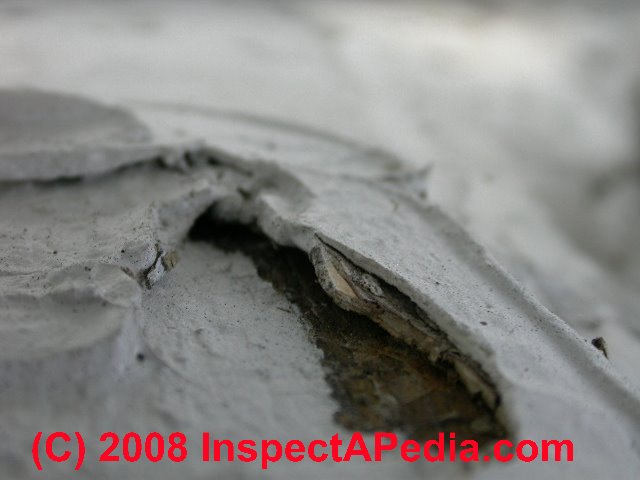

Site 092 example of thick skim coat over loose old paint - detail

Photograph of paint failure details

Site 095 measuring long horizontal crack failure in painted building exterior

Photograph of paint failure details

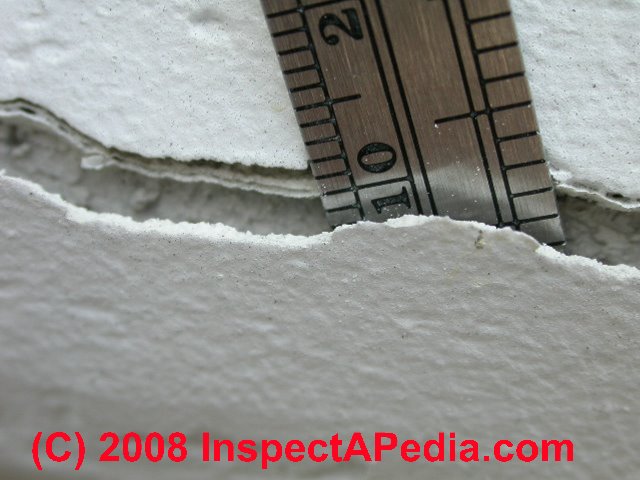

Site 096 probing horizontal crack in painted skim coat on building exterior - to 10mm of loose paint

Photograph of paint failure details

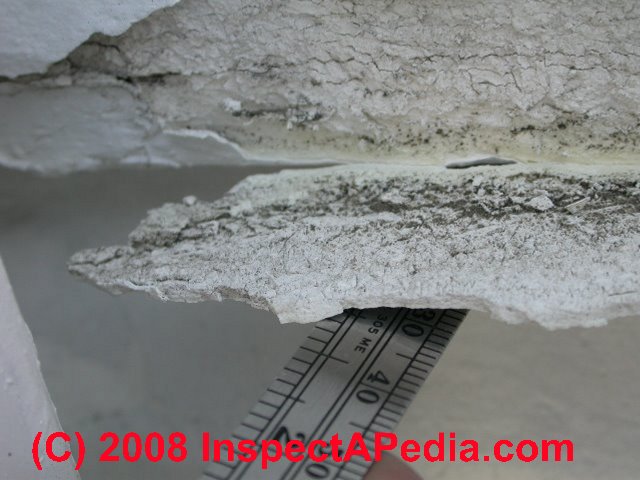

Site 097 crumbling skim coated crack filler on building exterior leads to paint failure; note dirt and debris, possibly mold growth between layers of material

Photograph of paint failure details

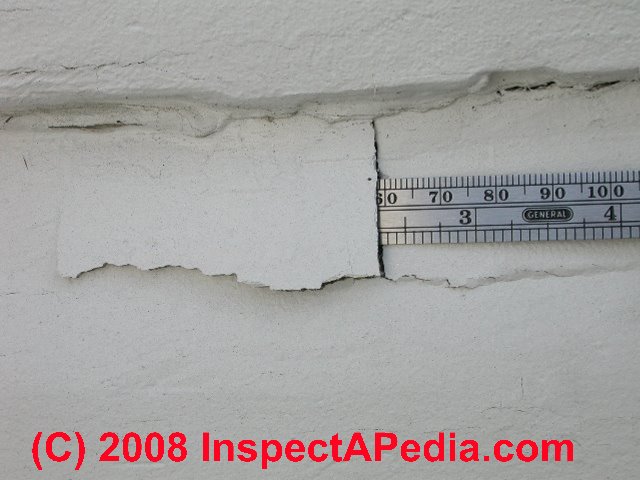

Site 100 probing horizontal and vertical paint crack failure

Photograph of paint failure details

Site 101 paint failure example on building exterior wall

Photograph of paint failure details

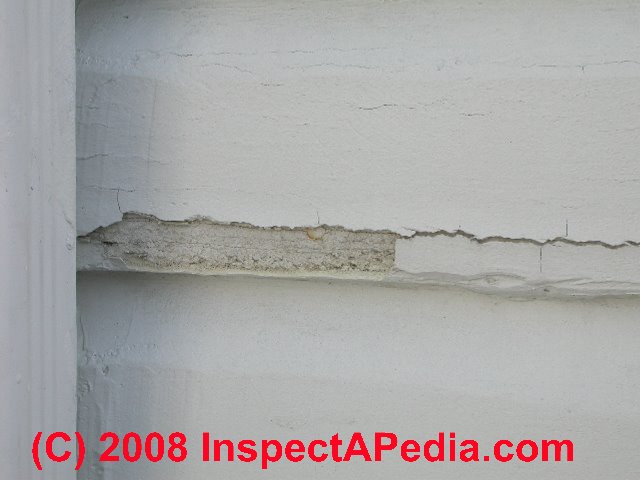

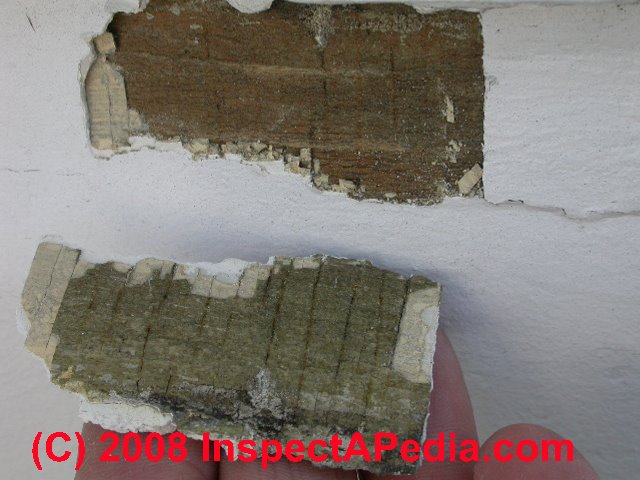

Site 106 paint failure example - paint falling off of building over skim coat

Photograph of paint failure details

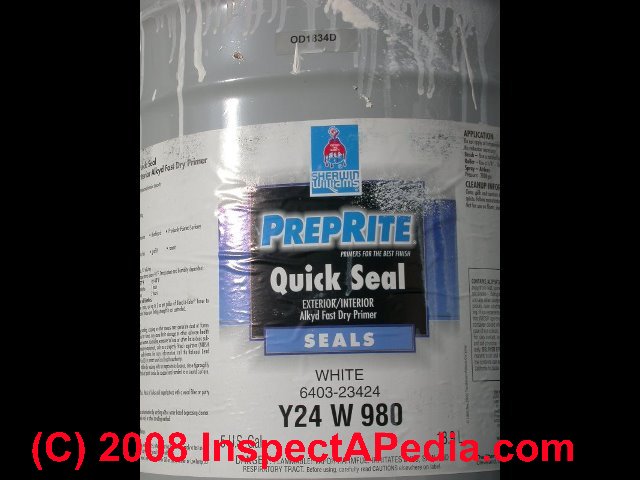

Site 109 one of the paint products used - the skim coat of crack filler (Sherwin Williams C-70 not applied according to manufacturer's instructions) was the root cause of paint failure on this building, not the choice of primer nor top coat of paint.

Photograph of paint failure details

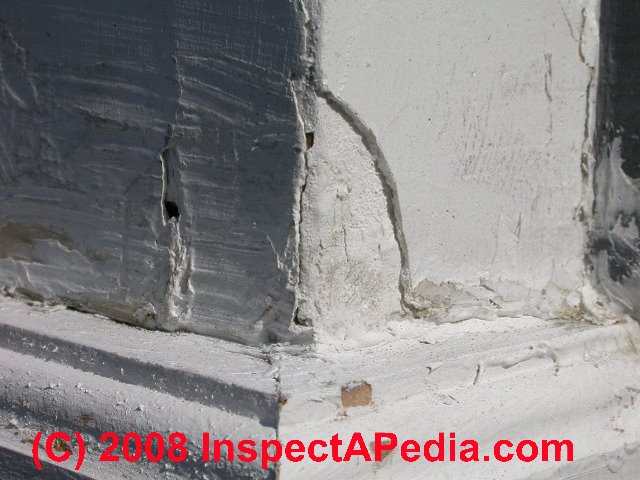

Site 123 skim coat and paint failing over building trim

Photograph of paint failure details

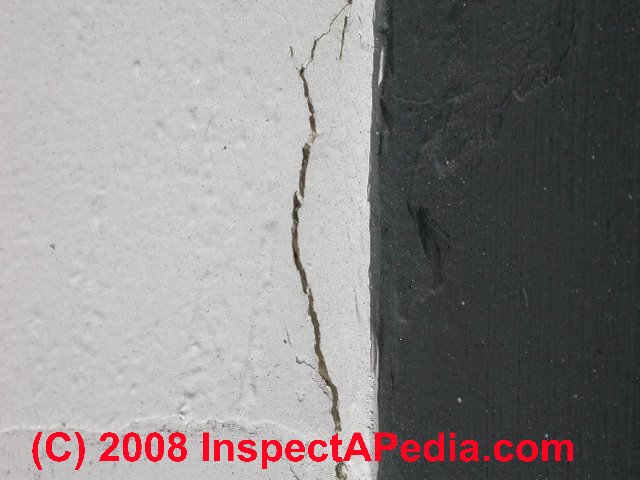

Site 124 skim coat and paint failing over building trim

Photograph of paint failure details

Site 128 skim coat and paint failing over building trim

Photograph of paint failure details

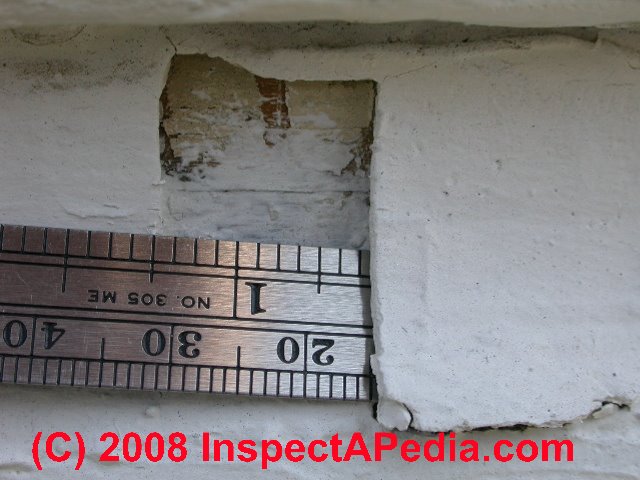

Site 130 probing thick skim coat failure - note older paint remaining adhered to surface - area was "touched up" after peeling paint began

Photograph of paint failure details

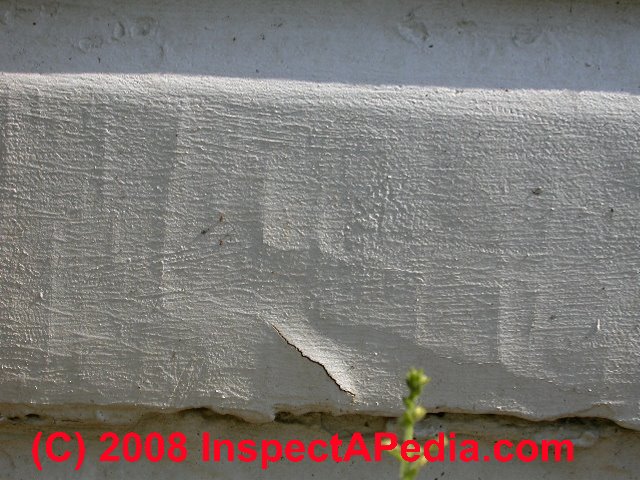

Site 146 sidelight shows skim coating over irregular alligatored and cracked loose paint on clapboards - failing within 90 days of application

Photograph of paint failure details

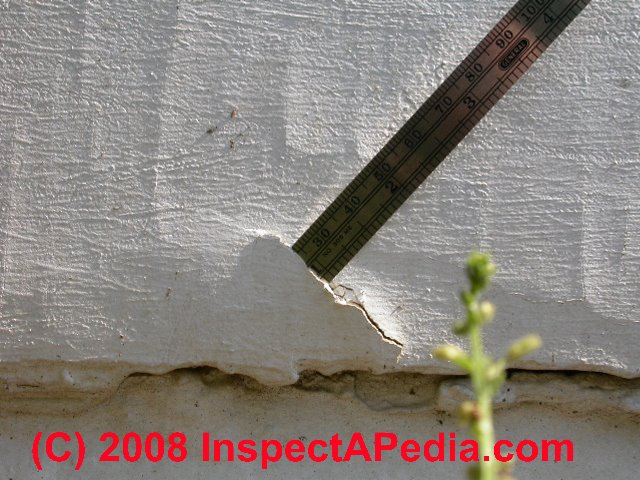

Site 147 sidelight shows skim coating over irregular alligatored and cracked loose paint on clapboards - failing within 90 days of application

Photograph of paint failure details

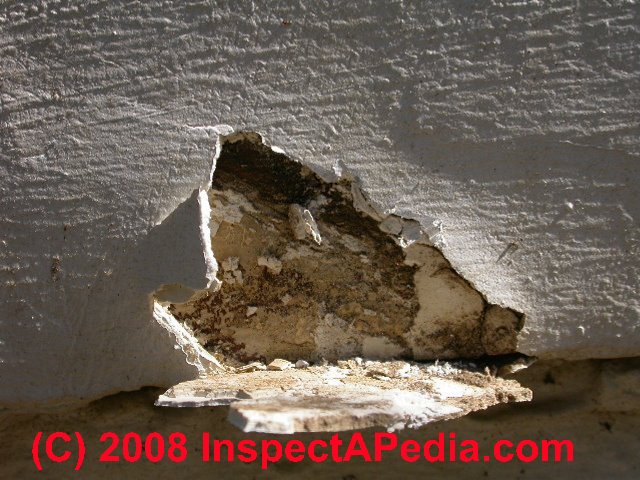

Site 149 crumbling skim coating painted-over is failing and releasing paint from surface

Photograph of paint failure details

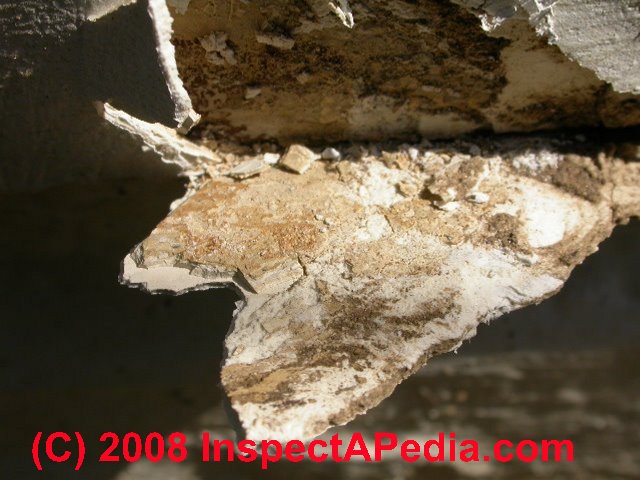

Site 150 crumbling skim coating painted-over is failing and releasing paint from surface

Photograph of paint failure details

Site 154 typical example of multiple shrinkage cracks in skim coat applied to building exterior as a shortcut where surface preparation was omitted

Photograph of paint failure details

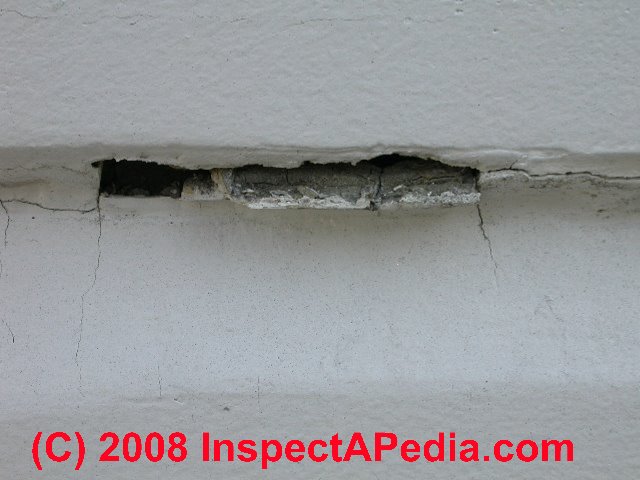

Site 156 skim coat and paint failure below clapboard edge

Photograph of paint failure details

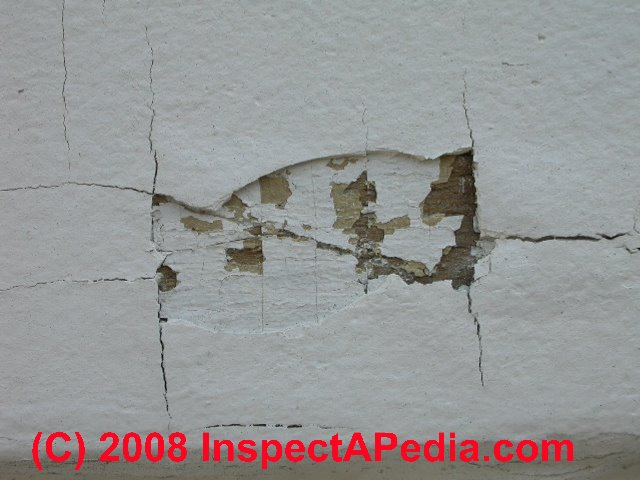

Site 157 paint failure showing older adhered paint layer below confirms that interior building moisture was not a prime cause of lost paint on this surface

Photograph of paint failure details

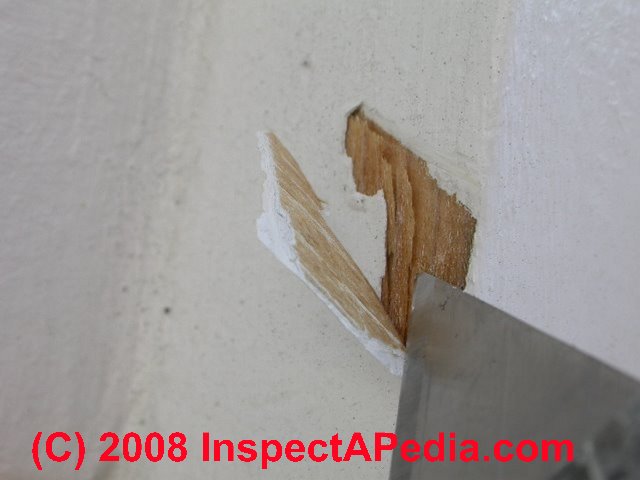

Site 161 test cut to bare wood

Photograph of paint failure details

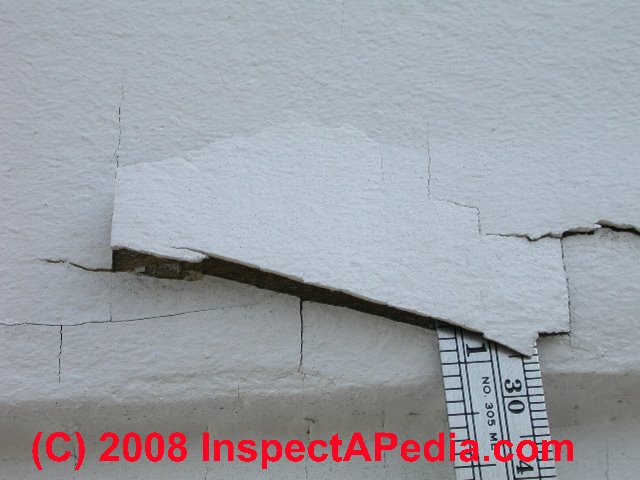

Site 172 probing failing paint on building exterior walls

Photograph of paint failure details

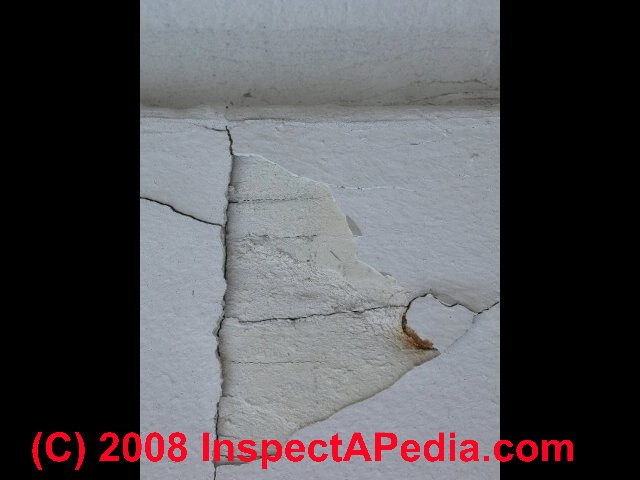

Site 177 probing failing paint on building exterior walls

Photograph of paint failure details

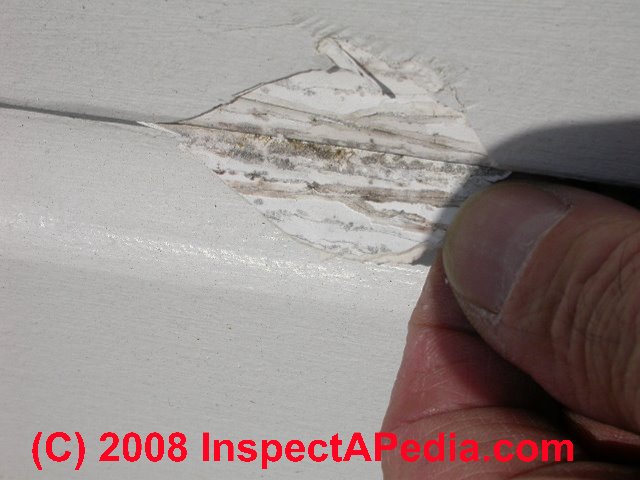

Site 182 probing failing paint on building exterior walls - note mold growth on back of paint chip

Photograph of paint failure details

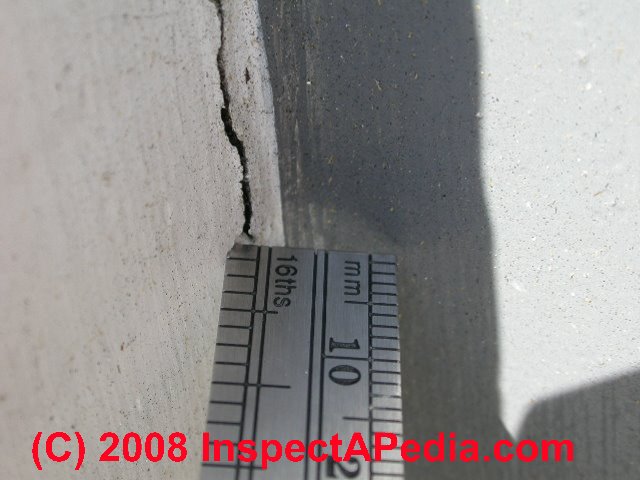

Site 185 documenting thickness of skim layer

Photograph of paint failure details

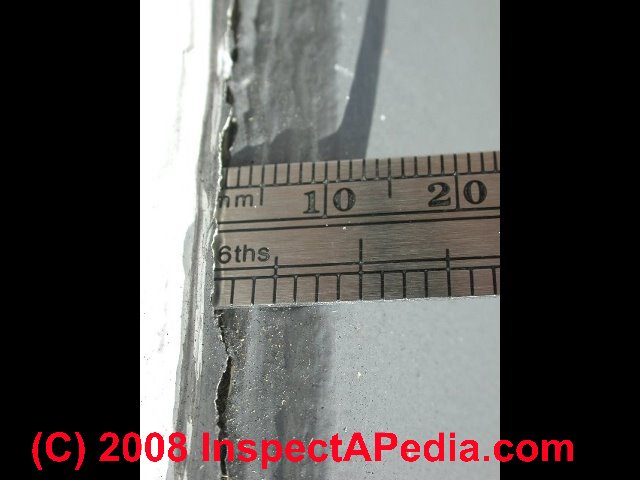

Site 189 documenting depth of skim layer on trim

Photograph of paint failure details

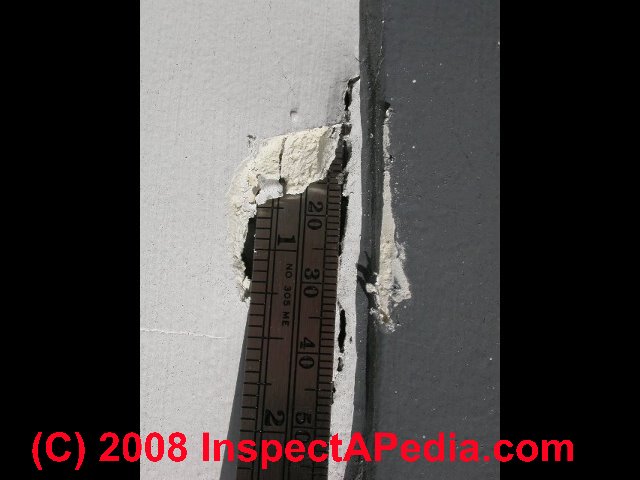

Site 192 documenting condition of failing paint coating on building exterior trim

Photograph of paint failure details

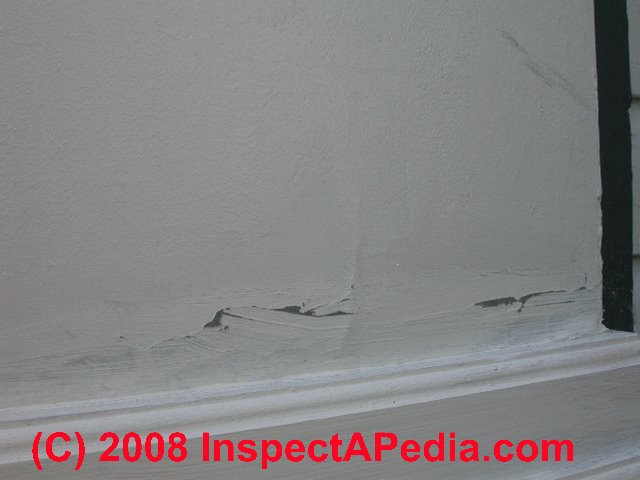

Site 195 documenting condition of failing paint coating on building exterior trim

Photograph of paint failure details

Site 201 documenting condition of failing paint coating on building exterior trim

Photograph of paint failure details

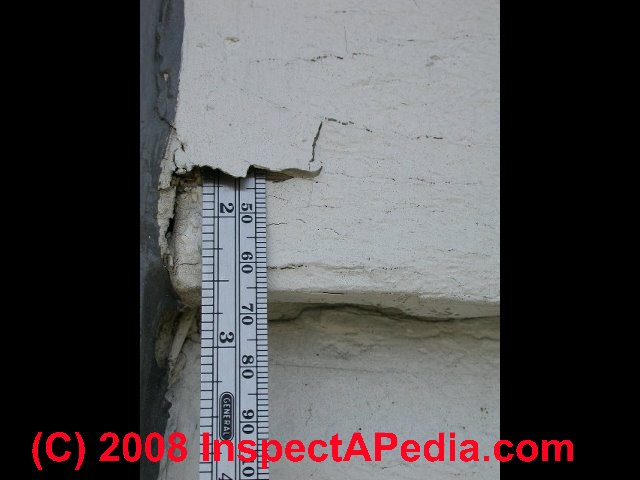

Site 203 documenting condition of failing paint coating on building exterior trim

Photograph of paint failure details

Site 205 documenting condition of failing paint coating on building exterior trim

Photograph of paint failure details

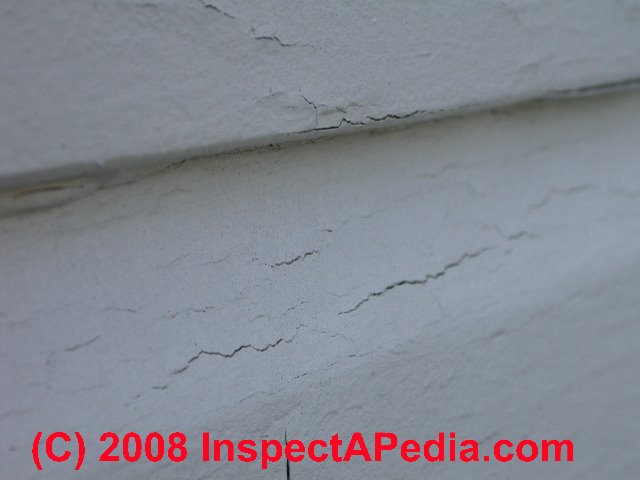

Site 208 typical horizontal crack failures in exterior paint coating on wood clapboards - paint applied over C-70 skim coat

Photograph of paint failure details

Site 211 typical paint failures in exterior paint coating on wood clapboards - paint applied over C-70 skim coat

Photograph of paint failure details

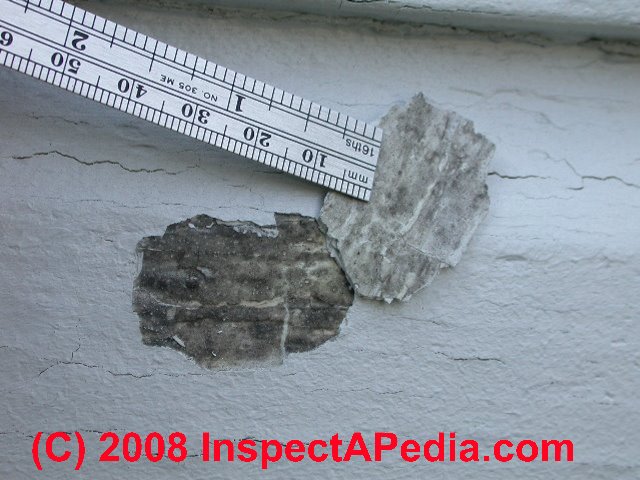

Site 212 mold on back of paint chip can indicate inadequate surface cleaning prior to painting but in this case it is primarily due to moisture penetration of the paint layers

Photograph of paint failure details

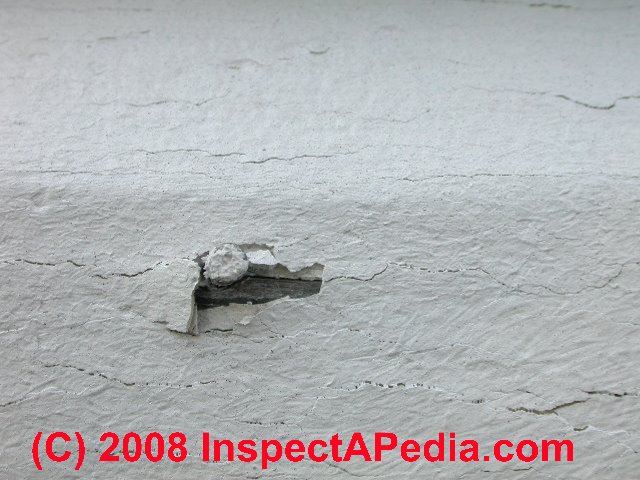

Site 219 cracking exterior paint over skim coat

Photograph of paint failure details

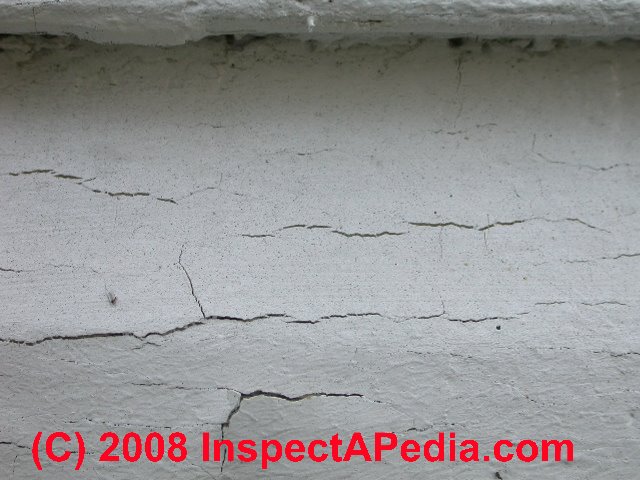

Site 220 cracking exterior paint on wood wall

Photograph of paint failure details

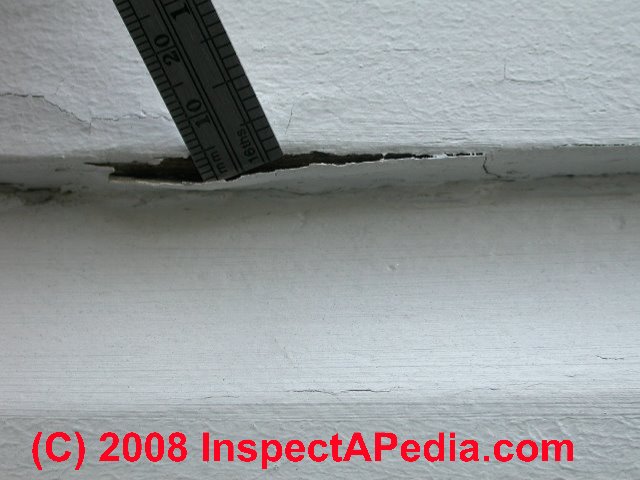

Site 222 probing loose exterior paint

Photograph of paint failure details

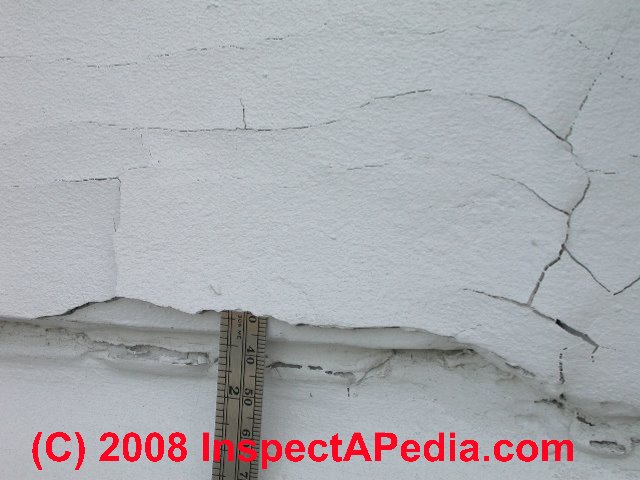

Site 242 probing loose exterior paint

Photograph of paint failure details

Site 243 probing loose exterior paint

Photograph of paint failure details

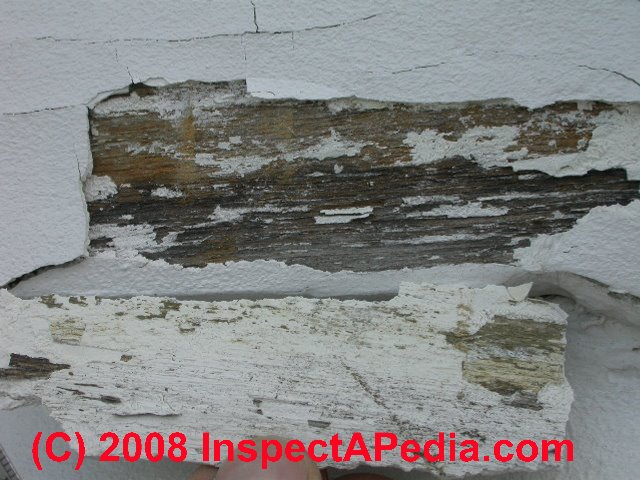

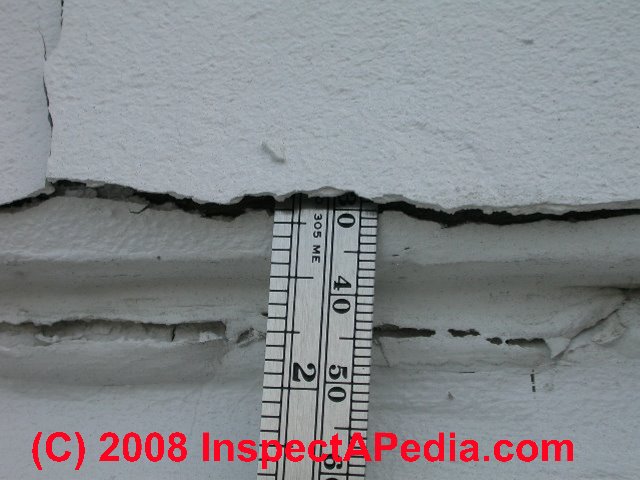

Site 245 probing loose exterior paint

Photograph of paint failure details

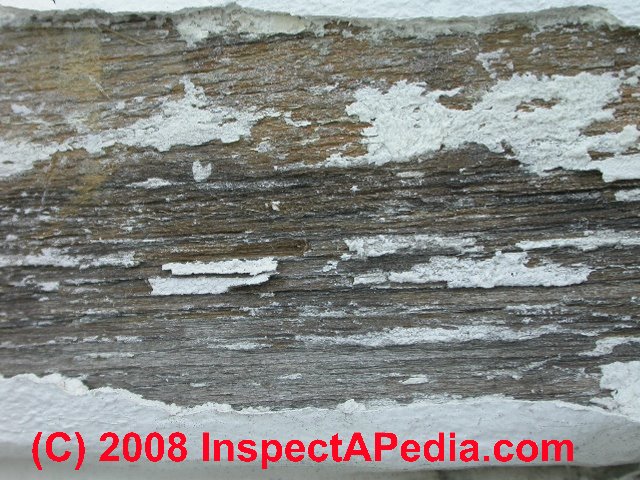

Site 246 probing loose exterior paint

Photograph of paint failure details

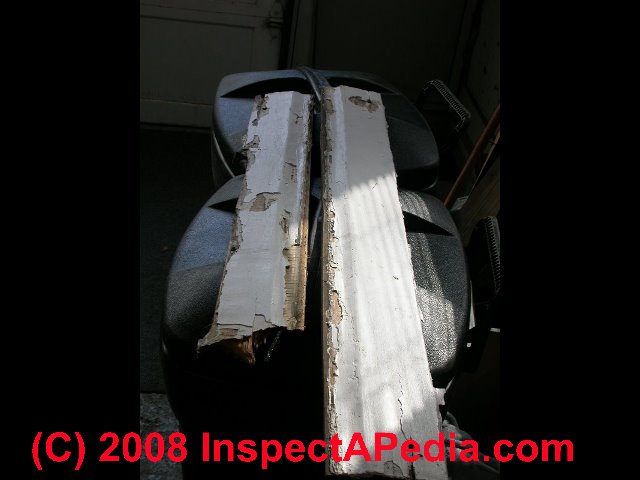

Site 281 test boards preserved from building exterior demonstrate improper surface preparation and skim coat basis of extensive paint failure

Photograph of paint failure details

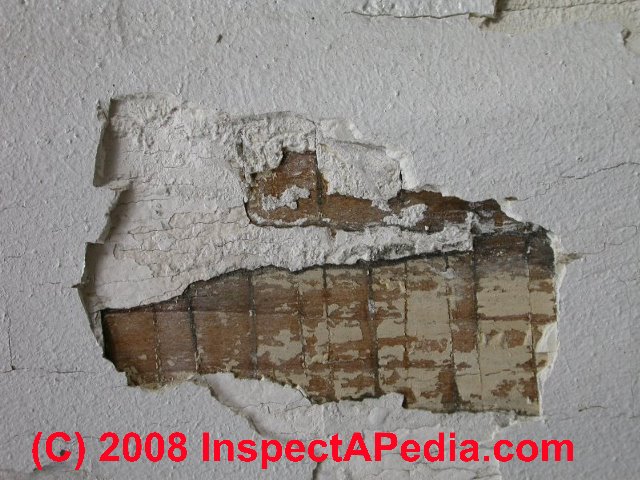

Site 282 test boards preserved from building exterior demonstrate improper surface preparation and skim coat basis of extensive paint failure

Photograph of paint failure details

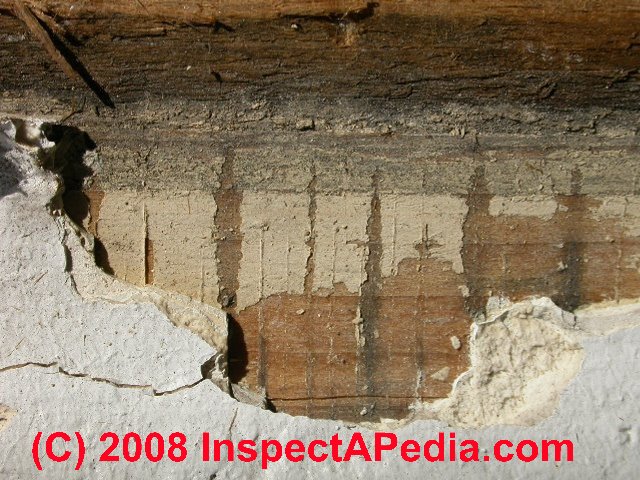

Site 288 test boards preserved from building exterior demonstrate improper surface preparation and skim coat basis of extensive paint failure

Photograph of paint failure details

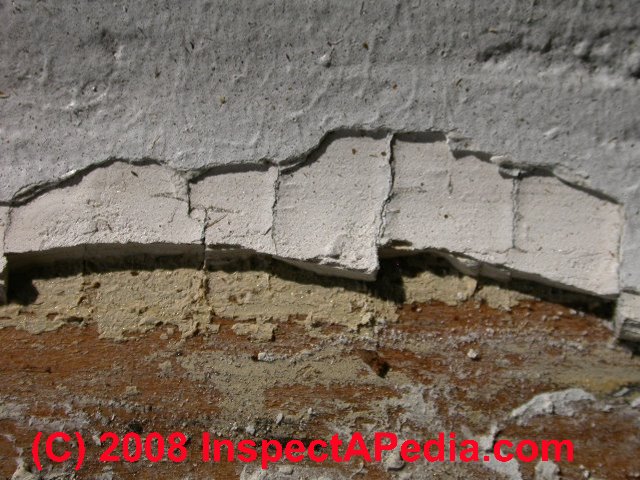

Site 289 test boards preserved from building exterior demonstrate improper surface preparation and skim coat basis of extensive paint failure

Photograph of paint failure details

Share this Article

...

Technical Reviewers & References

Use links just below or at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

PAINT & STAIN GUIDE, EXTERIOR
PAINT FALURE, DIAGNOSIS, CURE, PREVENTION
PAINT FAILURE CHECKLIST
  PAINT FAILURE - EXTERIOR CLUES
  PAINT FAILURE - INTERIOR CLUES
  PAINT FAILURE - SITE HISTORY of
  PAINT FAILURE INDICATORS
COMMON PAINTING MISTAKES
  PAINTING MISTAKE - BAD SURFACE PREP
  PAINTING SHORTCUT ERRORS
  PAINTING OVER MOISTURE
  INCOMPATIBLE PAINTS
  PAINTING in SUN or WIND
  PAINT on STUCCCO, FAILURES
PAINT FAILURE DICTIONARY
PAINT FAILURE ANALYSIS LAB PHOTOS
Paint Failure Case Photographs-SITE
Paint Failure Case Photographs-LAB

PAINT LAB SAMPLE PREPARATION

Books & Articles on Building & Environmental Inspection, Testing, Diagnosis, & Repair

  • Our recommended books about building design, inspection, and repair, and about indoor environment testing, diagnosis, and cleanup are at the InspectAPedia Bookstore.
  • ...
PAINT & STAIN GUIDE, EXTERIOR

More Information

InspectAPedia TM Home & Site Map
Air Conditioning & Heat Pumps
Bookstore
Electrical
Environment
Exteriors
Heating
Home Inspection
Insulate Ventilate
Interiors
Mold Inspect/Test
Plumbing Water Septic
Roofing
Structure
Accuracy & Privacy Policies
Contact Us

More Information on Building Diagnostic Inspections and Repairs

    ...
InspectAPedia.comInspectAPedia® Home & Site Map - Building & Environmental Inspection, Testing, Diagnosis, Repair, & Problem Prevention Advice: In-depth research & advice on diagnosing, testing, correcting, & preventing building defects & indoor environmental hazards. Unbiased information, no conflicts of interest.
GO TO the MOLD and INDOOR ENVIRONMENT INFORMATION CENTER for in-depth advice on avoiding testing for or cleaning up mold and other indoor environmental hazards, odors, gases, contaminants
The Mold Information Center:
What to Do About Mold in Buildings, When and How to Inspect for Mold, Clean Up Mold, or Avoid Mold Problems
GO TO MOLD TEST KITS: This expert-recommended mold test kit is cheap and yet top performing *IF* you use a competent analysis laboratory!
Use this simple, economical mold test kit
by following our instructions on how to collect and mail mold samples to our lab
GO TO IAQ/MOLD-TEST LAB SERVICES: Mold, Pollen, indoor air quality, field and laboratory services by an expert.Environmental Inspection, Testing, & Diagnosis On-Site IAQ, Gas, Air Testing, Mold Investigation, Sick Building Diagnosis, Lab Services, & Remediation Plan Preparation - indoor air quality testing, problem source determination, supporting lab work, written remediation plan addressing removal of environmental and other hazards and prevention of their recurrence.
GO TO our PRE PURCHASE BUILDING INSPECTION SERVICES: Authoritative information for home buyers and home owners is included with your inspection.
Building Inspection, Problem Diagnosis
, Forensic Investigation & Testing, Repair Consulting

CONTACT Daniel Friedman - Dan is a senior ASHI home inspector, nationally recognized expert on building inspection, building failures, and sick building investigation
Contact Daniel Friedman for website content suggestions or for fee-paid consulting

02/25/2010 - 10/09/2006 - InspectApedia.com/Paint Failure/Paint_Photos.htm - © 2010 - 1988 Copyright Daniel Friedman All Rights Reserved - InspectAPedia® is a Registered U.S. Trademark
