Winder stairs, angled, or curved stair specifications: this document defines winder stairs refers to building code specifications, construction specs, and inspection details for winder, curved or angular stairs: stairs that make a turn without a landing. We include sketches, photographs, and examples of defects used in inspecting indoor or outdoor stairs, railings, landings, treads. The angled stairs shown at page top are not "winders" but also involve irregularly-shaped stair treads. That photo shows angled stair treads squeezing a stairway onto a New York City sidewalk.

Definition of & Specifications for Winder Stairs - Angled or Curved Steps & Stairways

Definition & Properties of Winder Stair Hazards

Winder Stairs with Dangerous Railing (C) Daniel Friedman San Miguel de Allende 2012

"Winder" or "curved" stairs refer to stairways that make a turn without including an intermediate landing or platform to provide a flat rectangular turning space. Angled or curved or winder stair treads are a particular trip hazard, especially because of the lack of uniformity and because the tread width at the inside of the angle curve can be too small for safe walking.

Definition of Winder Stairs

Any stairway whose treads do not have parallel edges - IRC R-202 - [14a]

By this definition a circular or spiral stair or curved stair is a winder stairway. What's different, then between a circular stair and a more generic winder stair? Check the photos and descriptions of circular stairs and spiral stairs just above.

Winding or spiral stairways must have a handrail to prevent use of areas where the tread width is less than 6 inches (15 cm).

CA/OSHA Title 8 Section 1626 [paragaraph (1) provides:

1926.1052(c)(2) Winding and spiral stairways shall be equipped with a handrail offset sufficiently to prevent walking on those portions of the stairways where the tread width is less than 6 inches (15 cm).

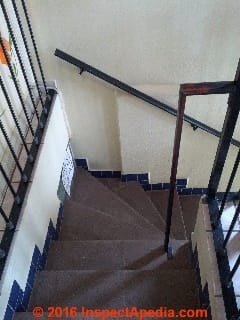

Watch out: we have on occasion seen placement of handrailings close to the origin of turning axis of winder stairs, such as shown by the red arrows in our photograph at left.

This stair installation has no graspable handrailing along the left side of the upper portion of the stairway. So the very handrail intended to prevent use of the too-small tread area actually does not form a barrier along those treads (it is installed on the last rectangular tread above the triangular steps) and worse, because of the lack of anything else to grasp, the walker actually has to hold on to a guard or rail that directs him or her to step precisely where we don't want - on the tiniest part of the tread.

The building owners added the vertical grab-bar and short "handrailing" shown (orange arrow) in our photo. Indeed this gives the stairway user something to grasp on-to.

Unfortunately it also directs the descending or ascending stair user to walk along the inside (red arrow) of several triangular stair treads.

By mounting the graspable handrail close to the innermost point or origin of the winder stair (or circular or spiral stair) turn, you encourage or even force stairway users to walk on the smallest (and most hazardous) portions of the stair treads.

Limits on Number of Winder Stair Turns

Stairway Lighting requirements (C) Carson Dunlop

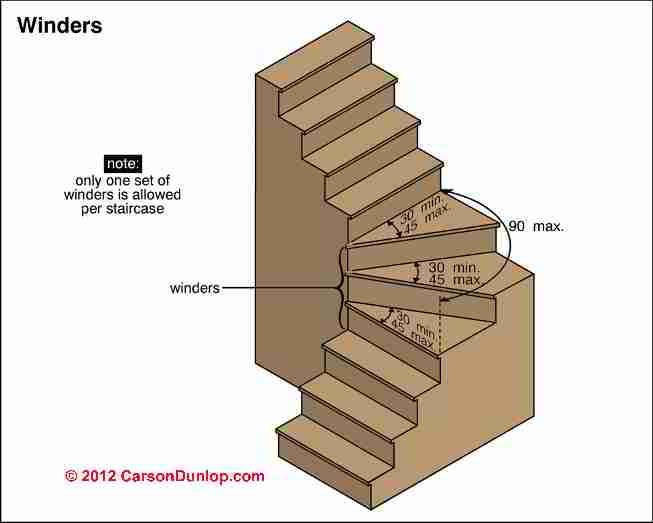

Stairway winders As the sketch, courtesy Carson Dunlop, shows, only one set of winders should be allowed in a staircase, and the dimensions shown address tripping hazards.

This sketch shows the minimum tread width and radius for curving stair treads such as the stairs in our photograph above.

In our sketch below you can see that a 90 degree turn is effected by three sequential triangular stair treads. Walking near the inside corner of this turn is difficult because of the irregular and small step area. At right are stairs that make a 90 degree turn accomplished over the rise of the entire stairway. In either case, there is no intermediate landing.

For a complete list of articles on stairs, railings, and ramps, their inspection, trip hazards, and good design, see STAIRS, RAILINGS, LANDINGS, RAMPS - INSPECTIONS, CODES. Also see Building Safety Hazards Guide. Here we include references to key documents on building codes and stair and railing safety.

In sum, stairway winders or turns involve triangular treads to complete the turn as you can see in our photo at right (note the handrail which is not grasp-able and not child safe).

As the sketch above left shows, courtesy Carson Dunlop, in a staircase that actually makes a 90 deg. turn (as opposed to the curved stair at right) only one set of winders should be allowed in a staircase, and the dimensions shown address tripping hazards.

Photos of Unsafe Winder or Angled Steps & Stairs

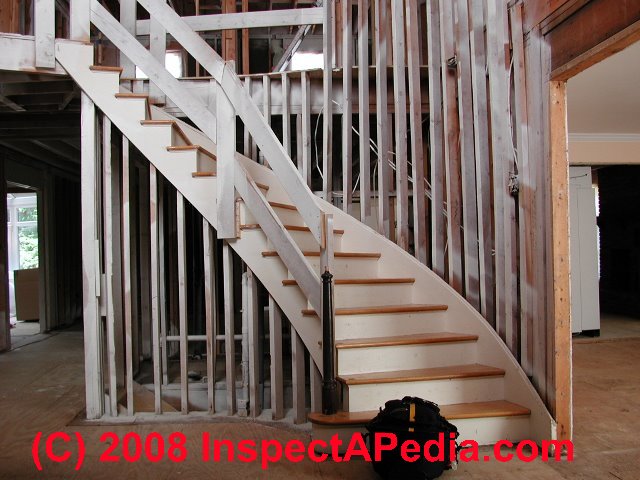

Of course more turns may be involved in a stairway, such as a circular stair. Our photos below illustrate two very steep winding attic access stairways. At below left, storing items on the stairs is of course another trip/fall hazard, while at below right you will note that the vertical stair ascent is so steep as to nearly comprise a ladder - a difficult stair to negotiate, exacerbated by the absence of any grab rail.

Bad attic access - clutter (C) Daniel Friedman

Narrow turning attic access stair (C) D Friedman

Angled Stairs Trip & Fall Hazards

Angled stairs in Manhattan (C) Daniel Friedman

Our stair photo at shows tricky angled stairs that were squeezed onto a sidewalk in New York City. A passerby agreed to model the risk of falling.

In our OPINION the crypto-trip hazard at angled stairs such as these is the fact that the stair treads and noses are not parallel to the direction of travel. This hazard is similar to circular or winder stair hazards but without the too-small tread walking area.

But walking down these stairs in the direction guided by the handrail requires the user to step on stair tread noses that are on an angle to the direction of travel, inviting a twisted foot or ankle or possibly a fall.

...
