2. RATED COOLING CAPACITY - How to Determine Air Conditioning Equipment Rated Cooling Capacity

The cooling capacity of an air conditioning system is expressed in BTU's or tons. One ton of cooling capacity equals 12,000 BTU's/hour of cooling capacity.

"One ton" of cooling capacity, historically, referred to the cooling capacity of a ton of ice. Tons of ice does not explain a key ingredient in the comfort produced by air conditioning systems, dehumidification of indoor air - that is, taking water out of the air.

Cool air can hold less water (in the form of water molecules or gaseous form of H2O) than warm air. Think of the warmer air as having more space between the gas molecules for the water molecules to remain suspended.

When we cool the air, we in effect are squeezing the water molecules out of the air. When an air conditioner blows warm humid building air across an evaporator coil in the air handler unit, it is not only cooling the air, it's squeezing out some of the water in that air. Both of these effects, cooler air and drier air, increase the comfort for building occupants. Sketch courtesy of Carson Dunlop

There are several ways to determine the rated cooling capacity of an air conditioning system's equipment:

Air Conditioning Equipment Age and Capacity from Equipment Numbers

Serial number formats vary by range of years over which equipment was manufactured, and may vary among countries of manufacture for a given company's equipment, for example between the U.S. and Canada for Carrier air conditioning equipment.

Example: a Carrier Compressor/Condenser Serial# 1389E54894 on a compressor unit.

Air conditioning equipment age from serial number for the example above, the equipment was made after 1980. The first four digits of the serial number are week and year of manufacture, in this case, week 13 of 1989.

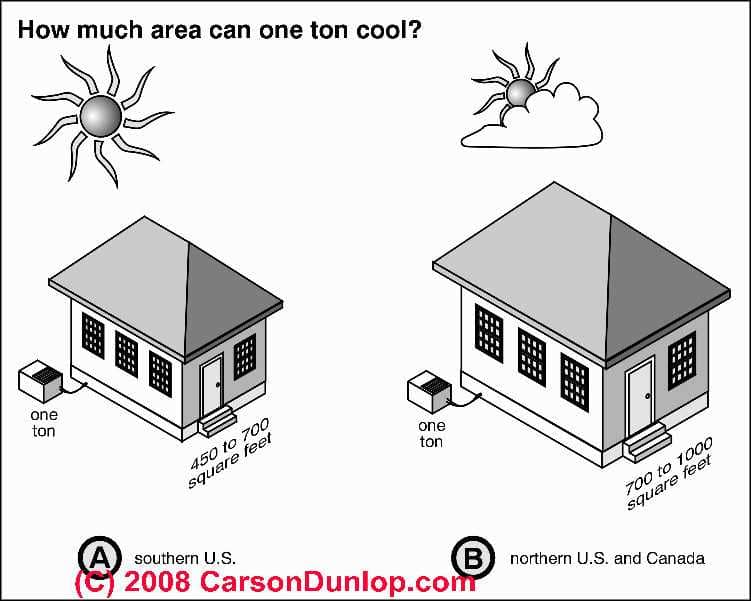

See AIR CONDITIONER BTU CHART for a guide to selecting an air conditioning system with the proper cooling capacity in tons or in BTUs. Sketch courtesy of Carson Dunlop

FROM MODEL # - Air conditioning equipment capacity from model number

Example: Carrier A/C Compressor Condenser Model# 38XD12400 (same unit as used for the serial number example above), there is variation in how Carrier assigned these numbers but typically the numbers indicate either tonnage or MBTUH. This example has digits in the 4th and 5th positions (right hand 5 digits), so the rating is in MBTUH for this number and "24" signifies 24 MBTUH or 2 tons of capacity.

Be sure to review our article on how to read the data in A/C DATA TAGS for a guide to reading the system cooling capacity either directly off of the sticker on the equipment, or for examples of how to find them model number which can be de-coded into cooling capacity and other features.

A Reference Guide to Heating and Air Conditioning Equipment model numbers, serial numbers, age, and capacity: at Carson Dunlop's  -  Technical Reference Guide, published by Carson Dunlop Weldon & Associates, Ltd., Toronto, 2006 for a $69.00 book which translates air conditioning equipment model numbers and serial numbers into date of equipment manufacture and rated BTUH capacity.

FROM EQUIPMENT RLA # - Air Conditioning Equipment Capacity from Equipment RLA Numbers

RLA Rule of Thumb: RLA, Rated Load Amps, or in some older texts, mis-named as "Running Load Amps" is the manufacturer's specified rated current draw when the equipment is operating, excluding the current draw during startup, but when the compressor is under load.

On a single-phase 240V circuit feeding an A/C compressor/condenser unit, the equipment will draw typically 5 to 6, (7 in some cases) RLA per ton of cooling capacity. So if the data tag on a compressor shows its RLA rating=21.2 I would rate the system as 21.2/7=3 Tons. Translating Tons into BTUH, 3tons x 12 MBTUH/ton = 36,000 BTUH estimated Cooling Capacity. Details of this and related calculations are in the "Guide" book cited above.

COOLING RULES OF THUMB - determining Cooling Capacity Requirements - Rules of Thumb

A home inspection does not involve the calculations of heat gain necessary to decide if the cooling capacity on a building is adequate, but the inspector is expected to examine and report on the rated system capacity (such as "36,000 BTUH") and on the presence or absence of cooling sources in the habitable rooms of the building.

Air conditioning capacity requirement:

A simple rule of thumb for relatively cool climates such as the Northeastern United States: one ton per 400 sq .ft. (Commercial) or one ton per 500 to 1000 sq .ft. (Residential)

Or we estimate an air conditioning requirement of one ton per 400 to 800 sq .ft. for Space Pak Systems.

Or a 3000 sq .ft. house may require a 5-ton unit. Or count the supply outlets: 10 outlets @ 100 cfm (estimated) = 1,000 cfm = 2.5 tons needed.

Do not buy an air conditioner that has more tons or BTUs of capacity than you actually need.

Oversized Air Conditioning Systems: Can an air conditioning system have too much capacity?

Yes. If a system is over sized for a building it may be able to drop the indoor temperature so rapidly that the cooling cycle is too short to permit adequate reduction in the humidity level. Remember that indoor comfort is a function of both temperature and relative humidity.

Also, since an oversized air conditioning system will be cycling on and off more frequently, not only is the building actually less comfortable (temperatures are swinging up and down unnecessarily quickly and frequently) but it may also be harder on the equipment, thus shortening its life.

Turning electric motors on and off is hard on them.

If the "on cycle" of the A/C system seems unusually brief, or if the indoor humidity is not dropping this question merits further investigation. Sketch courtesy of Carson Dunlop.

How to Determine BTUs or Tons of Cooling Capacity of an Air Conditioner from its Data Tags

See RATED COOLING CAPACITY for an explanation of how to determine the cooling capacity of an air conditioner that is already installed at a building or go directly to these links within that article:
COOLING CAPACITY, RATED
COOLING COIL or EVAPORATOR COIL
  FROM MODEL # - how to determine the BTU capacity or Tons of cooling capacity of an air conditioner from model number
  FROM EQUIPMENT RLA # - how to determine the BTU capacity or Tons of cooling capacity of an air conditioner from the RLA number.

How Big Should My Air Conditioner Be in BTUs or Tons?

In addition to reviewing our COOLING RULES OF THUMB shown above, see AIR CONDITIONER BTU CHART for a guide to selecting an air conditioning system with the proper cooling capacity in tons or in BTUs.
