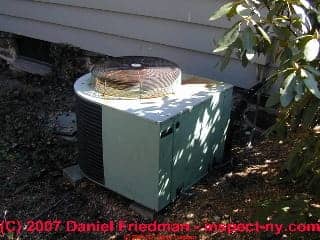

What is Involved in Air Conditioner Compressor Replacement

Replacing an air conditioner compressor is a job for a trained service technician. Not only is the compressor motor often the most costly part in the system, but it is not a simple "bolt-in" replacement. The service technician will:

• Confirm that the compressor has failed and needs replacement
• Identify the compressor model and capacity so that a proper replacement can be obtained
• Shut down the air conditioning system, including turning off electrical power
• Remove all refrigerant from the system. Modern procedures require that the refrigerant be captured rather than released to the environment in order to reduce environmental pollutants
• If the air conditioner system used a now-obsolete refrigerant such as R11 or R22, a the new compressor will be one designed to use a new, approved refrigerant and other changes may be needed to the system to accommodate this change, such as changes in thermal-expansion valves, coils, or other components. Not all components need replacement, however; ducts and blower assemblies, for example, are retained.
• The refrigerant lines are cut and the old compressor is removed.
• The new compressor is installed in place in the compressor/condenser unit (usually all of this equipment is located outside), and its refrigerant lines are connected (usually silver soldering) to the existing refrigerant lines. New coils or other controls may need to be cut out and replaced if the refrigerant is being changed too.
• A vacuum is pulled on the entire system both to evacuate all air from the refrigerant lines and compressor and to check for leaks in the system. Air contamination, if allowed to mix with the new refrigerant would change its operating characteristics and would prevent proper operation. Any water or moisture in the system is also removed and the technician may install a drier in the system to remove any trace moisture that remains behind after reassembly.
• Refrigerant is added to the system at the proper charge amount. Residential air conditioner systems, unlike commercial units, use a hermetically sealed compressor motor and there is no separate receiver to hold a large refrigerant charge, so the charge must be measured precisely (including temperature, pressure, and volume during charging) for the system to work properly. Both overcharging and under-charging refrigerants will lead to improper system operation.
• The air conditioning system, with its new compressor installed, will be re-started and checked for proper operation
