Air Conditioning (or Heating) Duct System Condition & Health/Safety Hazards

UNSAFE OPENINGS - Air Conditioning or Heating Duct System May Draw Dangerous Combustion Gases

Return air collected close to gas-fired appliance

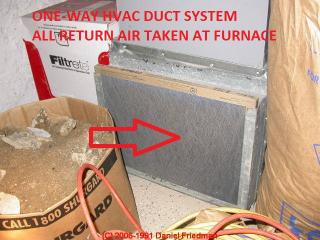

Photograph of  return in tight space next to gas fired heating boiler

Also see LEAKY DUCT CONNECTIONS for other examples of duct leaks and openings. The master document, of which this is a chapter, describes the inspection of residential air conditioning systems (A/C systems) to inform home buyers, owners, and home inspectors of common cooling system defects.

This poorly-designed central air conditioning return duct was located in a cramped basement boiler room only five feet from a large gas-fired, natural draft heating boiler.

It is a possible safety concern. When the location of the system return air duct work and air handler is such that the system may pull dangerous flue gases back out of the gas appliance flue vents, piping and into the building heating or cooling air we cite it as a potential hazard: distribution of combustion gases may be blown into the living area.

This return air location on a heating or air conditioning system is a dangerous carbon monoxide hazard.

Such a system should be examined promptly and corrected by a qualified heating professional.

Return Air Openings Near Heating Equipment

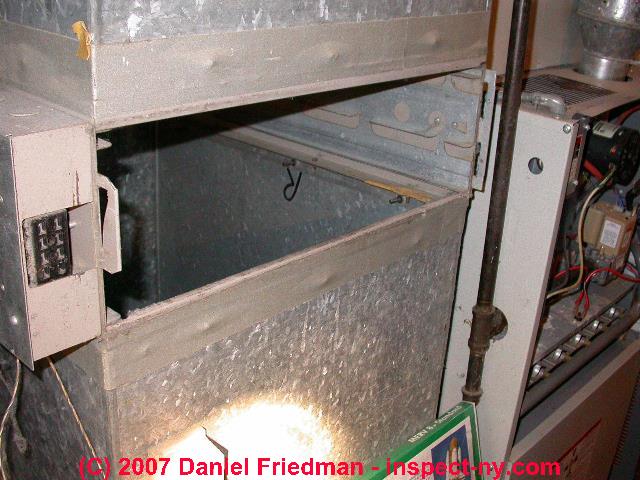

Photograph of added return air cut at basement AHU also may draw flue gases from nearby gas fired equipment

Still more common is the presence of extra openings cut into the return ducts atop a building furnace (perhaps also serving as the air conditioning blower system in cooling season).

Often these openings are added to provide more return air to a system which is not providing sufficient cooling or heating to the building.

But making return air openings right at a heating appliance, such as shown in the photo here, risks drawing combustion gases into the building air supply as well as potentially interfering with proper appliance draft and combustion.

This is the case particularly with gas fired furnaces, boilers, or water heaters, which operate at a lower and usually natural draft, but it is also a potential safety hazard with oil-fired equipment.

Flue gases from nearby heating or water heater appliances are easily drawn into the return air plenum and air handler. This would permit circulation of flue gases into the living area and can be a safety hazard which could deliver potentially fatal carbon monoxide to building occupants.

"Hidden" Duct or Air Handler Leaks

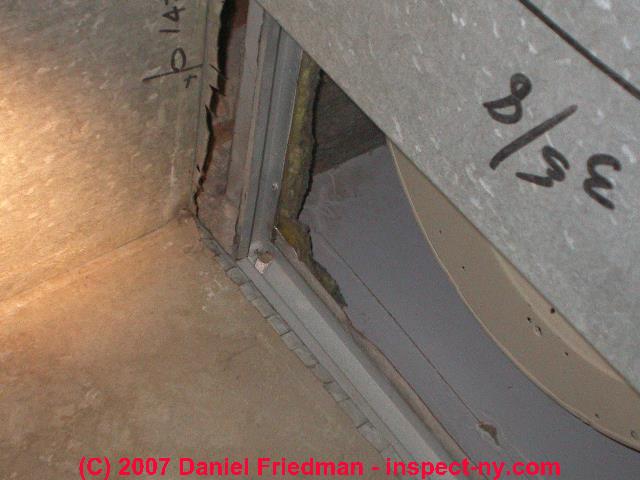

Photograph of surprise leak in basement AHU also may draw flue gases from nearby gas fired equipment Photograph of surprise leak in basement AHU also may draw flue gases from nearby gas fired equipment

Here is an interesting case of a surprise air leak into the return air plenum at a gas-fired hot air furnace and air conditioning system. We removed the (not working) electrostatic air cleaner (first photo) to look into the return plenum where we saw a large gap between the return plenum and the blower compartment (second photo).

When the gas burner was operating along with the blower (in heating mode) this opening could certainly draw un-wanted gases into the duct system and might lead to CO production too. In cooling or air conditioning mode, the blower was pulling in air from the basement (where we had a mold concern).

Photograph of surprise leak in basement AHU also may draw flue gases from nearby gas fired equipment

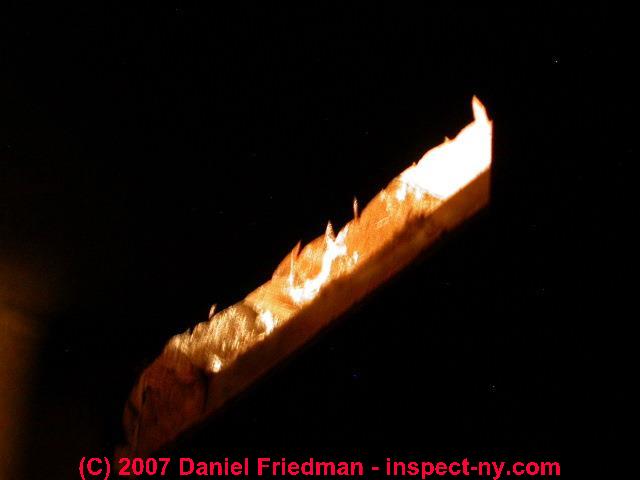

The third photo (shown here) of this surprise but quite large leak into the air duct system at the air handler was made by placing our flashlight behind the blower assembly to make it easy to see the size of the opening.

Carbon Monoxide Production Caused by Improperly Located Return Air Ducts/Registers

Return air openings close to natural-draft fired appliances, again particularly gas, can also interfere with proper gas (and possibly oil) burner operation by competing for combustion air, thus causing carbon monoxide production when the burner is operating.

If openings are found in the duct system near fossil-fuel fired appliances it should be reported as an indication of a system operating problem (inadequate return air) and as a safety hazard (potentially fatal carbon monoxide poisoning). Review this potential hazard with a qualified service professional. For example, should a stack pipe fail and flue gas be dumped into the furnace room it would be picked up and distributed throughout the building.

Sample Air Conditioning Or Heating System Report Language for Unsafe Duct Openings

Sample inspection report language:


*** Safety Hazard - additional details: when the heating system [or air conditioning system] is running and/or when other nearby heating equipment is running (such as a water heater) there is negative pressure around the furnace [or air handler unit] and at this return air inlet register, (demonstrated during our inspection by seeing the furnace blower pull the utility room door shut) risking pulling dangerous flue gases such as carbon monoxide out of the flue vent pipe and into the building heating air through the barometric damper or through other openings in the vent piping.

This item should be handled as soon as possible by an experienced and qualified heating professional - carbon monoxide poisoning is a potentially fatal safety concern.
