Sloping masonry chimney (C) Daniel Friedman

Detection & Inspection of Angled Chimney Flues
InspectAPedia®  -

  • Issues with angled chimney flues - proper cutting of clay flue tiles for an angled flue; maximum angle for sloping chimney flues
  • How to spot a sloped or angled chimney or chimney flue on a building
Our site offers impartial, unbiased advice without conflicts of interest. We will block advertisements which we discover or readers inform us are associated with bad business practices, false-advertising, or junk science. Our contact info is at InspectAPedia.com/appointment.htm.

Here we discuss the hazards of angled or sloped masonry or metal chimneys and chimney flues. This website describes chimney defects and hazards that can be observed from on-roof access, including damage to a masonry chimney top, antennas mounted on chimneys, and angled chimney flue hazards. Our photo at page top shows a chimney that was angled severely beginning at the attic floor - look there for cracks that may have opened, forming a fire and gas hazard. Also see Chimney Leaning, Separation, Movement and Curved Brick Chimneys.

This website provides detailed suggestions describing how to perform a thorough visual inspection of chimneys for safety and other defects. Chimney inspection methods and chimney repair methods are also discussed. As with most inspection and safety topics, this material may be incomplete.

© Copyright 2009 Daniel Friedman, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use links at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

Angled and Offset Chimney Flues - Specifications & Concerns with Sloping Chimneys & Flues

Offset or angled chimney flues are found in both masonry and metal chimney installations. Especially where multiple flues are routed inside of a single large masonry chimney or inside of a single wood-framed chimney chase, it should not be a surprise to discover that one or more of the appliances venting into one or more of the flues has to send its gases up at an angle to reach the final vertical section of flue in the chimney.

So look for these clues that may presage angled chimney flues that deserve further inspection:

  • Large masonry chimney with two or more internal flues, serving one or more fireplaces.
  • Large chimney chases serving two or more metal flues with one or more fireplaces installed in the building.
  • View down a large masonry chimney from roof top that shows flues angling off to fireplaces or other building flues
  • Chimneys in attics that have been excessively corbelled or leaned to one side

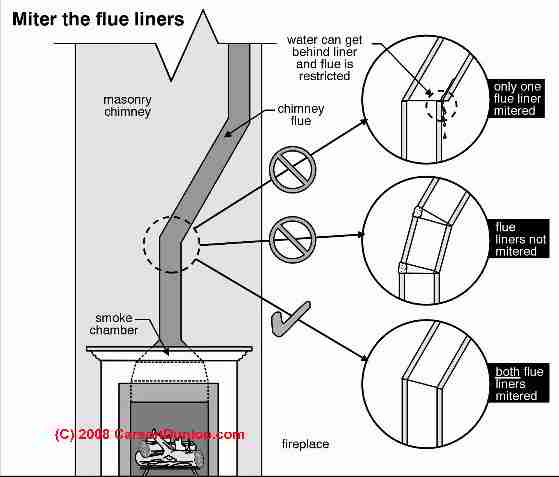

Clay flue tile liners mitered when on angle (C) Carson Dunlop

Just as we reported that a clay tile lined chimney would be difficult to clean due to projecting concrete between vertically-stacked clay chimney tiles, clay tiles need to be cut properly when constructing an angled chimney such as the one shown in Carson Dunlop's sketch.

The sketches shown at left shows the concern with proper miter joints in a sloping masonry chimney flue.

Only the bottom design, showing that the clay chimney tile was cut on an angle, is correct.

The top two designs risk both cleaning difficulties and also water, smoke, soot,or creosote leaks into the chimney structure.

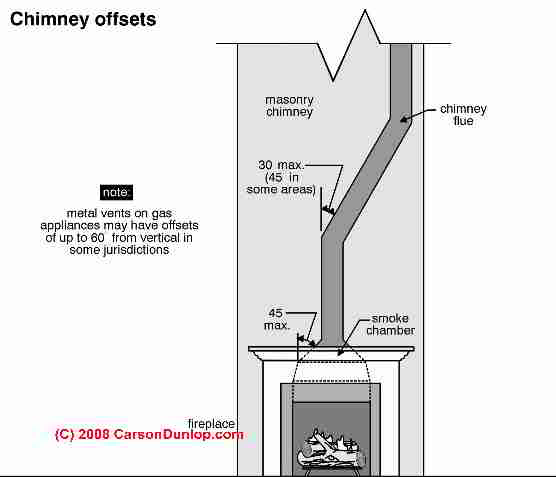

Offset flue specifications (C) Carson DunlopThe next Carson Dunlop sketch at left shows that a masonry flue is limited to 30 deg. offset, or in some jurisdictions, 45 degrees of offset while a metal flue may, in some areas, be permitted to slope to 60 degrees of offset.

In sum, concerns about angled or sloping chimneys and chimney flues include:

  • Protruding or improperly cut clay flue tile liners that leak or that obstruct cleaning
  • Too-flat low slope chimney flues may accumulate ash, soot, creosote, leading to a blocked flue and requiring extra cleaning measures
  • Metal chimney flues also cannot be sloped too gently nor for too great a distance or draft and clogging problems occur. A metal chimney might be permitted to run at angle of up to 60 deg. of slope in some jurisdictions. See Triple-Wall Metal Fireplace Chimneys for additional sketches and details about angled or sloping metal chimneys and flues.
