Detailed Indoors Chimney Inspection Checklist
Inside Chimney Defect Observations
Here is a chimney inspection checklist built from multiple contributors. Contact Us if you have corrections or additions for this chimney inspection checklist.
Watch out: no checklist can be complete, and you should never rely only on a checklist to perform a building inspection.
A checklist is useful to help avoid forgetting certain key steps, but it is always possible that other defects are present that are not on your checklist. Readers of this outdoor chimney inspection checklist should be sure to review the illustrated chimney defect and inspection procedures at Chimney Inspection Indoor Procedures.
These articles on chimneys and chimney safety provide detailed suggestions describing how to perform a thorough visual inspection of chimneys for safety and other defects. Chimney inspection methods and chimney repair methods are also discussed.
We list these observations in a order (not the only possible order) that might be followed by a visual inspection beginning outdoors and continuing indoors throughout the building, basement to attic, and including appliances or devices that vent through a chimney.
Responsibility of an Home Inspectors Regarding Chimney Inspections
The ASHI Standards require reporting on the exterior condition of a
chimney, the cap, the flue, the roof flashings and the vent connectors from the
appliances.

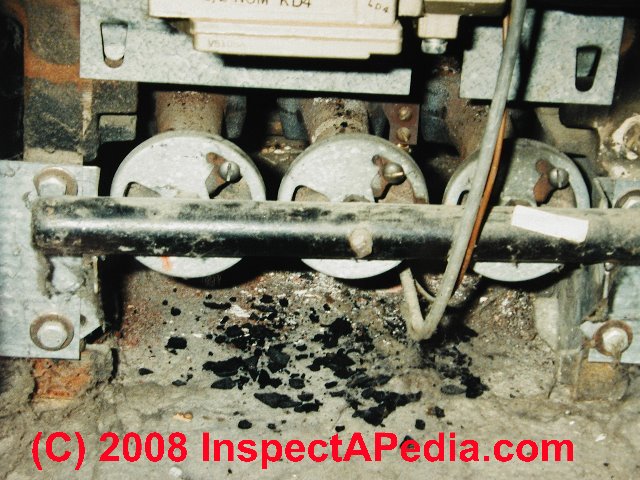

Some indoor clues (photo at left) might indicate such serious safety hazards (blocked flue, carbon monoxide poisoning) as to deserve immediate professional attention and appropriate warnings to building occupants.
This basic visual inspection can be expanded to provide a more complete
understanding of the components with concurrent recommendations to the client
for the necessary repairs.
The chimney inspectionlinks listed at Related Topics provide an encyclopedia of chimney functional and safety defects.
A starting-point indoor check list for a chimney inspection
includes the following items:
| Chimney Inspection Checklist - Indoor Observations |
| Item # |
29 Chimney Concerns or Defects observed indoors
© Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman. |
Location on Building |
Comments |
Building ID & Location: __________________________________________
Date & Time: _________________________________________________
Inspector: ____________________________________________________ |
| 1 |
Exterior chimney surface materials examined indoors for signs of leaks, cracks, damage, improperly sealed openings. Also see CHIMNEY CRACK DETECTION & DIAGNOSIS & CHIMNEY COLLAPSE Risks, Repairs |
|
|
| 2 |
Chimney Cap & top seal - if missing, leaky, or damaged, you may have spotted this from outside; inside you may see leak stains and brown or black bleed-through marks on the chimney, or bubbled, damaged plaster or drywall covering the chimney |
|
|
| 3 |
Attic observation:
Chimney construction on excessive angle (more than 30 deg) (typically viewed inside an attic) |
|
|
| 4 |
Chimney cleanout not provided (CHIMNEY CLEANOUT DOORS) |
|
|
| 5 |
Chimney cleanout door missing, ajar, not closed, not openable |
|
|
| 6 |
Chimney cleanout door close to combustibles |
|
|
| 7 |
Chimney flue - view is normally limited unless using professional chimscan type equipment, but views into the chimney from barometric dampers, draft regulators, or cleanouts can indicate chimney damage (such as pieces of chimney liner) or blockage (debris).
Look for evidence of shared flues (Shared Chimney & Shared Flue Hazards) among appliances on different floors or breaks or holes between adjacent flues |
|
|
| 8 |
Roof Flashings & leaks around chimneys (very common): inspect inside for leak stains may on chimney sides or on ceilings or even interior walls near an outside wall chimney; also look for leak stains inside fireplaces & in or on heating appliances or their flue vent connectors |
|
|
| 9 |
Chimney materials in attic with careful attention to movement, cracks, leaks, stains, gas and fire hazards |
|
|
| 10 |
Chimney materials & condition in basement with careful attention to movement, cracks, leaks, gas and fire hazards |
|
|
| 11 |
Chimney not continuous through roof (metal flues, fire-rated roof passage thimble) |
|
|
| 12 |
Chimney passages through intermediate building floors: leak stains, indications of prior and improperly sealed chimney openings, fire clearance issues - abandoned vent closures such as where a woodstove or coal stove was previously connected to the flue |
|
|
| 13 |
Multiple appliances vented into single flue: too many, inadequate draft, back-drafting, CO hazards, operating defects |
|
|
| 14 |
Chimney flue vent connectors to heating appliances: rust, holes, leaks (see Flue Vent Connectors - Boilers, Furnaces) |
|
|
| 15 |
Chimney flue vent connector has improper slope (wrong direction) |
|
|
| 16 |
Chimney flue vent connector is too long |
|
|
| 17 |
Chimney flue vent connector enters a dead end flue |
|
|
| 18 |
Flue vent connector not sealed at point of entry into chimney |
|
|
| 19 |
Flue vent connector or thimble extending too far into chimney interior (disassembly or inspection through draft regulator may be required) |
|
|
| 20 |
Clearance to combustibles especially at flue vent connectors and with metal chimneys |
|
|
| 21 |
Chimney flue conditions: mirror view inside flue when possible, via openings listed above |
|
|
| 22 |
Dead end flue, high risk of blockage |
|
|
| 23 |
Inspect heating systems for evidence of inadequate combustion air such as soot on or around gas-fired equipment (photo above) (WARNING: this is a very dangerous sign and merits immediate attention to avoid potentially fatal carbon monoxide poisoning).
Also see BOILER OPERATING PROBLEMS and also FLUE SIZE SPECIFICATIONS (undersized flue means backpressure or inadequate draft, but an over-sized flue can spell draft problems too, especially with gas-fired equipment). |
|
|
| 24 |
Combustible clearances inadequate - between metal or other flues and nearby combustibles; |
|
|
| 25 |
Fire stopping missing or inadequate (often not visible) |
|
|
| 26 |
Metal flue not rated for application - wrong flue type |
|
|
| 27 |
Metal flue sections loose |
|
|
| 28 |
Metal flue sections connected in wrong order (water leaks) |
|
|
| 29 |
Transite (cement asbestos chimneys & flues (Transite Pipe Chimneys & Flues) |
|
|
| 30 |
Evidence of abandoned chimneys, incomplete removal, collapse hazards, even hazards of attempted re-use (Abandoned Chimneys & also CHIMNEY COLLAPSE Risks, Repairs) |
|
|
| 31 |
Three-sided chimneys: Three-Sided Chimneys: Problems |
|
|
| |
|
|
|
| |
|
|
|
| Notes: |
Appropriate repairs are recommended based upon the items presented in
this article series. The inspector has to be very careful about how he/she states the
reason for the recommendation since home inspectors are seldom code authorities or
trades people and do not want to open the door to a liability action if an improper
or delayed repair is made. But failure to state a reason for a needed repair risks that the building owner, occupant, buyer may fail to recognize an unsafe condition.
