Indoor Chimney & Flue Inspection, Diagnosis, Cleaning & Repair Guide
|
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
Chimney inspection procedures for the building interior: this article describes procedures for inspecting the condition of chimneys and flues from inside of a building. We begin in the building attic (or on the building's highest floor) and continue downwards through the building with text and photographs describing chimney damage or chimney hazards for which the building owner, inspector, or service technician should be alert.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Inspecting Chimneys from Inside a Building Attic
Interior basement and attic inspections will reveal corrosion at the
cleanout door, connector problems and flashing leaks. And close inspection of chimney surfaces or walls covering chimneys will often disclose evidence of dangerous chimney conditions such as holes, gaps, and cracks in the chimney structure. Other chimney defects & hazards visible from inside the building are found at Attic Chimney Inspection and at CHIMNEY CLEANOUT DOORS.

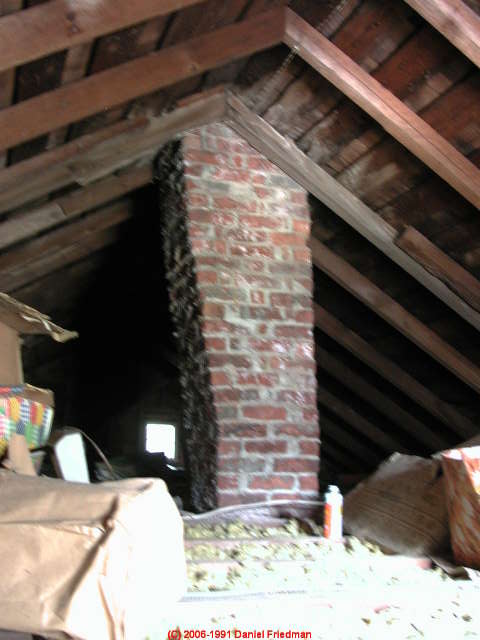

Inspect exterior the chimney while you are inside the building. Attic access
to a chimney or basement access, may provide key inspection points since there the
chimney is likely to be directly accessible and there may be cleanout or other
access ports to check the condition of the chimney interior.

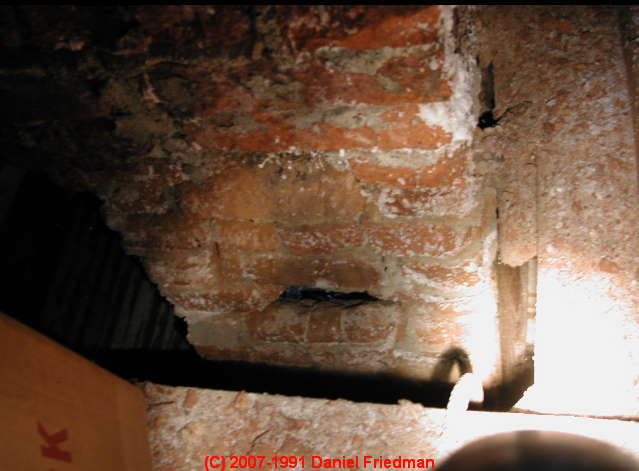

In this photo the exterior of this chimney, visible in an attic, was in very
poor condition, with soft spalling bricks.
Worse, there was an immediate fire and
gas hazard since there were actual openings at the base of this chimney where
it passes through the attic floor framing. This is a serious fire hazard and
a flue gas leak hazard. This flue is unsafe.
Inspect the entire route of the chimney through all building areas. Even if the
chimney is not directly visible you may find evidence of leaks, movement, or
old chimney penetrations, say for a woodstove, that may not have been safely closed.
Readers should be sure to also review Chimney Inspection Outdoors From Ground followed by Chimney Inspection Outdoors at Rooftop, and also take a look at CHIMNEY COLLAPSE Risks, Repairs. Also be sure to read Flue Vent Connectors - Boilers, Furnaces and our Fire Clearances articles (links at Related Topics ). This article series also includes articles on Chimney Inspection: Flue Interiors and on additional hazards at chimney cleanout doors, fireplaces, and woodstoves (links at Related Topics ). These articles on chimneys and chimney safety provide detailed suggestions describing how to perform a thorough visual inspection of chimneys for safety and other defects. Chimney inspection methods and chimney repair methods are also discussed. |
Holes in Masonry Chimneys - Missing Bricks

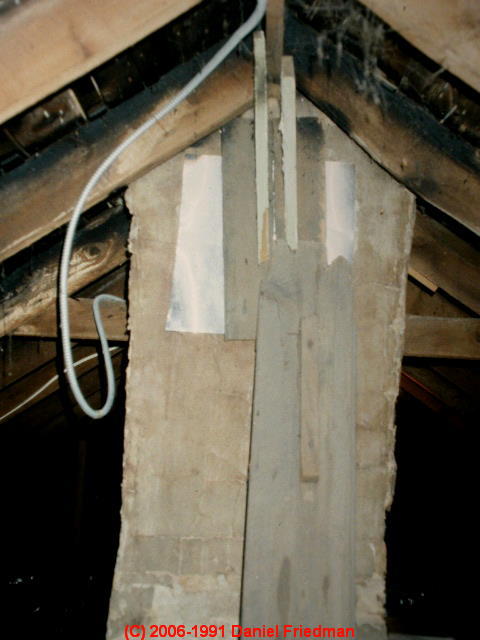

Missing chimney bricks: this photo shows a homeowner "repair" involving
putting aluminum sheet metal over a hole in their chimney to make it "safe" -
removing the metal disclosed a nice hole where bricks were missing. We asked the
homeowner where s/he thought those bricks had gone?
This was a very unsafe chimney.

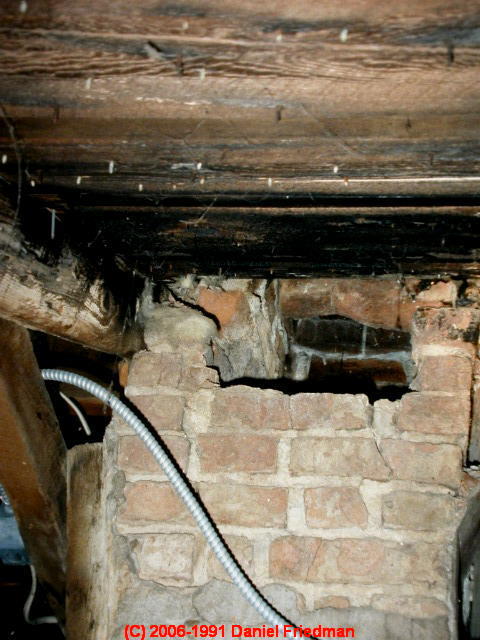

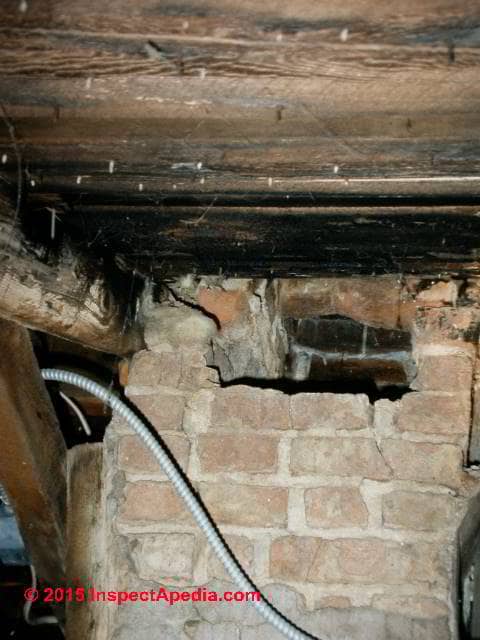

The second photo shows the chimney hole with the sheet metal removed.
The bricks had fallen down and blocked this flue, creating a potentially fatal carbon monoxide (CO Gas) hazard which was first noticed by the homeowners as a basement water problem - water was condensing and running down basement walls.
The topic of how to spot unsafe chimneys and other chimney defects from indoor clues continues at Attic Chimney Inspection and at CHIMNEY CLEANOUT DOORS.
