Chimney Movement detected indoors
Chimney Movement detected indoors in masonry chimneys can cause damage to the flue liner or
openings that might admit sparks (fire risk) or gases (carbon monoxide hazards)
into the building structure or even into occupied spaces.
The photograph here shows a leaning, corbelled brick chimney in a pre-1900 home.
When inspecting an old chimney which was corbelled over at an angle
to come out at the center of the building roof's ridge (done for aesthetic
reasons) inspect the chimney carefully at the attic floor where the chimney
changes from angled (corbelled) to vertical.
This floor-level inspection, that is, inspection at the point from which a leaning masonry chimney begins to deviate from its original vertical structure, is a critical space to look for hidden and possibly dangerous damage, especially if the chimney is small, possibly constructed of a single brick wythe in thickness.
If the corbelled chimney flue has
sagged along with the roof, the chimney may be cracked and open at this
point even though other cracks were not seen. |
In the attic inspect the chimney thoroughly at all accessible surfaces, floor to roof.

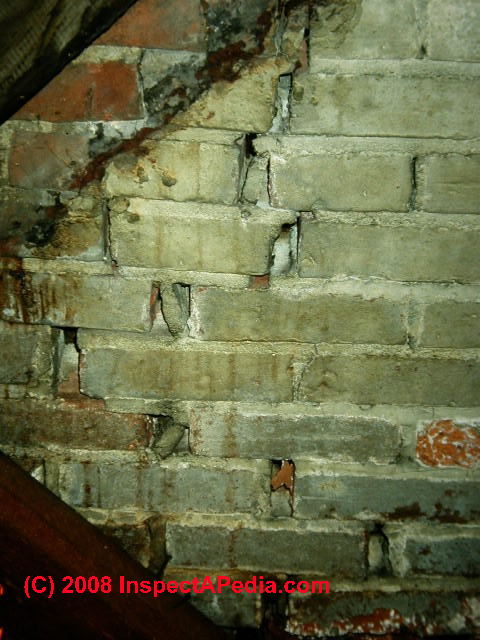

Our photo at left shows severe movement and openings in this brick chimney in an attic close to the roof surface. The vertical mortar joints between the bricks show openings of about 3/4" in width - you can see that the mortar has fallen over on an angle in these openings.
This chimney is a fire hazard, a carbon monoxide hazard, and a collapse hazard. Further inspection would be needed to determine if the damage was only in this area and due to water and frost (no chimney cap or crown) or if the chimney was moving and settling - leading to a need for reconstruction.
This damage pattern is more likely to be found on single-wythe thick brick chimneys than on chimneys built with multiple wythes of bricks forming the chimney wall.
See Chimney Collapse Hazards & Chimney Support & Bracing Requirements. |
...
