Fire Clearance for Single-Wall Metal Flue Vent Connectors

Rusted metal heating flue (C) Daniel Friedman

Fire clearance distances for gas-fired heating appliance flues. Indoor fire clearances for flues, vent connectors, and vents.

Our page top photo shows a gas fired heating appliance flue vent connector routed under and touching wood stairs. Our photo above / left shows a rusted-through flue vent connector also too close to building framing. [Click to enlarge any image]

These articles on chimneys and chimney safety provide detailed suggestions describing how to perform a thorough visual inspection of chimneys for safety and other defects. Chimney inspection methods and chimney repair methods are also discussed.

Article Contents

Pyrolysis, the process and temperatures under which wood deteriorates and becomes more readily combustible explains why fire clearances between flue vent connectors and nearby wood framing or other combustibles is very important.

Details about this process are

at PYROLYSIS EXPLAINED.

Reduction in Fire Clearance from Flues by Using Heat Shields

Combustible fire clearance can often be reduced by proper installation of an approved heat shield, as we discuss below in an exchange with fire expert NHFireBear.

Good heat shield design includes use of noncombustible shield material, a space for air to circulate behind the heat shield, and mounting using connectors that do not transmit heat to the surface being protected.

Common fire clearance requirements indoors (C) Daniel FriedmanBe sure that any reduction in fire clearance and any heat shield that you employ has been approved by your local building department and/or fire inspector. A mistake can result in a fatal fire.

[Click to enlarge any image]

Watch out: at left the sketch titled "Flue Connections and Clearances" shows 18" from the drywall-covered partition to the "smoke pipe" - which is correct for oil fired heating equipment.

But the drawing also shows a reduction to 13 1/2" if the wall has a one-hour fire rating. Your local fire inspector might approve this clearance reduction but a fire expert has warned that the drawing is obsolete on this point.

18 Sept 2015 NHfirebear said:

The diagram in the "reduction of clearance" section seems to show an allowance based upon the fire-resistance of the adjacent surfaces.

US fire codes and standards, however, generally refer to clearance from "combustible materials", not just the fire rating.

If the wall CONTAINS combustible materials, it probably doesn't matter that the surface is non-combustible. Clearance is measured from "combustible material" inside the fire-rated wall or ceiling.

Even if the surface is completely fire-proof (e.g., metal plate screwed to the wall), the heat will still transfer to the wall and its combustible structure (i.e., wooden studs), resulting in pyrolysis.

A proper heat shield on a wall having combustible construction would have a one-inch ventilated airspace (or with mineral wool batts or fiberglass insulation) between the wall and the shield, even if the wall has a non-combustible or fire-resistant surface.

NFPA 211 (2010): 9.5 Clearance from Chimney or Vent Connectors. Similar rules apply to the reduction of clearances from wood stoves. NFPA 211: 12.6.2 Clearance Reduction, Solid Fuel-burning Appliances.

Editor's reply:

Thanks for the important clarification FireBear. I agree completely and will be sure it appears in the article.

The exception that can reduce fire clearance distances usually involves an approved heat shield that incorporates not just an air space but a design that has air circulating through that space. In that case a heat shield may be approved by a fire inspector and may reduce clearance.

We see this in some wood stove installation instructions.

Watch out: Our photo below shows tremolite asbestos fireproof panels placed on a ceiling, in this instance as a fire barrier not a heat shield.

This material is an environmental hazard.

See FIREPROOFING ASBESTOS SPRAY-ON for details.

Tremolite asbestos ceiling heat shield (C) Daniel Friedman

Reader comment: example of adding a heat shield at a heating flue vent connector to improve fire safety

Inadequate fire clearance for oil fired heater flue vent connector (C) InspectApedia.com

Above: Our first photo shows the flue vent connector for an oil fired heater.

The flue passes too close to wood framing.

Below: heat shielding has been installed to reduce fire hazard and improve fire clearance above a flue vent connector for a basement or crawl space furnace.

Heat shielding installed over a single thickness metal flue vent connector (C) InspectApedia NH FireBear

[Click to enlarge any image]

I have an update on last year's "oil flue clearance" fiasco. The contractor eventually fixed it (the day before he was otherwise going to be arrested for a criminal violation of fire code).

He installed a double-walled pipe (listed for 2-inch clearance) and a non-combustible heat shield for clearance reduction on the remaining single-wall pipe located less than 18 inches from combustible ceiling. - NH Fire Bear by private email 2016/07/26

Reply:

Thanks FireBear. I added a pair of red arrows pointing to the mechanical connections of the heat shield to the wood-framed floor above the flue vent connector in your photo.

Some fire experts warn that nails or screws through a heat shield may conduct heat through to combustible materials, thus reducing the fire-safety-effectiveness of the heat shield system. My OPINION is that ... it depends. It probably depends on

Readers wanting to understand how heat as low as 200 degF. can over time lower the combustion point of nearby combustible materials such as wood framing will want to

see PYROLYSIS EXPLAINED

Also see WOOD STOVE OPERATION & SAFETY for more discussion of fire safety and heat shielding.

Metal Flue Fire Clearance Requirements - Single Wall Metal Pipe Flues & Oil Fired Equipment

Flue vent connectors, also called smoke pipe, stack pipe, or flue pipe by some people, are typically single-walled metal pipes connecting a heating appliance to a chimney, vent, or flue.

Metal flue pipe clearance requirements (C) Carson Dunlop Associates Inadequate fire clearance flue to wood (C) Daniel Friedman

Oil-fired heating equipment: Unless we have different explicit guidance from the manufacturer of an oil-fired heating appliance being vented, we want to see at least 18" of clearances between the flue vent connector and the nearest combustible surface. Sketch (above left) courtesy Carson Dunlop.

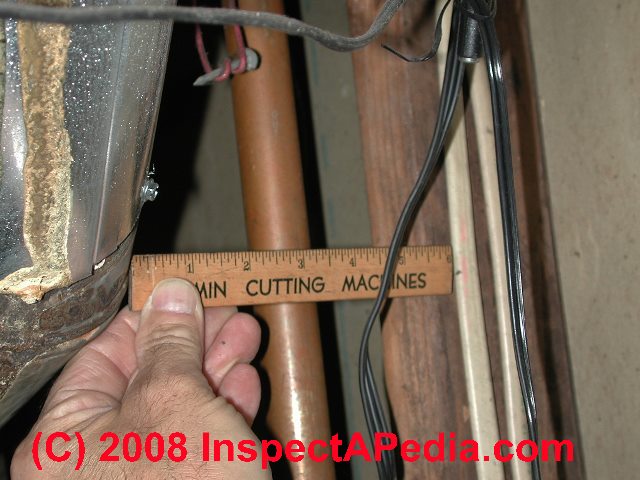

Photo (above right) shows a 4 1/2" (unsafe) distance between an oil-fired heating flue vent connector and wood framing. Also notice the leak stains on the flue exterior?

Other photos of flues with inadequate fire clearance are on file - Ed.

Watch out: This clearance is not reduced simply by covering the wall with a non-combustible material, as heat transmitted through the non-combustible covering can still set combustible elements in the wall (such as a wall stud) on fire.

See FLUE VENT CONNECTORS, HEATING EQUIPMENT for details about flue vent connectors.

Metal Flue Fire Clearance Requirements - Single Wall Metal Pipe Flues & Gas Fired Equipment:

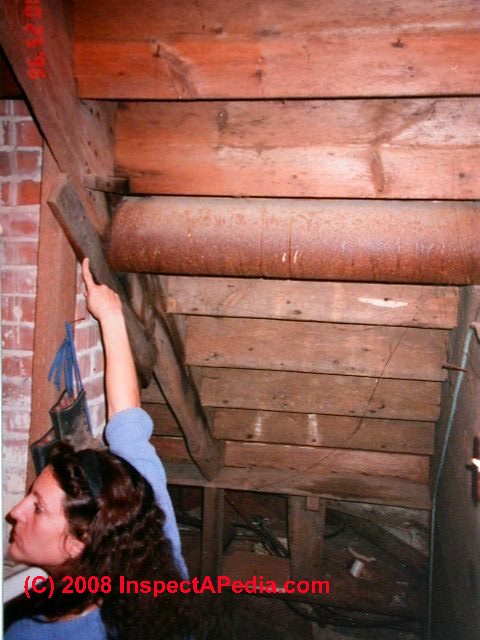

Subtle fire clearance hazard (C) Daniel Friedman

Gas-fired heating equipment:

fire clearances required range from 6" to 36" depending on the equipment. 9" is a typical clearance between a gas-fired boiler or furnace flue connector and combustibles.

Inadequate fire clearance from combustibles may not be obvious until you open a door such as our client is pointing out in this photograph.

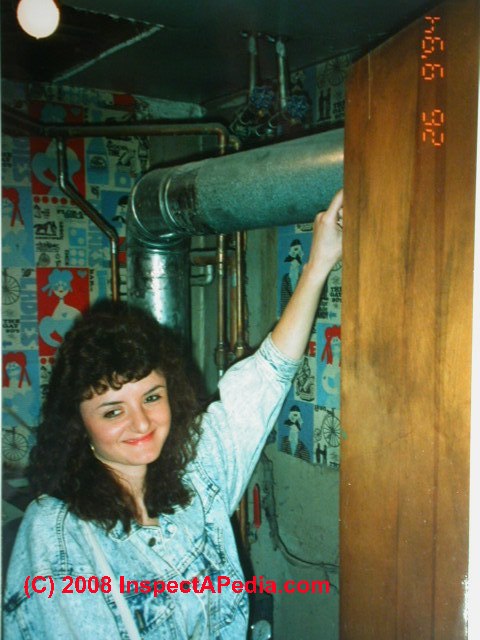

If someone simply leaves the door open so that it touches the heating flue, there is a fire risk. we have found charred door edges in just this installation.

For a more complete listing of clearances by gas-fired appliance type see the table of Listed Flue Vent Connectors for Gas Fired Heating Appliances found

at TYPE B-VENT CHIMNEYS

Reader Question: Is there a reason why the open 10" area around the furnace flue, at the ceiling level, is surrounded by a mesh screen and open to the attic space?

I have a 5 year old combination forced air, natural gas fired furnace/air conditioner unit located in my hall closet. The metal furnace flue extends vertically through the closet ceiling, through the attic and roof.

The vertical flue at the ceiling level is surrounded by and attached to a horizontal piece of open 1/2" X 1/2" metal mesh screen (about 10" square).

The mesh design allows an open, back and forth air flow from the interior heating/air unit closet into and from the attic area.

The original louvers on the hall door have recently been sealed/boarded shut, no air coming through the louvers. Normal return air to the unit is directly below the unit adjacent to the floor.

Most of the furnace flue extensions I've seen are constructed through solid sheet rock at the ceiling level, (with no surrounding open area into the attic space) then through the roof. No ceiling mesh.

Questions: Is there a reason why the open 10" area around the furnace flue, at the ceiling level, is surrounded by a mesh screen and open to the attic space? This opening in the ceiling allows a hot and cold air draft flow into and out of the interior of the closet area along with considerable amount of attic debris.

Could it have been designed that way to allow combustion air to be introduced to the unit? Can the screen mesh area around the flue at the ceiling level be sealed/closed off and not affect the performance of the heat/air unit? - Ray Haines

Reply: Do not close off cooling air venting around a metal flue/vent without also checking the flue material and its required fire safety clearances - you may need to replace the flue

Ray,

About fire clearances and heating flues including the one you describe, I suspect that your flue is an older installation that relied on air circulation around the flue as it passed through the ceiling for cooling and to meet fire clearance regulations.

It's possible, not having seen your system, that either that opening or the louvered doors you described, were also providing combustion air, just as you suggest.

I would be very concerned about closing off the louvered door opening as you describe, because you may be reducing the amount of combustion air, resulting in dangerous, even fatal levels of carbon monoxide produced by your gas fired heater.

I would also not close off the openings around the flue as you may also increase temperatures and interfere with its fire -rating.

ADVERTISEMENT





Reader Comments, Questions & Answers About The Article Above

Below you will find questions and answers previously posted on this page at its page bottom reader comment box.

Reader Q&A - also see RECOMMENDED ARTICLES & FAQs

On 2022-12-20 by Ken

@InspectApedia (Editor),

Great! Thank you! I’m all set.

On 2022-12-20 by InspectApedia (mod)

@Ken,

Sorry, we seem to be stuck in a loop here.

I have said that ***** IF ***** you indeed have 2" clearance between the metal of your flue-vent connector and the nearest combustible, such as wood joists, and provided that the same product is used for the whole run between boiler and chimney, THEN yes your clearance is OK as it meets that specified by the manufacturer.

I can't tell from the photos just what clearances there actually are.

In one of your notes you said that "The smallest clearance space is 5.5"

If that means that nowhere is your flue vent connector (between chimney and heater) closer to wood than 5.5" you're even better than the minimum 2" clearance and there's not an issue.

On 2022-12-20 by Ken

@InspectApedia (Editor),

Great information. Thank you! It is venting an oil furnace (Buderus, so the stack temperature is relatively lower, causing its own problem: condensation). So from what the information indicates, the clearance should be okay?

On 2022-12-20 by InspectApedia (mod) - maintain a 2-inch minimum airspace clearance between insulated chimney sections and combustible materials

@Ken, I call the metal pipe between the heater - the flue-vent connector, or in looser terms, "stack pipe" or "flue pipe".

In most installations at which there is plenty of fire clearance space (18" or more for oil fired heating equipment) you'd see the use of single-wall metal flue-pipe or flue-vent connector.

But where there is less than the required clearance space (which depends on the fuel and heating equipment) an installer might use an insulated chimney material in place of a single wall flue-vent connector.

I'm uncertain about what you are venting with that chimney connector. I see an oil storage tank in your photo. Oil heating equipment produces hotter flue vent connector temperatures than does gas equipment.

The label on your flue vent connector or "stack pipe" on that elbow near the masonry wall (and chimney) indicates that it's a Model TLC Chimney provided by Hart & Cooley Part No. 502048 that - as the label notes - requires a minimum clearance 2" airspace to combustibles and building insulation.

See this

HART & COOLEY MODEL TLC ALL FUEL CHIMNEY INSTALLATION INSTRUCTIONS [PDF] - retrieved 2022/12/17, original source: www [dot] hartandcooley [dot] com/assets/files/jg/851354-modeltlc_5to8installationinstructions0213.pdf

Excerpt: Type of Appliances: Your Model TLC chimney is intended for venting gas, liquid, or solid fuel-fired, residential-type appliances and building heating appliances or as defined in NFPA 211, in which the maximum continuous flue gas temperatures do not exceed 1000°F. It has been tested and approved to withstand temperatures of up to 2100°F for three 10-minute intervals.

and also

MAINTAIN A 2-INCH MINIMUM AIRSPACE CLEARANCE BETWEEN INSULATED CHIMNEY SECTIONS AND COMBUSTIBLE MATERIALS
.

So if you've got 2" or more between that metal and any wood framing you're already in good shape.

This file might also be useful: HART & COOLEY MODEL TLC CHIMNEY INSULATING SHIELDING WRAP [PDF]

On 2022-12-17 by Ken

@InspectApedia (Editor), Thank you so much-- this is such a great service you offer to homeowners. The smallest clearance space is 5.5". As you can see from the new picture, it doesn't look great for lowering the entry because of the oil tank.

Is a "Zero clearance insulated chimney" the same as what non-professionals like me would call a "pipe"/flue connector (the 6-ish feet from the oil burner to the wall)? Your advice is very resassuring. Thank you again!

On 2022-12-17 by InspectApedia (Editor)

What is the smallest free space between the wood joist and the surface of the metal flue?

3/4 or 5/8" Fire rated onto the joists reduces but doesn't eliminate risk.

Pyrolysis risks increase over time.

Zero clearance insulated chimney, if it fits, might be better.

Worst case may be lowering the chimney entry point.

Direct venting, no chimney at all, could be a more costly option.

A concern like this has no business stopping a real estate sale. Cost to cure is a trivial % of the sale price.

Don't give a seconds thought to a "cover-up " - life safety is the concern.

On 2022-12-16 by Ken

This flue connector from an oil furnace to chimney is clearly very close to combustible material but has been this way for 30+years. Am looking to sell home in near future and worried about inspection.

An HVAC technician suggested installing drywall on ceiling of basement (I'm guessing to try to hide it?) Not a very ethical solution but I'm not sure what can be done. What options exist when the ceiling is so low? Thanks!


On 2021-09-11 by inspectapedia.com.moderator - water leakage needs to be fixed

@Jill Mills,

That really does not look like a closet - but rather it looks like a vertical chaseway in a building, specifically used to run wires and pipes.

If there has been water leakage then the building owner certainly needs to fix it in any event.

On 2021-09-09 by Jill Mills

@inspectapedia.com.moderator, Thanks so much for getting back to me. We had a collection of photos, but could only upload one. I encouraged my daughter to get a city inspection, and she is able to do that.

I was just concerned that she may be unsafe with respect to air quality there. At this time, she can still keep her windows open, so hopefully she'll be good until the inspection.

This attached image is of the closet (I don't know if it will be on its side, but it's from the middle of the closet when it's open; brick on left, pipes center).

On 2021-09-07 by inspectapedia.com.moderator

@Jill Mills,

Apologies but I don't know what we're looking at. I see what might be concrete or something else, and what looks like an electrical wire but also might be something else.

If there is bubbling sagging paint it makes sense to look for a water leak or moisture problem.

If the area is large - more than a square foot - there could be a larger, hidden damage problem or building history of an event that caused damage, fire, leaks, mold - we really cannot say from just this limited information.

Why not ask the building owner or maintenance person what's going on?

On 2021-09-07 by Jill Mills

My daughter just moved into an apartment with excessive soot on windows, walls, ceilings, and moulding. At first we were blaming the former tenants, but then we opened a small cabinet and found the image below.

The walls outside this closet have bubbled and sagging paint. Can you give any suggestions as to what is happening? We have many other images, too. Thank you for any help!


On 2021-03-22 by danjoefriedman (mod) - use a zero-clearance insulated metal chimney

@Jerry, why not use a zero-clearance insulated metal chimney to replace the existing flue-vent connector? You may need a mason to enlarge the chimney opening and to seal the larger replacement but it's not a big job.

Also, about the length of time the home has been there, you'll want to read PYROLYSIS EXPLAINED

https://inspectapedia.com/chimneys/Pyrolysis_Definition.php

On 2021-03-22 by Jerry

I have an oil-fired boiler in my basement. The single wall metal flue runs horizontal for 4 feet and enters the thimble on the chimney 3-3 1/2 inches below the floor joists. I understand this is a fire issue and the house has been using this since the house was built in 1917.

I need to install a liner in the chimney but the company installing the liner will not do it until the situation is remedied. What are my options to resolve the combustible issue?

On 2020-12-10 - by (mod) -

Gas fireplace using B-vent connection from fireplace body onwards - cited  & discussed at InspectApedia.com adapted from Blaze King insdtructionsGary:

No we don't use a single-wall flue vent connector at a typical gas fireplace, nor do we usually vent that fireplace type into a conventional chimney.

Noting that gas-fireplaces or gas-log fireplaces usually are direct-vent systems that do not use a conventional chimney, it's B-vent all the way.


Please find your question and my detailed reply now at the Reader Q&A section near the bottom of the article GAS LOG FIREPLACE MANUALS inspectapedia.com/heat/Gas-Fireplace-Heater-Manuals.php

There you will find a more-detailed answer to your question along with an illustration I've provided to help make the B-vent requirement more-clear.

You may need to clear or refresh your browser cache to see the updated page.

We welcome your further photos, comments, questions.

On 2020-12-10 by gary

can a single wall flue exposed for gas fireplace up to safety thimble and then b vent through roof?

On 2020-03-17 - by (mod) - DIY heat shield - Can I just buy vent pipes flatten it out

Roger

That's an interesting idea but unfortunately I think your idea has a good chance of setting your building on fire. If you use any event or flu pipe in a manner not designed by the manufacturer or modified in any way you are likely to create an unsafe condition

. It's not just space but you would have achieved by the design that you proposed you would also have hot metal in contact with combustible materials. You need to use a listed flue vent connector or metal chimney and follow the manufacturer's instructions on clearance

On 2020-03-16 by Roger

Are there different grades of non combustible shield material? Can I just buy vent pipes flatten it out put my folds in so it's one inch from wall and attach it to my wall?

On 2019-10-27 - by (mod) -

I'd be glad to help, anon but have not a shred of information; perhaps you intended to post a photo ( 1 per comment)

On 2019-10-26 by Anonymous

Hello. Selling our home and this flue failed inspection for being too close to combustible material and corrosion. The house has been through at least 3 inspections before and this has not been an issue. Could someone explain to me what the issue is?

On 2019-09-12 - by (mod) -

3 or more.

You're a local Building Code Compliance inspection officer is the final legal Authority on citing code violations

On 2019-09-12 by Sherry Laible-White

The house we bought had this long plastic tarp surrounding flue pipe venting of the tankless water heater to cstching the water dripping.

The pipe going to the roof had corrosion at connecting points & the plastic was touching the flue pipe. How many violations of fire & plumbing codes were violated?


...
