This article describes the fire clearances required for masonry chimneys. The distance between a brick, stone, concrete block,or other masonry chimney and the nearest combustible material, such as wood framing, is an important fire safety consideration that must be respected.
This website provides detailed suggestions describing how to perform a thorough visual inspection of chimneys for safety and other defects. Chimney inspection methods and chimney repair methods are also discussed.
Masonry Chimney Indoor Fire Clearances from Combustibles
Masonry Chimney Fire Clearance from Wood Framing
Inspectors of older homes often find wood framing built right against masonry chimneys and at times we find wood framing that rests in a pocket in a masonry chimney structure, using the chimney to support the building framing.

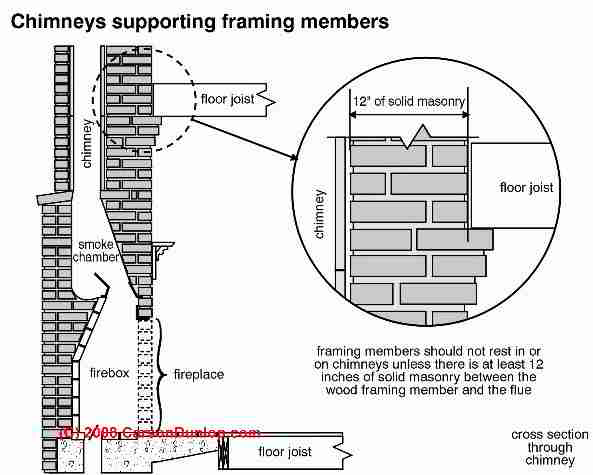

As Carson Dunlop's sketches show, proper construction leaves space between wood framing members and the chimney, or where framing rests on or in a masonry chimney, at least 12" of solid masonry should separate the chimney flue from the nearest wood framing member.
