Single-Wall Metal Vents and Chimneys: Inspection, Diagnosis, Cleaning & Repairs InspectAPedia®  -     Detailed Inspection & Photo Guide to single wall chimney defects

This article describes Single-Wall Metal Vents and Chimneys, their Inspection, Diagnosis, Cleaning & Repairs. Readers of this section should also be sure to review details at Flue Vent Connectors - Boilers, Furnaces.

This website provides detailed suggestions describing how to perform a thorough visual inspection of chimneys for safety and other defects. Chimney inspection methods and chimney repair methods are also discussed.

As with most inspection and safety topics, this material may be incomplete. © Copyright 2009 Daniel Friedman, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use links at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

Single-Wall Metal Vents and Chimneys

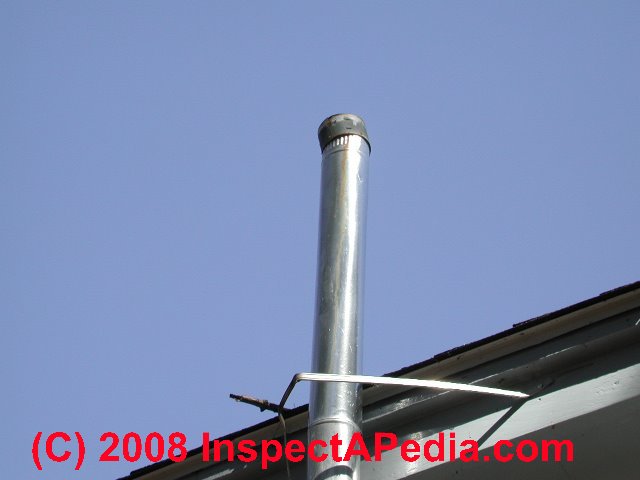

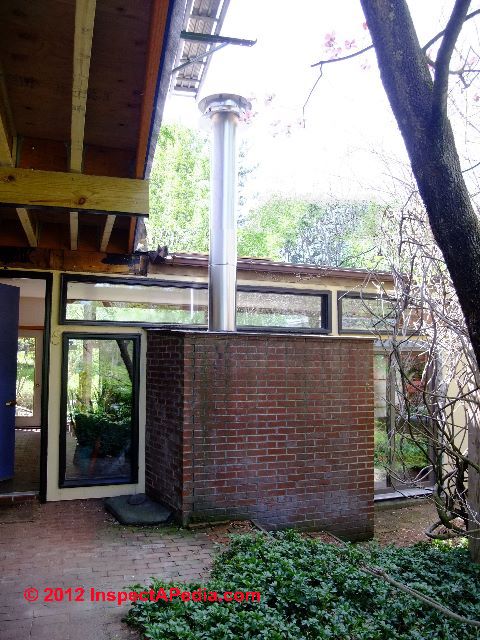

The metal chimney shown at left is not a Type B gas vent and may be unsafe. Do not mistake this single-walled vent for a Type-L vent nor for a Type-B vent even though a hasty glance may make it look like one of those. This vent appears to be single-walled aluminum and it has what looks almost like a coffee can installed as a rain cap. If the metal chimney we see in this photo is being used to "vent" a water heater it is probably not working and probably lacks adequate draft. The result may be carbon monoxide release in the building. Single-wall metal pipes used to connect heating appliances to chimneys (metal or masonry) are discussed separately at Single-Wall Metal Flue Vent Connectors where we provide details about single wall metal flues and their fire clearance requirements. Single wall metal pipes are also described in our table listing clearances by gas-fired appliance type at Listed Flue Vent Connectors for Gas Fired Heating Appliances. Also see Metal Chimney Safety Alert - CPSC Document #5047.
