This article describes combination or multi-fuel heating boilers that combine burning wood with oil. We explain how a multi-fuel heating system works and we list the special considerations that such equipment needs such as attention to combustion air supply, draft regulation, combustion chamber design and cleaning, and general safety. These articles on chimneys and chimney safety provide detailed suggestions describing how to perform a thorough visual inspection of chimneys for safety and other defects. Chimney inspection methods and chimney repair methods are also discussed.

Combination Wood Burning Boilers, Furnaces, Fireplaces, Woodstoves - Special Considerations

Alternative heating sources (C) Carson Dunlop

Especially as oil prices have increased dramatically in the past few years and given the 2008 Bush Presidency economic crisis, many homeowners have a renewed interest in alternative heating energy sources.

Where firewood is available and economical, wood fired heating boilers and furnaces, and combination wood and oil heating systems that were first popularized in the 1970's oil embargo crisis have renewed interest.

This article describes wood heat sources and special considerations in operation and safety of combination fuel wood and oil heating boilers and furnaces.

For a current comparison of the relative costs per BTU of heating oil, natural gas, firewood and electricity, readers should see HEATING COST FUEL & BTU Cost Table. Also see How to Reduce Home Heating Costs - Heating Cost Savings Tips where we provide expert advice on how to significantly reduce your home heating

Combination Wood & Oil Boilers & Furnaces

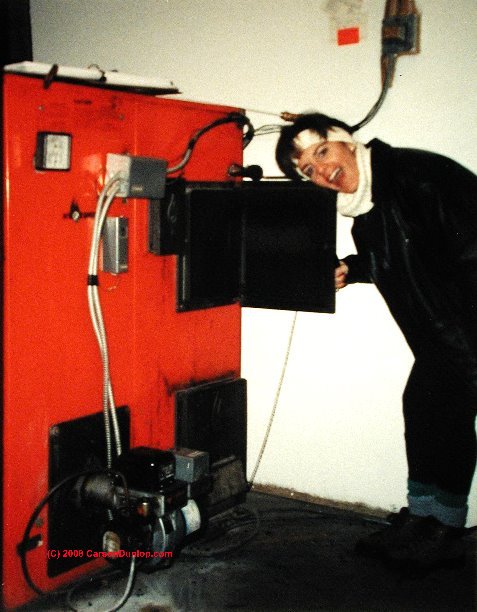

Wood Oil combination boiler (C) Daniel Friedman

[Text in process] [Illus CD 1011-1021] [DF Photos - combination unit, woodstoves, coal stoves]

- single combustion chamber wood furnace - components, characteristics, where to locate, combustion air concerns.

- how wood or combination units regulate draft

- forced draft combustion system

- dual combustion chambers, different service requirements, different operating requirements

- draft control

- barometric damper inspection

- heat exchanger design

- heat content comparison: wood, gas, oil

Regarding concerns for chimney flues shared between oil and wood fired heaters, see Exceptions: Shared Flues Sometimes Permitted and Wood & Oil Fired Heaters

Also see WOOD STOVE SAFETY and Wood burning Fireplace Roof Clearance.

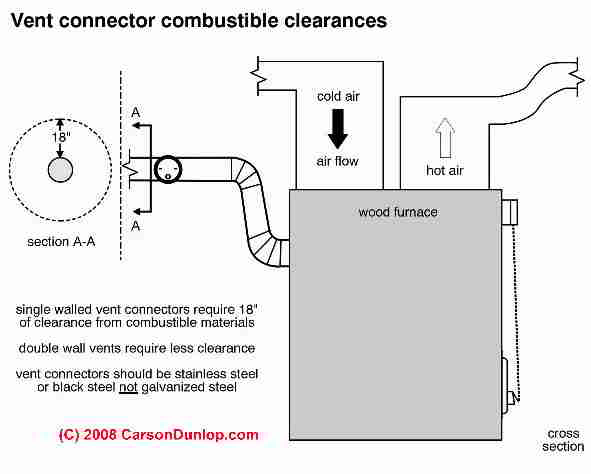

Here are the basic components of a wood-only warm air furnace, compliments of Carson Dunlop Associates.

Furnace inspection, diagnosis, and repair are discussed in detail at FURNACES, HEATING, and FURNACE CONTROLS & SWITCHES, and at DUCT SYSTEMS.

Many of the components on a wood fired warm air heating system such as ductwork and the blower assembly are the same as on oil or gas fired furnaces but the heating system itself is quite different:

The combustion chamber location and construction are constructed to withstand a wood fire

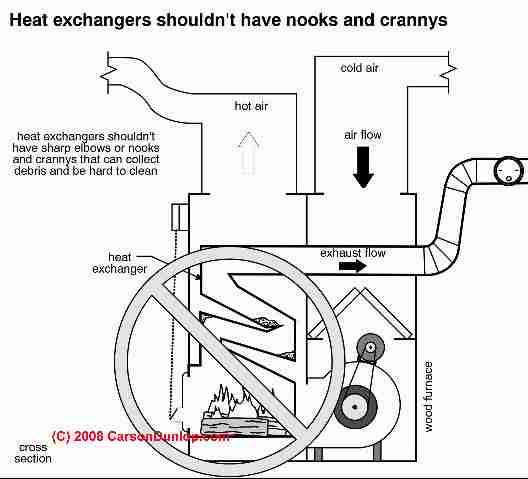

The heat exchanger may be simplified, with fewer passages to reduce soot and creosote clogging
The wood fire burns continuously (rather than like a gas or oil burner that turns on and off in response to temperature controls).

A back up heat source is usually provided either as a separate heating system (oil, electric, or gas). Controls on that heating equipment are designed to keep it turned off when the wood furnace is in operation. The backup heat lets the occupants leave the building without fear of total loss of heat (and frozen pipe damage).

Kerosene heaters: Our photo (left) shows a kerosene heater which an owner was using as their alternative heat source. It did not prevent pipes from freezing in a remote corner of the building when the central heating was inoperative, and we also were concerned about the adequacy of its fire-clearance distances.
Combustion air is regulated to adjust the fire and thus the heat output of the wood furnace. Temperature controls in the occupied space and on the wood burning furnace adjust the combustion air flow in to the combustion chamber as the primary means of controlling the fire size and thus the heat output of the system. We discuss the wood furnace combustion air damper in more detail below.
Firewood: Unless your system uses a processed wood fuel such as a wood pellet stove, heating fuel (firewood) is added by hand by the occupants as needed by opening a combustion chamber door.
Ashes from burned wood are also removed manually by the occupants by opening an ash pit cabinet door.
Pellet stoves feed processed wood pellets automatically from a feed hopper and thus require less frequent attention.

Provide Combustion Air, Ventilation, Cooling Air for the Wood Furnace

Before looking in greater detail at wood fired furnaces and combination wood-oil furnaces, we and Carson Dunlop emphasize this safety note.

Because a wood-fired furnace operates at high temperatures and needs lots of combustion and cooling air it should not be located in a confined space.

Otherwise the risk of fire or improper operation are increased.

Chimney inspection and cleaning will need to be frequent to reduce the risk of a chimney fire as well. Sketch courtesy of Carson Dunlop Associates.

Wood furnace combustion air control (C) Carson Dunlop

Wood furnace combustion air control details (C) Carson Dunlop

How the Wood Furnace Combustion Air Damper Works.

Sketches courtesy of Carson Dunlop Associates.

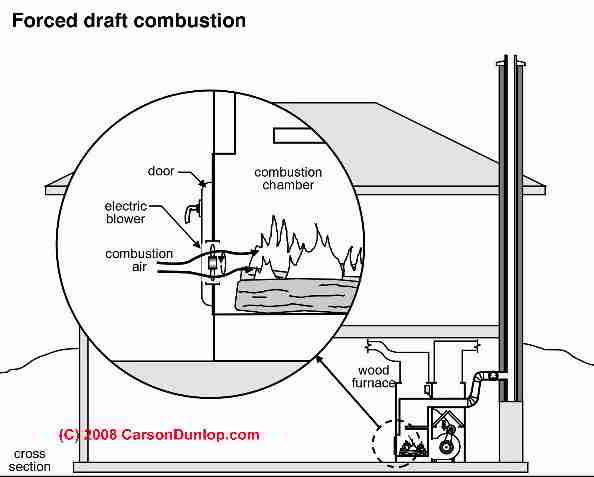

Forced draft wood furnace operation: As the sketch (left) shows, instead of relying on natural draft, a forced-draft combustion wood air furnace uses an electric blower fan to feed air to the wood fire.

Heater controls can turn off the blower fan and on some models adjust the airflow rate as needed.

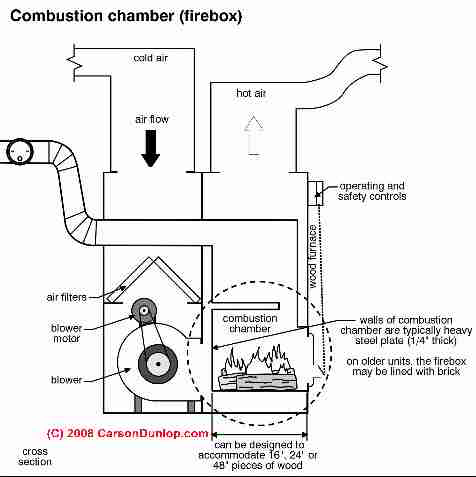

Wood Furnace combustion chamber details

Wood Furnace combustion chamber cleaning details are shown in the sketches at left and below, courtesy of Carson Dunlop Associates.

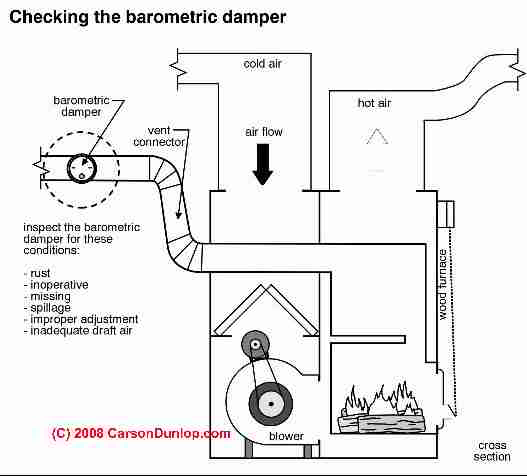

Wood Furnace barometric damper inspection

DRAFT REGULATORS, DAMPERS, BOOSTERS are devices used to regulate the draft on oil-fired heating equipment such as furnaces, boilers, or water heaters.

The barometric damper or draft regulating device we are discussing here is normally used only on oil-fired heating equipment, not on gas-fired equipment. The inspection requirements such as assuring that the damper is level, properly located, and operating freely are provided in our heating section at DRAFT REGULATORS, DAMPERS, BOOSTERS

The equivalent draft control on gas fired heating systems is discussed at Furnace Draft Hood on gas fired equipment.
