SE CABLE SIZES vs AMPS - How to Inspect Electrical Service entrance cables for Ampacity, Voltage, Condition
 This article series explains how to estimate the electrical service size, (or "electrical power" or "service amps") at a building by visual examination of the
service entry cables, electric meter and meter base, electrical service panel, main switch, and other details. Readers of this article should also be sure to review Safety Hazards and Safe Electrical Inspection
Procedures for examining Residential Electrical Panels. It's not as difficult as one may think to get a reasonable handle on the electrical service capacity at a building without sophisticated analysis. But there are some pitfalls that can make for big mistakes in your guess at the service ampacity for a property, and the process itself is dangerous.

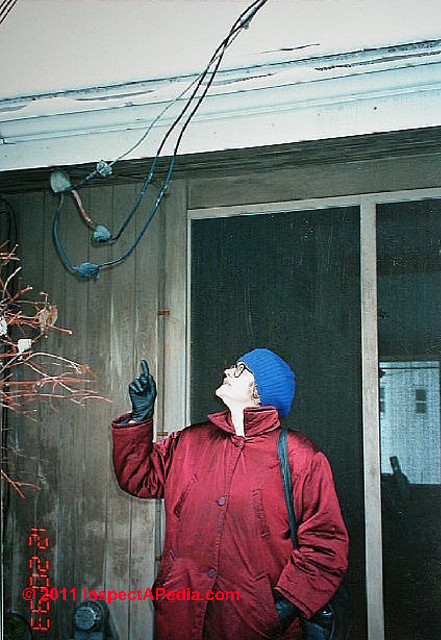

At left we can see a three wire mast-head, suggesting that the building has a 240V service. But we did not like the position of that weather-head, and we considered that water may be entering the SEC.
The amperage provided by the electrical service entrance cable is a function of its materials
and diameter. Often the actual cable type and size is printed right on the cable insulation. Otherwise some rough measurements of cable
diameter are in order. |
If, inside the panel, the inspector could see the ends of the entrance cable [Figure at left], measure metal wire diameter,
and if the inspector knew the manufacturer of the cable and its specifications, a certain identification of the cable's ampacity could be made.
However
a safer, faster and common practice is to examine the exterior of the cable at a point outside of the electric panel.
Many SECs include printing right on the external jacket of the cable that will tell you the number of conductors, the metal (AL or CU), and the wire size.
Watch out: Make sure you
look at both outside (mast head down to meter) and inside (from meter into service panel).
They may be different! Inside the panel, stripped
of ground and insulation, you may see only wires as in Figure 3. Don't confuse guides for external measurements of the whole
cable with in-panel measurements of the wires themselves.

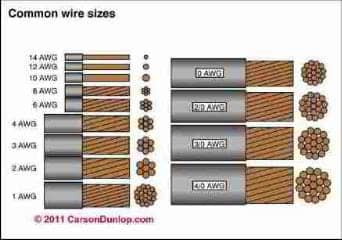

 Carson Dunlop Associates' sketch (left) shows common electrical wire sizes for both service entry conductors (SECs) and in-building branch circuit wiring.
We use to use a plastic vernier caliper or other non metallic instrument to measure external (insulated) width of the whole cable as a reasonable
guess at wire ampacity. Some inspection tool companies sell, and others give-away a plastic "wire gauge" with notches labeled to tell electrical inspectors the
cable size for aluminum and copper SECs. Or you can make your own.
But this method is not precise. Plastic insulated cable,
for example, is often thinner in total thickness than older fabric-covered cable. Look at the table of wire dimensions in the accompanying article.
Fortunately for building inspectors, even though wire thickness varies among manufacturers, you can generally
find the measurement closest to one of the standard sizes and you're likely to be correct.
|
Table of Common Electrical Wire Sizes and Amps or Fuse Ratings - Residential
For copper wiring the following wire sizes and ampacity ratings or fuse/circuit breaker sizes are common on 120V residential electrical circuits. :
| Electrical Conductor Wire Size or Gauge - AWG |
Ampacity Rating Copper Wire
Recommend Max Fuse Rating
|
Ampacity Rating Aluminum Wire
Recommended Max Fuse Rating
|
Electrical Wire Overall Diameter (approximate)
inches / mm |
Comments |
| "Bell wire" |
|
|
/ 0.5mm |
Typical solid conductor telephone or bell wire size, thermostat wire, or 12-24V wire for controls |
| 20 |
|
|
0.036 / 0.91 |
Also used for thermostat wiring [1] |
| 18 |
|
|
0.046-0.040 / 1.16-1.02 |
Usually used for thermostat and HVAC control wiring |
| 16 |
|
|
0.058-0.051 / 1.46-1.29 |
OK for thermostat and HVAC control wiring |
14 |
15
|
n/a
|
0.073- .064 / 1.84-1.63 |
Smallest size normally used for household 120V wiring (copper 15A) |
12 |
20
|
15
|
0.092-0.081 / 2.32-2.05 |
Smallest size normally used for household 120V wiring (aluminum 15A) |
10 |
30
|
20
|
.116-.102 / 2.93-2.59 |
|
8 |
50
|
30
|
.146-.128 / 3.7-3.26 |
|
6 |
80
|
50
|
.184-.162 / 4.66-4.11 |
|
4 |
125
|
80
|
.232 / 5.88 |
|
2 |
200
|
125
|
.292 / 7.42 |
|
1 |
250
|
200
|
.332 / 9.43 |
|
| 1/0 or 0 |
325
|
|
.373 / 9.46 |
|
2/0 or 00 |
400
|
|
.419 / 10.6 |
|
3/0 or 000 |
|
|
.471-.470 / 12.0-11.9 |
|
| 4/0 or 0000 |
|
|
.528 / 13.4 |
About the largest wire size likely to be found at residential electrical SECs |
|
The U.S. National Electrical Code NEC 240-3 requires that the electrical branch circuit, feeder wire, and electrical service conductors shall be protected against overcurrent in accordance with their ampacity ratings as specified in NEC Table 310-16.
Additional NEC rules that pertain are in NEC Sections 210-20 (a), 215-3, and 384-16(d). Also NEC Section 240-6(a) gives a list of standard wire sizes and overcurrent protection (fuse or circuit breaker) required. |
The articles from which much of this online material originated
appeared first in the ASHI Technical Journal, Vol. 2. No. 1, January 1992, "Determining Service Ampacity," Dan Friedman and Alan Carson,
and the ASHI Technical Journal, Vol. 3. No. 1, Spring, 1993, "Determining Service Ampacity - Another Consideration," Robert L. Klewitz, P.E.,
with subsequent updates and additions to the original text ongoing to 2/19/2006. Reprints of the originals and reprints of the Journal are available from ASHI, the American Society of Home Inspectors www.ashi.com
