This article discusses the visual inspection of electrical meters and explains how to estimate the electrical service size, (or "electrical power" or "service amps") at a building by visual examination of the
service entry cables, electric meter and meter base, electrical service panel, main switch, and other details. We also discuss electrical arc burns at the meter base.
Visual inspection of the electric meter and use of digital multimeters(DMMs), Volt-ohm meters (VOMs), neon testers, and electrical inspection safety are discussed.
Photographs and sketches illustrate electrical panels, meter bases, and electric meters.
One of the most frequently asked questions at ASHI Education Seminars and Conferences is "How do I determine the service amperage?"
It's not as difficult as one may think to get a reasonable handle on the electrical service capacity at a building without sophisticated analysis. But there are some pitfalls, and the process itself is dangerous.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
ELECTRIC METERS & METER BASES - Inspecting Electric Meters & Meter Bases - Another Consideration When Determining Service Ampacity
Notice: recent discussion among various experts and one of the original
reviewers (D.H.) raises question about the accuracy of estimating service size in volts or amps by inspecting
modern electrical meters. While some of the cases illustrated here remain accurate, these methods may be unreliable
when examining modern electrical meters and meter bases. This subtopic remains under review.
The photos and text below will assist in identifying a variety of electrical meters and service panels of various ages and capacities.
An article in the Winter, 1992 ASHI Technical Journal discussed the procedure and considerations for inspectors to determine the service
ampacity of an electrical system. That article indicated that the safe and proper service amperage available at a property is set by
the smallest of the service entrance conductor, the main disconnect fuse or circuit breaker, and the rated capacity of the panel itself.
These are also issues of concern for the electrical contractor installing the service. ASHI Technical Journal, Vol. 3. No. 1, Spring, 1993,
"Determining Service Ampacity - Another Consideration," Robert L. Klewitz, P.E.
A Broad View of Service Ampacity Determination Must Also Consider Electric Meters & Meter Bases
The concerns of inspectors must be broad in scope. Inspectors must look at the entire system, some of which may be dictated by the
electric utility, and may not be a concern of the wireman or National Electrical Code. [National Electrical Code, article 90-2(b)(5)]
Because of this, there is one additional item that must be considered when determining service ampacity. This item is the rating of the
electrical meter base and the meter itself. Many times there will be no sure way of determining this rating on a visual inspection,
since the rating sticker would typically be inside the meter base and would require pulling the meter off to see it. However, there
are some guidelines and "rules of thumb" that can be used.
Electric Meter Bases as Indicators of Electrical Service Ampacity
Warning: Looking at meter bases and meters to guess at ampacity is questioned by some experts as too unreliable.
Systems that have been installed for the last 20 years or so will typically have a rectangular meter base
of various sizes as shown in the rectangular-base meter at left. These are usually compatible with 200 Amp services, although undoubtedly there are exceptions to this.
NOTE: Did you notice the measuring tape marking the 3" gap between the siding "J" channel
and the top of the meter? This electric meter had been pulled downwards by backfill settlement which pushed down the horizontal
portion of the buried conduit bringing the service laterals to the building.
We [DF] considered this a reportable defect as
it was possible that the buried conduit was broken and subject to water entry from this condition and since the wires
entering the building panel from the meter box have were disturbed. However M. Cramer points out
that most conduit is not continuous, so breaking it is not really an issue aside from damage to conductors underground. |
In 1976, an Underwriters Laboratory (UL) ruling required that all new meter bases be "continuous rated for 200 Amps," otherwise
only 70% of the actual rating would be considered usable, (i.e., a 200 Amp meter base that was not "continuous rated" could only
be used on a 160 Amp or smaller service). Inspectors can probably assume that a rectangular meter base is compatible with the system
it is serving, unless a major change or a new panel has been installed.
The meter in our photo at left is obsolete.
Square meter bases such as the unit being pointed to with great caution by an ASHI Headquarters staff member on a field trip in the photo at below-left
were normally rated at 100 Amps. Later generations of them were sometimes rated at 125 Amps.
Older electrical systems that were installed 30 or more years ago may be served by a square meter base with a round
meter mounted on top of the square base as seen in the next photo at below-center - often called an "A-base" meter.
Still older systems used the round meter base shown at below right. Round meter bases originally were rated for 60 Amps when installed
50 or more years ago. (Later generations of round meter bases were rated at 100 Amps.)
These meters can have a NMC main service wire running
to and from them, or the wire may be installed in conduit. [Click any image for a larger, more detailed view.]
|
The photo at left is a nice collection of main switch, meter base, round meter above the square base, and a four-fuse "main" panel.
What do you think the ampacity was of this electrical meter, main switch, and fuse panel system? |
ELECTRIC METERS - as Indicators of Service Ampacity
The meter itself is also a consideration when determining the service ampacity of an electrical system.

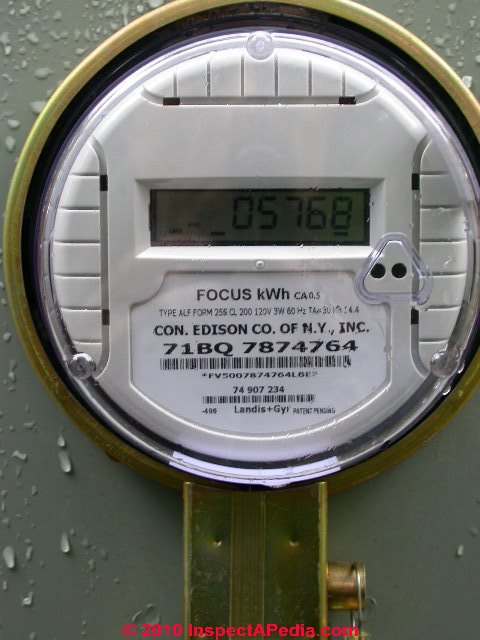

Most modern electrical meters for single family
homes have the designation "CL200" somewhere on their face, which indicates they are rated for up to a 200 Amp service.
The CL200 rating may not limit these to 200 amps. Cramer reports finding larger services with CL200 meter bases.
Inspectors will also occasionally find a "CL10" meter which is a transformer-rated meter for large houses with larger electrical
systems or two separate main panels.
Some older meters have other designations such as "15 Amps" on their face. This was their test rating. These meters are only usable
on systems up to 100 Amps.
Some older meters were also designated as "30 Amps" on their face and these are compatible with 200 Amp services.
For example,
one may occasionally find an older house with an upgraded 200 Amp service that still has an old 15 Amp meter plugged into a new meter
base.
This meter is not really compatible with the system and should be replaced. Since the responsibility for the meter varies throughout
the country, inspectors should contact the local electric utility for their policies and procedures concerning meters.
INSPECTING Electrical METERS & Electric Meter BASES - Inspecting Electric Meters and Electric Meter Bases
Electrical inspectors need to examine the meter and meter base and should take them into account when determining service ampacity. The elements to consider are:
- The size/rating of the service entrance conductors.
- The rating of the panel.
- The rating of the main breaker, if any.
- The rating of the meter base.
- The rating of the meter.
The weakest or smallest of these five items will determine the service ampacity of the system. This inspection will also determine whether
or not all parts of the system are compatible with each other and proper for the installation. There are other good reasons to look
at the meter base and meter during your inspection. Occasionally one may discover other meter defects or concerns:
- Moisture or water inside the meter face and/or rust on the meter base, such as leaks at the service entry cable or other meter base components. Note the rust at the bottom corners of the electrical meter box in our photo (left).
- Missing knockouts on the meter base - openings into the electrical meter base.
- Broken or cracked conduit at the electrical meter or meter hubs
- Loose connections of the meter base, including meter pulling away from the building wall and loose mounting screws
- Inadequate fastening of the meter base and/or mast to the building.
- Evidence of tampering at the electrical meter, such as a locking ring seal that has been cut and not replaced by the electrical utility company.
- Evidence of burning or arcing at the electric meter connection mounts - see Overheating, Arcing, Corrosion at Electric Meter Mounting Bases below. This condition is unlikely to be visible unless the meter is actually removed from its mounting base.
Watch out: this step should be performed by a licensed electrician. It is not within the scope of a visual home inspection.
The building inspector's responsibility goes beyond that of the electrical contractor and the local electric utility. Because of this, the inspection of
the meter and meter base is an important part of your electrical system inspection, and must be done carefully. This will help to protect
your client's interests and will help fully inform them about electrical system defects and the proper service ampacity of the house they are
considering to buy.
Beware of Overheating, Arcing, Corrosion at Electric Meter Mounting Bases
Experienced Electrical Worker Warns of Electric Meter Base Arcing & Burns

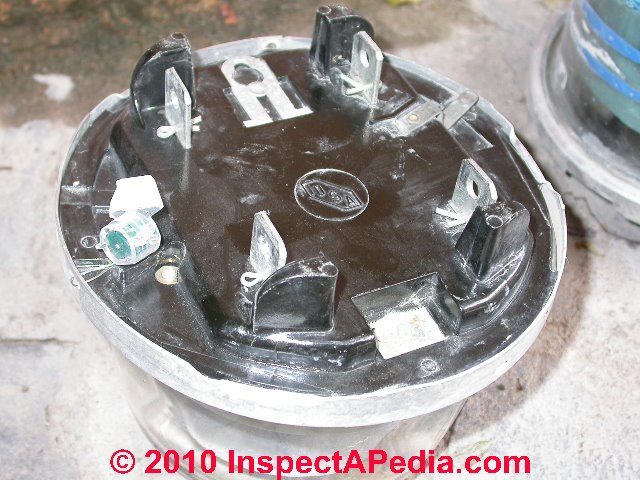

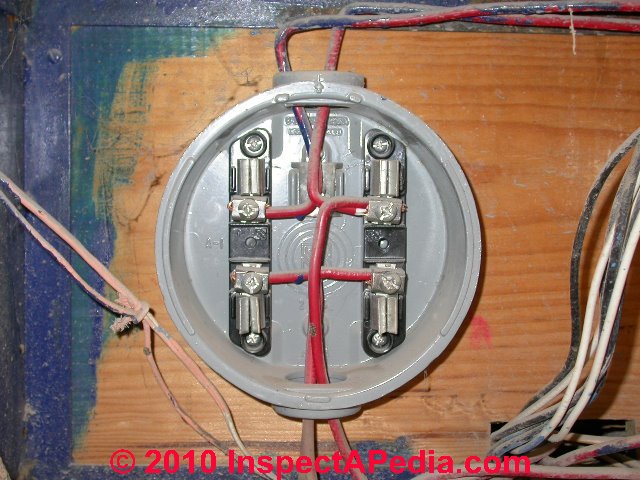

Our photos (below) show a simple electrical meter base and meter connection mounts where arcing was not present. Field photos of electric meter damage or arcing are wanted. CONTACT us.
There's one important point about electrical meter sockets I'd like to make. I've been in the electrical trade since 1976, and have seen a lot of interesting situations over the years. One that I feel needs to be addressed is on existing installations, involving arcing at the meter stabs.
I live in California, and So. Cal. Edison loves their "vandal proof" meter locking rings, so in order to do a "proper" service entrance inspection, we have to call a service tech out to unlock the meter ring, they always pitch a "bad time", about coming all the way out to unlock a ring, but it's my reputation and the customer's safety that are both on the line.
More than once, but not really-often I've discovered electrical arcing damage to the electrical meter mounting stabs. Arcing and burning in this location can only be seen by removing the meter. When I find one of these electrical meter mount arc-burn cases, the Edison guy is always amazed.
Not too many sparky's pull the electrical meters to inspect the meter connections, but I recommend it.
And pulling all the breakers off the bus and checking for discoloration or arcing on the bus bars, and breaker clips is a good practice to live by, Especially Zinsco panels (see ZINSCO / SYLVANIA HAZARDS), and especially 30 and 40 amp breakers. - Kirk Schwoebel
Photographs of Arcing Damage & Heat Damage at Connectors in Electric Meter Bases
The electrical meter arcing damage photographs below were provided courtesy of Robert McBride.
At below left the photograph of an electrical meter base shows severe arcing burns at the connecting jaws. At below right you will note (arrow) arc burns at the upper left connector in the photograph. The contributor indicated that this arcing burn occurred because the meter was inserted into the meter base while the system was under load.
|
At left the McBride photo shows heat damage at the electric meter mounting base due to loose connections.
Keep in mind that even minor electrical arcing such as shown in the photograph at right can be the beginning of a more serious problem, failure, or electrical fire.
That's because electrical resistance created by the flashover burned materials at the connection increases heating and future arcing or burn risks at that same connector. |
