How to Inspect Residential Electrical Systems, Panels, Grounding, Wiring - Part 2
InspectAPedia^®  -

• Electrical inspection vocabulary
• Electrical inspection of the service drop and service wire clearances
• Online Course on how to inspect electrical panels

This document discusses procedures for safe and effective visual inspection of residential electrical systems including electrical panels and other components, when the inspection is conducted by trained building inspection professionals, home inspectors, electrical inspectors, and electricians. It was presented by Daniel Friedman - InspectApedia.com, at the Hudson Valley chapter of the American Society of Home Inspectors - HVASHI Seminar 12 Sept 2002, Updated April 2006, April 2009.

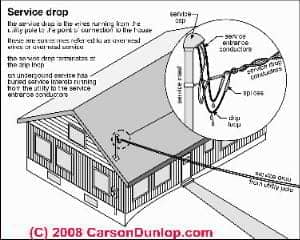

Readers of this article should also be sure to review Safety Hazards and Safe Electrical Inspection Procedures for Inspectors examining Residential Electrical Systems and should pay special attention to the following chapters from that article:   Electrical Panel Interior Inspection -  Removing Electric Panel Covers -  Electrical Panel Cover Screws -  Electrical Panel Interior Hazards -  Testing Main Breakers or Fuses and  Inspect Breakers, Fuses. Carson Dunlop's sketch at page top shows where the electrical inspection starts at a residential property.

© Copyright 2009 Daniel Friedman, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use links at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

Electrical Vocabulary for Residential Electrical Inspectors

Readers of this article should see our detailed definitions at DEFINITIONS of ELECTRICAL TERMS and AMPS & VOLTS DETERMINATION and at Electrical Circuits, shorts.

• Service Drop/Service Laterals (overhead/underground from street) - Inspection not required; [note clearance/tree/condition/number of wires]
• Service Entrance (masthead, service entrance conductors, meter/meter)
• Service Voltage
• Service Amperage
• Service Equipment
• Service disconnect - main overcurrent dev.
• Service box, main panel, service panel
• Grounding equipment - rod/electrode, grounding conductor
• Grounding wire: the "ground wire," normally inactive, alternative path from various devices to ground, exercised in abnormal conditions to permit fuse to blow and reduce shock hazard
• Grounded wire: neutral wire, normally carries return current, in daily use, gives flow path of current from source to earth
• Grounding electrode conductor: "the ground wire" from service equipment to ground at water pipe or electrode(s)
• Equipment grounding conductors: "ground wires" on each branch circuit throughout the house
• Grounding: connect something to earth (0 potential)
• Bonding: joining two electrical conductors so will be at same electrical potential (FYI: gas piping not used for grounding, is bonded to the grounding system)
• Arc fault circuit interrupters: see AFCIs ARC FAULT CIRCUIT INTERRUPTERS

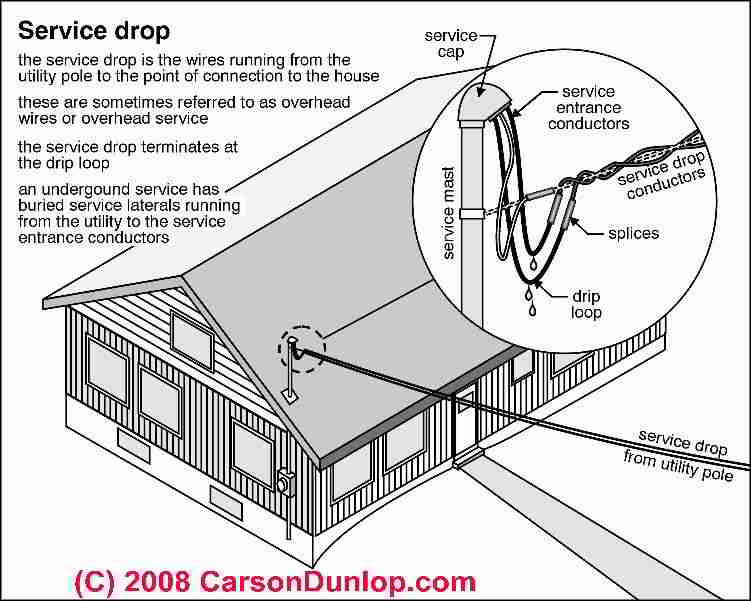

Inspecting the Electrical Service Drop or Service Lateral bringing electrical power to a building

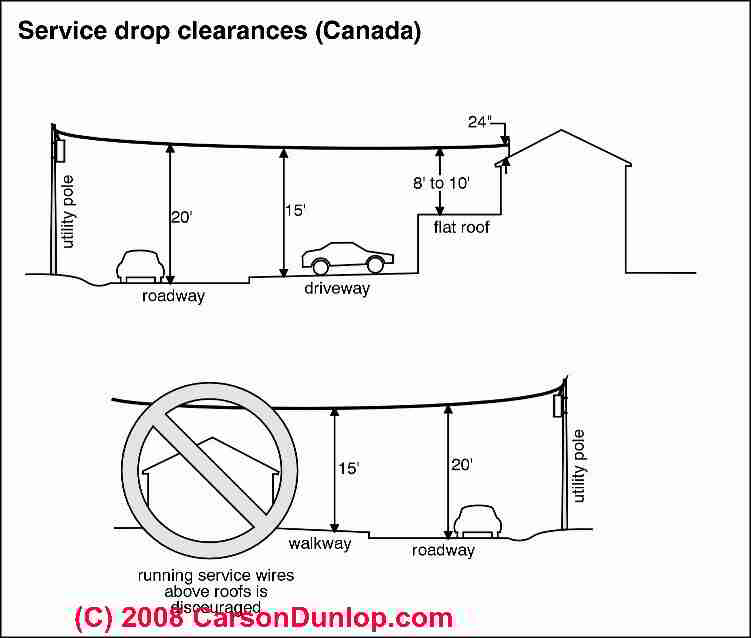

Electrical Service Drop Wire Clearances and Other Defects

• roadway 18 ft. overhead
• driveway 12 ft. overhead
• flat roof 8-10 ft. overhead
• roof 18" at mast, 3 ft. passing over
• walkway 10 ft. overhead
• swim pool 18 ft. vertical clearance, 10 ft. horizontal clearance
• not over 30 ft. above grade
• less than 3 ft. from windows, fire escapes, doors
• damaged, frayed
• trees, vines
• well-secured to house
• well-connected to service entrance cable (SEC)
