Service entry wiring (C) Carson Dunlop Electrical Service Entry Wire Inspection & Service Ampacity: How to Inspect
InspectAPedia®  -

  • How to inspect the electrical service entry wiring for components that limit the electrical service ampacity available to the building - a 200 Amp main panel does not itself assure that 200A is available.
  • How to determine electrical service ampacity - how much electrical power do we have at a building?
  • Electric meter defects that can be determined by visual inspection
  • Questions & answers about electrical service ampacity determination for buildings
InspectAPedia offers impartial, unbiased advice without conflicts of interest. We will block advertisements which we discover or readers inform us are associated with bad business practices, false-advertising, or junk science. Our contact info is at InspectAPedia.com/Contact.htm.

This document discusses procedures for safe and effective visual inspection of residential electrical systems including electrical panels and other components, when the inspection is conducted by trained building inspection professionals, home inspectors, electrical inspectors, and electricians. It was presented by Daniel Friedman - InspectApedia.com, at the Hudson Valley chapter of the American Society of Home Inspectors - HVASHI Seminar 12 Sept 2002, Updated April 2006, April 2009.

Readers of this article should also be sure to review Safety Hazards and Safe Electrical Inspection Procedures for Inspectors examining Residential Electrical Systems and should pay special attention to the following chapters from that article:   Electrical Panel Interior Inspection -  Removing Electric Panel Covers -  Electrical Panel Cover Screws -  Electrical Panel Interior Hazards -  Testing Main Breakers or Fuses and  Inspect Breakers, Fuses. Carson Dunlop's sketch at page top shows where the electrical inspection starts at a residential property.

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

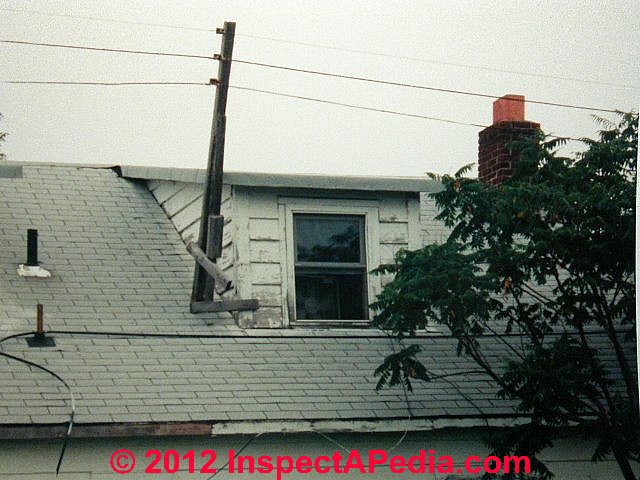

Inspecting the Electrical Service Entry Wiring bringing electrical power to the electric meter

Service entry wiring (C) Carson Dunlop

Readers of this section should see ELECTRIC METERS & METER BASES for details. Sketch courtesy of Carson Dunlop.

  • Mast, conduit, cable: weather tight
  • service cap
  • roof flashing
  • conduit required at roof penetrations
  • conduit joints
  • top and base of meter
  • at wall penetration
  • well connected to service entrance cable (SEC)
  • frayed SEC cables, abandoned SEC cables

A study by the author (Reporting Extent and Sources of Rust and Corrosion in Electrical Panels, HOLM Conference) showed that very common sources of water leaks into and damaging electrical panels include frayed SEC, leaks at the top of the meter, and leaks at the building wall where the SEC passes from the bottom of a meter pan into the building electrical panel.

How to Determine Residential Electrical Service Ampacity

Readers of this section should see AMPS & VOLTS DETERMINATION for a detailed article on how to determine the amps and volts of a building's electrical service.

Do not rely on the ampacity printed on the main fuse or breaker, though that information is important. Examine the following:

  • service drop wire size
  • mast diameter
  • 1-inch 60A mast
  • 2-inch 200A lateral
  • meter base size
  • meter rating
  • service box rating
  • distribution panel rating
  • total of all fuses or breakers in panel (the sum is NOT the service ampacity as % utilization applies)

So what determines the actual service ampacity at a building?

  • Smallest link in the chain determines
  • Best indication is size of SEC + id CU/AL
  • IF SEC is not visible, look at service disconnect
  • Specify if unable to determine, and why

A General Table of Electrical Service Ampacity vs. Service Entry Cable Sizes

AMPS Copper Aluminum
30 10* 8*
60 6* 6*
70 6* 4*
100 4 2
125 2 1/0
150 1/0 2/0
200 2/0 4/0

More Reading:
Ampacity of an Electrical Service - Details of how to determine electrical service ampacity and voltage by visual inspection and/or safe use of test instruments.

Electrical Service Ampacity Defects

  • Inadequate / marginal total capacity for the modern use of the building. Some lenders require a minimum of 100A.
  • Some utility companies will not replace an old 60A service (and meter) and will require that service be upgraded.
  • load calculation of required service ampacity for buildings is not required during a home inspection but the inspector should be familiar with that procedure

Electric Meter Defects

Obsolete electric meters (C) Daniel Friedfman

  • Loose electric meter - watch for attachment screws falling inside, shorting, causing a fire (Arnold Rd. Pok)
  • Water Leaks into electric meter top from frayed SEC or defective seal at meter top
  • Water leaks from electric meter pan into service conductors into main electrical panel - see RUST in ELECTRICAL PANELS
  • Obsolete electric meters - change out required by utility company in some circumstances
  • Electric meter rated only for copper wire connected to aluminum SEC
