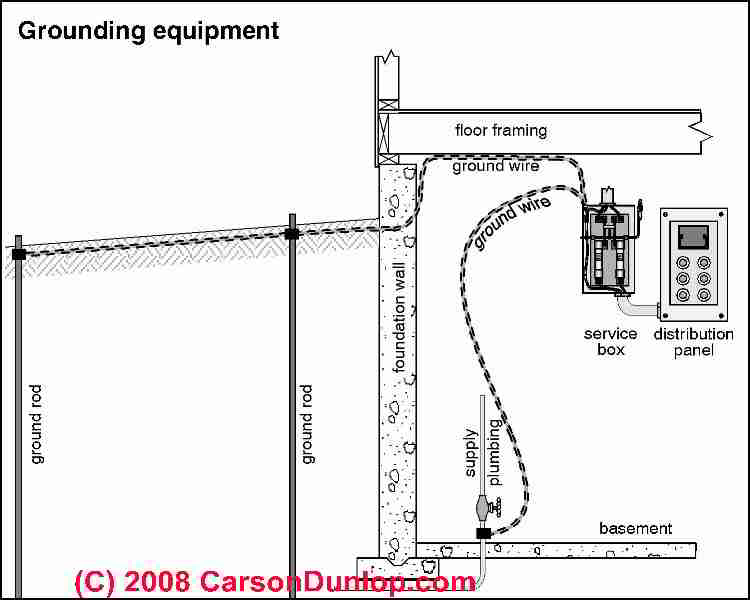

This article summarizes inspection of the electrical ground system at a building. Readers should see our complete electrical ground inspection information at ELECTRICAL GROUND SYSTEM INSPECTION. This document discusses procedures for safe and effective visual inspection of residential electrical systems including electrical panels and other components, when the inspection is conducted by trained building
inspection professionals, home inspectors, electrical inspectors, and electricians. It was presented by
Daniel Friedman - InspectApedia.com, at the Hudson Valley chapter of the American Society of Home Inspectors -
HVASHI Seminar 12 Sept 2002, Updated April 2006, April 2009.
Please see our complete article on the inspection & diagnosis of electrical grounding systems at ELECTRIC SERVICE GROUNDING.
Table of Electrical Ground Wire Sizes
Ground Gauge CU (Copper)
Service Size
#8
to 100A
#6
to 125A
#4
to 165A
4*
#3
to 200A
Electrical Service Grounding Defects & Conditions
not found in sub panel feeder (a)
attached to plastic pipe (b)
attached to abandoned pipe
(b)
spliced
(b)
loose or missing connections
(a) or (b)
inaccessible connections
no water meter bypass or other dielectric plumbing fitting bypass (bonding jumper)
local grounding electrode conductor not found in main panel
ground bond between neutral and ground and panel enclosure not found in the main panel
no water meter/water shutoff valve bypass (bonding jumper) (a)
neutral (the grounded conductor) bonded to ground downstream of box (or upstream)
neutral bus not bonded to the ground bus (equipment grounding conductors & ground bus) at main panel
main panel not bonded to grounding electrode conductor and ground bus
undersized grounding electrode conductor wire
ground rod (grounding electrodes) cut off or short (or only one grounding electrode connection at new construction)(b)
corroded grounding electrode conductor (b) - More about the galvanic scale and corrosion between dissimilar metals is at GALVANIC SCALE & METAL CORROSION.
loose or missing grounding electrode conductor clamp at the grounding electrode (b)
loose or missing bonding jumper clamp(s) such as at a water meter or water pipe (b)
bare aluminum grounding electrode conductor
exposed to corrosion (b) - More about the galvanic scale and corrosion between dissimilar metals is at GALVANIC SCALE & METAL CORROSION.
neutral bonded to the equipment grounding conductor (the ground wire) in sub panel or junction box (a)
neutral not bonded to ground at the main service panel (b)
