Electrical ground wiring inspection: this article summarizes inspection of the electrical system grounding at a building.

Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.

SYSTEM GROUNDING - Inspecting Residential Electrical System Grounding Equipment for Defects

Be sure to review the starting point for this information at ELECTRICAL GROUND SYSTEM INSPECTION. This article series discusses procedures for safe and effective visual inspection of residential electrical systems including electrical panels and other components, when the inspection is conducted by trained building inspection professionals, home inspectors, electrical inspectors, and electricians. It was presented by Daniel Friedman - InspectApedia.com, at and discussed by the Hudson Valley chapter of the American Society of Home Inspectors - HVASHI Seminar 12 Sept 2002, Updated April 2006, April 2009.

Readers of this article should also be sure to review Safety Hazards and Safe Electrical Inspection Procedures for Inspectors examining Residential Electrical Systems and should pay special attention to the following chapters from that article:   Electrical Panel Interior Inspection -  Removing Electric Panel Covers -  Electrical Panel Cover Screws -  Electrical Panel Interior Hazards -  Testing Main Breakers or Fuses and  Inspect Breakers, Fuses. Carson Dunlop's sketch at page top shows where the electrical inspection starts at a residential property.

Ground wires in fuse panel - function(C) Carson Dunlop Sketch courtesy of Carson Dunlop Associates.

  • This wiring is for Emergency-use only - it should never be wired so as to carry current during normal operation. (E.g. This occurs if a sub panel bonds the neutral to ground wires).
  • Provides better path for current than a person, blows fuse/breaker, dissipates static, may dissipate lightning
  • Example: loose black in metal box touches side; current flows through person when touched, depends on who is grounded

Also, see details about electrical grounding at Electrical Circuits, shorts, and at Electrical Wiring in Old Houses and at Electricity Basics - how it works.





DISTRIBUTION PANELS - Inspecting Residential Electrical Distribution Panels for Defects

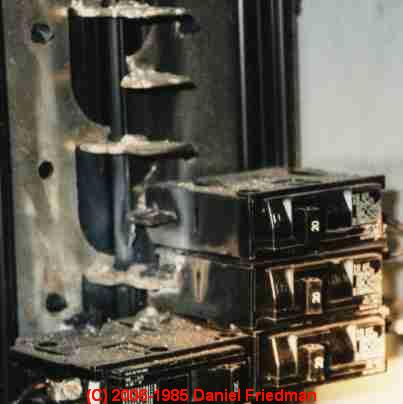

Bad electric breaker burned bus (C) Daniel Friedman

  • Main and sub panels, aka "service panels, aux panels, sub panels, fuse boxes, fuse box"
  • Fed from meter to main breaker/fuse or fed from separate service connect
  • distributes electricity through house branch circuits and special (range etc) circuits
  • each sub circuit must be protected (fuse/breaker)

Links to the full sections of this electrical ground components inspection series are below and at Related Topics .

...


Frequently Asked Questions (FAQs)

...

Ask a Question or Search InspectApedia

Questions & answers or comments about inspecting the electrial system ground, grounding conductors, grounded conductors, grounding electrodes, and related wiring components.

Ask a Question or Enter Search Terms in the InspectApedia search box just below.

Technical Reviewers & References

Related Topics, found near the top of this page suggest articles closely related to this one.
