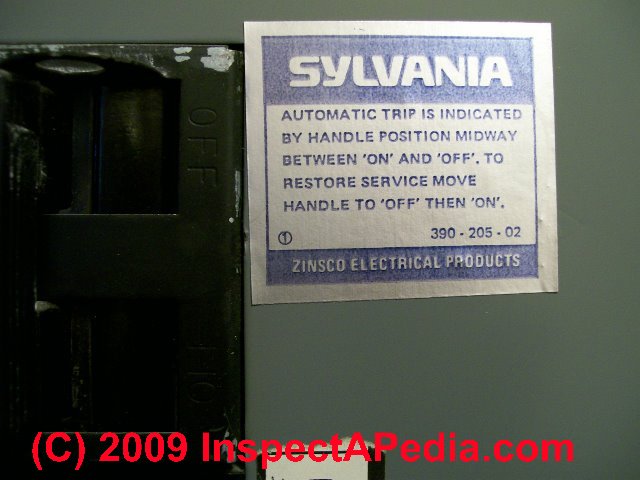

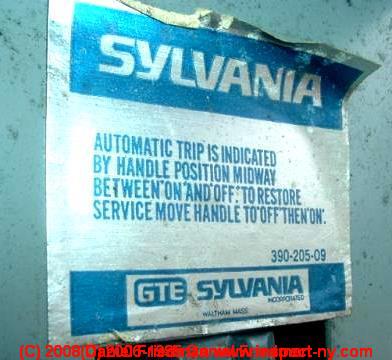

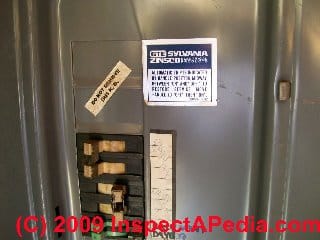

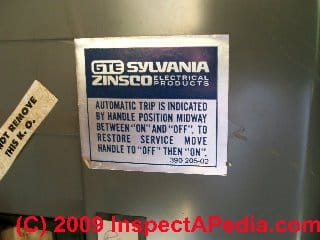

Zinsco Sylvania GTE identifying Label (C) J Simmons D Friedman How to Identify Zinsco & GTE Sylvania-Zinsco Electrical Panels & Circuit Breakers
InspectAPedia®  -

  • How to Identify Zinsco & Zinsco-Sylvania & GTE-Sylvania-Zinsco Electrical Panels and Circuit Breakers
  • How to Identify Zinsco-like Sylvania Electrical Panels and Circuit Breakers

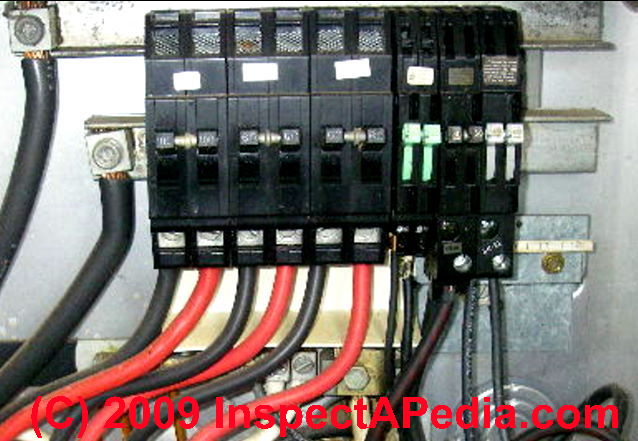

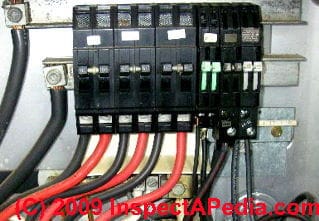

  • How to Identify Kearney Electrical Panels - Zinsco-look alike Electrical Panels and Circuit Breakers
InspectAPedia offers impartial, unbiased advice without conflicts of interest. We will block advertisements which we discover or readers inform us are associated with bad business practices, false-advertising, or junk science. Our contact info is at InspectAPedia.com/Contact.htm.

Here we provide text, labels, and equipment photographs used to help identify Zinsco and GTE-Sylvania-Zinsco electrical panels and circuit breakers, and we include photographs of a Zinsco look alike marketed by Kearney. This website discusses the electrical, fire, and shock hazards associated with Zinsco electrical components, circuit breakers, electrical panels, including certain Sylvania electrical panels and breakers which are in fact of the same product design and origin.

Readers should also see IDENTIFY GTE SYLVANIA-ZINSCO PANELS , see IDENTIFY KEARNEY PANELS, see the GTE-SYLVANIA-ZINSCO FAILURE MECHANISM as well as ZINSCO FAILURE REPORTS.

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

IDENTIFY ZINSCO - How to Identify Zinsco & Zinsco-Sylvania & GTE-Sylvania-Zinsco Electrical Panels and Circuit Breakers

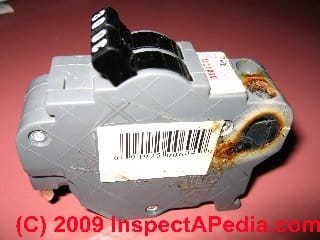

Zinsco Magnetrip panel lable (C) D Friedman GTE Sylvania Zinsco breaker (C) J Weissman D Friedman

Zinsco electrical panels were distributed in the United States, primarily in the Western states. Some Zinsco electrical panels include an embossed "Magnetrip" label in the panel cover (photo, above left). The photo (above-right) of a recent GTE Sylvania Zinsco circuit breaker burnup is courtesy of Jeff Weissman. Other Zinsco electrical panel identification and information labels are included in this article.

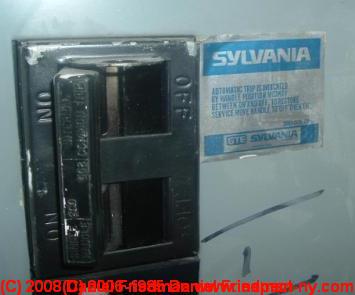

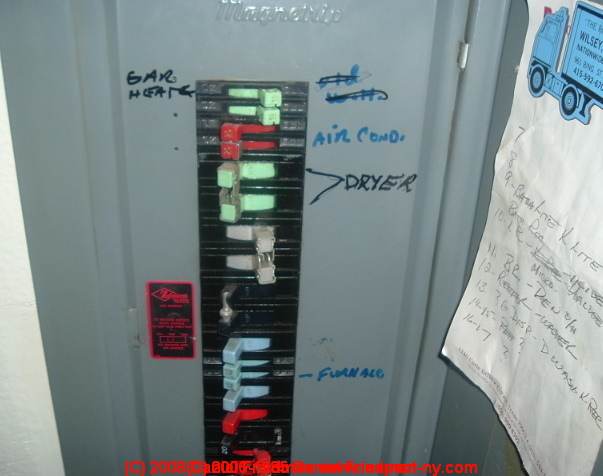

  • Zinsco Main Panel, note the embossed "Magnetrip" label at the top of the panel face

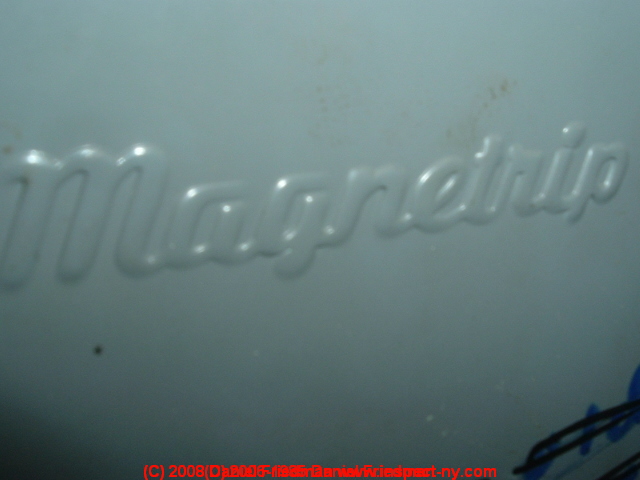

  • "Magnetrip" closer view of this embossed label

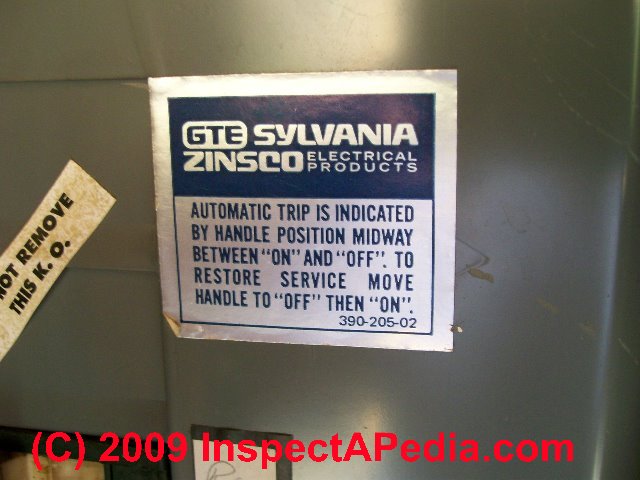

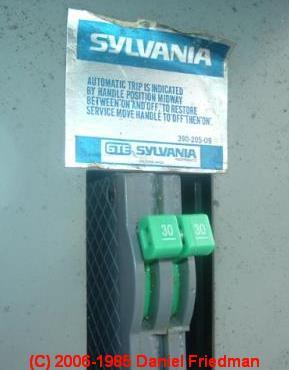

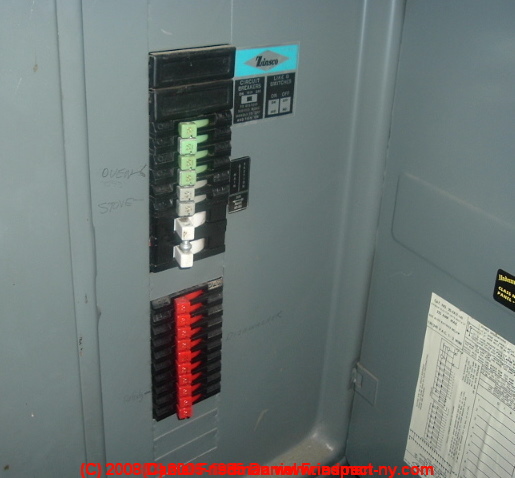

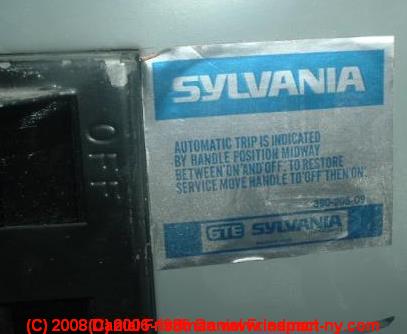

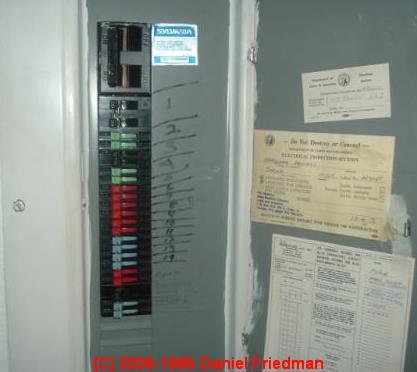

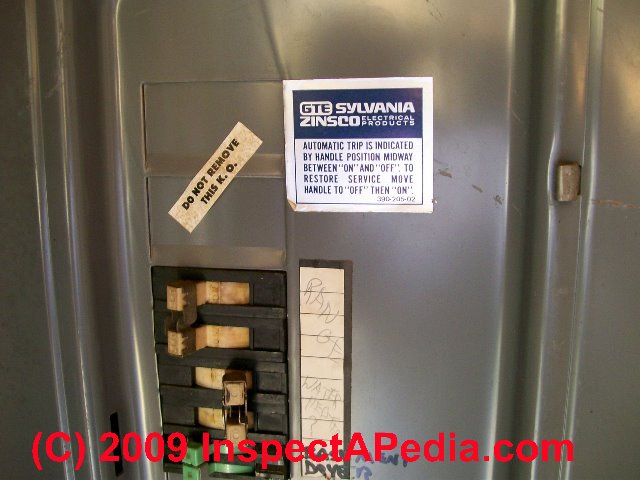

  • Zinsco blue/silver label in the panel, and the characteristic green, white, red circuit breaker toggles

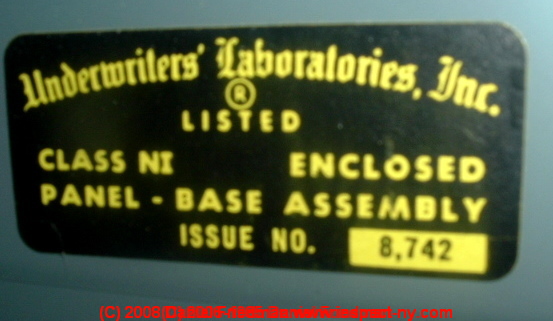

  • Underwriter's Laboratory Label, closeup of this yellow on black UL label in a Zinsco electric panel

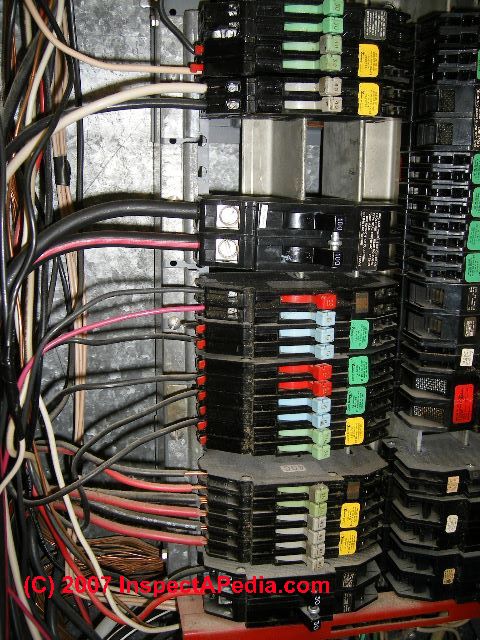

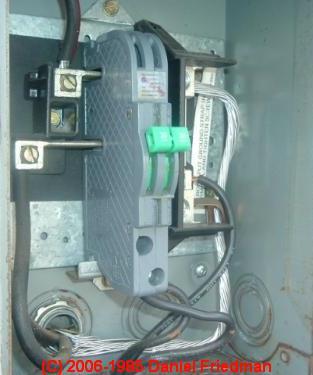

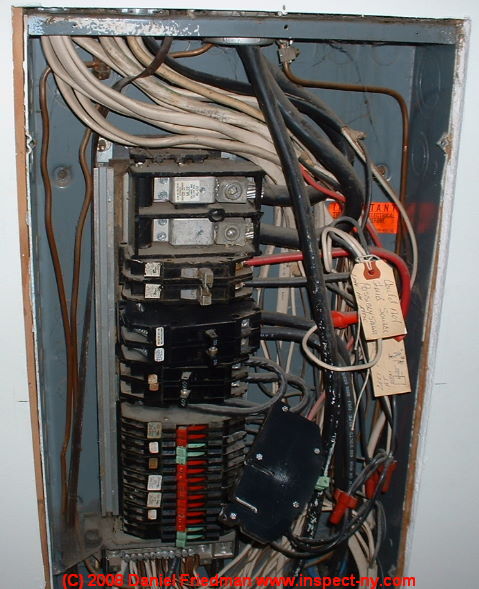

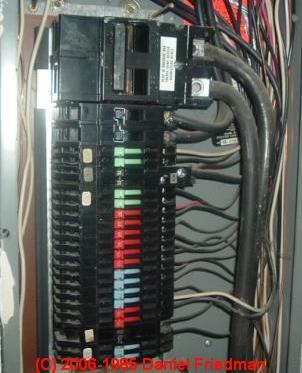

  • A Zinsco Electrical Panel, cover off: note the red and blue breaker toggles and the breaker removed to show evidence of arcing in this Zinsco electrical panel. .

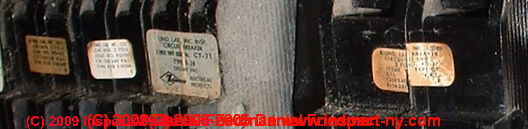

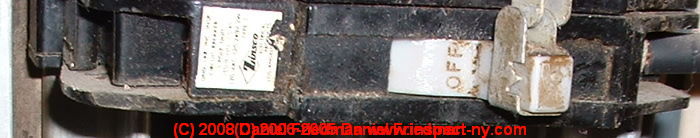

  • Zinsco circuit breaker labels-1
  • Zinsco circuit breaker labels-2

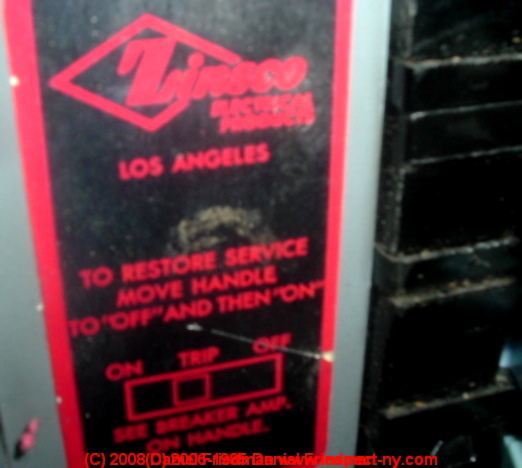

  • Zinsco Main Panel Label, closeup of the red print on black "Zinsco Los Angeles label"


IDENTIFY Zinsco HD - 4032 400 Amp, 2 pole, 240V AC Electrical Panel

400A Zinsco in a Georgia kitchen (C) D Friedman, R Sims. 400A Zinsco in a Georgia kitchen (C) D Friedman, R Sims.

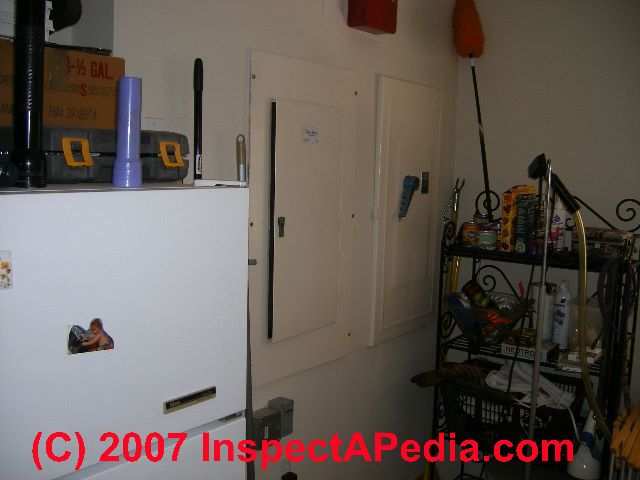

Above, courtesy of Richard Sims, we include photographs of a 400A 240V Zinsco Electrical Panel that was property of the Georgia (USA) Power Company, including identifying Zinsco labeling. The Zinsco panel exterior (above left).

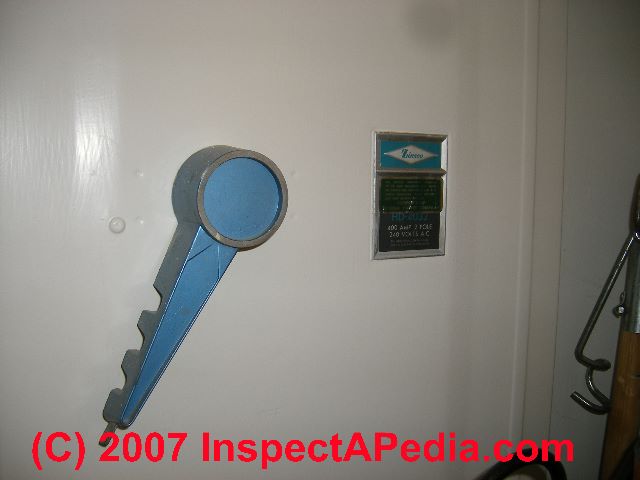

The right hand photo (above right) shows the distinctive operating handle on the door of this Zinsco electrical panel.

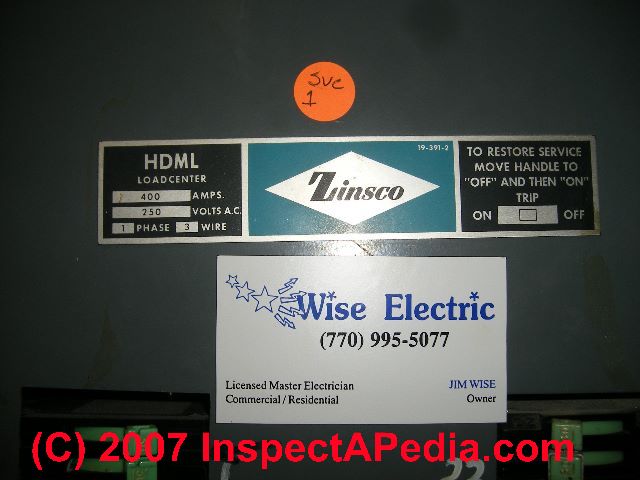

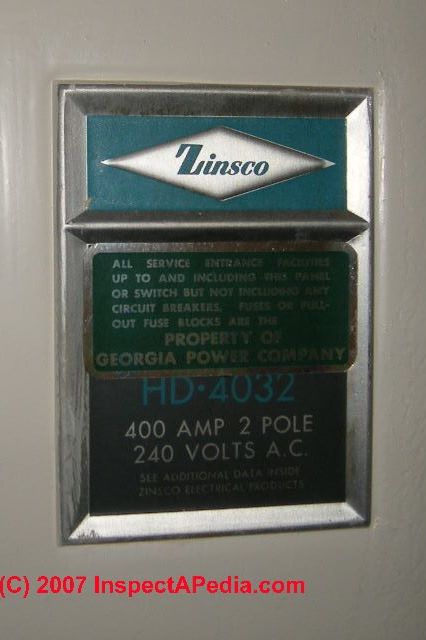

Below we show external and internal identification labels for this 400-Amp Zinsco electrical panel. The electrical panel is also tagged with the electrician's card, Jim Wise, owner, Wise Electric.

Zinsco 400A panel in Georgia (C) D Friedman R Sims Zinsco 400A panel in Georgia (C) D Friedman R Sims

Below we show the interior of this 400Amp Zinsco electrical panel.

Zinsco 400A panel interior (C) Daniel Friedman R Sims Zinsco 400A panel interior (C) Daniel Friedman R Sims

Readers should also see IDENTIFY GTE SYLVANIA-ZINSCO PANELS , see IDENTIFY KEARNEY PANELS, see the GTE-SYLVANIA-ZINSCO FAILURE MECHANISM as well as ZINSCO FAILURE REPORTS.

Contact Us with field reports and photos. We are pleased to credit and link-to contributors.

Questions & Answers regarding this article

.

Ask a Question or Search InspectAPedia

HTML Comment Box is loading comments...

Share this Article

...

Technical Reviewers & References

  • InspectAPedia.com® - Daniel Friedman - Publisher & Editor.
  • InspectAPedia Bookstore lists recommended books, organized by topic & available for purchase. Most of our articles also include a list of recommended books for the specific article topic as well as other references, and information sources.
  • Critique, contributions wanted: Contact Us to suggest corrections or additions to articles at this website, and if you wish, to receive online listing and credit as a contributor. Particular thanks are due to the many experts and also consumers who read and critique technical articles at InspectAPedia.com.
  • Additional technical contributors & reference sources for this article are listed below.

Use links just below or at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

ELECTRICAL INSPECTION, DIAGNOSIS, REPAIR
ZINSCO SYLVANIA ELECTRICAL PANELS
ADVICE FOR ZINSCO OWNERS
  ZINSCO SAFETY PRECAUTIONS
  SIGNS OF ZINSCO GTE SYLVANIA TROUBLE
IDENTIFY ZINSCO ELECTRICAL PANELS
IDENTIFY GTE SYLVANIA-ZINSCO PANELS
IDENTIFY ZINSCO SYLVANIA METER BASE
IDENTIFY KEARNEY PANELS
GTE-SYLVANIA-ZINSCO FAILURE MECHANISM
ZINSCO FAILURE PHOTOGRAPHS
ZINSCO FAILURE REPORTS
ZINSCO OVERHEAT IR PHOTOS
ZINSCO FAILURE REPORT PROCEDURE
  REPORT TO WEB AUTHOR
  REPORT TO THE US CPSC
  ZINSCO INSPECTION REPORT LANGUAGE
ZINSCO REPAIR ELECTRICIANS
ZINSCO REPLACEMENT PANELS
REPLACEMENT PANEL COSTS
ZINSCO WARRANTY & CONTACT INFO
REPAIR ELECTRICIANS

  • Personal communication, J. Aronstein to D. Friedman, 3/6/2006
  • James P. Simmons: Personal communication and photographs used in this article series, J. Simmons to Daniel Friedman, 3/4/2006, 2/19/2008. Photographs contributed to this website by Jim P. Simmons, Mr. Electric, Licensed Master Electrician, 1320 Dayton Street SE, Olympia, WA 98501, 360-705-4225, Fax 360-705-0130 or by email to mrelectricoly@msn.com
  • Thanks to various electricians, home owners, and home inspectors for contributing the Zinsco Sylvania-Zinsco electric panel and circuit breaker field failure reports cited above.
  • Thanks to David Osborn, an alert home inspector, for helpful critique regarding the need for Zinsco/Sylvania electrical panel replacement, 4/27/06
  • Thanks to Joe Funderburk, Alpha & Omega Home Inspections, Hickory Grove, SC for his photos of a Kearney electrical panel. Mr. Funderburk is a NACHI member and home inspector who can be reached at jfunderburk@aohomeinspection.com or at www.aohomeinspection.com

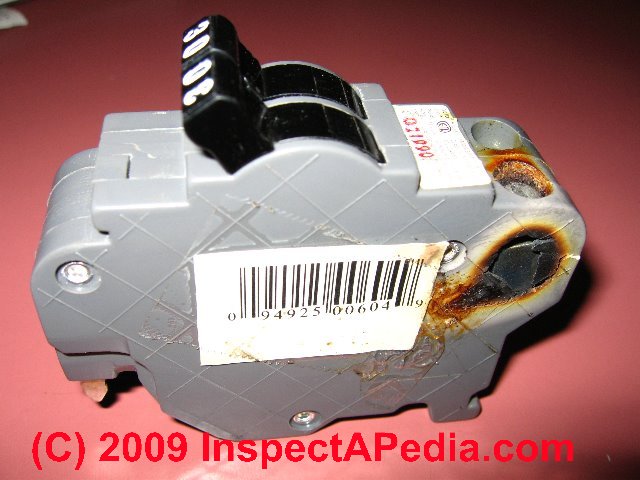

  • Thanks to Texas electrician Jeff Weissman for contribution of photographs of burned Zinsco circuit breakers. 03/06/2007. Mr Weissman can be reached at jeffweissman@gmail.com or by telephone at 713-666-6605
