Electrical Circuit Breaker Burns, Fails to Trip, Continues to Conduct Power: this document demonstrates detection and fire risks of a bad electrical circuit breaker which burned, failed to trip, and remained live in the electric panel.

The example is used to inform electrical inspectors, home inspectors, electricians who inspect building electrical panels for defects. Photographs and comments describe a modern residential electrical service panel with aluminum bus parts which corroded, overheated, and in which a circuit breaker which had burned but was continuing to power the circuit!

You don't need a VOM or digital volt meter to see bad burn ups like this but this failure is a strong recommendation for use of digital multimeters or simple neon testers to confirm that circuit breakers really do turn off the power.

Other critical electrical system failures are explained and photo-documented at Federal Pacific Electric Stab-Lok and Zinsco Electrical Circuit Breaker Failures and Aluminum Wiring Information Website

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

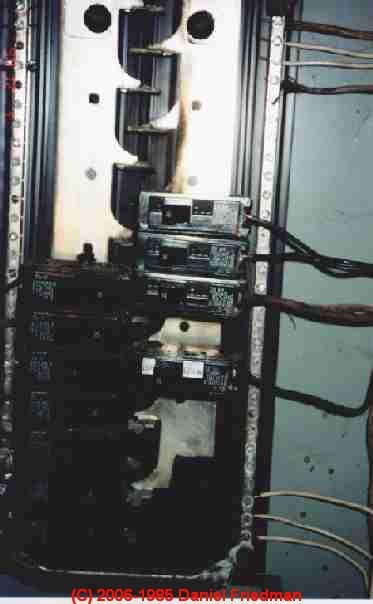

Full View of Electrical Panel with a Burned Circuit Breaker

On opening the panel, arcing and burn marks were obvious. Note the black stains along the left side of the right-hand bus bar above the highest breaker in the panel.

Note also the corrosion present at the neutral bus and bus bar connector at the panel bottom right corner. This panel was in a wet utility basement of an old house in New York state.

However it did not appear that moisture in the panel from basement conditions was the root cause of overheating and damage. There was not general corrosion throughout the panel. The panel itself was relatively new, less than ten years old.

A Look at the Electrical Panel Center

A look at the center of the panel shows pieces of circuit breaker plastic and other debris that was obviously a product of arcing and burning at one of the circuit breakers.

Close up View of the Electrical Panel Center

A closer look at the same area shows a piece of one of the right-hand breakers sitting atop the lower breaker on the left. Notice the red and white corroded material at the lower right corner of the top breaker. J. Aronstein suggests that overheating in the breaker burned off zinc or other anti-corrosive plating leading to bleed-out of rust particles.

Other breakers in the panel, presumably of the same age, did not show these visual indications of damage.

Burned, arced breaker still in place, still "live"

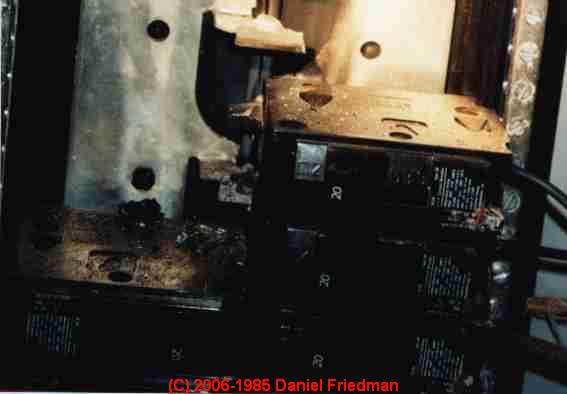

Finally, shifting the angle and getting some better light on the subject one could see that the lower of the uppermost two breakers in the panel right side had burned badly where it was connected to the aluminum bus of the panel.

It was remarkable that despite severe damage to the breaker and panel bus, the breaker was still conducting current to the circuit connected to it.

During a home inspection inspectors should not touch equipment like this. Using a TIF Instruments Tic Tracer it was possible to confirm live electrical power at various points. Of course, what's called-for is an immediate repair which most likely requires replacement of the bus assembly and breakers if not the whole panel.

Home inspectors are not forensic engineers, but it appears obvious to anyone looking at this equipment in-situ that overheating at the connection of the breaker to the panel bus must have led to arcing, breaker damage, and thus creation of an unsafe condition in which there is very likely no overcurrent protection being provided by this equipment.

You don't need a VOM or digital volt meter to see bad burn ups like this but this failure is a strong recommendation for use of digital multimeters or simple neon testers to confirm that circuit breakers really do turn off the power.
