Exterior Stair Code Specifications & Construction Recommendations
A stair inspection checklist provided in this document outlines information to collect during a field investigation
of the condition of an interior or exterior stairway for safety defects. Having investigated cases of severe
injury related to falls and railing collapses we developed this field data collection checklist
For code specification details for steps, stairs, & railings, see Codes for Stairs
While in general the building code specifications for exterior stairs, landings, and railings are the same as for indoor star is, we often see special trip hazards at exterior stairs and walks, conditions that do not occur indoors, and details which may escape some building inspectors.

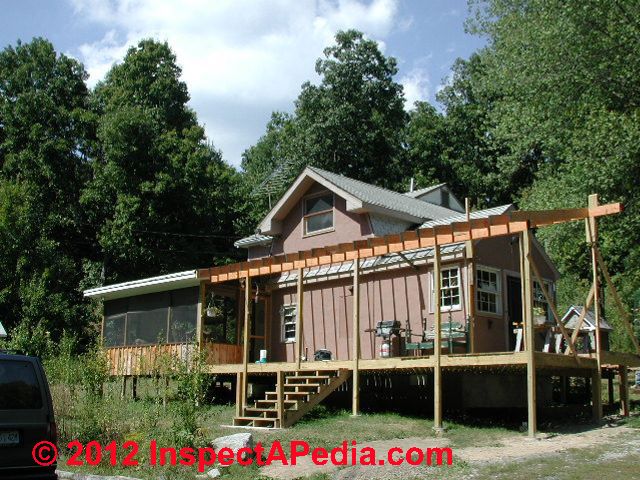

When we encounter steps and a deck such as the versioj shown in our photo (above left) we are confident that the construction was done without the benefit of building permits and code approvals, is unsafe, and may harbor other hidden structural or safety hazards.
And some stair design requirements, such as stair treads that will not hold water, naturally pertain principally to outdoor stairways. We add some more subtle warnings about outdoor stairs and stair construction, and tips or tricks of carpentry and masonry to avoid problems with stairs.
Construction Requirements for Safe Outdoor Steps, Stairs, Railings, Newell Posts
Proper structural support for the stair assembly is critical to avoid catastrophic failures and serious injuries. Our two stair photos just above show a large, complex exterior stair built along a rocky hillside - more of a cliff. The lack of connection of supporting posts to piers below this stair was appalling.
Proper exterior stair tread drainage: Outdoor stairs should be designed so as not to accumulate water on the tread surface Wet stair tread surfaces become slippery from water, ice, or algae and fungal growth.
Wooden stair treads should be installed with the end grain curve "down". Notice the end-grain of boards to be used as stair treads, and make sure that when building a wooden outdoor stair tread you place the tread boards with the "bark side" down - the wood grain visible at the end of stair tread boards should arc down.
(Sketch courtesy S. Bliss, Best Practices in Residential Construction.)
That determines the natural curvature of the tread board as the wood dries, and it makes for the best stair tread drainage and the minimum cupping or or holding of water on the stair tread.
If a board misbehaves and cures with a cup, drill small drainage holes in the center of the cupped board. Make sure the drain holes won't catch a high-heeled shoe by making them small or locating them out of the walking path.
