FPE Stab-Lok® identification from electrical panel door labels: this article describes how to identify Federal Pacific Stab-Lok® Electric Panels and circuit breakers in buildings by information printed on labels affixed to the electrical panel cover, door, or interior. It is information for building inspectors, home buyers, home owners, electricians concerned with hazards of Federal Pacific Electric Stab-Lok® circuit breakers and service panels.
Replacement FPE Stab-Lok® circuit breakers are unlikely to reduce the failure risk of this equipment. We recommend that residential FPE Stab-Lok® electrical panels be replaced entirely or the entire panel bus assembly be replaced, regardless of FPE model number or FPE year of manufacture. We do not sell circuit breakers nor any other products. For more information see FPE REPLACEMENT PANELS and FPE REPLACEMENT BREAKERS. This page assists in identifying Federal Pacific Electric Stab-Lok® electrical panels and circuit breakers. More FPE information is in the links listed at Related Topics .
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Photo Guide to FPE Electrical PANEL DOOR LABELS - Photos of FPE electric panel door labels
 Look on the panel exterior, or on the inside of the hinged, consumer-operable panel door.

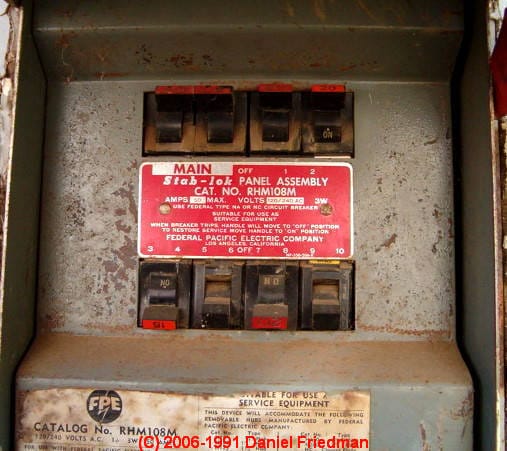

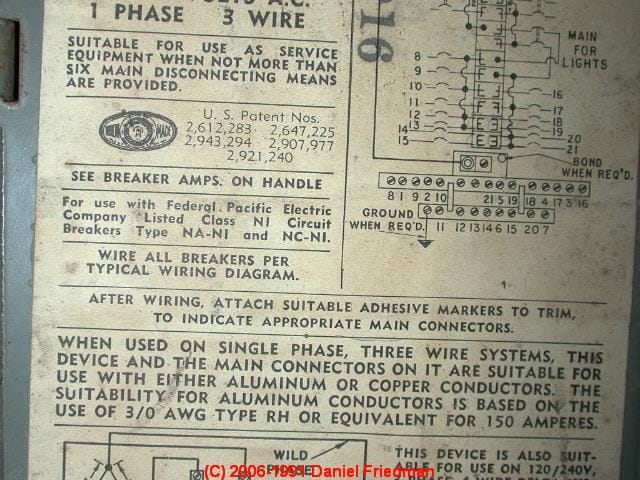

Look for the words "Stab-Lok® " However some panel labels such as the one shown here will not, at the label top, contain the words "Federal Pacific" or "Stab-Lok® ".

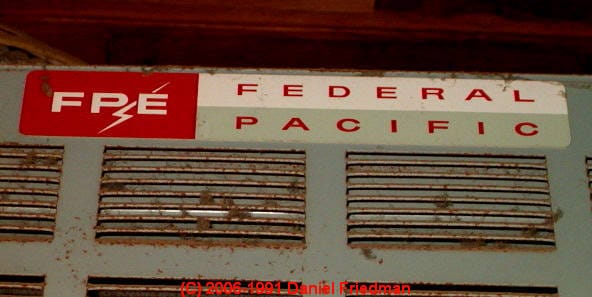

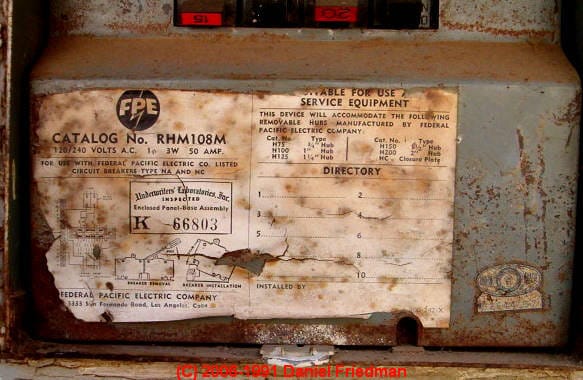

On those labels look at the bottom of the label for the words "Federal Pacific".
What if there are no labels on my electrical panel?
If an electrical panel has no exterior markings at all, it still may have labels inside - data that can be discovered by your electrician if the panel cover is removed. See IF NO LABELS for the procedure to follow where no electrical panels are present and there are no other identification marks on the panel.

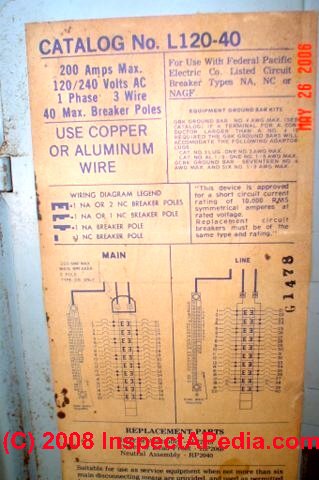

Additional photographs of FPE Stab-Lok® Electrical Panel Identifying Labels |

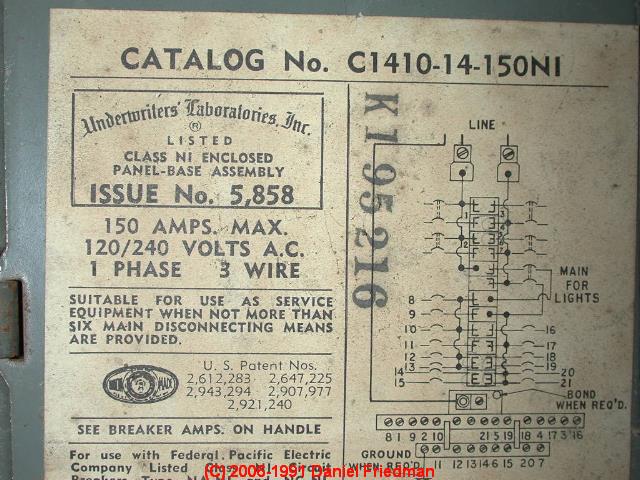

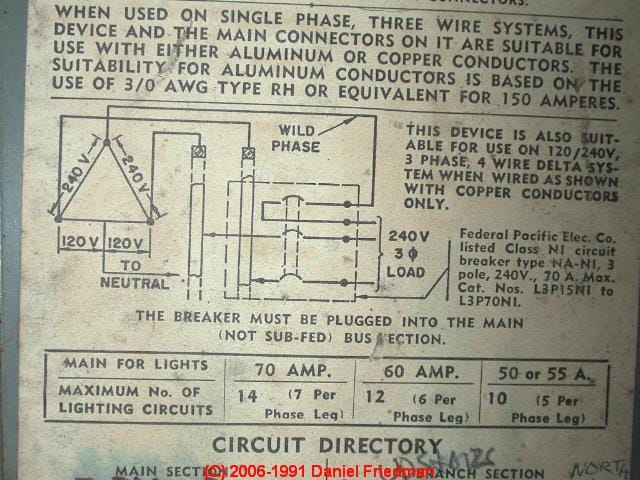

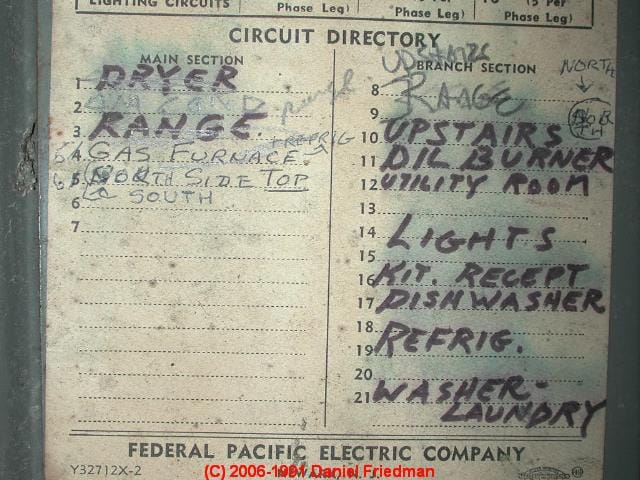

Photo of a Stab-Lok® Electric 150A panel door label FPE Model# C1410-14-150N1
Red-Centered FPE Stab-Lok® Cover Labels
|

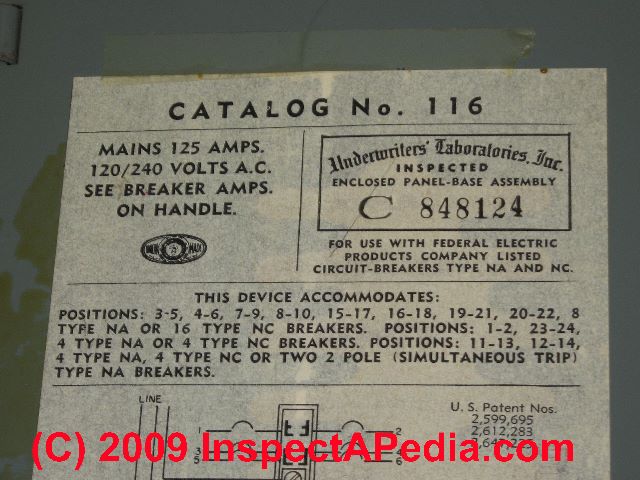

Here is John Spencer's photo of the interior label of a Federal Electric panel catalog No. 116 showing that this early model electrical panel used the "Stab-Lok® " "E" bus and "F" bus designs in this product.
Look at the bottom of the label just above our red (C) notice and you will see that the "F" and "E" Stab-Lok® bus layout was used.
See FEDERAL ELECTRIC PANELS for more identifying photographs of Federal Electric Panels. |
...
Frequently Asked Questions (FAQs) about FPE Stab-Lok electrical panel door labels
...
Ask a Question or Search InspectApedia
Questions & answers or comments about how to identify Federal Pacific Electric equipment from equipment labels.
Ask a Question or Enter Search Terms in the InspectApedia search box just below.
Technical Reviewers & References
Related Topics, found near the top of this page suggest articles closely related to this one.
- Timothy Hemm, Yucala, CA, contributed the photographs of FPE equipment installed in California buildings. Mr. Hemm can be contacted at TimHemm@yahoo.com
- Arlene Puentes, an ASHI home inspector in Kingston, NY, contributed the page top and example photograph of a bank of FPE adjacent electrical panels. Ms. Puentes can be contacted at ap@octoberhome.com
- Jon Bolton, a home inspector, the Inspectigator, FL, contributed the "camouflage" breaker. Mr. Bolton can be contacted at teamattitude@hotmail.com
- Mary DeMuth, a property owner, contributed the Texas Federal Pacific Electric Load Center photos, May 2006.
- Thomas M. Pino, a professional home inspector, contributed photos of the 100A Texas FPE panel used in a condo. www.sweetwaterhomeinspection.com. Mr. Pino can be contacted at sweetinspect@houston.rr.com or at sweetwaterhomeinspection@yahoo.com
- Thanks to home inspector John Spencer, Sherlock Home Inspectors, Inc. in Millington, MI, for photos and discussion of Federal Electric panel identification and hazards 04/2009. Mr. Spencer can also be reached at Saginaw (989) 777-0235, Millington (989) 871-5458, and by email to sherlockhomeinspectors@charter.net

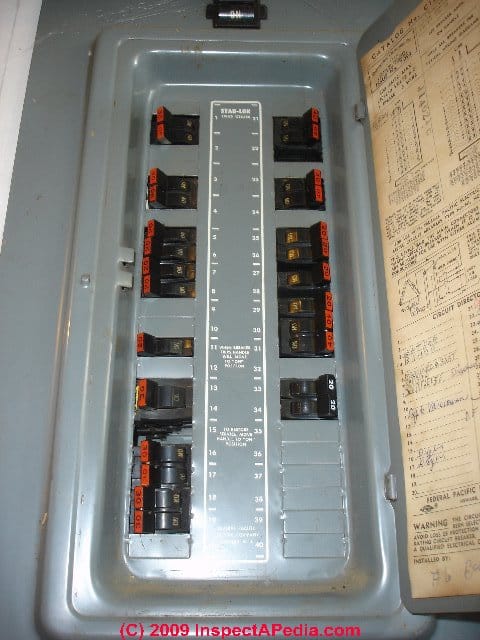

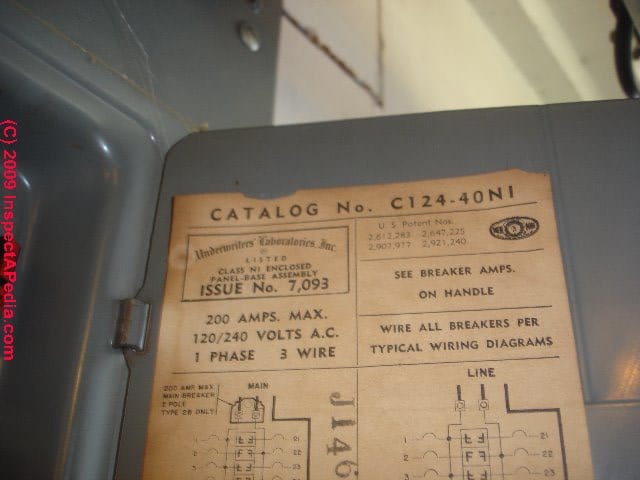

- L McIntire contributed photos of an FPE Stab-Lok® 200A Catalog No. C124-40N1, August 2009
