Replacement FPE Stab-Lok® circuit breakers are unlikely to reduce the failure risk of this equipment. We recommend that residential FPE Stab-Lok® electrical panels be replaced entirely or the entire panel bus assembly be replaced, regardless of FPE model number or FPE year of manufacture. We do not sell circuit breakers nor any other products. For more information see FPE REPLACEMENT PANELS and FPE REPLACEMENT BREAKERS. This page assists in identifying Federal Pacific Electric Stab-Lok® electrical panels and circuit breakers. More FPE information is in the links listed at Related Topics .
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Photo Guide to Electrical Panel TOGGLE SWITCHES - photos of Characteristic FPE Stab-Lok® circuit breaker toggle switch handles
How to identify FPE Equipment: this article series describes how to identify Federal Pacific Stab-Lok® Electric Panels and circuit breakers in buildings. It is information for building inspectors, home buyers, home owners, electricians exploring the background of possible hazards associated with Federal Pacific Electric Stab-Lok® circuit breakers and service panels.
|
Look for FPE characteristic circuit breaker toggle switch markings, shape, colors.
More examples are in the photos below as well as in some of the other Federal Pacific Electric and Federal Pioneer circuit breaker and panel photos on this page.
|
|

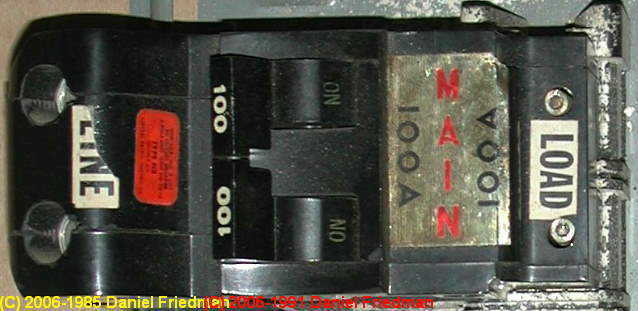

Here is a photo of the 100-Amp main breaker from an FPE Stab-Lok® electrical panel. Notice that this breaker does not have the characteristic orange-red paint on the face of the toggle switches.
|
At left notice the "hexagonal" cross section of the toggle switch on this pre-1970 FPE Stab-Lok® circuit breaker. This hexagonal detail is characteristic of earlier FPE Stab-Lok® equipment.
Photo courtesy of electrical panel researcher David Carrier. |

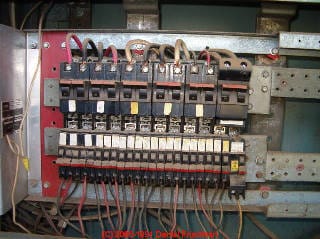

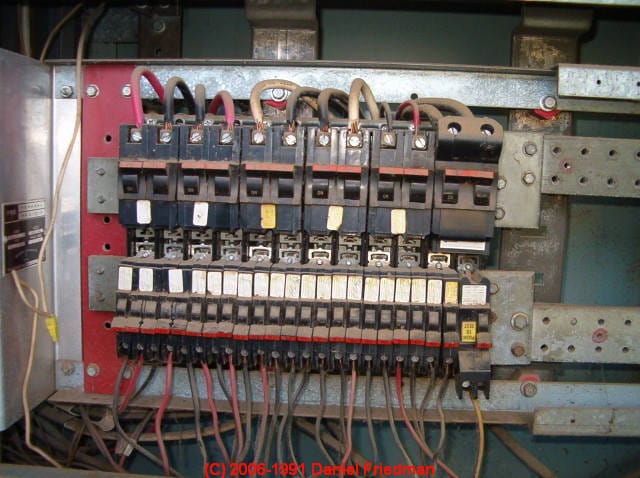

Photo of a Stab-Lok® panel apparent bus overheating or corrosion. This California FPE Panel shows characteristic FPE Stab-Lok® circuit breakers that can be recognized even from a distance.
|
...
