What do the different recycling number codes on plastic products mean: here we provide a key to plastic resin identification codes and we provide photographs of the number codes, a description of the type of plastic each represents, and photos of typical plastic containers of each type. Plastic bottles, containers, tanks: this article describes the types of plastics used in bottles, containers, and tanks, including for water storage, cisterns, and other liquids. We identify possible contaminants that may leach into drinking water from some types of plastic. Also see Bisphenol-A, BPA for a discussion of the use of BPA in baby bottles, sippy cups, and other liquid or food containers.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Types of Plastics Used for Bottles, Containers & Tanks
Also see Bisphenol-A, BPA and PLASTIC & FIBERGLASS TANKS, HDPE and see safety and health advice regarding cisterns and water storage tanks, including plastic water tanks, discussed at WATER TANK SAFETY.
Other plastics used in construction that have been subject of failures and/or litigation: see PLASTIC HEATER VENT and PLASTIC PIPING ABS CPVC PB PEX PVC.
- HDPE - High Density Polyethylene - the most widely used material for plastic bottles, HDPE is supplied in FDA-approved food-grade products. It does not withstand temperatures over 160 degF. Don't assume that HDPE containers are all clear or white. HDPE containers are commonly found in a variety of colors: white, red, blue, green, gray, etc. Our photo (left) illustrates a use of HDPE polyethylene plastic bottles used to contain battery acid at a gas stop in San Miguel de Allende, Mexico. Also see PLASTIC & FIBERGLASS TANKS, HDPE.
- K-SBC - K-Resin SBC plastic containers, a styrene derivative, used for containers but not for oils or solvents.
- LDPE - Low Density Polyethylene - similar to HDPE, less rigid, more translucent, more costly, not used for water storage tanks.
- PCR - Post-Consumer Resin, reclaimed plastic HDPE storage containers.
- Polycarbonate plastic containers made with biphenyl-A (a hormone disruptor)(baby bottles, microwave ovenware, eating utensils)
- PET - Polyethylene terephthalate (PETE, PETP, PET-P) is a thermoplastic polymer polyester plastic resin. plastic water tanks may be a health risk to consumers
- PP - Polypropylene plastic storage containers, used for foods, tolerates higher temperatures.
- PS - Polystyrene plastic storage containers, used with dry products, not for water storage.
- PVC - Polyvinyl Chloride plastic bottles or storage tanks, used for bottled oils and soaps, like HDPE it does not withstand high temperatures over 160 degF.
So What Plastic Was Used to Make My Water Bottle, Container, or Water Tank?
 How to Use the Plastic Recycling Code to Identify The Type of Plastic Tank or Container
How do you identify what kind of plastic was used to make your water or other storage tank or even your plastic water bottle or food container?
Use this simple guide to plastic recycling codes and look for the recycling indicator or label on your plastic container. Our photo (left) shows an image of the plastic recycling code #7.
|
Guide to Plastic & Resin Recycling Number Codes |
 |
 |
#1 code plastics - PET / PETE (polyethylene terephthalate) One-time use (do not refill plastic water bottles carrying this recycling mark). See our plastic water storage tank, plastic Ethos water bottle photos and details below.

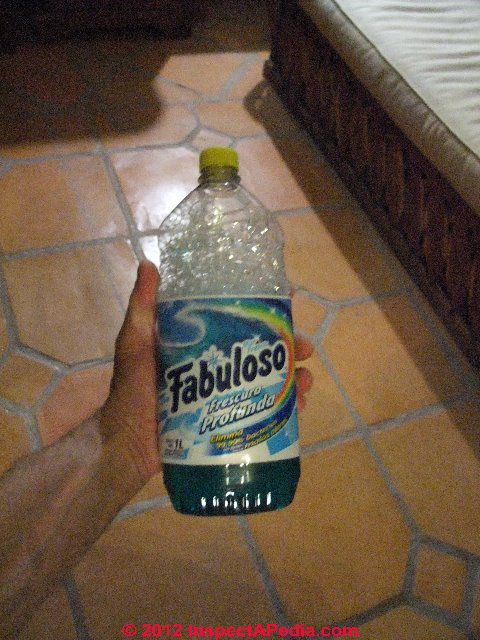

Very wide range of use for liquids, other. Household cleaners in clear bottles.
M&H Plastics points out that "PET containers require special consideration during warm weather in order to prevent shrinkage or distortion occurring after the molding process is completed." The company provides additional details including an interesting oxygen-scavenging PET innovation useful for packaging foods that deteriorate in the presence of oxygen.[10] |
 |
 |
 |

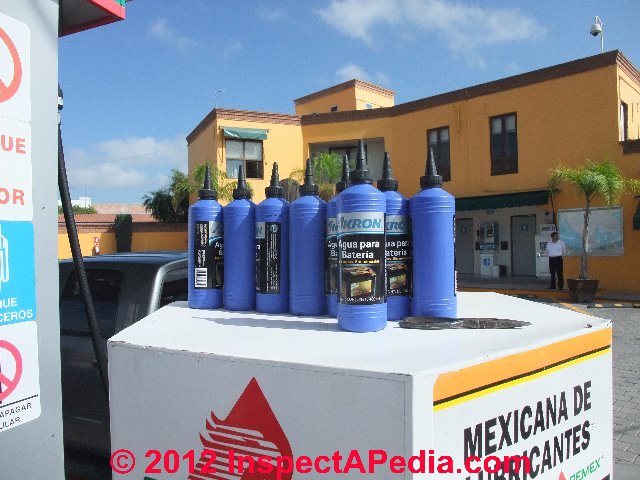

#2 code plastics - HDPE (high density polyethylene) (Nalgene Corp. produces HDPE water bottles) - also see PLASTIC & FIBERGLASS TANKS, HDPE
Very wide range of use for liquids, solids, pastes |
 |
 |
|
#3 number code plastics - PVC (polyvinyl chloride).
Watch out: a little confusing is that plastic bottle manufacturers may describe bottle categories as "PETG/PCTG/PVC bottles" [10] |
|
 |
|
#4 code plastics - LDPE (low density polyethylene |
|
 |
 |
#5 plastics - PP (polypropylene)

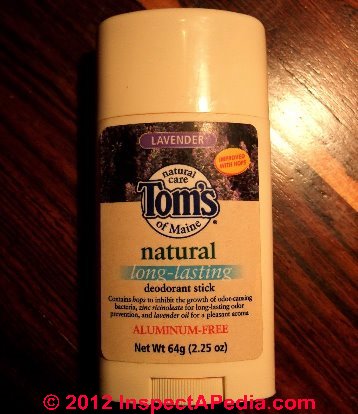

Typical examples: tan, translucent prescription bottles; plastic deodorant containers (shown at right) |
 |
 |
 |
#6 plastics - PS (polystyrene) - example, white plastic coffee cup lid at left
Watch out: on some products the "6" plastic resin identification code may look like an "8" - not to worry, the plastic identification codes are numbers 1-7: if it looks like an "8" it's probably a "6". |
 |
 |
|
#7 plastics - Plastics-other (includes polycarbonate plastics)
(Nalgene Corp. produces lexan water bottles) - may leach BPA - Bisphenol-A (health concerns).
FYI: while BPA-containing plastic containers are expected to carry the #7 recycling label, according to the New York Times (7 Sept. 2010), not all plastics labeled with recycling symbol #7 are in fact BPA-containing.[7]
Watch out: on some containers it is tricky to distinguish between a "7" plastic code and a "1" PLASTIC CODE. |
 |
Key to Other Plastic Container & Packaging Abbreviations |
Biodegradable
plastic
products |
Generally products made using plastics made of polymer chains that break down to become brittle in certain environments, such as under exposure to UV in sunlight, or under exposure to oxygen, typically within a 5-year time frame. Note that products that break down into tiny fragments are not in all cases environmentally sound - such as certain ultra-fine plastic fragments found in some ocean areas and on some coasts, and in seawater. |
| PCR |
Post-consumer regrind, recycled plastic products that are re-processed and re-used in manufacturing |
| PIR |
Post-industrial regrind, as above, but using plastic waste products recovered from industrial processes, often used to produce container caps and also some jars. |
| PLA |
Polylactic acid plastic products are plastic products made using corn starch rather than petroleum products as their chemical base |
| |
|
| |
|
PET Plastic Water Storage Tank Health, Safety, & Sanitation Advice
 Question:
I've been unable to find on-line information about the safety of using
common 1500 gallon plastic water tanks to hold drinking water. Our tank is
shaded, but summers are warm and the water often sits in the tank for weeks,
especially when we are traveling.
Our tank is 20 years old, but according to web sites now selling drinking water tanks, the plastic is polyethylene terephthalate aka PET.
To my knowledge, we haven't had any problems to date with bacteria growing.
I don't taste plastic. We once had a mouse get in and die. Bad smelling water. It cleared up after a few weeks. Probably drank some of it!
Do you have any information or links? - Barbara Stuart
The above-ground water cistern storage tank shown in our photo (above left) is located in San Miguel de Allende, Mexico and is discussed at PASSIVE SOLAR HOME, LOW COST.
Answer:
 As Ms. Stuart pointed out, some water storage tanks are made of plastic polyethylene terephthalate aka PET. Polyethylene Terephthalate (PET, PETE or polyester) is commonly used for carbonated beverage and water bottles intended for one time use - not a plastic one would expect use for a water storage tank.
But some water storage tanks have also been constructed of PETE material.

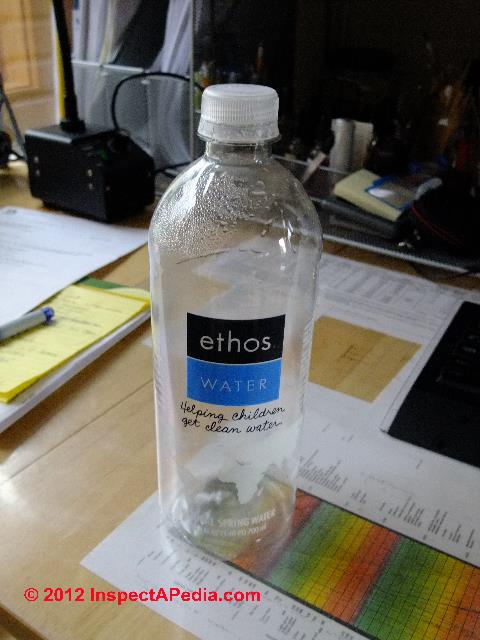

Our photo (left) illustrates a water bottle produced using polyethylene terephthalate.
PET - Polyethylene terephthalate (PETE, PETP, PET-P) is a thermoplastic polymer polyester plastic resin.
Plastic water tanks may be a health risk to consumers: Commentary published in Environmental Health Perspectives in April 2010 suggested that PET might yield endocrine disruptors under conditions of common use and recommended research on this topic.
Proposed mechanisms include leaching of phthalates as well as leaching of antimony.
Other authors have published evidence indicating that it is quite unlikely that PET yields endocrine disruptors. - Web search 6/27/2010 Wikipedia. PET
Sorting Through the Confusion of Opinions vs. Studies About Plastic Container Materials, Names, Hazards
Researching the health hazards of plastic containers and asking which plastics are safe can give conflicting and confusing results.

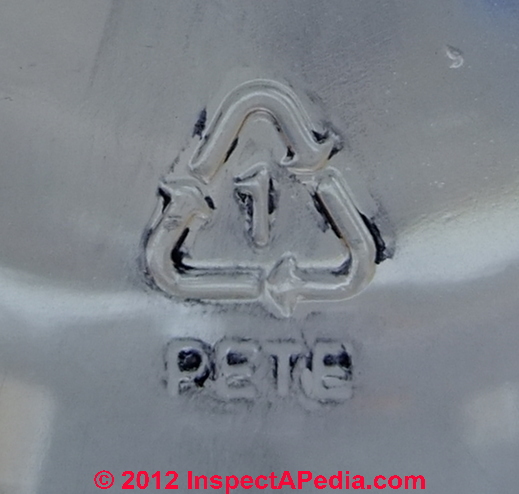

Our photo (left) provides a close-up of the #1 recycling code and the PETE indicator for polyethylene terephthalate embossed into the bottom of the plastic water bottle illustrated above.
Some sources such as the "green" website Care2.com
assert that PET or PETE polyethylene terephthalate and HDPE high density polyethylene plastic containers are "GOOD: Not known to leach any chemicals that are suspected of causing cancer or disrupting hormones.".
These same sources may tag LDPE, PP, PS as "OK", and tagging PVC or V and PS as "BAD - PVC - According to the National Institutes of Health, di-2-ethylhexyl phthalate (DEHP), commonly found in PVC, is a suspected human carcinogen., and BAD PS - According to the National Institutes of Health, di-2-ethylhexyl phthalate (DEHP), commonly found in PVC, is a suspected human carcinogen." - Web search 06/30/2010 care2.com.
There is also confusion about "polyethylene plastic" bottles and tanks. Don't confuse HDPE plastic (high density polyethylene) with PET - Polyethylene terephthalate (PETE, PETP, PET-P) - see What Plastic Was Used to Make My Water Tank (or water bottle)?
Looking at more expert researchers commenting on PET plastic containers:
But recently researchers have raised serious questions about potential health and environmental concerns for PET or PETE plastics. At Reviewers & References see Sax L 2010, López-Carrillo L, et als 2010, Koike E, 2010, for examples.
In April 2010 Environmental Health Perspectives, a peer-reviewed open access journal published by the National Institute of Environmental Health Sciences, Sax reported that
Polyethylene terephthalate (PET) is widely used to make clear plastic bottles for bottled water and containers for other beverages, condiments, and cosmetic products. There is concern that estrogenic chemicals such as phthalates may leach into the contents from bottles made from PET, although PET is not a phthalate derivative. Sax (p. 445) describes several studies suggesting that water from PET bottles can have estrogenic activity in some bioassays and that phthalates might leach from PET bottles.
The author notes the difficulties in evaluating these studies, especially in cases where there may have been prior contamination of the water or the containers with estrogenic agents or phthalates. Sax suggests that the phthalate content of PET bottles, if present, might vary as a function of the acidity of the product and the temperature and duration of storage. Sax also makes the observation that other nonphthalate chemicals such as antimony, which is used as a catalyst in the polycondensation of PET, might also contribute to the endocrine-disrupting activity of products stored in PET containers. The widespread use of PET plastic for a variety of applications suggests that additional research is needed.
The contents of the PET bottle, and the temperature at which it is stored, both appear to influence the rate and magnitude of leaching. Endocrine disruptors other than phthalates, specifically antimony, may also contribute to the endocrine-disrupting effect of water from PET containers.
Conclusions: More research is needed in order to clarify the mechanisms whereby beverages and condiments in PET containers may be contaminated by endocrine-disrupting chemicals.
If your water storage tank is made from Polyethylene terephthalate (PET), and is exposed to high temperatures such as exposure to direct sun and/or in a hot climate, the health risk may be increased. At References, below, we include citations of several recent articles discussing health risks from Phthalates and PET containers.
Find Your Water Tank Plastic Type from the Manufacturer's Literature, Website, or Sales Support
Watch out: some plastic water storage tank distributors advertise that their tanks comply with some health and sanitation laws while omitting any comment about the type of plastic or possible PET concerns (see below). For example we found plastic water tanks advertised as
Specified IW series water tanks manufactured at Chem-Tainer's Compton, California factory are IAPMO certified to comply with the California Lead Plumbing Law and NSF/ ANSI 61- ANNEX G. This law states that any devices or components sold in the state of California that come in contact with potable water must comply with this law.
But it's easy to check the manufacturer's website or to ask the plastic water tank manufacturer for specifics of the plastics used. For example, Chem-Tainer Industries, a producer of a very wide range of plastic storage tanks indicates that
Chem-Tainer's fresh water tanks are an effective, economical way to store potable (drinking) water for Residential and Commercial applications. Our polyethylene resin complies with U.S. Food and Drug Administration regulation 21CFR 177.1520 (1) 3.1 and 3.2 for storage of potable water. These tanks are designed for water use only.
BPA - Bisphenol-A - containing Plastics: A Quick Summary on Endocrine Disruptors
 Details about BPA plastics in food and liquid containers are found at Bisphenol-A, BPA. Excerpts are below.
According to the New York Times (7 Sept 2010)
Concerns about BPA stem from studies in lab animals and cell cultures showing that it can mimic the hormone estrogen. It is considered an "endocrine disruptor," a term applied to chemicals that can act like hormones. But whether it does any harm to people is unclear.
About half a dozen [U.S.] states have banned BPA in children's products ... This year a presidential panel on cancer and the environment said there was a "growing link" between BPA and several diseases, including cancer, and recommended ways to avoid BPA, like storing water in bottles free of it and not microwaving food in plastic containers. Some cancer experts said the report overstated the case against chemicals, but the concerns it raised seem to reflect growing public worries.
OPINION: Readers interested in the subtle but powerful effects of hormone mimicking chemicals and endocrine disruptors that appear in the environment, their sources, effects, and risks, should also see Our Stolen Future, Theo Colborn, Dianne Dumanoski, and John Peterson Myers and discussed at Reviewers below. Quoting from Amazon:
See details about BPA concerns in plastics used to contain food products, at Bisphenol-A, BPA.
Difficulty of Research About Chemical Contaminants is discussed at CHEMICAL CONTAMINANTS in WATER.
