Heating system circulator pump troubleshooting: here we list & describe other heating system controls that manage or impact heating boiler circulator pump operation. This article series discusses Circulator Pumps: how to find, inspect, diagnose, and repair problems with Hot Water Heating System Circulator Pumps
or circulator pump relay switches and controls. Also you will see that
this website answers most questions about Heating System Boiler Controls on central heating systems to aid in troubleshooting, inspection, diagnosis, and repairs.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Other heating system controls related to hot water circulator pumps - three alternative ways to control hot water heat circulation
- The aquastat is the most common control of heating system boilers. On a call for heat the thermostat, connected to the aquastat primary control, will operate a circulator control relay inside the aquastat to turn on the circulator pump, or on some systems the thermostat may be connected to a separate circulator relay discussed just below.
Our photo (left) shows the interior of a Honeywell R8182D aquastat primary control. The gray rectangle at top center in this photo is the circulator relay. You can just make out the red and white thermostat wires connected to the control at the upper left in this picture.

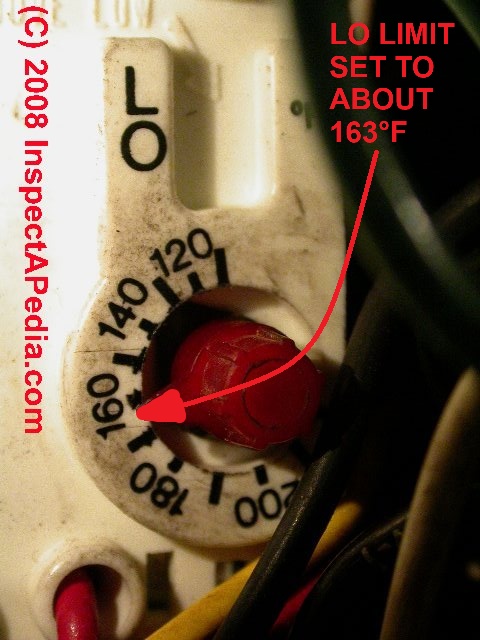

Our page top photo shows the low on a multi-function aquastat or primary control on a heating boiler. The low switch on an aquastat maintains temperature in a heating boiler that also makes hot water using a tankless coil. The low switch indirectly controls the heating circulator by locking out (keeping off) the circulator pump assembly if the boiler temperature drops into the low range.
- Circulator relays on heating boilers - an older and by some heating service technicians, a preferred method to control the distribution of heat to individual
building areas uses a individual circulator pump to force heating water through each individual heating zone piping. This system too is usually found
on hot water baseboard heating systems.
Our photo (left) shows a typical circulator relay with the control's cover removed - thermostat wires are connected at the upper left in this photograph. Line voltage is connected at lower left, and the circulator connections are at lower right.
Two or more circulator relay switches, one relay for each circulator pump, will be installed to turn on and off
each heating water circulator if more than one heating circulator is installed. Individual low-voltage thermostats located in the living area will respond to
a call for heat by switching on the circulator relay which in turns on the (120V) circulator pump.
- Individual High Limit and Low Limit relay switches on heating boilers: these may be provided on older heating boilers. See Limit Switches, Boilers
- Protectorelays - on older heating boilers a protectorelay or stack relay may be used to control oil burner operation - see Stack Relay Switch
- Zone valves on heating boilers - heating water piping in a building, particularly where hot water baseboard heat is used, may be divided into separate heating zones (different floors, or different areas on a single floor) to
permit more detailed control of heat distribution in a building.
The control of heating water through these different heating zones may be accomplished
by use of zone valves (one per heating zone or area or "loop" of heating piping) which in turn are connected to individual thermostats. When the thermostat
calls for heat in a particular building area, the thermostat switch causes the zone valve to open, to permit hot water to flow through that zone.
When the zone valve is fully open, an "end switch" inside the valve tells the heating system's circulator to begin operating, causing hot water to flow
through the zone. Typically heating systems using zone valves will have two or more zone valves (usually but not always located close to the heating
boiler) and a single circulator pump (usually located on the return end of the hot water piping close to the heating boiler).
See ZONE VALVES for details.
- Air exit tanks on heating boilers and circulator pump mounting location - some heating boilers use an air exit tank mounted on the hot water header above the heating boiler to combine the function of an Expansion Tank with the Air Bleeder Valve or air purge valve to rid the hydronic (hot water) heating system of un-wanted air. Air in the heating system will often rise to a high loop of radiator or heating baseboard piping where it will block the flow of hot water, leading to an air-bound heating system and no heat in some or all of the heating system.
The air exit tank captures and vents unwanted air from its location above the heating boiler on the boiler outlet or supply side. When an air exit tank is used instead of a simpler expansion tank at a heating boiler, the boiler manufacturer may specify that the circulator pump be mounted on the boiler outlet side to improve the function of this device. Thanks to Wayne Hoffman, technical advisor for Raypak, a Rheem company that provides hydronic heating equipment, for this detail.
If the heating boiler itself if does not turn on in a response to a call for heat see NO HEAT - BOILER.
