Here we explain the inspection and adjustment of draft regulators or barometric dampers on oil fired heating equipment: A Guide to Barometric Dampers on Oil Fired Boilers, Furnaces, Water Heaters: inspection, adjustment, cleaning, troubleshooting.

Guide to Inspecting Barometric Dampers or Draft Regulators on Oil Fired Heaters, Furnaces, Boilers, Water Heaters

This website answers most questions about central heating system troubleshooting, inspection, diagnosis, and repairs. We describe how to inspect, troubleshoot and repair heating and air conditioning systems to inform home owners, buyers, and home inspectors of common heating system defects.

The articles at this website describe the basic components of a home heating system, how to find the rated heating capacity of an heating system by examining various data tags and components, how to recognize common heating system operating or safety defects, and how to save money on home heating costs. We include product safety recall and other heating system hazards.

Details about draft control on oil fired heating systems (such as the oil fired heater shown in the photo above), including furnaces or boilers, are discussed right here at Draft Regulators barometric dampers on oil fired equipment. (Details about draft control for gas fired heating systems, including furnaces or boilers, are discussed at Furnace Draft Hood on gas fired equipment. Readers should also see CHIMNEY INSPECTION DIAGNOSIS REPAIR and Flue Vent Connectors - Boilers, Furnaces for inspection, defect identification, and repair suggestions for chimneys and flues. Contact us to suggest text changes and additions and, if you wish, to receive online listing and credit for that contribution.

Define Barometric Damper or Draft Regulator

Barometric dampers are devices used to regulate the draft on oil-fired heating equipment such as furnaces, boilers, or water heaters. The barometric damper or draft regulating device we are discussing here is normally used only on oil-fired heating equipment, not on gas-fired equipment. The equivalent draft control on gas fired heating systems is discussed at Furnace Draft Hood on gas fired equipment.

On oil fired equipment the barometric damper, or draft regulator is typically a round Tee inserted in the flue vent connector between the heating appliance and the chimney. The face of the tee contains a round "door" with an adjustable weight.

The service technician adjusts the weight to control the swing or opening of this door which in turn controls the amount of excess air that can enter the flue and chimney when the oil burner is operating.

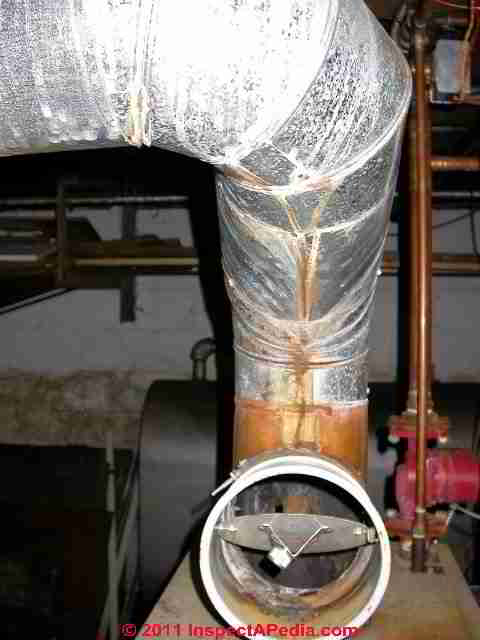

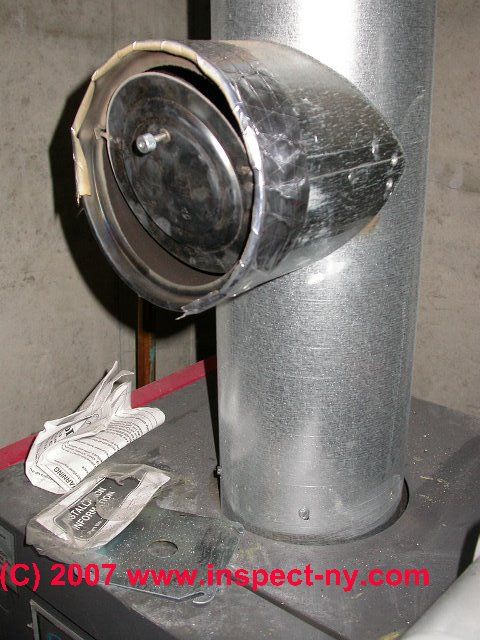

The draft regulator in our photo is not working - and has been deliberately jammed - indicating that something else is wrong, probably a chimney problem or an oil burner operating problem: the technician was unable to get enough draft, so s/he defeated the regulator - this is not a good idea, as we'll explain below.

For a detailed guide to inspecting draft regulators and barometric dampers please see How to Inspect a Barometric Damper.

Why we need the Barometric Damper or Draft Regulator on a Boiler or Furnace

During oil burner operation, and also on some gas fired equipment, combustion air moves into the burner are and combustion chamber (as combustion air). As combustion continues (the fuel is mixed with air and burned), a mix of air and combustion gases continues onwards, moving out of the combustion chamber, up through the boiler or furnace heat exchanger, through the flue vent connector ("stack pipe or flue pipe" and on into the chimney where these gases are finally vented outside, usually above the building roof.

The force with which this air or combustion gas moves is the "draft" inside of the heating appliance.

Too much draft increases heating appliance operating cost by venting heat out through the chimney instead of transferring the heat into the building where it was wanted. Too much draft can also increase chimney temperatures to an unsafe level.

Too little draft can result in incomplete combustion, soot-clogging of heating equipment (dangerous), and more dangerous heating appliance malfunctions such as oil burner puffbacks and in some cases dangerous production of carbon monoxide gas that leaks into the building (a potentially fatal problem).

So virtually all fossil-fuel-fired heating appliances provide some sort of draft control or draft regulator to keep the draft at required levels both in the combustion chamber and out through the chimney.

Details of Why is a draft regulator is needed ?

Chimney draft is not constant. While above we described how we measure draft inside of heating equipment and on the way to the chimney where (we hope) combustion gases are to be vented safely outside, the "draft" that the oil burner and furnace or boiler experience are not constant.

For example wind blowing over a chimney top can increase draft, as can a second appliance using the same chimney as the heater. Since the force of draft is not normally constant, and since we want the draft to be constant for optimum oil burner operation, the barometric damper is installed.

If the oil burner sees flue draft that is too low the combustion gases will not vent safely out of the building and the heating equipment may suffer from backpressure in the combustion chamber, causing overheating or other malfunctions. Also see OIL BURNERS and OIL BURNER NOISE SMOKE ODORS

Our photo (above left) shows a chimney that extends less than two feet above a flat roof on a one story home, resulting in inadequate draft and sooty burner operation. The home suffered recurrent oil burner sooting, puffbacks, high and repeated heating service repair bills, and ineffective attempts by heating service techs to "fix" the problem by running the oil burner at high temperatures - a trick that mostly served to increase the heating bills for the home.

If you have this problem see Chimney Too Short and Chimney Height Extensions as well as Draft Inducer Fans. At DRAFT MEASUREMENT, CHIMNEYS & FLUES we illustrate how this particular short chimney and inadequate draft problem were finally fixed.

If the oil burner sees flue draft that is too high combustion gases will vent out of the building just fine, but we're sending too much heat up the chimney by moving combustion gases too fast through the heater, thus we're sending our oil dollars up the chimney as heat rather than into the building as heat.

The service technician adjusts the barometric damper to maintain a continuous draft in the range we described above. Then if local conditions change, the barometric damper can open or close to let in more or less additional air into the flue and chimney, keeping the draft constant.

Are Barometric Draft Controls Used on Gas-Fired Equipment?

Incidentally, draft controls might be found on gas-fired heating equipment too, but the specifications are quite different. Gas fired heaters such as domestic gas fired furnaces are usually designed to operate at very low over-fire drafts - which means almost zero draft will be measured at the flue vent connections. That's why you usually don't see a hinged-door barometric draft regulator on gas fired equipment. Take a look at DRAFT HOODS - gas fired for details.

Field Corporation [1], and Tjernlund [2] draft regulator producers, provides different model draft controls for gas fired equipment, such as the Field Type MG1 and MG + MG2 regulators which use double swinging gates that open inward under normal up-draft conditions and outward in case of blocked flues, thus relieving internal pressures. Since improper venting of gas fired appliances easily produces very dangerous, potentially fatal Carbon Monoxide (CO), it is critical that these appliances are vented properly.

Do not ever install an oil-fired appliance draft regulator such as the Field Type AF shown here onto gas-fired equipment.

Where Should the Draft Regulator (Barometric Damper) be Installed?

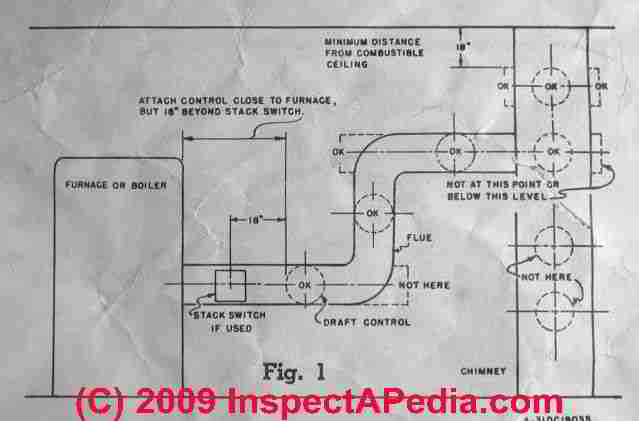

Field draft control installation position (C) Field Controls - D Friedman

Barometric damper location: a barometric damper will work properly to regulate draft and reduce backdrafts in a variety of locations in relation to the heating appliance and the chimney. [Images at left are courtesy Field Controls.]

Field corporation and other equipment manufacturers provide an instruction sheet with their product, showing the appropriate locations for a draft regulator. According to Field,

"The control should be located as close as possible to a furnace or boiler and positioned as shown in [the figure at left]. The draft regulator should be 18" from a stack switch and at least 18" from a combustible ceiling or wall. Do not locate the draft regulator in a room separated from the appliance." [1]

If the draft regulator is not located properly it won't work properly and the heating system may also be unsafe. Further, if you see a draft regulator installed at the far end of a very long flue vent connector, say 12 to 25 feet or more, there is a more basic problem with excessive flue length and operating problems related to that condition, independent of the draft regulator. See FLUE VENT CONNECTORS for details.

"The barometric damper should be adjusted (by adjusting the weight position) to maintain as low a draft as will give good combustion and meet the requirements for heat. The bracket is marked "Lo", "Med" and "Hi" which correspond to draft settings [if draft is measured inside the flue immediately before the regulator] of 0.2", 0.4", and 0.6" w.c."

Measure Chimney & Flue Draft when adjusting the barometric damper / draft regulator

Details are at DRAFT MEASUREMENT, CHIMNEYS & FLUES. Excerpts are just below.

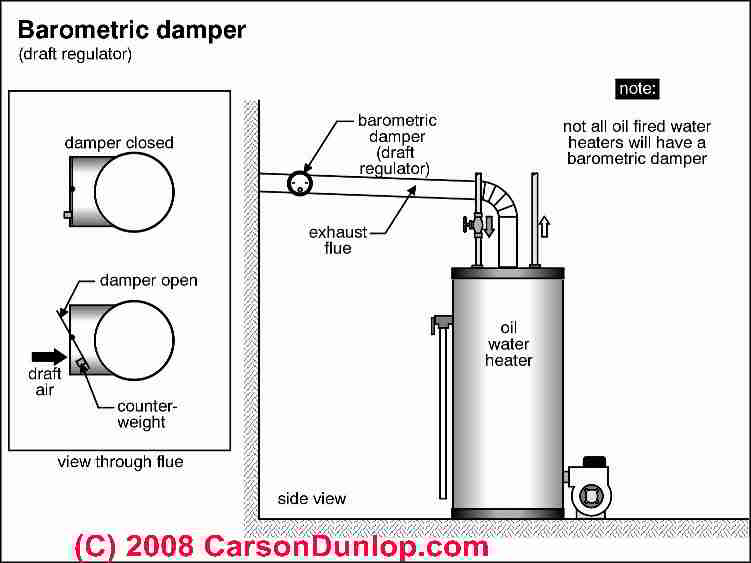

Draft regulator, barometric damper schematic (C) Carson Dunlop

Normally we measure draft at two locations: over the fire or in the combustion chamber. The draft we typically see on oil fired heating equipment like water heaters, boilers and heating furnaces is

- 0.02" to 0.03" water column (w.c.) in the combustion chamber just over the fire
- 0.04" to 0.06" w.c. in the breech - the flue pipe area between the top of the boiler and the bottom of the barometric damper. Some oil burner models require higher draft than these numbers, and other oil burner models are actually tolerant of back-pressure in the combustion chamber (positive draft, or draft in the "wrong" direction").

The sketch at left showing a barometric damper on oil fired heating equipment (heating boilers or water heaters) was provided courtesy of Carson Dunlop Associates.

In the breech we want to see about -0.05 inches WC pressure. If the breech draft is too low the combustion process and venting process may be inadequate, and if the draft measured in the breech is lower than the draft measured over the fire, the oil burner and combustion chamber are operating under pressure - which is often a problem on residential heating systems since few of them are designed to work this way. Thanks to L. - for correcting our WC pressure data.

How Does a Barometric Draft Control or Draft Regulator Work?

It's easy to understand how a draft regulator work: as Carson Dunlop's sketch above shows. The service technician measures draft over the fire and in the breech, and she moves a little weight on the hinged barometric damper door to cause the door to open wider or less wide to let more or less room air into the chimney as needed.

As long as the gas pressure inside of the flue and chimney is less than room air (that is, it's "negative" as we explained below), air from the room wants to enter the chimney through the barometric damper opening. Like the porridge in Goldilocks and the Three Bears, there are three possibilities:

The draft as sensed at the barometric damper is too strong (maybe a wind is blowing over the chimney top, increasing the draft): in this case the draft inside the flue, at the breech at the draft regulator is more negative - maybe -1.2 " w.c.. Since the air in the room is at normal pressure it will be stronger than the pressure inside the flue, so air in the room will push the draft regulator door "in" and make it open, letting room air flow into the chimney until, balanced by the setting of the weight on the moving draft regulator's door, the incoming room air enters the flue in enough volume to drop the draft pressure back to its desired setting, maybe to -0.04" w.c.

The draft as sensed at the barometric damper is too weak (maybe a wind is blowing down the chimney flue because we left off our chimney cap): in this case the draft inside the flue, at the breech and thus at the draft regulator is less negative, maybe -0.01" w.c. than we wanted - we're having trouble sending those flue gases up the chimney. The little weight on the draft regulator door causes the door to close, reducing the inflow of room air into the flue, and thus increasing the draft in the flue back to the desired number, maybe to -0.04" w.c. once again.

The draft as sensed at the barometric damper is just right: it's hovering where we set it at -0.04" w.c. In this case the barometric draft regulator is probably showing its little door a little bit open, with a little room air flowing into the flue. (Otherwise we wouldn't have any room to close the door to increase the draft when we need to do so.) And the draft in the flue is staying at the desired number, maybe -0.04" w.c.

How is the Barometric Draft Control Adjusted? What are the recommended draft settings?

By moving a weight along a scale. You can see a weight and scale in our photo of the Field Type AF Draft Control.

In general the draft regulator is set to the lowest draft that gives good combustion and proper oil burner operation. Higher wastes energy.

While the heating equipment is operating at normal temperature, the draft is set to a number specified by the oil burner manufacturer, so we can only give approximate settings in this discussion. To find the proper weight setting to control the draft regulator, the heating service technician will make three measurements:

Draft over the fire (typically set to 0.02" to 0.03" WC over the fire)
Draft in the breech (always higher than the draft over the fire, and typically around 0.04 - 0.06" WC).
CO2 measurements (which tells us how complete is the heating oil combustion process) - adjusting the draft affects the rate of combustion air movement into the combustion chamber.
Stack temperature measurements made at any heating appliance give another indication of system operating efficiency and proper draft settings. A fire that is too hot, measured in the breech or flue vent connector is sending too much heat up the chimney rather than into the building, while a temperature that is too low risks fouling the equipment. And very high stack temperatures also indicate a fire or safety hazard. Typical stack temperatures for oil fired heating equipment will be around 450 degF. And for burning dry wood in a wood stove, 350-450 degF. Proper coal stove operating temperatures vary by appliance and are specified by the manufacturer. Improper temperatures may also be an indicator of dangerous, potentially fatal carbon monoxide production.

It is the position of the weight along a moveable scale, usually by screwing the weight in or out, or by sliding the weight along a scale (see our photo), that adjusts how far the draft regulator door will open in response to these three conditions described above. It's basically a principle of leverage -the weight is moved closer to or farther out from the axis of rotation of the moving draft regulator door.

When the barometric draft regulator door is more open, it is admitting more building air into the flue and reducing the draft seen by the heating appliance. When the draft regulator door is more closed, it is admitting less building air into the flue and is thus increasing the draft seen by the heating appliance.

So do not change the barometric draft control's weight setting unless you're a trained service technician who knows when, where, how, and why to measure draft at an oil fired heating appliance.

Weight location & adjustment on barometric draft controls

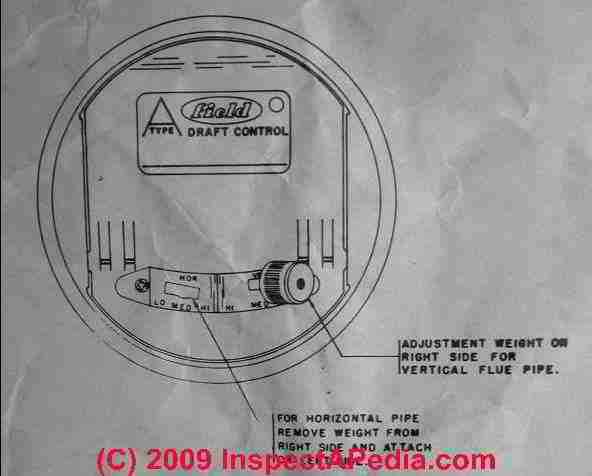

Draft regulator installation instructions (C) Field Controls - D Friedman

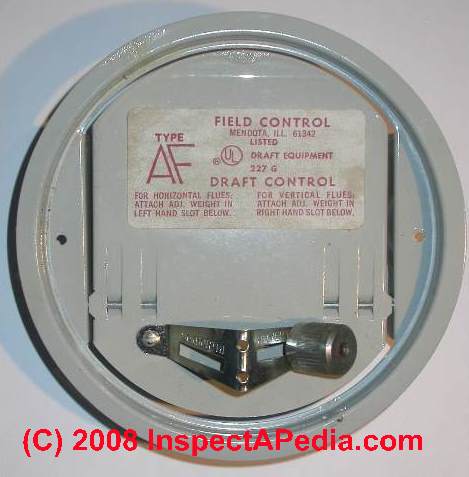

Weight location & adjustment on barometric draft controls: the weight that is adjusted to regulate the operation of the draft control needs to be properly located as well as adjusted. T

he weight location switches on most regulators depending on whether the regulator is installed on a vertical flue or a horizontal flue. Field ships their draft regulators with the weight installed in position for a vertical flue.

The adjustment weight is in the right-hand slot when you are facing the control. If the damper is to be installed on a horizontal flue, the weight must be removed from the right-hand slot and attached to the left hand slot as shown in the illustration and sketches above.

Thanks to boiler expert Dirk Faegre for suggesting these additional details.

Why we Measure Carbon Dioxide CO₂ as Well as Draft when Adjusting the Draft Regulator

Field controls also points out that

It is essential that CO₂ readings be taken to determine proper [draft regulator] adjustments. (This test and others should be conducted by a qualified fuel oil dealer or appliance installer for your safety). [1]

While we and the draft regulator manufacturers give typical draft measurement numbers for draft over the fire and at the damper itself, some oil burner manufacturers may require specific draft settings other than those standard ones. In addition, variations in chimney and building details from one installation to another may affect how the oil burner, heating appliance itself, flue vent connector, chimney, chimney cap, and site wind conditions all interact. Ultimately we need to know these effects on combustion. We want not only proper draft and [usually] no backpressure in the combustion chamber, we also want efficient combustion - that's where the CO₂ measurement comes in.

Draft Regulator Inspection Points, List of Defects & Signs of trouble with a barometric damper or draft regulator and what they mean

For a detailed guide to inspecting draft regulators and barometric dampers and for example of additional draft regulator defects, failures, misadjustments, please see DRAFT REGULATOR SOOT INSPECTION.

No draft regulator or barometric damper is installed: in this case the heater may work but it is impossible to tune it for optimum performance. We may be wasting fuel and money.
The barometric damper is shared: if the damper is connected so that it is shared by two different heaters, say an oil fired furnace and an oil fired water heater, it is impossible to tune the system for optimum performance since the two appliances will prefer different adjustments each.
The draft regulator is in the wrong location: too far away from the appliance it serves. The barometric damper is to be located as close to the heating appliance it serves as possible, but at least 18" away from a smoke stack control if one is also in use at the heater (such as at a wood stove).[4] Details are at Draft Regulator (Barometric Damper) installation location.
The draft control (damper assembly) is mounted out of level. As Field Controls points out

Damper must be mounted with the hinge pins horizontal and the face of the damper plumb for correct operation. [3 - Barmetric Draft Control Model B-34]
The barometric damper is broken, has loose or missing parts: it cannot do its job and needs repair or replacement. Required parts include necessary mounting & securing screws for the draft regulator collar, flue vent connector or tee, and the draft regulator itself where it mounts into the collar or tee. Additional details about loose or falling-off draft regulator (barometric damper) parts are below at Loose or Damaged Draft Regulator
The barometric damper is stuck or has been wired shut or covered with foil or tape: we love this clue. This is what a service tech does when s/he simply has been unable to get adequate draft for the oil burner. The tech thinks that since draft is always inadequate on this system there is no reason to let any air in at the damper. Well that's true, but we're treating the symptom, not the cause. The root cause might be, for example, a blocked chimney flue - which is unsafe and needs to be discovered and cleared, or a chimney that is simply too short in its total height to ever develop adequate draft. We've also see this silly "repair" when the underlying problem leading to inadequate draft was that someone had left the cleanout door to the chimney open.
The barometric damper is stuck in the "open" position - usually due to a mechanical defect that is easily repaired, but sometimes because the weight has been misadjusted or lost. An always-open damper cannot properly regulate draft.
The barometric damper has not been properly adjusted or system draft has never been measured. Just installing a barometric damper without adjusting it to the requirements of the heater, chimney and site is an inadequate job. Field Controls points out, for oil fired heating appliances the system cannot be properly adjusted "by eye".:

Proper operation of the regulator depends upon proper installation and adjustment. Use a CO2 indicator, stack
thermometer and draft gauge to adjust draft for oil fired burners. Domestic oil burners work best with the draft over fire of .01 to .02-inches W.C. [4]

But for wood or coal burnring heaters, the company does offer alternative (to instrument-based) drart regulator adjustment procedures:

[For wood or coal burning heaters] If a draft gauge is not available, with the draft regulator fully installed and a good fire burning, adjust the counterbalance weight closer to the gate for as low a draft setting as possible, without the fire dying or getting smoke-back with the stove door slightly open. To obtain higher heat levels, move the weight away from the gate to increase the setting.[3]

Details are discussed in the article above at Draft Regulator Adjustment & Settings and draft measurement is detailed as a procedure at DRAFT MEASUREMENT, CHIMNEYS & FLUES
The counter-balance weight assembly is missing, damaged, incomplete, modified.
The barometric damper is not properly secured - discussed just below.
The barometric dampe collar length is too short or too long. Field Controls points out that a mounting collar length that is too short or too long can interfere with the effectiveness of the draft control device. Correct collar lengths range from about 4 3/8" (a 10-inch control) to 15 3/4" (for a 32-inch diameter draft controller).[5]

Loose or Damaged Draft Regulator (Barometric Damper) Parts or Improper Draft Regulator Installation Points

Field-installed draft regulator tee vs. using a factory tee

Is the draft regulator a field-installed retrofit unit (below left) or does it connect to a factory-built Tee (below right)?

Retrofit draft regulator opening size: Why do we care if the damper is mounted on a field built tee or a factory tee? The draft regulator at above left is a field add-on that is installed using a two-piece eared collar provided by the manufacturer.

The compnents are installed by assembling the two halves of the collar and by cutting a a hole in the existing length of flue vent connector pipe. The eared collar is mounted over the hole in the flue vent connector and the draft regulator is mounted to the collar opening. The size of the hole to be cut is determined by making a trace-mark inside of the mounting collar when the collar is held against the face of the flue vent connector in its destined location. On occasion we find that the hole cut in the pipe was too small (improper draft regulation) or too large (leaky connections).

A field-installed damper mounting "tee" like the one at above left is secured to the flue vent connector by two sheet metal screws, one on either side (red circle). If these screws are loose, stripped, or if the vent connector itself is corroded and rusty, the whole regulator assembly can fall off of the system - an unsafe event for obvious reasons.

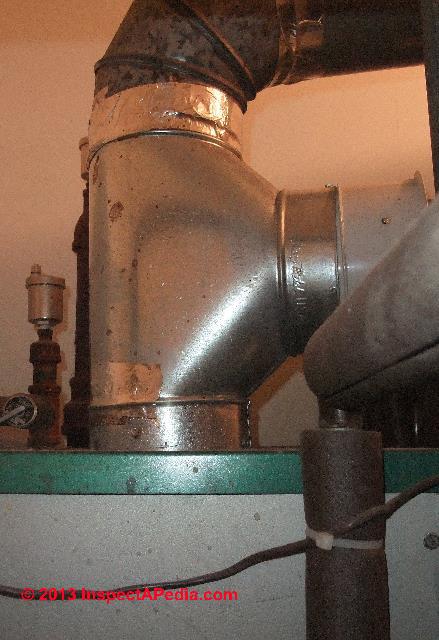

The factory tee shown in our photo at above right (orange arrow) is secured to the boiler top and the flue vent connector (green arrow above the tee) using three sheet metal screws.The draft regulator assembly(blue arrow) is also secured to the opening of the tee (at right) by one or in some cases more than one sheet metal screws. Inspect to make sure that the SMS are all in place and that the parts are not loose nor rattling..

Loose-rattling draft regulator?

Interesting is that someone must have had trouble with this damper falling out or rattling, as they used adhesive-backed foil tape (blue arrow) to secure the regulator assembly to the field-installed tee. The adhesive tape shown by our arrow is a clue to heating system operating history, or it might mean that the installer didn't know how or where to install the sheet metal screw (at the top and bottom of the regulator mounting ring) to secure it to the tee. Or maybe s/he was out of sheet metal screws. Any clue suggesting unusual installation like this is an orange alert flag: look further for odd or improper workmanship.

Soot & Debris inside the flue vent connector

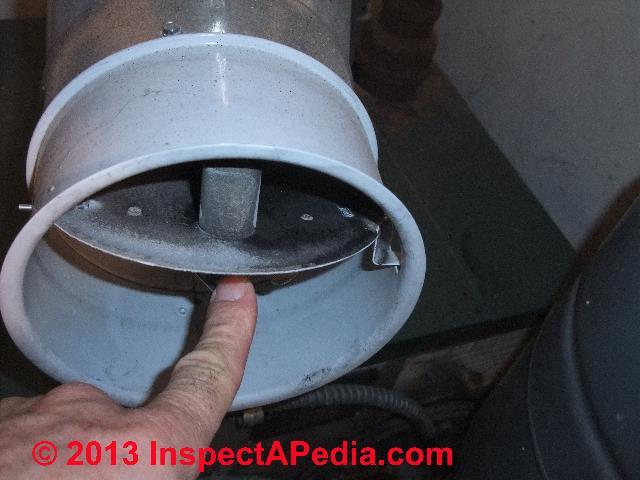

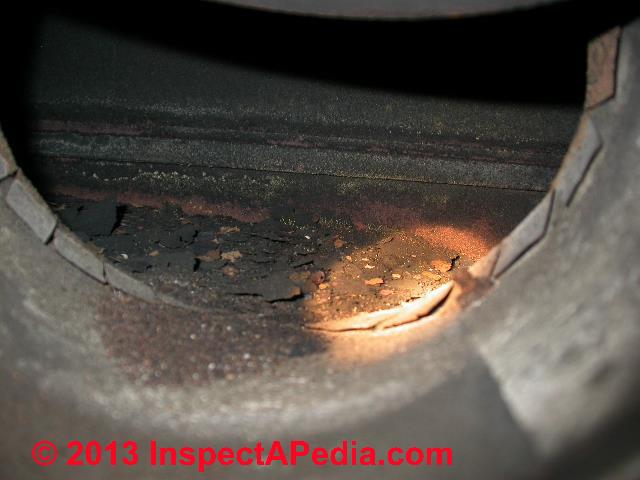

This photo (left) shows how, simply by pushing open the draft regulator swinging door to inspect inside the unit you can reliably identify a field-installed cut-in draft regulator instructions - notice the bent-over tabs (green arrows) that were cut and adjusted by the technician.

As we elaborate at DRAFT REGULATOR SOOT INSPECTION, this heater is also dirty (red arrow) and has not been properly maintained.

Screws Required to Secure Tee to Flue Vent Connector & Draft Regulator Assembly to Tee

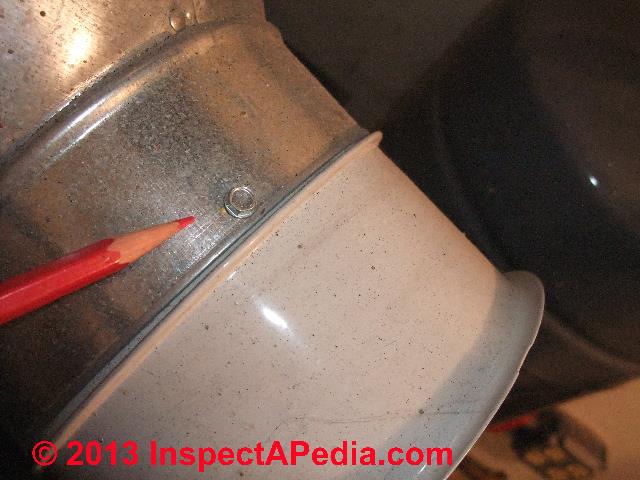

The flue vent tee photo (below left) shows two of three sheet metal screws required to secure the tee assembly to the boiler top; three more screws are used to secure the tee to the flue vent connector ("stack pipe", not shown here) as well as three more (some instructions permit two) screws to secure the draft regulator assembly to the tee opening.

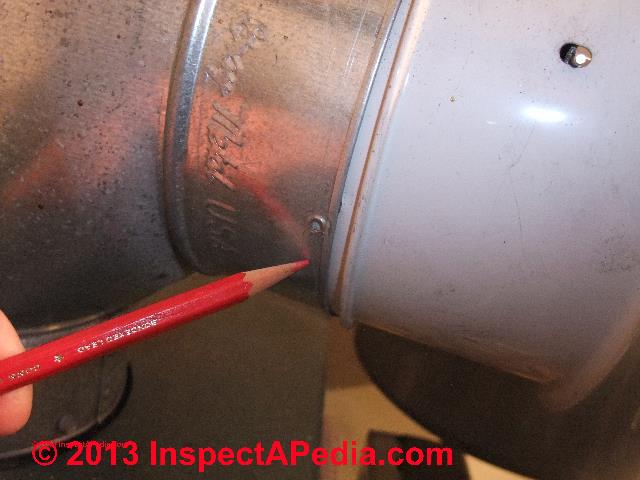

Our photo at above right shows one of the screws (red circle) required to secure the draft regulator assembly (blue arrow) to the flue vent tee (green arrow). Usually we find that it's a tight fit jamming the draft regulator assembly into the tee opening, but we still install the factory recommended screws. Vibration during heating equipment operation or the banging caused by rough heating boiler starts (mini "puff-backs") or other wear and tear can otherwise loosen the whole assembly.

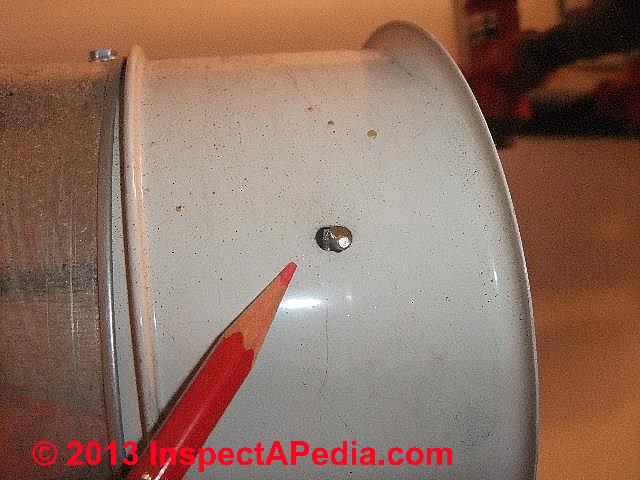

At left we show where the draft regulator is missing one of its securing screws. There are several reasons why a screw might be missing:

The mounting screw was forgotten at initial installation

The mounting screw was removed to adjust the damper to proper level position, then the tech dropped the screw, it rolled under the boiler, and s/he didn't have another screw handy;

The service tech removed screws during cleaning (more likely at a flue vent connector not at the damper) and was in a rush to leave the job.

A close look at this photo shows that the damper position has been adjusted (to correct an out-of-level condition. We can just see the originally-drilled screw hole in the damper assembly (red arrow) just above the original screw insertion hole (blue arrow) in the flue vent tee. Our orange arrow points to a 3/16" gap between the draft regulator fully-in raised stamping and the edge of the tee opening - not a serious concern as long as the device is properly secured.

Check the Draft Regulator Door Hinge Pins

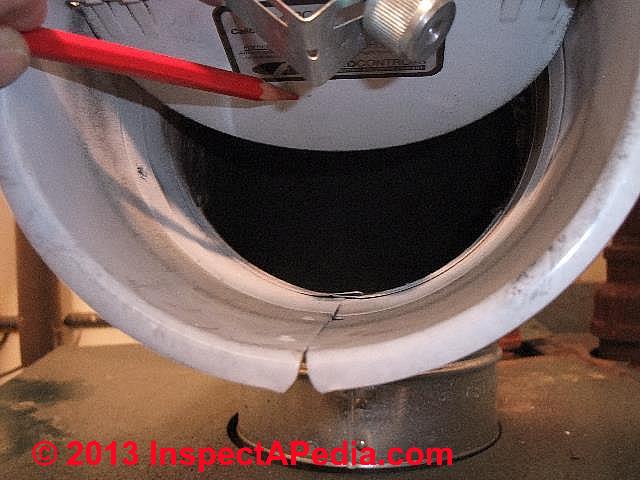

Our photos below (and my red pencil) point to the hinge pin that allows the flapper door of the barometric damper (or draft regulator) to swing freely. For the unit to operate properly the door needs to move freely in response to changes in draft in the flue. If the pins are bent, rusted, jammed, or field-modified (say a lost pin is replaced by a finishing nail) the draft regulator may not work properly and may even be unsafe.

Check the Draft Regulator Weight Assembly

Check that the weight assembly is present. You should see the bracket and adjustable weight on the outside of the draft regulator door (above my red pencil in the photo at below left). Now tip the hinged door open and check that the interior weight (red arrow in our photo at below right) is also in place. If the inside weight has been lost it may have fallen into the boiler or furnace. If the outside draft control weight is missing look for it on the floor next to those missing sheet metal screws we mentioned earlier. Without the weights it is unlikely that a barometric damper can do its job properly.

Note: some draft regulator controls do not use weights on both sides of the control door.

Now use your finger or a tool to gently push the barometric flapper door open and let go - it should swing freely and should not jam open nor jam shut.

Check the Operating Environment for the Heating Equipment

Even a perfectly-installed draft regulator cannot overcome other combustion air, draft, chimney, or boiler/furnace operating defects from other causes. Check the service tag for the maintenance history of the equipment and for clues about a history of problems (repeated service calls for the same complaint); check the area around the heater for soot, oil spills, or an obvious lack of combustion air (tiny room, no air inlets).

In a forensic investigation of a heating system problem I'd be worried about why the bottom portion of the older (blue) service tag has been torn off (photo above left). The service company doesn't want to leave the equipment with no service tag - that itself is a red flag. But what information did someone want me to not-see?

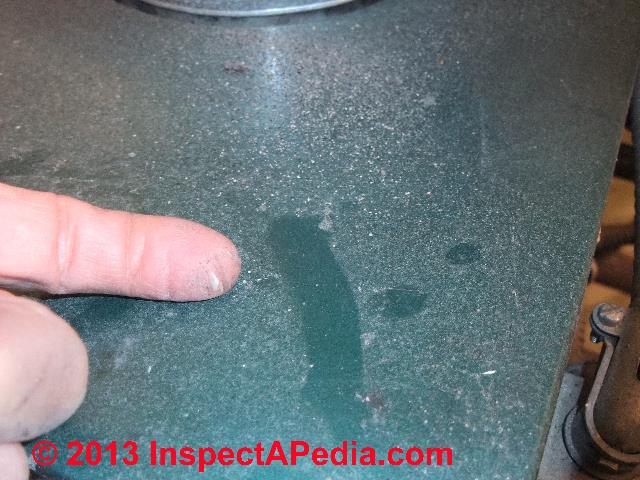

Our boiler top dust photo (above right) and my finger show that 6 1/2 months of operation and dust (July 1 to January 15) of this oil fired boiler has produced almost no soot blow-out. In fact the system is almost too clean - I wondered if it was running with excess combustion air - staying clean but maybe giving up on efficiency, thus increasing the building's heating cost.

More draft regulator defects are described in detail at Questions & Answers about inspecting and adjusting the barometric damper below in this article and also at DRAFT REGULATOR SOOT INSPECTION where we provide details about what you may see when inspecting the draft regulator interior or the flue that it serves.

Typical Draft Regulator - Barometric Damper - Sizes & Costs

Barometric dampers or draft regulators (synonyms) are sold in a variety of sizes for residential and larger commercial heating systems. Draft regulator sizes are specified in inches, representing the diameter of the moving regulator door assembly.

Draft regulators are sized to match the flue vent connector to which they are mounted - in turn implying that the draft regulator will also be properly sized for the operating requirements (and draft requirements) of the heating appliance as well. That is, if the chimney and flue are too large or too small for the heating appliance the installation is improper and may be unsafe as well.

Sizes of draft regulators range from as small as 3-inch in diameter up to at least 32-inches in diameter. Prices for draft regulators range from under $50. U.S. to over $600. U.S. Larger sizes of barometric dampers, such as the Field 20-inch unit, retail (in 2013) for about $530. U.S.

Definitions: What's the difference between a flue damper, duct damper, a fire damper, and a draft regulator?

Don't confuse an automatic flue vent damper with two other "damper" devices: a heating system automatic duct damper or a duct fire damper.

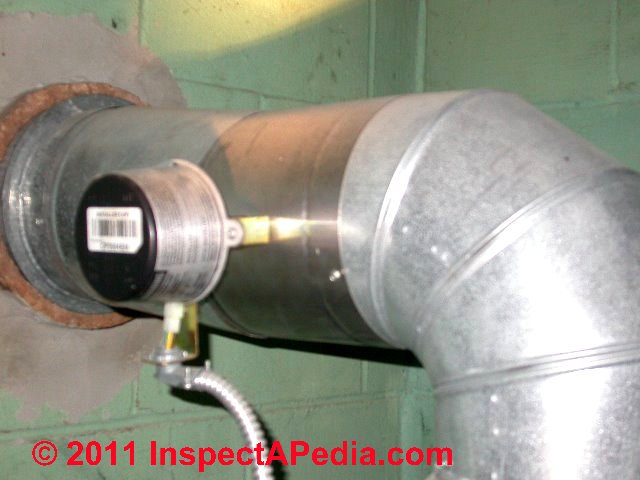

An automatic flue damper is a device which closes the heating flue when the furnace or boiler is "off" so that we won't continue to lose building heat up the chimney - it's a device to reduce heating costs and save on heating oil consumption.

When the heating system has turned off at the end of an "on" cycle of burning fuel, the automatic flue damper electric (see sketch above and photo at left) motor turns a baffle inside of the flue vent connector pipe to a position "across" the pipe so that the airflow inside the pipe is blocked or stopped.

What is an automatic duct damper and how do they work?

An automatic duct damper is a mechanical device, usually controlled by a room thermostat, which opens or closes a metal baffle inside of a warm air (or cool air) heating (or cooling) duct in order to provide multiple heating zone control in a building.

You can see photographs of and read about manual and automatic heating and air conditioning zone dampers at ZONE DAMPER CONTROLS.

What is an Automatic Fire Damper in Ductwork and how do they work?

A fire damper is required in air conditioning and heating ducts in some commercial installations and possibly by local residential building codes in some jurisdictions.
A fire damper might work similarly to an automatic duct damper, but its purpose is quite different: in the event that a fire is detected in a building or in its mechanical systems, (by heat or smoke or other means of fire sensing), the fire damper closes off the air duct to avoid spreading smoke or fire rapidly through the building. The fire damper is otherwise normally "open".
You can see photographs of and read about fire dampers in ductwork at ZONE DAMPER CONTROLS .

What is a Draft Inducer Fan and how do they work?

Draft inducer fan installed (C) Daniel Friedman

A draft inducer is a booster fan that increases the flow of combustion gases up a chimney. They are used when there is a problem with the chimney or heating equipment installation that prevents natural draft from working adequately.

We discuss draft inducer or "draft boosting" fans for heating systems (and maybe for some fireplaces) in detail at Draft Inducer Fans.

What is a Barometric Draft Control and how do they work?

A barometric draft control, also called a "damper" or barometric damper, is a hinged, weighted door on an opening at a heating flue.

The door opens or closes to let extra air into the flue to assure that the draft in the flue remains constant at the proper setting needed for proper heating system operation.

Barometric dampers are discussed in detail beginning at DRAFT REGULATORS, DAMPERS, BOOSTERS

Dirk Faegre, Camden, Maine (207) 232-9494 is a certified BPI energy auditor and certified Envelope technician who kindly suggested draft regulator and flue vent connector inspection defect additions 6 Sept 09

Frequently Asked Questions (FAQs) About Draft Regulators on Heating Equipment

What is the Significance of Soot production or soot blow-back stains at the Damper or Draft Regulator

Soot production or soot blow-back stains at the combustion chamber inspection port or burner mounting tube (or soot in general).

Regardless of whether the draft regulator is serving an oil fired heating boiler or an oil fired water heater, soot coming out of the barometric damper or out of the flue vent pipe, or the presence of soot and burn marks on the heater, or even noises: stumbling, rumbling, noisy oil burners, as well as odors, are examples of improper oil burner operation that need prompt service.

Oil fired water heater with a backpressure sooting problem (C) Daniel Friedman

Our photo at above left shows an example of improper oil burner operation on an oil fired water heater: both systems show soot blow-out at the water heater's combustion chamber inspection port.

At above right, a different heating system appliance shows soot beginning to blow back out of the draft regulator itself. And notice the sloppy installation? The draft regulator was not installed level. The weight system does not work properly when the damper door is out of level.

Often these soot marks are a symptom of excessive pressure or "back pressure" inside the combustion chamber. Since this water heater is connected so closely to the chimney in a pretty new house, our first guess was that the water heater itself needed cleaning.

Oil fired appliance sooting problems can be caused by an oil fired water heater or heating boiler that is way past due for cleaning (soot blocks the exhaust flue), by a blocked chimney, by improper draft regulator adjustment, or other defects.

When the oil burner is not operating, should the damper door be closed?

I am fascinated by and appreciative for your publication "Guide to Barometric Dampers..." Many thanks for the complete explanations.

I am getting the run-a-round from the 'service' people from the service company; I'm not sure they know much more than I.

I have one question which I hope you will answer: when the oil burner is not operating, should the damper door be closed? Logic would suggest to me that it should be closed but I am terribly uninformed. - R.D.B.

Reply: Generally, yes, at rest, the damper door is shut. But here are some things that might make it open:

A competent onsite heating or chimney and flue inspection by an expert usually finds additional clues that help accurately diagnose a problem with the heating appliance or the flue and chimney that vent its combustion products.

That warning made, yes, in general, a properly adjusted and balanced barometric "flapper" door is in the vertical or closed position when the heating flue to which it is connected is not in use. If the door is open you may be wasting warm air and heat from the area around the heating boiler or water heater that the damper is serving. Field Controls puts it this way:

Always set the [barometric damper draft] control to maintain as low a draft as will give good combustion and meet the requirements for heat. [1]

Why? Because if you set the draft higher than necessary, you are wasting money, sending heat up the chimney instead of into the building (or if it's a water heater, into the hot water tank). We need enough draft that the oil burner does not blow soot back into the building, and so that combustion is efficient, but we do not want excessive draft.

Automatic flue damper on oil fired heater (C) Daniel Friedman

Below we list reasons that your draft regulator door is staying open.

If you check all of these out and find that the installation is correct, the equipment is all operating normally, but that chimney and wind conditions are keeping the draft regulator open (and heat is thus wasted from your home), a solution could be the installation of an automatic flue vent damper that opens before the oil burner turns on and closes automatically when the oil burner has turned off. [See our photo at left].

Watch out: Installing an automatic flue damper can reduce building heat loss through the flue but we do not want to see this "solution" installed before you have an accurate diagnosis of just why your flue damper door is hanging open. We discuss automatic vent dampers in detail at Automatic Vent Dampers where we explain how they work, how they save money, and what they look like.

Here are some things that might explain why the barometric damper is hanging open even when the heater is not running:

The heater is cooling down: If you are looking at the damper right after the oil burner has shut down, the heater is still hot and a mix of hot air and combustion gases are still zooming up the flue and chimney. If the draft effect of those rising gases is creating an updraft that is more than proper for optimum heater adjustment, the damper door will open to admit room air, thus reducing the draft seen in the flue.

The draft regulator is not properly adjusted. One of the basic tune-up steps performed on oil fired heating equipment, usually right after the system is serviced and cleaned, is to check for proper draft over the fire and in the flue. The in-flue measurement is usually made through a hole drilled in the space between the top of the heater and the under-side of the draft regulator. See What is the Right Draft Measurement at Oil Fired Heaters?.

The draft regulator hinges or pivot pins are sticking. On occasion, especially if someone was trying to "adjust" a draft regulator or damper by bending or banging on it, we find that the regulator's door hinge sticks. The door may stick in the open or shut position, interfering with proper operation.

It's easy to check for this sticky hinge problem: just gently push the door open and shut with one finger - it should move freely. When the oil burner is off and the system is cool, if you can push the regulator flapper door into a position in which the door sticks and does not return to the "closed" position on its own, the hinge is binding or the damper is not properly installed. Sometimes a little cleaning and a dab of oil on a hinge (I used pencil lead) is needed. If parts are badly rusted or smashed, just replace the unit.

The damper is installed on a shared flue or shared chimney: while it is not a recommended practice, if the damper is installed on a flue vent connector ("flue pipe" or "stack pipe" - the metal pipe connecting the heater to the chimney) that is shared with other heating appliances, then heat in the other appliance that is running or that has just shut down and is also "hot" can cause enough up-draft to cause the damper door to open.

In addition to the fire safety and code issues that severely limit any sharing of actual chimneys, the reason that manufacturers recommend that each heating appliance have its own flue damper is exactly this: you cannot adjust the barometric damper or draft regulator to optimize the performance of more than one heating appliance on a shared flue. Details are at Shared Chimney & Shared Flue Hazards.

The draft regulator is not properly installed - out of level or in the wrong location. A key reason that the manufacturers of draft regulators want the regulator face or "door" to be in the vertical position and the hinge axis of the door to be horizontal, is that the weight and calibration of the draft regulator adjustment and the response of the draft regulator to changing draft conditions depends on being in that position.

Even if the heating service technician adjusted the regulator for proper draft when the oil burner was up to temperature and running, if the damper is not properly installed it may not respond just right to changes in draft conditions such as wind over the chimney top.

In addition to out of level or wrong location, Field Controls also notes that the opening of the draft regulator should be pointing away from nearby walls or obstructions as these will interfere with its proper operation. Even if the installer placed the draft control properly plumb and level on the flue tee, if s/he forgot to set the locking screw (found at the bottom of the draft control assembly), the regulator may have rotated in its mount and may now be improperly positioned. [1]

Outdoor conditions are causing excessive chimney draft. For example at some building sites and depending on variables such as wind direction, nearby hills, chimney height, roof shape, height of chimney top above roof, chimney cap design, nearby trees or other obstructions (yep there are a lot of variables), wind blowing over the top of a chimney can actually increase the chimney draft to a too-high level, causing the barometric damper to open even if the oil burner is not running.

Question: our draft regulator door gets "stuck" then bursts open with a loud explosion noise - scary!

Hi there -- My home has both heat pump and oil heat and I prefer to use the oil. I have a ? - several years ago our elec co came and installed a programmable thermostat as well as doing something to our furnace.

Since that time there have been several incidents that the damper door gets stuck and then "bursts" open with a loud explosion noise -- scary. A local HVAC co replaced the door but the problem with the damper door still exists. T

he hubby has adjusted some weight on the thing but ... You would have thought the folks that replaced the door would know what to do. I'm afraid to have to use it and the heat pump is worthless. Any advice would be greatly appreciated. I reside in MD.

Reply from reader Lionel Scott

Mary get someone you know who knows heating systems, if he arrives with out his test equipment do not let him try to set up the burner or adjust the draft regulator as its job is to maintain the fuel air ratio when the outside conditions try to change it. It can not be done accurately by eye.

Reply from DF: a sticky barometric damper door is easily repaired but that's not the whole problem here - watch out for dangerous boiler or furnace puffback

Mary: a bent pin or even out of round opening can cause a barometric damper (draft regulator) door to "stick" closed. It's a simple mechanical repair that is easily performed by an attentive heating service technician. Or if the device is badly damaged or missing parts, it's not costly to replace the whole assembly.

Hubby changing the weight setting on the draft regulator door is not a good idea, though freeing up the door to move is just fine. The weight setting is a draft adjustment. Incorrect draft means incorrect burner operation.

Watch out: a stuck-shut draft regulator results in increased draft over the fire - something that increases heating system operating cost, but not something that would easily explain that loud "explosion noise" when the regulator opens. Rather, I suspect that your oil burner is not properly adjusted, is dirty, or is otherwise malfunctioning.

For example, an oil burner that does not shut down crisply at the end of a burn cycle can dribble unburned oil into the combustion chamber. At the next startup operating cycle that unburned oil is ignited to cause an explosion in the combustion chamber - referred to in the trade as a "puffback". Puffbacks can be dangerous, damaging the equipment and risking blowing soot all over the place, and in extreme cases the whole heating appliance can be badly damaged.

In conclusion I agree with Mr. Scott's advice: you need a service call from a trained, competent heating service technician, ASAP.

Question: I smell exhaust fumes after the oil burner shuts off. How can I track down that problem?

HI, I have a oil fired boiler that provides hot water base board heating and domestic hot water. I have just had the boiler serviced which includes cleaning and checking of draft etc. The serviceman is very competent. He has been servicing it for years. The flue is an 8" flue inside of a 10" insulated pipe because the pipe goes up a boxed in chimney of plywood and the plywood is stucco outside. I have a gas fire place also which is direct vented to the outside.

The flue pipe comes up the side of the box and then once it gets past the fireplace vent is offset to the center of the box. I believe the pipe is then reduced at the top to a 6" pipe and cap. It has been this way for 15 years, but suddenly I am smelling exhaust fumes after the burner runs and sometimes after it shuts off. The service man has been back several times and have tried different things and made sure the setting for draft are correct. He said the pipe is very clean and the furnace runs very efficiently

. I only seem to smell the fumes at the first level floor and not in the basement.

The next step would be to remove the outside surface of the box to see if we can see any separations where the pipes lengths connect, but I want to make that the last resort, because of the expense. Is there any other steps I can try to see where the smell is coming from. - Steve Henninger

Reply: have an expert inspect and fix any chimney, flue, or flue vent connector or draft regulator problems; check the oil burner for improper shutdown.

Steve Henninger,

If your heating appliance was designed for an 8" flue, that is, the diameter at the top or back of the heater is 8" in diameter, then any reduction to 6" is asking for a draft problem. It's true that a heater might appear to work "fine" with a constricted draft, especially if it were set up to give priority to the draft (perhaps at the expense of most economical operation). By that I mean it's possible to set an oil fired appliance to run "hot" to get better draft, and even to run cleaner, but setting hotter than normal wastes fuel, sending more of each heating dollar up the chimney rather than into the building.

Now later, maybe years later, fussy technician shows up, cleans and services the system, and sets it up at what s/he views as optimal for economy as well as safe operation. But now the constriction at chimney top begins to make more trouble.

Or alternatively, the chimney itself has changed - a leak or hole, combustion air supply to the appliance has changed -someone closed a door or window, or site conditions have changed - someone cut down a tree, wind direction changed or increased, etc. Something that just pushes draft problems over the edge of recognition.

Check the whole chimney assembly: I'd ask for a thorough chimney inspection by a certified chimney sweep, making sure that the entire length of the flue is undamaged, that a properly sized cap is on top, etc. That, followed by draft measurements ought to tell us what's going on.
Check oil burner operation: I'd also ask the heating service tech to check the fuel unit assembly on your oil burner. If the oil burner is not stopping the oil flow properly at system shutdown the burner may be sending incompletely burned oil into the combustion chamber, adding to smells at the end of a burner cycle and risking a dangerous puffback. Combustion air problems, a dirty nozzle, or similar problems can also cause dirty burner operations, sloppy shutdown, sloppy startup, or even leaks in the oil line can lead to the odor problems you describe
Check the gas fireplace: also make sure that your gas fired fireplace is working and venting properly. Your question seems to point to the oil burner operation, but it's very important to make sure that any gas fired appliance is also operating safely in order to avoid risk of a dangerous carbon monoxide problem. (Make sure you have working CO detectors installed.)

Question: the chimney cleaner vacuumed through the damper and damaged it

I just had my chimney clean and they put the vacuum into the damper instead of going into the sealed opening in chimney . I found my damper damaged the counter weight was on the floor . Is this standard practice in the chimney cleaning business practices. I will be making a complaint to consumer affairs and suing them for exposing me to carbon monoxide poisoning. Neil

Reply: repair the barometric damper or replace it; have the chimney and heating appliance properly cleaned and serviced

Neil, in my OPINION, it sounds as if your service tech may have taken a bit of a shortcut. Certainly if there is an easy direct view into a "dead end chimney flue" through the damper I can understand the temptation to just reach the vacuum in through the damper to vacuum out the debris - an important safety step to avoid a blocked flue.

But if you were having the heating system serviced and cleaned (that is your boiler or furnace was supposed to have been cleaned), on most systems it is necessary to remove the flue vent connector, damper assembly, and flue connection to the chimney as well as the top of the boiler or furnace in order to vacuum out the heater itself.

And if all that disassembly were performed, it would be easier then to vacuum the chimney base directly.

Further, what you describe is not a complete chimney cleaning - just removal of debris from the chimney base. Now that might be all that was needed, provided that the service tech had some reason to be confident that the rest of the chimney was clean and unblocked. Say by inspection using a mirror and light? But it's difficult to look up into a chimney thoroughly - it's like peering into a black abyss.

Damper parts on floor = very poor workmanship

Finding your damper damaged and the counter weight on the floor is prima-facae evidence of an incompetent technician. No responsible person would leave equipment in that condition. I'd give the heating or chimney company service manager a polite call asking that they send someone with better training and work habits to repair the damper and to inspect the chimney, and if your heater was supposed to have been cleaned, to perform that task too.

Sue for CO poisoning risk? Focus on safety first!

About suing your contractor for CO poisoning, I understand that you're rightly annoyed, but in my OPINION that's a costly waste of time and source of unnecessary aggravation for you as well as everyone else. Focus first on making sure that your heating system is properly serviced and safe. It would be in my OPINION a big mistake to start by hiring a lawyer while leaving the heating system in an unsafe condition.

Question: Draft regulator placement

The picture of the hot water heater shows the draft regulator installed at the end of the tee which makes for a possible exhaust leak should be perpendicular to pipe.

I invented a improved draft regulator patent #2459368

I have been asked to prove how much heat a properly set up barometric draft regulator can lose. I have been under the impression that it is 15 to 20% of the total fuel bill. Can anyone help? 11/27/2011

- Lionell Scott

Reply:

Lionel Scott - thanks for your comments below. I agree completely.

Send us some information and photos of your new draft regulator - sounds interesting, perhaps I can add an article about it here at InspectApedia? use the CONTACT link found at the top, side or bottom of any of our pages. Daniel

Reader follow-up:

Thanks for your interest in the Venturi Draft Regulator, If you would like to have an actual regulator to test i would be glad to send one.

Reply:

Lionel Scott:

We'd love to see and photograph a Venturi Draft Regulator, to comment further on the product's application, and we'd also welcome any content critique or comment you may have about any InspectAPedia website articles. Our contact information is found at the the CONTACT link at the top, side, or bottom of any InspectAPedia web page.

About proving the amount of building heating cost lost through a conventional barometric damper, the 15-20% of total fuel bill sounds very exaggerated to me. The heating equipment is not normally located inside the occupied space of the home, and is therefore unlikely to be stealing that much heat from the home.

Some thought needs to be given to a properly-designed experiment to make some actual measurements, including
- building location
- communication between the utility area locating the heating equipment and the rest of the structure - heat flows
- assumptions about insulation, R-values, building design, air leakage, and other factors that tend to dominate heating costs
- assumptions about prevailing and average wind direction and speed and its impact on chimneys - with chimney assumptions too.

Question: Questionable reader reports improper chimney & heater service led to Carbon Monoxide fatalities

The guy who cleaned my chimney stuck the vacuum into my damper causIng me to almost lose my entire family to carbon monoxide poisoning o called the guy back and he laugh at me - Alexander Delarge 12/16/2011

My boiler just exploded causing thousands of dollars worth of damage called the boiler company and they told me it's not their problem because it was cleaned by a unqualified chimney cleaner . The cleaner laugh at me over the phone and told me to [... obscenities deleted] - Alexander Delarge 12/24/2011

Reply:

Alexander, although subsequent posts suggest that you are making up the claim above, nevertheless it merits comment. One would imagine that even if the heating service technician was not competent or did something improper, it sounds as if the problem was more complex than you describe. Just putting a vacuum into a barometric damper itself would not cause carbon monoxide fatalities. More likely there was incorrect cleaning, incorrect heating equipment service, a blocked chimney, or a combustion air fault - or some similar and dangerous condition.

See CARBON MONOXIDE - CO

Question: barometric damper slams shut

I have a burnham v8 series domestic boiler and the boiler shuts down the Field control barometric damper slams shut when the boiler shuts off. What can cause this problem? - Guy Triano 1/19/2012

Reply:

Guy,

It's normal for the barometric damper to close when the boiler stops, as it no longer is required to feed extra air into the flue to control the draft. If the damper is making a slamming noise it may be that it needs repair or adjustment, or that your boiler shut-down cycle is doing something abnormal - ask your service tech and let us know what s/he says.

Question: pros and cons of direct vented chimneys?

please state all risks or negatives of a non chimney boiler onside of home through wall with fan as opposed to regular roof chimney. Our chimney being blocked 5 feet away by 6 story building wall of neighbor. need to correct it. advise please - Susan Borchardt 10/22/12

Reply:

Susan,

Your question is a bit broad, no. I'm doubtful that we can effectively answer a "tell me all" question in e-note exchange, free or even for pay. Worse, without seeing and inspecting your home we can't address what might be very serious fire or safety hazards that might be present.

It sounds as if you should have an inspection by a chimney expert who can consider the exact conditions of your site and then propose one or more reasonable repair or corrective measures. Chances are you will need to extend your chimney height or relocate it away from neighboring windows to comply with code.

You might be able to eliminate the chimney entirely and go to a direct-vent system (details are at DIRECT VENTS / SIDE WALL VENTS) - which is what you were probably referring to by a "through wall" system. How easy it is to do that depends in part on your heater's location. We've made that change in some homes, but doing so sometimes had to relocate the boiler or furnace closer to an outdoor wall. So be sure you compare *total* costs of such a project.

Question: omitting the barometric damper is usually a bad idea

Hi - I just had a brand new oil boiler/burner installed (Smith Series 8 boiler) and the technician did not install a barometric draft control at the flue pipe. I have never seen a boiler without it. He explained that I do not need one because when he tested it he saw that I have enough draft (0.2 to 0.4). My upstairs neighbor's boiler that sits right next to mine is the exact same model. It was installed last year with a draft control. I compared the draft test results and they are identical, so this is making no sense to me. Is it really ok not to have a draft control on my flue pipe? And what about access to cleaning the flue pipe? They really can't get into the flue pipe without taking it apart every time, so that can't be good either.

Reply:

We do not agree with what your service tech told you - it was an incomplete and incorrect reply. Even if a tech sees "perfect" draft at a chimney at a particular time, weather temperature, wind, and other conditions will change constantly at any building site, meaning that draft conditions will change too. In turn, that means that while the heating equipment may run, it is impossible to tune it and set it for proper and economical condition under those varying conditions if there is no way to regulate the draft seen by the heating equipment.

But on one point I don't agree: the purpose of the damper is not to give cleanout access to the flue; anyone who claims to have cleaned a heating system just through the damper has not done a proper nor adequate job.

Typically when we see a system with no barometric damper we infer that there was a chimney with marginal or inadequate draft.

Question: my barometric damper is always open

I have a oil furnace with direct-venting through a vertical wall. My barometric damper is always open and allows cold outside air to enter the basement when the furnace is not running. Is this proper? We have had the service techs of two different companies here and when I mentioned it to them, neither of them made any comment. Can I replace this part myself, or do I need to find still another furnace repair company? - Paul Hallisey<paul.e.hallisey@gm 1/15/2013

Reply:

Paul:

At some buildings we see the draft regulator forced open when the equipment is not operating because of the stack effects of the chimney and the entry of air into the utility room. If the open damper is costing in lost building heat you may want to install an automatic flue vent damper that shuts down when the system has turned off and opens up when the heating system turns on.

You wouldn't eliminate the draft regulator. Instead, an automatic vent damper is added to the flue to shut it down when the equipment is not operating. Search InspectApedia for automatic flue vent dampers to read details.

Question: oil burner locks out & I hear a wailing noise

I an experienced plumber/pipefitter who is experiencing some puzzling problems with my boiler. I had my Weil McLain GTO 5 boiler, QB 180 burner cleaned and serviced about a month ago. At that time it was running fine. The night after it was cleaned the burner started locking out a few times a day and night. I have tried to get the one who serviced it to come back but with no success. I then started to apply the limited knowledge of burners I have and I noticed a slight waining sounds come from the burner just before it would spit and sputter, then lock out. I bought a new oil pump, insatlled it, and I am still experiencing the same problem. Only now it will run fine for 5 minutes and then the flame will blow out and then come back, with that happening just before the burner shuts off, sometimes without locking out the control. I have adjusted the gap and air flow to the specs of my boiler. I will say the nozzle is a 1.10 and my model calls for a 1.20 but the help at the supply house said that wouldnt matter. My next step is to replace the primary control or opening up the fan motor to inspect that. Anyone with some insight please share! - Ryan Darvalics 1/18/2013

Reply:

Ryan, I don't want to guess at what's wrong with your heater with so little information, but

"started locking out a few times a day and night" certainly indicates an improper operating condition; The heating company should send an experienced technician to diagnose and fix the problem that your note suggests was left by the last fellow.

The nozzle size change you cite is withing spec range, might pertain to an upped oil pressure setting, and would not explain oil burner going off on safety-lockout. A lockout occurs when the flame does not ignite properly - a problem that can be caused by a variety of issues.

Changing the fuel unit for a new one before diagnosing the problem can be a costly and unnecessary step. For example, a leak in the oil piping, a clogged filter, even a simple clogged fuel unit strainer can cause ignition problems - not reasons to change the whole fuel unit.

You can read further about oil burner troubleshooting at OIL BURNER INSPECTION & REPAIR and at OIL BURNER NOISE SMOKE ODORS but I would stop shotgunning, installing new parts, before we have an accurate diagnosis of what's wrong.

...

Ask a Question or Search InspectApedia

Questions & answers or comments about draft regulators and barometric dampers on heating equipment; Questions & Answers about inspecting and adjusting the barometric damper or draft regulator on oil fired heating equipment

Ask a Question or Enter Search Terms in the InspectApedia search box just below.

Technical Reviewers & References

Related Topics, found near the top of this page suggest articles closely related to this one.

[1] "Instructions for Installing FIELD Type AF Barometric Draft Controls," Form No. 31 DC 30666, Field Corporation, Mendota, IL 61342, web search 04/02/2011, original source: http://www.fieldcontrols.com/pdfs/04592700.pdf, Field Controls, Kingston, North Carolina 28501, Tel: 919-522-3031
[2] Tjernlund Draft Controls, A Series (single action for oil, solid fuel, and fan-assisted gas burners) and B Series (double action for gas heating appliances), web search 04/02/1011, original source: http://www.tjernlund.com/Tjernlund_8500490.pdf , Tjernlund Products, Inc., 1601 Ninth Street, White Bear Lake MN 55110-6794, Tel: 651-426-2993 or 800-255-4208 website: www.tjernlund.com Email: fanmail@tjfans.com
[3] "Installation Instruction: the Field Controls Company, Draft Regulators (3"-10") Types B34 and DR", The Field Controls Co., 2308 Airport Rd., Kinston NC 28501-8947, Tel: (919) 522-3031 P/N 46001000 REV. A, retrieved 1/20/2013, original source: http://www.fieldcontrols.com/pdfs/46001000.PDF, copy on file as Field_B34_DR_Installation.pdf and as Field_B34_Installation.pdf
[4] "Draft Regulator, Model B24-TJ", The Field Controls Co., 2308 Airport Rd., Kinston NC 28501-8947, Tel: (919) 522-3031 P/N 46001000 REV. A, retrieved 1/20/2013, original source: http://www.fieldcontrols.com/pdfs/46107700.PDF , copy on file as Field_B34_TJ_Installation.pdf
[5] "Instructions for Field M + MG2 [Draft Regulator] Controls Without Collars", The Field Controls Co., 2308 Airport Rd., Kinston NC 28501-8947, Tel: (919) 522-3031 P/N 46001000 REV. A, retrieved 1/20/2013, original source: http://www.fieldcontrols.com/pdfs/01977200.pdf, copy on file as Field_B34_TJ_Installation.pdf
[6] "Field M + MG2 [Draft Regulator] Barometric Draft Controls ", The Field Controls Co., 2308 Airport Rd., Kinston NC 28501-8947, Tel: (919) 522-3031 P/N 46001000 REV. A, retrieved 1/20/2013, original source: http://www.fieldcontrols.com/pdfs/01977000.pdf, copy on file as Field_M_MG2_Installation.pdf
[7] "Barometric Draft Controls, Model Field R-C", retrieved 1/20/2013, original source: http://www.fieldcontrols.com/pdfs/DC01575700.pdf, copy on file as Field_R-C_Installation.pdf
Field Controls Instruction Manuals - see http://www.fieldcontrols.com/instructionmanuals.php
Mark Cramer Inspection Services Mark Cramer, Tampa Florida, Mr. Cramer is a past president of ASHI, the American Society of Home Inspectors and is a Florida home inspector and home inspection educator. Mr. Cramer serves on the ASHI Home Inspection Standards. Contact Mark Cramer at: 727-595-4211 mark@BestTampaInspector.com
John Cranor is an ASHI member and a home inspector (The House Whisperer) is located in Glen Allen, VA 23060. He is also a contributor to InspectApedia.com in several technical areas such as plumbing and appliances (dryer vents). Contact Mr. Cranor at 804-747-7747 or by Email: johncranor@verizon.net
Carson, Dunlop & Associates Ltd., 120 Carlton Street Suite 407, Toronto ON M5A 4K2. (416) 964-9415 1-800-268-7070 info@carsondunlop.com. The firm provides professional home inspection services & home inspection education & publications. Alan Carson is a past president of ASHI, the American Society of Home Inspectors. Thanks to Alan Carson and Bob Dunlop, for permission for InspectAPedia to use text excerpts from The Home Reference Book & illustrations from The Illustrated Home. Carson Dunlop Associates' provides:
- Commercial Building Inspection Courses - protocol ASTM Standard E 2018-08 for Property Condition Assessments
- Home Inspection Education Courses including home study & live classes at eleven colleges & universities.
- Home Inspection Education Home Study Courses - ASHI@Home Training 10-course program.
  Special Offer: Carson Dunlop Associates offers InspectAPedia readers in the U.S.A. a 5% discount on these courses: Enter INSPECTAHITP in the order payment page "Promo/Redemption" space. InspectAPedia.com editor Daniel Friedman is a contributing author.
- The Home Reference Book, a reference & inspection report product for building owners & inspectors.
  Special Offer: For a 10% discount on any number of copies of the Home Reference Book purchased as a single order. Enter INSPECTAHRB in the order payment page "Promo/Redemption" space. InspectAPedia.com editor Daniel Friedman is a contributing author.
- The Home Reference eBook, an electronic version for PCs, the iPad, iPhone, & Android smart phones.
  Special Offer: For a 5% discount on any number of copies of the Home Reference eBook purchased as a single order. Enter inspectaehrb in the order payment page "Promo/Redemption" space.
- The Illustrated Home illustrates construction details and building components, a reference for owners & inspectors.
  Special Offer: For a 5% discount on any number of copies of the Illustrated Home purchased as a single order Enter INSPECTAILL in the order payment page "Promo/Redemption" space.
- The Horizon Software System manages business operations,scheduling, & inspection report writing using Carson Dunlop's knowledge base & color images. The Horizon system runs on always-available cloud-based software for office computers, laptops, tablets, iPad, Android, & other smartphones.
Lonny Steinke, Worland, WY USDA kindly corrected erroneous data we published on the proper draft numbers. - October 2008.
Dirk Faegre, Camden, Maine (207) 232-9494 is a certified BPI energy auditor and certified Envelope technician who kindly suggested draft regulator and flue vent connector inspection defect additions 6 Sept 09

Books & Articles on Building & Environmental Inspection, Testing, Diagnosis, & Repair

Our recommended books about building & mechanical systems design, inspection, problem diagnosis, and repair, and about indoor environment and IAQ testing, diagnosis, and cleanup are at the InspectAPedia Bookstore. Also see our Book Reviews - InspectAPedia.

The Home Reference Book - the Encyclopedia of Homes, Carson Dunlop & Associates, Toronto, Ontario, 25th Ed., 2012, is a bound volume of more than 450 illustrated pages that assist home inspectors and home owners in the inspection and detection of problems on buildings. The text is intended as a reference guide to help building owners operate and maintain their home effectively. Field inspection worksheets are included at the back of the volume. Special Offer: For a 10% discount on any number of copies of the Home Reference Book purchased as a single order. Enter INSPECTAHRB in the order payment page "Promo/Redemption" space. InspectAPedia.com editor Daniel Friedman is a contributing author.

Or choose the The Home Reference eBook for PCs, Macs, Kindle, iPad, iPhone, or Android Smart Phones. Special Offer: For a 5% discount on any number of copies of the Home Reference eBook purchased as a single order. Enter INSPECTAEHRB in the order payment page "Promo/Redemption" space.

Building inspection education & report writing systems from Carson, Dunlop & Associates Ltd

Carson Dunlop, Associates, Toronto, have provided us with (and we recommend) Carson Dunlop Weldon & Associates' Technical Reference Guide to manufacturer's model and serial number information for heating and cooling equipment
Special Offer: Carson Dunlop Associates offers InspectAPedia readers in the U.S.A. a 5% discount on any number of copies of the Technical Reference Guide purchased as a single order. Just enter INSPECTATRG in the order payment page "Promo/Redemption" space.
...


	InspectAPedia^®	InspectAPedia
	Free Encyclopedia of Building & Environmental Inspection, Testing, Diagnosis, Repair	Ask a Question or Search InspectAPedia

Free Encyclopedia of Building & Environmental Inspection, Testing, Diagnosis, Repair

Ask a Question or Search InspectAPedia

Guide to Inspecting Barometric Dampers or Draft Regulators on Oil Fired Heaters, Furnaces, Boilers, Water Heaters

Define Barometric Damper or Draft Regulator

Why we need the Barometric Damper or Draft Regulator on a Boiler or Furnace

Details of Why is a draft regulator is needed ?

Are Barometric Draft Controls Used on Gas-Fired Equipment?

Where Should the Draft Regulator (Barometric Damper) be Installed?

Measure Chimney & Flue Draft when adjusting the barometric damper / draft regulator

How Does a Barometric Draft Control or Draft Regulator Work?

How is the Barometric Draft Control Adjusted? What are the recommended draft settings?

Weight location & adjustment on barometric draft controls

Why we Measure Carbon Dioxide CO2 as Well as Draft when Adjusting the Draft Regulator

Draft Regulator Inspection Points, List of Defects & Signs of trouble with a barometric damper or draft regulator and what they mean

Loose or Damaged Draft Regulator (Barometric Damper) Parts or Improper Draft Regulator Installation Points

Field-installed draft regulator tee vs. using a factory tee

Loose-rattling draft regulator?

Soot & Debris inside the flue vent connector

Screws Required to Secure Tee to Flue Vent Connector & Draft Regulator Assembly to Tee

Check the Draft Regulator Door Hinge Pins

Check the Draft Regulator Weight Assembly

Check the Operating Environment for the Heating Equipment

Typical Draft Regulator - Barometric Damper - Sizes & Costs

Definitions: What's the difference between a flue damper, duct damper, a fire damper, and a draft regulator?

What is an automatic duct damper and how do they work?

What is an Automatic Fire Damper in Ductwork and how do they work?

What is a Draft Inducer Fan and how do they work?

What is a Barometric Draft Control and how do they work?

Frequently Asked Questions (FAQs) About Draft Regulators on Heating Equipment

What is the Significance of Soot production or soot blow-back stains at the Damper or Draft Regulator

When the oil burner is not operating, should the damper door be closed?

Reply: Generally, yes, at rest, the damper door is shut. But here are some things that might make it open:

Here are some things that might explain why the barometric damper is hanging open even when the heater is not running:

Question: our draft regulator door gets "stuck" then bursts open with a loud explosion noise - scary!

Reply from reader Lionel Scott

Reply from DF: a sticky barometric damper door is easily repaired but that's not the whole problem here - watch out for dangerous boiler or furnace puffback

Question: I smell exhaust fumes after the oil burner shuts off. How can I track down that problem?

Reply: have an expert inspect and fix any chimney, flue, or flue vent connector or draft regulator problems; check the oil burner for improper shutdown.

Question: the chimney cleaner vacuumed through the damper and damaged it

Reply: repair the barometric damper or replace it; have the chimney and heating appliance properly cleaned and serviced

Damper parts on floor = very poor workmanship

Sue for CO poisoning risk? Focus on safety first!

Question: Draft regulator placement

Reply:

Question: Questionable reader reports improper chimney & heater service led to Carbon Monoxide fatalities

Reply:

Question: barometric damper slams shut

Reply:

Question: pros and cons of direct vented chimneys?

Reply:

Question: omitting the barometric damper is usually a bad idea

Reply:

Question: my barometric damper is always open

Reply:

Question: oil burner locks out & I hear a wailing noise

Reply:

Ask a Question or Search InspectApedia

Technical Reviewers & References

Books & Articles on Building & Environmental Inspection, Testing, Diagnosis, & Repair

Why we Measure Carbon Dioxide CO₂ as Well as Draft when Adjusting the Draft Regulator
