How to open and inspect a barometric damper and flue vent connector (C) Daniel FriedmanHow & Why to Open & Inspect Barometric Dampers & Draft Regulators on Oil Fired Heating Equipment
InspectAPedia®  -

  • How to inspect the oil fired boiler or furnace flue through the barometric damper opening
  • How to interpret the level of soot or debris inside of oil fired heating equipment chimneys and vents
  • Draft Regulators & Barometric Dampers: A Guide to Barometric Dampers on Oil Fired Boilers, Furnaces, Water Heaters: inspection, adjustment, cleaning, troubleshooting
  • Cleaning & maintenance guide for heating systems
Our site offers impartial, unbiased advice without conflicts of interest. We will block advertisements which we discover or readers inform us are associated with bad business practices, false-advertising, or junk science. Our contact info is at InspectAPedia.com/appointment.htm.

Here we discuss Procedures for opening and inspecting heating flues through Draft Regulators or Barometric Dampers. In addition to this detailed damper inspection procedure, readers should be sure to review Barometric Damper Defect List.

This website answers most questions about central heating system troubleshooting, inspection, diagnosis, and repairs. We describe how to inspect residential heating systems to inform home owners, buyers, and home inspectors of common heating system defects.

The articles at this website describe the basic components of a home heating system, how to find the rated heating capacity of an heating system by examining various data tags and components, how to recognize common heating system operating or safety defects, and how to save money on home heating costs. We include product safety recall and other heating system hazards.

Details about draft control on oil fired heating systems (such as the oil fired heater shown in the photo above), including furnaces or boilers, are discussed at Draft Regulators barometric dampers on oil fired equipment. (Details about draft control for gas fired heating systems, including furnaces or boilers, are discussed at Furnace Draft Hood on gas fired equipment.

Contact us to suggest text changes and additions and, if you wish, to receive online listing and credit for that contribution. © Copyright 2009 Daniel Friedman, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use links at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

How to open and inspect a barometric damper for Inspection

Photograph of ...

This article discusses the simple but very useful step of just taking a quick look into the flue pipe through the barometric damper opening on oil fired heating equipment.

Other damper and venting problems are discussed at the root page DRAFT REGULATORS - barometric dampers.

At Measure Draft we also discuss how and where to actually measure the heating equipment draft in the course of checking on (or adjusting) the draft regulator.

The barometric damper or draft regulating device we are discussing here is normally used only on oil-fired heating equipment, not on gas-fired equipment. The equivalent draft control on gas fired heating systems is discussed at Furnace Draft Hood on gas fired equipment.

Barometric dampers are devices used to regulate the draft on oil-fired heating equipment such as furnaces, boilers, or water heaters.

On oil fired equipment the barometric damper, or draft regulator is typically a round Tee inserted in the flue vent connector between the heating appliance and the chimney. The face of the tee contains a round "door" with an adjustable weight.

In our photo you may not be able to open this barometric damper - it is improperly installed (out of level), and has been improperly modified, indicating a draft problem with this heating system or its chimney. The implications of sealed barometric dampers are explained at Draft Regulators for oil fired equipment.

How & Why Should You Open & Inspect the Barometric Damper:

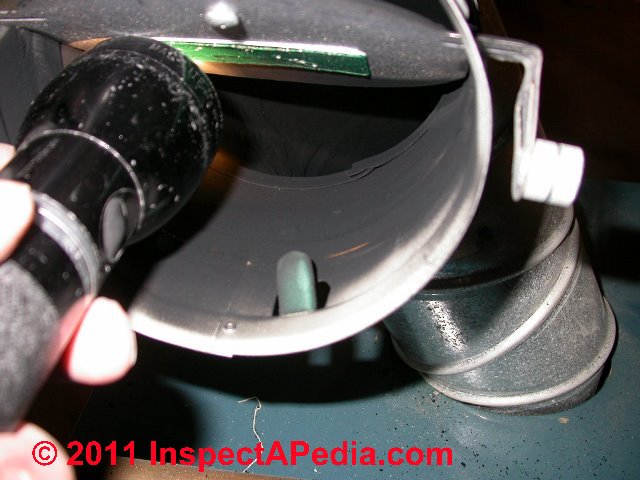

How to open and inspect a barometric damper and flue vent connector (C) Daniel Friedman

When I, the author (DF) first owned a home with a heating boiler I was so terrified of this rumbling flickering box in my basement that I didn't even walk near it. That was a mistake. And we wasted lots of money on oil before we learned that just a few simple visual checks can tell a lot about how well our heating equipment is running.

So don't worry: it's easy to perform this step - anyone can do it if a barometric damper is actually installed where it should be. Just gently push the hinged door open with a finger, and shine a good flashlight inside to see what you can see.

Warning: of course if your oil fired appliance has been running recently, these parts are HOT and you could get burned. If the damper door itself is hot you can still look inside - just use a screwdriver or wire to push the door open rather than your finger as shown in our photo at left.

A barometric damper installed on a horizontal flue pipe will give a good view of the cleanliness of the flue interior as well as clues about rust and damage in the flue.

A barometric damper installed on a vertical flue pipe may still give a good view of the top of the heating boiler, furnace, or water heater, where you may see accumulated soot or debris, rust stains, or perhaps better news.

Debris in a stack pipe (C) Daniel FriedmanDebris visible in the flue vent connector (stack pipe) visible through the barometric damper draft control opening. If you see soot, rust flakes, and debris in the flue vent connector this means that the heating system needs to be cleaned and serviced.

If the heating system has "just been serviced" this debris means that service was incomplete.

A flue vent connector ((also called the "stack pipe" or "flue pipe") is the metal pipe that connects the oil fired heating appliance to a chimney in order to safely vent combustion gases outdoors.

A proper service procedure for oil fired heating equipment includes removal of the flue vent connector and thorough cleaning of all debris from these components as well as a visual inspection of the condition of the chimney to which the flue vent connector joins to send combustion products outside.

Our photo shows what was probably several years of accumulated soot, rust flakes, and debris in the flue vent connector of an oil-fired horizontal furnace in a wet moldy crawlspace. The owner thought that his system, which was almost impossible to access, had "just been cleaned".

Opening this damper and looking inside meant we literally "hit pay dirt". The dirt meant that the system needed to be cleaned, that the owner was paying for heat, but the heat was going up the chimney, not into the home -- as we explain a bit more below.

A hard to access heating system in a cramped nasty area rarely receives thorough cleaning and service. That was the case for this system.

Why is soot or crud in the oil fired boiler or furnace flue a problem?

When we look in to the flue close to the heating boiler or furnace, such as at the barometric damper shown here, it's normal to see a thin coating of soot on the interior of the metal flue pipe. But thick soot in the flue, the chimney, or inside of the boiler or furnace heat exchanger is a problem.

Because soot acts like an insulating coating, too much soot in a heating system causes both system operating problems problems and increased heating cost for the building. These soot problems on oil fired heating equipment are discussed in detail at SOOT on OIL FIRED HEATING EQUIPMENT.
