Oil Burner Smoke Test - Indicates Proper Combustion Air, Draft, Burner Adjustment

If the oil burner is not working, start your diagnosis at OIL BURNER INSPECTION & REPAIR.

The articles at this website describe how to recognize common oil-fired heating appliance operating or safety defects, and how to save money on home heating costs. Readers should see HEATING SYSTEM INSPECTION PROCEDURE. There we explain an organized approach to inspecting the entire heating system, beginning outdoors, continuing indoors, and ultimately in most detail in the boiler or furnace room. Also see CHIMNEY INSPECTION & REPAIR GUIDE for details of chimney inspection, diagnosis, and repair, including blocked chimney flues, chimney backdrafting, leaks, and odors from flues.

The basic measurements made by any competent oil heat service technician include the stack temperature, draft, smoke level, and carbon dioxide level.

These data tell us whether or not the equipment is properly adjusted and operating safely and economically. Here we explain how we measure the Bachrach or Bosch smoke numbers - a slightly subjective evaluation of the level of smoke or "soot" found in oil burner exhaust flues.

One of these most basic tests performed by an oil heat service technician is the "smoke test" using a strip of filter paper and a pump to sample the oil burner exhaust, measuring the level of smoke in the exhaust.

Our photo (left) shows a traditional smoke testing pump (the black cylinder with a handle at its right end) used for decades. This equipment was produced by Bachrach, an oil burner test equipment manufacturer.

The technician allows the oil burner to reach normal operating temperature (perhaps after it has been on for five minutes),
A clean white strip of filter paper is inserted into the end of the smoke testing pump.
The nozzle of the smoke tester is inserted into a 1/4" diameter hole in the flue vent connector pipe, typically just a few inches above the top of the oil-fired heating boiler or furnace.
The pump is operated
The filter strip is removed and the "blackness" of the sample spot is compared with a scale that rates the soot level. An experienced oil heat service technician simply looks at the black or gray spot on the filter paper.

Watch out: as we have written in several articles, it is impossible to do a good job cleaning and servicing oil fired heating equipment without getting dirty. But if you put your sooty fingers all over the filter paper before or after conducting a Bachrach / Bosch smoke test, then soot from your hands will get onto the filter paper and you may mistake a 0 smoke reading as a 1 or 2 level smoke. Don't touch the smoke sample test area with your dirty fingers.

Zero-level smoke in a Bachrach / Bosch test is actually "too clean" for most oil burners, and means that there is too much air entering the oil burner, causing the burner to operate too hot, and sending too much heat (and thus the money the homeowner spent on heating oil) up the chimney.

The correct smoke level is just a "trace" of smoke on the filter paper, a level of 1 is good.

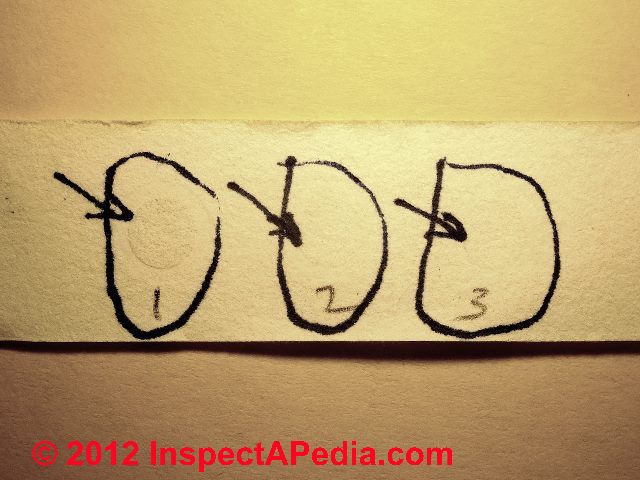

A smoke level of "1" or "2" is normal. In our oil burner smoke test results photo (at left) you can see four smoke test samples. Sample #1 is certainly too dirty, sample #2 and sample #3 are a bit high, though we might accept sample #3. Sample #4 is just slightly above zero and is a good setting.

Watch out: sorry for the labels in our photo at left: Don't mix up our sample numbers #1 - 4 with smoke level values = 0,1,2,3, etc. A smoke level of 0 means there is no black soot visible on the filter paper.

The Bachrach or Bosch smoke number scale ranges from 0 (no detected smoke) to 9 (solid black). In addition to using the hand operated smoke pump illustrated here, some electronic combustion analyzers can also produce a smoke level number. [Click any image or table to see an enlarged, detailed version.]

Higher smoke levels indicate that the system is operating too "dirty" or smoky. High levels of soot in the oil burner exhaust mean that the system will deposit soot more rapidly inside of the furnace or boiler heat exchanger, interfering with heat transfer into the building heating air or water, and thus increasing system operating cost - meaning higher heating bills and more frequent oil burner service needed.

Very high smoke levels may indicate or even cause plugging up of the furnace or boiler, leading to improper oil burner operation, an unsafe system, and possibly other malfunctions, even a "puffback".

Setting an Oil Burner for Zero Smoke?

Technical note: on some modern oil fired heating systems the oil burner combustion air and oil pressure are adjusted to a standard of zero smoke rather than a trace of smoke.

To perform this adjustment correctly and to avoid over-firing or overheating the boiler, as well as to avoid an inefficient set-up that sends too much heat up the chimney, the heating service tech will first set the oil burner for just a trace of smoke (#1 in our photo at left), then s/he will slightly increase combustion air until the trace just vanishes to a zero smoke reading (#2 and #3 in our photo) with the test filter paper and smoke gun.

Watch out: Don't come at zero smoke from a position of too much combustion air or you won't know what you've got and you may be wasting fuel and overheating the equipment.

Also see COMPLETE COMBUSTION, Stoichiometric for an explanation of complete fuel combustion and boiler or furnace maximum efficiency.

Thanks to Bob, a heating service technician at Bottini Oil, for this service tip.

Oil Burner CO₂ Test - Carbon Dioxide Level Indicates System Efficiency

The second common test performed by an oil heat technician evaluates the oil burner efficiency by measuring the carbon dioxide level or CO₂ level in the oil burner exhaust. While there are electronic sensors used by some technicians for this purpose, many oil heat service tech's continue to use the time-tested Bachrach Fyrite™ oil burner tester shown below.

Oil burner smoke test equipment, Bachrach Kit (C) Daniel Friedman

Bachrach carbon dioxide test for oil burners (C) Daniel Friedman

Our photos above show the rubber bulb and tubing used to pump oil burner exhaust gases into the CO₂ level tester (the bulb and tubing atop the smoke tester, above left), and a closeup of a well-used CO₂ tester (above right).

Measurement is made at the same flue vent connector location as we discussed above.

In fact when the author (DF) attended oil burner school we were taught to make two openings into the flue so that smoke level and CO₂ measurements could be made through one opening while a thermometer or draft gauge monitored those two additional data points at the second opening.

The CO₂ tester is filled with a red fluid that changes volume in response to carbon dioxide level. The Fyrite test unit is inverted, returned to upright, tilted at 45 degrees, to prepare it for use and to calibrate or set the "zero point" on the CO₂ gauge. A cap on the unit is depressed to vent the unit to the atmosphere and the zero point is set on the adjustable gauge.
Exhaust gas is pumped into the CO₂ tester, the tester is treated with flue gas exhaust for the required number of strokes (18) to purge the tubing and bulb and analyzer (tester). Why so many puffs of the rubber bulb? Remember you have to purge ambient air out of the tubing, the bulb, and the test instrument to be sure your sample in the instrument is of flue gas.
The analyzer is inverted, then returned to upright, tilted 45 degrees, returned to upright, and the CO₂ scale is read.

The Carbon Dioxide vs Oil Burner Efficiency chart below explains how the percent of carbon dioxide in oil burner exhaust gases translates into oil burner efficiency. Bachrach Fyrite instructions and Oil Burner efficiency chart below, source: Audel's Oil Burner Guide.
