How to Use a Mini Ammeter to Check Heat Anticipators and Thermostats for Proper Adjustment

Why do some thermostats include a heat anticipator?

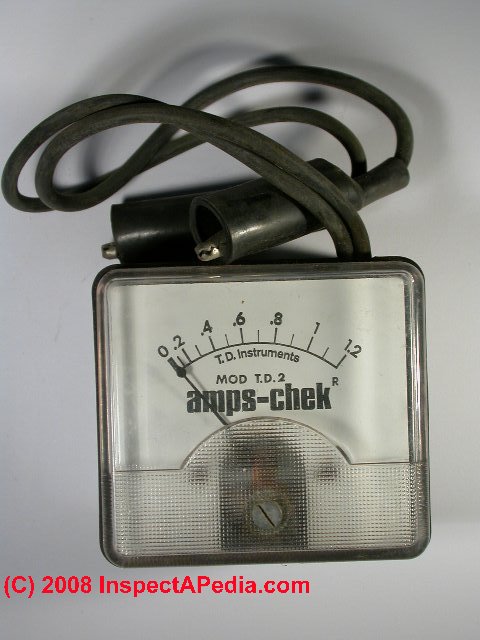

Heat anticipator adjustment tool from Amps CheckSince a room heating or cooling thermostat is really just a simple "on-off" switch, some fuzziness needs to be built into the thermostat's control of the air conditioner or heating system, lest it cycle on and off too frequently, oscillating very closely around the set temperature.

The job of the heat anticipator circuit in a wall thermostat is to prevent heating or cooling "overshoot" too far past the set temperature, but to permit some overshoot to prevent system on-off oscillation.

When we serviced heating systems and our clients sometimes complained that the thermostat did not seem to be responding as desired to room temperature.

The thermostat might permit the room to get much warmer, or much cooler than the temperature to which the thermostat was set.

This was a reason to whip out our little ammeter to see what was really going on with the thermostat circuit.

A second reason we'd use this ammeter to check the current draw of the thermostat circuit was to allow proper setting of a heating or air conditioning system control set which was made by a different manufacturer from the one who made the wall thermo sat.

For example, if the air conditioning or heating system control being switched on and off by the thermostat was not one of the ones in Honeywell's list, one of the checks we'd make is to actually measure the heating control circuit ampacity using a special mini ammeter sold just for that purpose, and shown in our photo at left.

Since we no longer service heating systems, we'll give our tool free to a trained heating service technician who'll pay the shipping postage.

Because some controls are used in common on hot water heat, hot air heat, and steam boilers, readers should see these other articles: see BOILER CONTROLS & SWITCHES, and also see BOILER COMPONENTS & PARTS for a detailed list of heating boiler controls, other heating system components, parts such as circulator pumps & draft regulators. If your building uses warm air heat, see FURNACE CONTROLS & SWITCHES. If your building uses steam heat see STEAM HEATING SYSTEMS. Also see Heat Won't Turn Off - Stop Unwanted Heat.

How to Connect the Ammeter to Check the Thermostat Circuit and the Heat Anticipator

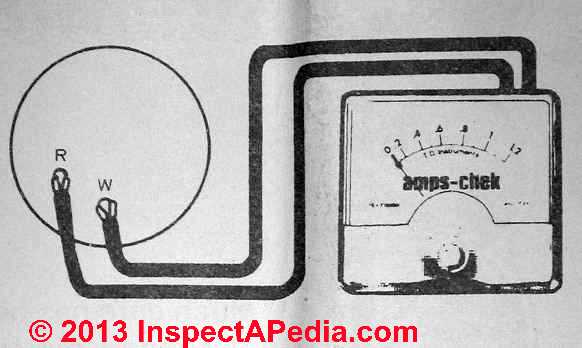

Thermostat heat anticipator ammeter measurement connections (C) InspectApediaWith the heat set "down", power to the equipment on, and the thermostat set to heating mode, the alligator clips are connected to the thermostat wire terminals in the thermostat.

Usually these are "R" (red) and "W" (white wire) or "R" and "Y" terminals on thermostats.

Just connect the ammeter's leads to the thermostat terminals where you see the red and white wires coming from the heating system are already wired. (You'll have to remove the thermostat cover to perform these steps.)

The current flow (Amps) is read on the meter, and the heat anticipator is set to match the actual current that was just read.

How to Make the Correct Current (Amps) measurement at the thermostat heat anticipator

  1. Turn power on to the heating system.
  2. Set the thermostat to call for heat
  3. Adjust the set temperature on the thermostat to well above current room temperature so that the heating system will operate
  4. Run the heat for at least five minutes to warm up the system to normal operating temperatures.
  5. Remove the thermostat cover (if necessary) to expose the R and W terminals. Connect the T.D. Amps-Chek or equivalent ammeter test leads onto the two thermostat terminals that make (connect or close) on a call for heat. These are the R and W terminals on most thermostats.
  6. Read the current flow indicated on the meter.
  7. Remember to re-set the room thermostat to the desired room temperature

Watch out: T.D. points out that a few controls, such as motorized gas valves, draw more current while operating than when they are in the fully-open position. So if your ammeter shows an unusually high reading (say more than 1.2A) you should hold the ammeter leads on the terminals for an entire minute. By that time the motorized valve should be fully open and you should see a lower AMPS reading. Examples of equipment where you will face this problem include

  • motorized gas valves
  • motorized zone \valves
  • power vent dampers
  • heating equipment that uses electronic ignition

Watch out: the amps reading made at the room thermostat can also indicate a system or wiring problem: if the meter continues to read current over 1.2A there is probably a system problem, risking damage to the thermostat itself.

What is the Exactly Correct Heat Anticipator Setting when Using an Ammeter?

Heat anticipator scale (C) InspectAPedia


Set the heat anticipator pointer to the same AMPS reading on its heat anticipator scale as the actual AMPS or current read on the mini ammeter.

Example: thermostat 24VAC circuit reads 0.7A. Set the pointer to 0.7A on the scale as shown in our sketch at left.

What do we gain from fine-tuning the thermostat's heat anticipator adjustment?

This places the thermostat heat anticipator in exactly the right setting for the equipment to which it is attached. Then we simply removed our test leads and re-set the thermostat to the desired room temperature.

When the heat anticipator is working correctly, it prevents too much temperature "overshoot" when the thermostat is turning heating or air conditioning equipment on or off. Ultimately this means that the thermostat will maintain room temperature more accurately and more closely to the "SET" temperature set by the occupants.

Watch out for static cling that can foul up an ammeter reading when measuring a thermostat circuit

Precaution when using this equipment: if the meter is wrapped in plastic there may be a static charge when you unwrap it. Because it is very sensitive, any static charge on this meter (or many other ammeters or VOMs or multimeters) can cause the dial movement to show an erroneous reading. Just wait 5 minutes before using the meter, allowing the static charge to dissipate.

The mini ammeter for adjusting thermostats to work precisely (shown at the top of this page) was produced by and may still be available from T.D. Instruments Corporation, 180 Charlotte St., Rochester, NY 14067 - 716-232-4208. We used model T.D. 2, which operates between 0 and 1.2 Amps A.C.


Frequently Asked Questions (FAQs) about testing thermostat heat anticipators & setting the heat anticipator

Question: what is the relationship between setting the heat anticipator higher or lower and the resulting room temperature?

Heat anticipator component of a room thermostatI want to know that if the heat anticipator sets was too low, whether the room temperature lower or higher? - Thanks Hyuk Lim.

Reply:

Typically if you set the heat anticipator lower you are narrowing the "gap" or amount by which the heat anticipator anticipates the amount by which heat delivery will "coast" when the thermostat stops calling for heat.

In our example photo (left) moving the pinter to the left is setting the heat anticipator to a lower resistance (turn heat off later) and moving the pointer to the right is setting the heat anticipator to a higher resistance (turn heat off sooner).

If you click to enlarge our heat anticipator photo you'll see that the settings range from 0.10 to about 2 Amps - a scale quite similar to the mini Ammeter used to fine-tune thermostat heat anticipators based on the circuit resistance (Ohms) and current flow (Amps) as we discuss above.

Notice that at the left end of the heat anticipator wiper dial at the lowest setting Honeywell has imprinted the word "LONGER". This means the heat will run longer or cut off later and the room will be warmer when the thermostat turns off the heating boiler or furnace.

This "coasting" effect is particularly significant with hot water or steam heating baseboards or radiators because those devices have plenty of thermal mass that keeps on giving heat even after the heating boiler has stopped running. So even though the heating boiler has stopped firing, heat will continue to flow into the rooms from the hot radiators.

In order to keep the room from becoming much hotter than the thermostat set point, a heat anticipator turns off the heating boiler ahead of time or before the room temperature has actually reached the thermostat set point.

A smaller or lower heat anticipator gap or setting should result in a HIGHER room temperature and conversely setting the heat anticipator higher will result in a LOWER room temperature.

Details about Heat Anticipator Function and Settings

The heat anticipator, by warming the thermostat bimetallic spring heat sensor, causes the thermostat to stop calling for heat sooner. The result is that the room temperature will be a bit lower when the thermostat turned off the heating system.

Put another way, because the heat anticipator is basically a resistor that itself heats up the wall thermostat in order to cause it to turn off the heat ahead of the room temperature set point on the thermostat, moving the heat anticipator to a higher setting (typically to the right) is moving it to a position of greater resistance in the circuit.

Higher resistance in Ohms, or higher current (Amps) draw, means that the greater resistance in the heat anticipator circuit causes heat anticipator to get hotter, which causes the heat anticipator to cause the thermostat itself to warm up more, which causes the thermostat to shut off sooner which means that the room will be slightly cooler.

Lower resistance in Ohms, or lower Amps draw, means that less heating of the thermostat bimetallic spring will be caused by the heat anticipator circuit all mean that the heating system will remain on longer before the thermostat reaches the set temperature and turns off the heater.

See HEAT ANTICIPATOR Adjustment for details on how to set the thermostat heat anticipator.

Also see Definition of Amps, Electrical Current, and Definition of Ohms, Electrical Resistance
