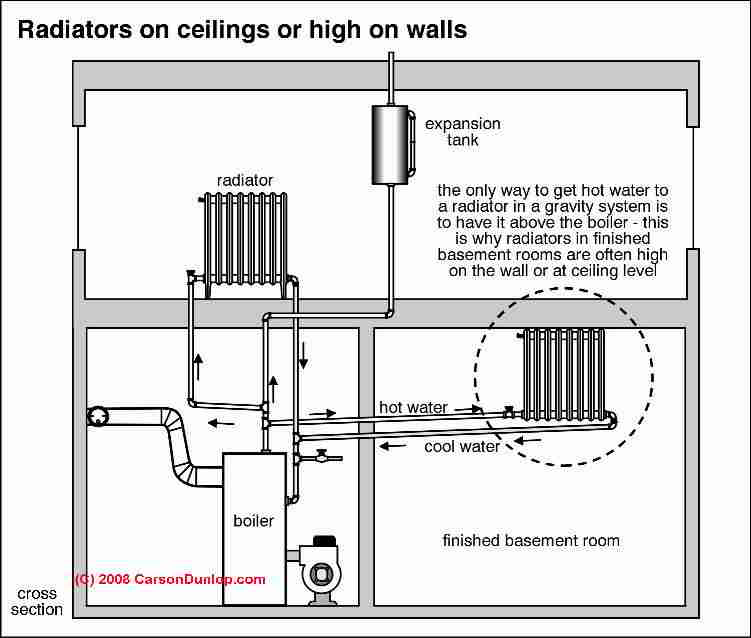

Ceiling mounted heating radiator (C) Carson Dunlop

Guide to Diagnosing Uneven Heat in Rooms Served by Radiators, Baseboards & Convectors
InspectAPedia^® -

Why do different radiators or baseboards heat unevenly in a building?
How to identify, inspect, diagnose, and repair problems with hot water or steam radiators, baseboards, or heating convectors
How to inspect, diagnose, and repair problems with steam radiators
If your radiator or baseboard is cold and the heating system is "on" - here we diagnose the problem
Questions & answers about how to diagnose and fix uneven heat problems in buildings with hot water heat

This article describes the diagnosis & repair of cold heating baseboards, convectors, radiators, or steam radiators. We provide articles that help in diagnosing and repairing no-heat problems with each types of hot water or steam or fan convector heat delivery systems.

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers nor with topics or services discussed at this website.

© Copyright 2010 Daniel Friedman, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use links at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

Explanations for Uneven Heat - Mixed Systems of Radiators & Baseboard Heat

This website answers most questions about all types of heating systems and gives important inspection, safety, and repair advice. If you don't know what kind of heat your building uses, we explain how to figure out the answer at HEATING SYSTEM TYPES. If your heating system is not working properly, see NO HEAT - BOILER or NO HEAT - FURNACE.

Mixed radiator and baseboard heat systems (C) Carson Dunlop

As Carson Dunlop's sketch (left) shows, a mixed heating distribution system that combines cast iron radiators (or wall convector units) with heating baseboard in the same heat distribution piping loop can produce uneven performance.

The heating system's behavior will also be affected by the location of the thermostat. In our sketch, the heating control thermostat is located near the radiator.

Because cast iron radiators take longer to get hot in response to circulating hot water in the system than does finned-tubing baseboard, the room where the baseboard heat is installed will be very hot, maybe too hot, early in the heating cycle (while the radiator is heating up).

Then as the thermostat (located near the radiator) is satisfied and stops the boiler or circulator pump from sending hot water through the heat distribution piping, the hot, high-thermal mass cast iron radiator will continue to warm the room where it is located, while the room with the finned-tubing baseboard will cool off more rapidly.

The result may be that the room heated by the finned-tubing baseboard will be sometimes "too hot" and other times "too cold".

Advice for regulating steam heat to improve even heat delivery in a building is found at RADIATOR STEAM VENTS, AUTOMATIC
