Evidence of a wet basement from roof spillage How to Inspect for Basement Leaks or Moisture - a Step in Detecting & Correcting Attic Condensation, Ice Dam Leaks, & Indoor Mold
InspectAPedia®  -

  • How to Inspect for Basement Leaks or Moisture as a Step in Detecting and Correcting Attic Condensation, Ice Dam Leaks, and Indoor Mold Contamination
  • Basement waterproofing guide to choices of sealants, membranes, drainage systems, basement de-watering systems, sump pumps
  • How to detect roof venting deficiencies, attic insulation defects, and attic condensation problems
Our site offers impartial, unbiased advice without conflicts of interest. We will block advertisements which we discover or readers inform us are associated with bad business practices, false-advertising, or junk science. Our contact info is at InspectAPedia.com/appointment.htm.

Inspecting in the Basement for Sources of Building Moisture Appearing as Attic Condensation and building mold describes common water entry or leak points in basements and crawl spaces as part of our discussion of both ATTIC LEAKS Moisture or Mold (where did that moisture originate?) and also WATER ENTRY in BUILDINGS (how to keep a building dry and at proper moisture levels). The photograph at page top shows a very wet basement with water stains high on the foundation walls - telling us that the cause of this water entry is obviously not "rising damp" nor "construction over an underground stream".

This article describes inspection methods and clues to detect roof venting deficiencies, insulation defects, and attic condensation problems in buildings. It describes proper roof ventilation placement, amounts, and other details. These recommendations are based on 35 years of building inspections, on the observation of the locations of moisture, mold, ice dams, condensation stains, and other clues in buildings, and on the correlation of these clues with the roof venting conditions at those properties as well as frequent literature review and discussion among professionals.

Readers should also see WET BASEMENT PREVENTION where we discuss the basics of preventing basement or crawl space water entry, report a foundation collapse case study, and describe some simple steps that may cure a wet basement without major expense.

Moisture from a wet building basement or crawl space travels up through the building where it can often condense in an attic, causing mold, frost, and even rot in a building if proper under-roof ventilation is missing. In the case of this home, we also need to correct the cause of basement water entry - in this case almost certainly it's a roof spillage or gutter problem since we see water stains so high on the foundation walls.

© Copyright 2009 Daniel Friedman, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use links at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

Inspecting in the Basement for Sources of Building Moisture Appearing as Attic Condensation

Photo of a wet basement masonry block wall Another important observation about the causes of and cures for attic moisture condensation is that buildings with an attic moisture condensation problem very often have wet basement or crawl space water entry problems. In fact even before entering an attic to inspect for moisture, while still outside I often look at excessively curled asphalt shingle roofs and suspect a basement water entry problem.

In the photograph shown here our client points to moisture stains originating high on a masonry block basement wall. The presence of moisture staining high on the wall confirm that the water source is either roof runoff spillage against the foundation or a surface water runoff problem.

This is not a case of "rising groundwater" or "a buried stream". A careful study of the pattern and location of moisture stains gives important diagnostic information about the probable source of basement water entry and of leaks or building moisture problems in general.

Actual basement flooding or simply high basement moisture forms a moisture source in a building that affects the entire structure. Moist air rises through the building by natural convection, eventually finding its way into the attic or roof cavity. If the roof cavity is not adequately vented, moisture will condense there leading to building damage and perhaps an attic mold problem.

Simply cleaning up or removing attic mold such as moldy roof plywood, framing, or mold contaminated attic insulation may not provide a lasting cure for attic mold. In fact even correcting the inadequate attic venting (as we describe below), will be insufficient if a basement or crawl space source of attic moisture was also present and if it remains un remediated.

List of Basement Water Entry & Moisture Sources

Concrete Foundation Wall Leak Points - Leaks at Cold Pour Joints

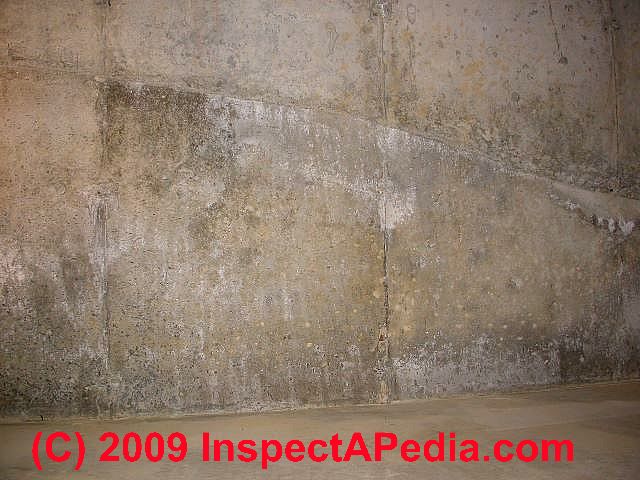

Basement water leak at cold pour joint (C) Daniel Friedman Basement water leak at cold pour joint (C) Daniel Friedman

At Cold Pour Joints we discuss the cause and possible significance of cold pour joints on a poured concrete foundation wall. Usually a cold pour joint in a concrete wall is only of cosmetic import. But if sufficient time elapsed between successive concrete pours into an individual foundation wall, the lower wall concrete "sets up" enough that there is a poor bond between that layer and the next pour of concrete into the wall forms.

The result can be not only a visible "crack" in the poured concrete wall, but this cold pour joint may leak surface water or ground water into the building. Our photo (above left) shows white efflorescence stains left by a long history of building foundation leaks at a cold pour joint on this building. Also notice that in the corner there was some efflorescence above the cold pour joint, while at the second photo (above right) there was efflorescence and leakage only below the cold pour joint. At both of these locations a roof drainage downspout had spilled water against the building wall for many years.

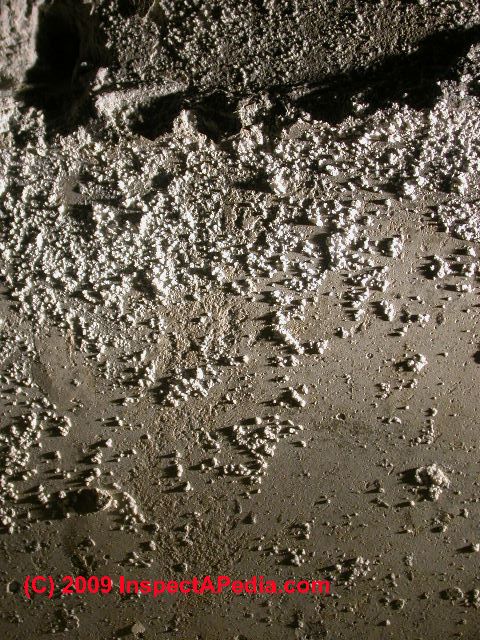

Cold pour joint leak evidence (C) Daniel Friedman
Often, including at this building, the leaks at the concrete wall cold pour joint occurred primarily, or in this case only, where there was a concentration of water spillage outside the building. In our two photos above, the two areas of leakage, at the cold pour joint in the building corner, and further along to the right of that corner in a lower cold pour joint leak, you can see that water leakage was concentrated (shown by the white efflorescence on the wall).

Our photo at left shows a closeup of white mineral salts (efflorescence is discussed at Efflorescence & white or brown deposits) left on the concrete foundation wall below a leaky cold pour joint.

So routing downspouts well away from the building and terminating the downspout at a location where water will continue to run away from the building rather than back towards it would probably have prevented most or all of this basement water entry problem as well as the mold contamination that it led to.

Concrete Foundation Leak Points - at Form Ties

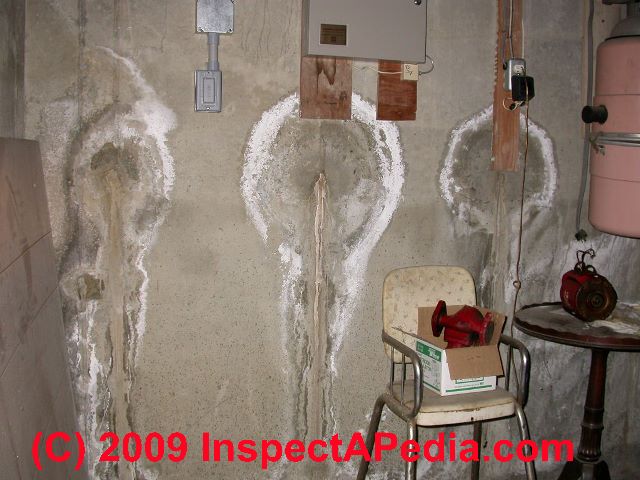

Concrete form tie leak (C) Daniel Friedman

Form ties are usually steel wires or rods that secure the front and back foundation wall forms in place during a concrete foundation wall pour. After the wall has cured the ties are cut or broken off.

On (usually rare) occasions we find water leaks through the poured foundation wall at the form ties, as shown by the stains in this photo.

The significant volume of leakage along this basement wall suggests that there was an outdoor problem with surface runoff or mis-handling of roof runoff around the building.

Concrete Foundation Leak Points - at Wall Cracks

Leak at concrete wall crack (C) Daniel Friedman
Our photo (left) shows stains at a poured concrete foundation wall crack that had been covered by insulation, drywall, and paneling in a finished basement.

Episodic water leaks through this crack sent water into the wall cavity and below a raised floor in the basement where it was un-noticed until a severe rainfall and leak quantity brought enough water into the basement for water to appear above the finished floor level.

The exact location of the leak was apparent once we removed the basement wall and floor coverings - a step that was necessitated by a mold-contamination problem that originated in basement water leakage.

Concrete Foundation Leak Points - at Floor Slab Shrinkage Gaps

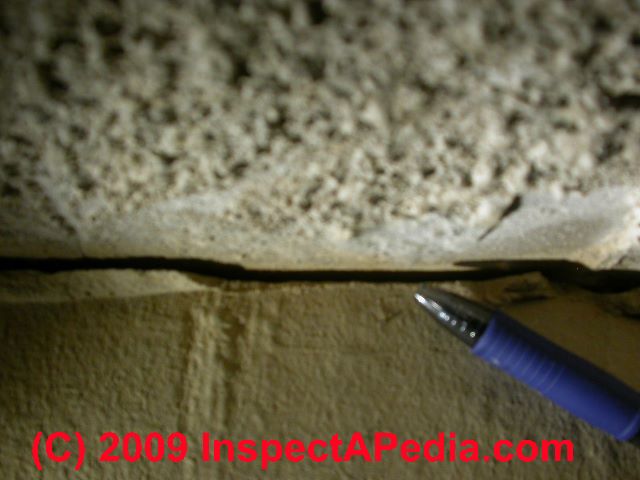

Leak at floor slab to wall opening (C) Daniel Friedman

Our photo (left) shows a normal concrete floor slab shrinkage gap where the floor (under our pen) abuts a poured concrete foundation wall.

The brown material on the floor is mud which we suspect rose up from below the slab when surface runoff or ground water saturated the soils around and under the floor slab.
