Insulation air leak troubleshooting: this article describes the types of air leaks that occur in building insulation systems and explains how to track down and fix these energy loss problems.
This article series discusses air bypass leaks, thermal convection loops, voids & leaks in building insulation, including fiberglass, chopped fiberglass, icynene foam, and blown-in cellulose.

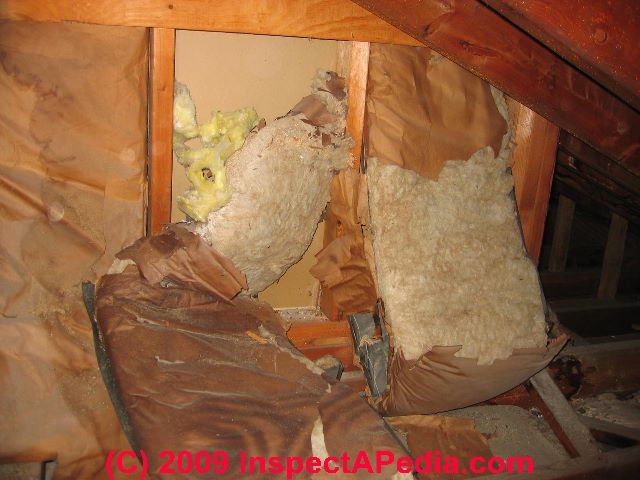

Our page top photo shows a void in wall insulation, viewed from a seldom-visited attic. An insulation void such as this one should show up easily during an infrared building scan using thermal imaging. But unless the homeowner thinks of this step, the uninsulated wall may pump heat out of the building for years. Readers should also see AIR BYPASS LEAKS as well as HEAT LOSS in BUILDINGS. Contact us to suggest text changes and additions and, if you wish, to receive online listing and credit for that contribution.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Leaky Fiberglass Insulation?
In our Solar Age Magazine article on building heat loss, AIR LEAK DETECTION TOOLS, according to Gadsby from PEP, fiberglass insulation will not block convective loop escape routes for a building's heat: Gadsby's view is that fiberglass does not stop airflow in wall cavities.
That article says that infrared scanners tell the same story, showing heat loss around and even through fiberglass insulation--even the massive batts in a superinsulated ceiling. For that reason, the PEP partners prefer blown insulation over fiberglass batts. With loose-fill fiberglass insulation, they believe, the airflow paths are circuitous enough to stop short any airflow.
Our photo (above left) shows the black stains deposited by dust particles (this is not mold) when building air leaks past fiberglass insulation, seen from the attic side of a 1960's contemporary framed home with lots of air leaks.
In our photo and in many air leak problems at fiberglass-batt insulated cavities, the problem is one of installation and construction leak problems, not a defect in the fiberglass insulating batt itself.
OPINION-DJF: we pose that loose-fill insulation may do a more consistent job of closing air or thermal bypass leaks that are sometimes left around fiberglass batts - that's the real problem.
Looking at an IR scan that shows heat loss "through" an insulating batt, if combined with visual inspection, using invasive cuts if necessary, will, we predict, show air bypass leaks, other insulation installation errors, or insulation wet from building leaks. Otherwise we should not see large solid areas of no-leaks on IR scans of walls and ceilings that have tightly-installed batts, no voids, and no penetrations. |
The claim of fiberglass batt air leakage, supported vigorously by the foam insulation industry, is equally vigorously counter-argued by the fiberglass insulation companies who point out that properly installed the air flow rate through the fiberglass itself in fiberglass insulated cavities is very low.
 OPINION-DJF: air leaks around insulating batts that are not snugly fit between building framing members or where openings have been cut for ceiling lights, electrical boxes, plumbing chases, and voids left from workers who move or remove insulation appear from visual inspection to be the prime culprit, rather than air movement through the fiberglass insulating batt itself.
Our attic photo (left) shows both air bypass leaks (black stains on the fiberglass batt at center-left of the photo) and an insulation void (above the bath vent fan).
Where air leaks occur around fiberglass batts, look closely: you will probably see that the leaks are at the perimeter of the insulation and at locations where openings in framing, drywall, or insulation were cut to admit recessed ceiling lights, electrical or plumbing penetrations, or similar openings.
If airflow were simply through the fiberglass batt in any uniform way, the dust stains on and inside the insulation would also be expected to be uniform. They are not.
See Air Bypass Leaks, Thermal Tracking for details.
Leaky Icynene Foam Insulation?
We full agree with PEP, however, that predicting air leaks through fiberglass-insulated cavities is very difficult, since leakage depends on the quality of installation workmanship. We have indeed occasionally found workmanship errors that resulted in unanticipated air leaks though foam-sprayed insulation as well, particularly when the insulation (of either type) was installed in a hard-to-access space such as a crawl area.

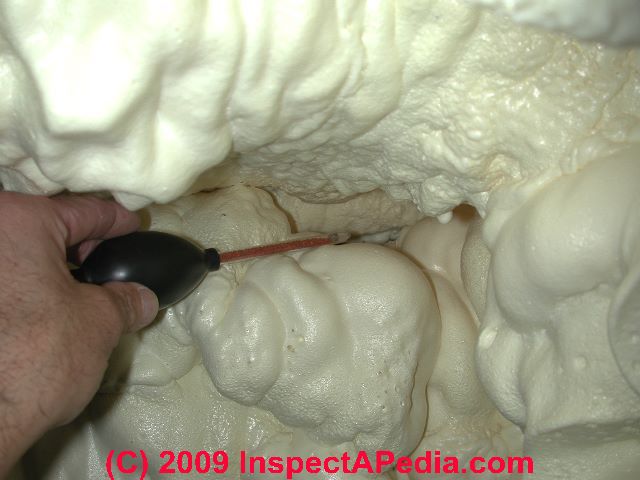

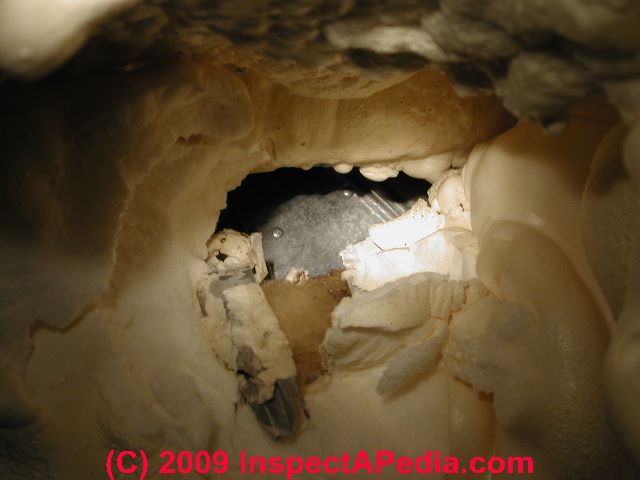

 Our pair of photos above were taken in a tight, hard to enter crawl area where the icynene spray foam insulation was not so carefully applied.
Our smoke test found air movement from the damp, occasionally moldy crawl area into an opening in the foam insulating blanket. We pulled a bit of this already-leaky material off to see what was behind and found (photo above right) a leaky metal return air duct.
When the air handler was running it was drawing cold, sometimes nasty, crawl space air into the duct system through this leak.
Take a look at our foam retrofit photo at left. We noticed two impressive details: a flood of foam entered this attic space over the un-heated garage (the insulator just pumped away, thinking he was foaming into an enclosed wall cavity).
But at the photo's upper right we see a shiny metal foil surface (a pre-existing radiant barrier) but no insulation whatsoever.
See Icynene Foam Spray Insulation for more information on icynene foam insulation.
|
Leaky Cellulose Building Insulation?

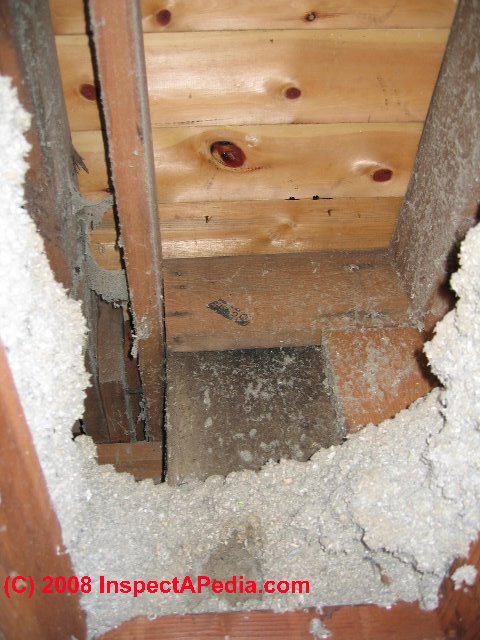

 Our photo (left) shows a very large void in the building attic's blanket of blown-in cellulose insulation where no provision was made to insulate around a chimney chase.
Blown-in building insulation is often packed tightly between building framing members and other surfaces, and is likely to pose fewer air bypass leaks than sloppily-installed fiberglass batts (discussed above).
But precisely because blown-in cellulose is often selected for an insulation retrofit in older homes that may have had little or even no insulation previously, there is the risk that the insulator fails to notice and handle trouble spots such as the one shown in our photo.
Chopped-fiberglass blown-in insulation, and any pumped or blown insulating product that is sent into building cavities where there is no direct view all face the risk of unexpected voids.
For example in post-and-beam structures and converted barns, experienced retrofit insulation contractors have learned to watch out for the wall framing blockage formed by diagonal bracing. The contractor will drill extra openings to be sure that no insulation voids are left in the building walls.
See Cellulose loose fill insulation for more information. |
How to Find Points of Heat Loss & Building Air Leaks
The article HEAT LOSS DETECTION TOOLS explains how to survey a building for air and heat loss or gain points and how to correct them. Just below are links to images of pages from "House Doctors with Better Medicine, Princeton Energy Partners use the latest diagnostic tools to comb a house for the major causes of heat loss. Their findings are often astonishing. Their strong prescriptions bring results", Steven Bliss, rom Solar Age Magazine.
In this article the author, Steven Bliss, accompanies a building weatherization and energy-savings company through a detailed building inspection for heat loss points, convective loops, and air leaks. The author accompanies Princeton Energy Partners as they use thermal imaging, smoke guns, and visual inspection to pinpoint building air leaks, heat loss points, air infiltration and air exfiltration on a building. The importance of setting priorities for sealing these points of energy wasted is emphasized and discussed, and sketches as well as photographs of common points of building heat loss, or unwanted heat gain, and air leaks are provided.
The text above significantly expands, and also paraphrases, quotes-from, and comments an original article, "House Doctors with Better Medicine", Steven Bliss, (see links just above) from Solar Age Magazine.
