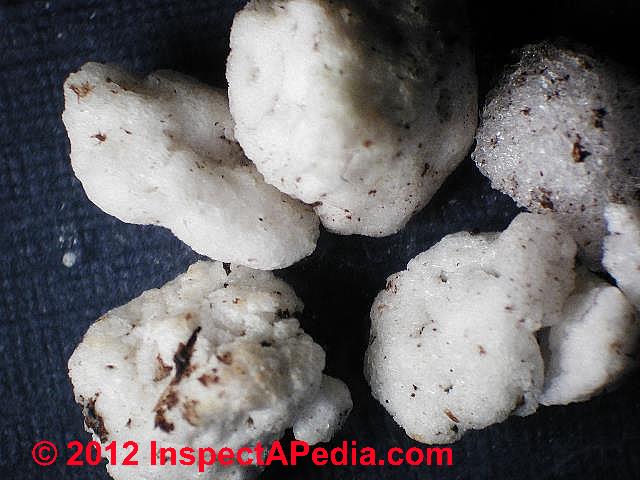

Photo guide to identification of perlite insulation materials
Properties of different perlite insulation products
Description of Non-asbestos perlite materials sometimes mistaken for asbestos in buildings
Types & photographs of building insulation that does not normally contain asbestos
Questions & answers about perlite insulating materials
Perlite insulation: This article illustrates and describes perlite insulation materials.
InspectAPedia offers impartial, unbiased advice without conflicts of interest.
We will block advertisements which we discover or readers inform us are associated with bad business practices,
false-advertising, or junk science. Our contact info is at
InspectAPedia.com/Contact.htm.
This website assists building buyers, owners or inspectors who need to identify non-asbestos-containing insulation materials as well as asbestos-containing materials (or probable-asbestos) in buildings by simple
visual inspection. Perlite photographs in this article are courtesy of Redco and their website about perlite insulation.
Perlite building Insulation is a non-asbestos-containing material which has an R-value of about 2.7 per inch and would not be expected to contain asbestos.
Perlite is a type of rock (a form of volcanic glass) which is mined, crushed, heated and thus expanded (4 to 20 x original volume) to form an inorganic insulating material. (Also see VERMICULITE INSULATION.)

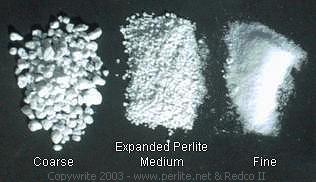

Water trapped in the rock causes it to expand. Perlite insulating material is produced in granular forms from coarse to a fine powder which weighs about two pounds per cubic foot. Photo courtesy of Redco .
Perlite is used for the insulation of low-temperature application equipment such as cryogenic (-100 degC or -150 degF) and super-cold storage tanks and test chambers. Perlite insulation is also used in food processing applications (up to 4 degC or 40 degF - about the minimum food refrigeration temperature).
Perlite building insulation is produced in a granular or even a powder form, but by some manufacturers it is formed into an insulating board (by combining perlite with gypsum, for example for use under building roofs).

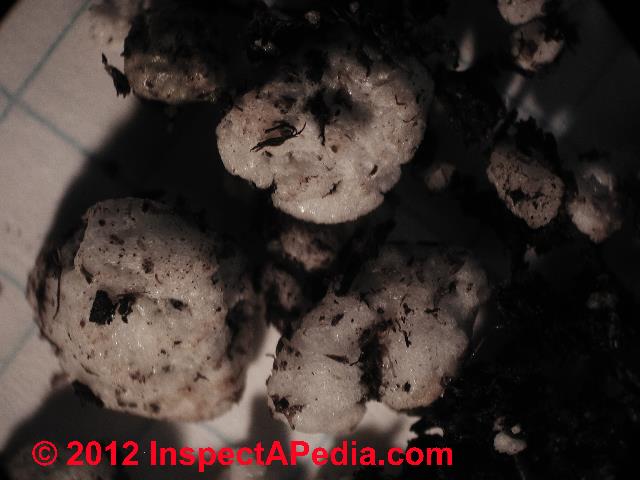

Perlite insulation materials are resistant to mold, rot, and rodents. Perlite also resists moisture uptake, making it useful for use in areas exposed to water or dampness such as in floor leveling compounds and under-floor insulation where it may also be used for noise control (as a sound-deadening material, possibly between building floors). Perlite as an under-floor insulation and as an acoustical insulator is described by the Schundler Company.
Perlite insulation density and weight
Perlite insulating products are produced in a range of densities (weight per cubic foot) from two pounds per cubic foot to fifteen pounds per foot.
Perlite has a typical density of 3-4 pounds per cubic foot in building insulation products, and is described by various industry sources as inexpensive and dimensionally stable (doesn't shrink) and non-combustible.
Perlite as a green building material
Some writers name perlite insulation products as a "green building material", probably because it is a natural, mined resource (not considering the energy costs of mining and production), and more, because perlite is used as a concrete additive to make insulating and light-weight concrete, or as an insulating material to fill the cores of masonry block constructed walls. Perlite insulation may also be used to insulate masonry wall cavities (between brick courses in a structural brick wall) or in a building interior to fill the cavity between a masonry exterior wall and the interior finish-wall furring strips and drywall.
More information about perlite insulation is available from Redco II, a perlite insulation manufacturer in North Hollywood, an industry source for this insulating material. Redco II sells perlite for horticultural purposes (those white particles you see in some brands of potting soil), for industrial and construction applications such as an additive in the formation of concrete, and for general industrial uses including as a filtering medium.
