This article explains How to Correct Improper or Inadequate Attic or Under-Roof Ventilation at skylights, This article on the design of proper venting around roof skylights is part of our series of articles about ATTIC CONDENSATION CAUSE & CURE.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Roof Ventilation Details at Skylights to Provide an Air Path - Eaves to Ridge
|
This article series describes inspection methods and clues to detect roof venting deficiencies, insulation defects, and attic condensation problems
in buildings. It describes proper roof ventilation placement, amounts, and other details.
These recommendations are based on a survey of building science literature combined with 30 years of
building inspections, on the observation of the locations of moisture, mold, ice dams, condensation stains, and other clues in buildings,
and on the correlation of these clues with the roof venting conditions at those properties.
We have measured very large changes in airflow, temperature,
and moisture before and after installing roof venting.
See CATHEDRAL CEILING VENTILATION, and also see VENTILATION in BUILDINGS and INSULATION LOCATION - WHERE TO PUT IT. And see COOLING LOAD REDUCTION by ROOF VENTS.
As described in Best Practices Guide to Residential Construction:
Localized hot spots such as skylights can
also lead to ice dams below, due to blocked ventilation as
well as melt water from skylight heat loss.

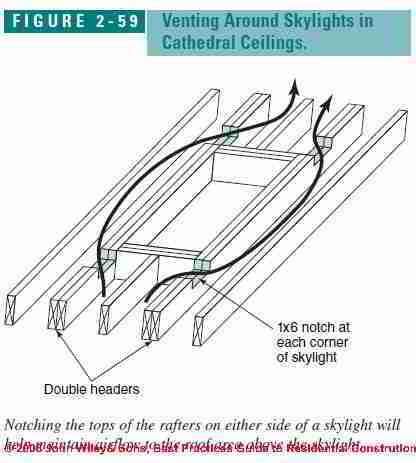

Notching the
rafters on either side of the skylight will help maintain airflow
above the skylight (Figure 2-59 at left).
If icing on your skylight window interior surface in winter is still a problem, add an interior storm window
to reduce heat loss through the glass in cold weather.
|
As a backup to prevent leaks at skylights, during skylight installation and even though modern skylights are usually provided with a factory-built flashing and counterflashing, it is always a good idea to seal the skylight
curb and surrounding roof area with a bituminous membrane
(see Figure 2-5 at left).
Also see SKYLIGHT LEAK DIAGNOSIS & REPAIR and see Skylight Glass Breakage.
|
Also see Ice Dam Protection for Skylignts for cases where under-roof venting is not provided around a skylight.
Cathedral Ceiling Ventilation Alongside of Skylights
Cathedral ceilings require the same continuous air barriers,
and balanced soffit and ridge vents, as attics.
Both air
sealing and ventilation are more critical, however, since
any trapped moisture in the roof cavity will remain longer
and potentially cause greater damage than in an open attic.
Also, since there is little or no communication from bay to
bay, an effective ventilation system must reach every bay
(Figure 2-57 at left).
Details about cathedral ceiling ventilation are at CATHEDRAL CEILING VENTILATION. Also see CATHEDRAL CEILING INSULATION. |
-- Adapted with permission from Best Practices Guide to Residential Construction.
