Stair Railing or Handrail Specifications & Defects

Here we discuss and illustrate the requirements for safe, useable hand railings on steps and stairs, both interior and exterior stairways. For more details about balusters (vertical spindles in railing construction) see  Balusters & Railing Enclosures for full details of this topic and also see Guards (railings on landings and open hallways, porches, screened porches, balconies that are more than 30" above floors or grade).

Railings in stair codes and specifications refer to the safety barrier along steps or stairs. Also see Guards for details about safety railings on landings and open hallways, porches, screened porches, balconies - horizontal walking surfaces.

Stair Handrail Dimensions & Shape

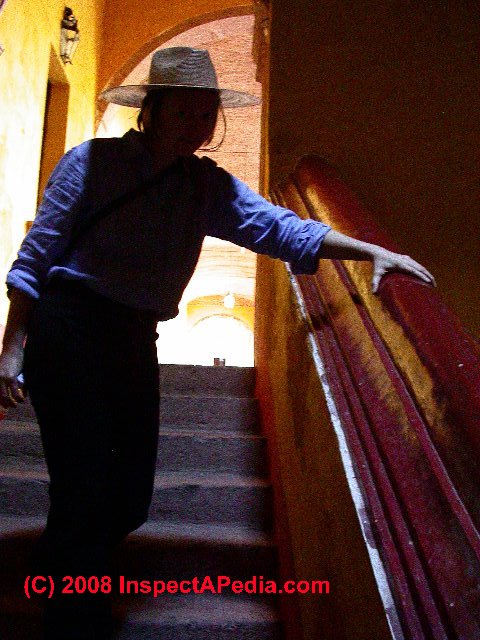

Above we show photographs of two more non-graspable handrails that are unsafe: at left at Carnagie Hall in New York City, and at right demonstrated by Asta S. visitnig el Nigromante Art and Cultural Center in San Miguel de Allende, Mexico

Flat Handrails made out of 2x Lumber are Often Not Grasp-able

Other Examples of Stair & Landing Railing Defects

A Comparison of Building Codes Specifying Hand Railing Requirements

Sample excerpts of sources which a building code compliance inspector would be expected to cite in support of requiring a properly-designed, properly-secured guard rail include but are not limited to the citations below.

International Building Code 2000 (BOCA, ICBO, SBCCI)

1003.3.3.11.3 Handrail grasp ability. Handrails with a circular cross section shall have an outside diameter of at least 1.25 inches (32 mm) and not greater than 2 inches (51 mm) or shall provide equivalent grasp ability. If the handrail is not circular, it shall have a perimeter dimension of at least 4 inches (102 mm) and not greater than 6.25 inches (159 mm) with a maximum cross-section dimension of 2.25 inches (57 mm). Edges shall have a minimum radius of 0.125 inch (3.2 mm).

100333.11.4 Continuity. Handrail-gripping surfaces shall be continuous, without interruption by newel posts or other obstructions.

1607.7 Loads on Handrails, guards, grab bars and vehicle barriers

1607.7.1.1 Concentrated Load. Handrail assemblies and guards shall be able to resist a single concentrated load of 200 pounds (0.89kN), applied in any direction at any point along the top, and have attachment devices and supporting structure to transfer this loading to appropriate structural elements of the building.

1607.7.1.2 Components. Intermediate rails (all those except the handrail), balusters and panel fillers shall be designed to withstand a horizontally applied normal load of 50 pounds (0.22 kN) on an area not to exceed one square foot (305mm2) including openings and space between rails.

BOCA National Property Maintenance Code 1993:

PM-305.5 Stairs and railings: all interior stairs and railings shall be maintained in sound condition and good repair.

Commentary: Handrails, treads and risers must be structurally sound, firmly attached to the structure, and properly maintained to perform their intended function safely. During an inspection the code official should inspect all stringers, risers, treads, and handrails.

PM-305.6 Handrails and guards: Every handrail and guard shall be firmly fastened and capable of supporting normally imposed loads and shall be maintained in good condition.

Commentary: This section provides for the safety and maintenance of handrails and guards. See Section PM-702.9 for additional requirements.

PM-702.9 Stairways, handrails and guards: Every exterior and interior flight of stairs having more than four risers, and every open portion of a stair, landing or balcony which is more than 30 inches (762mm) high, nor more than 42 inches (1067mm) high, measured vertically above the nosing of the tread or above the finished floor of the landing or walking surfaces. Guards shall be not less than 30 inches (762mm) high above the floor of the landing or balcony.

Commentary: Handrails are required on all stairs more than four risers in height. Handrails cannot be less than 30 inches nor more than 42 inches above the nosing of the treads (see Figure PM-702.9).

Guards are required on the open side of stairs and on landings and balconies which are more than 30 inches above the floor or grade below. The guard must be at least 30 inches above the floor of the landing or balcony. Guards are to contain intermediate rails, balusters or other construction to reduce the chance of an adult or child from falling through the guard. If the guard is missing some intermediate rails or balustrades, it is recommended that the guard be repaired to its original condition if it will provide protection equivalent to the protection it provided when originally constructed.
