This article describes & diagnoses the cause of various interior wall and ceiling stains and explains how to recognize thermal tracking, (also called ghosting or ghosting stains or thermal bridging stains),
building air leaks, and building insulation defects. Often these stains are mistaken for toxic indoor mold.
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers nor with topics or services discussed at this website.
What are Thermal Tracking, Ghosting, Sooting, Thermophoresis, Electrostatic Deposition, Plating-Out & How do These Forces Explain Wall & Ceiling Stains in buildings?
Thermal tracking or "ghosting" is the deposition of house dust and debris onto walls and ceilings in patterns caused by a combination of air movement, interior moisture, and in some cases, a source of high levels of particles.
Other factors that may be at play include electrostatic attraction or thermophoresis, discussed here. Thermal tracking, sooting, bridging, and ghosting are synonyms for the same effect, one which often is exacerbated by defects in the building insulation and ventilation system.
We distinguish between classic "thermal tracking" stains for which there must be a variation in temperature and therefore moisture level across building surfaces, and more uniform stains across building surfaces regardless of variations in surface temperature or moisture.
While most people don't use the terms thermal tracking or ghosting with great precision, it is useful to understand how particular stain patterns are laid down in a building. Understanding the location, shape, size, and intensity of a stain on a building wall or ceiling can help us understand how a building works, its energy efficiency, and the quality of its indoor air.
However beware that on occasion the leaks and moisture in a building that contribute to thermal tracking may have created a mold problem somewhere else than in the black thermal tracking or soot marks you see on walls and ceilings. MOLD EXPERT, WHEN TO HIRE provides assistance in deciding if you should hire a mold investigator.
Because some clients have on occasion sent
samples to our mold test lab that really should not have been collected, much
less looked-at, we recommend that you review the photographs in these articles to see if the black stains you see are something other than mold. When investigating a building for a mold problem, you can save mold test costs by learning
how to recognize Stuff that is Not Mold or is only Harmless Mold but may be mistaken for more serious contamination
- save your money.
A Photo-Illustrated Diagnostic Guide to Thermal Tracking & Other Wall or Ceiling Stains: Moisture & Air Movement in buildings
What is Thermal Tracking & Why does Thermal Tracking or Thermal Staining Occur Indoors?
What is thermal tracking or ghosting and what causes it?
Thermal tracking or "soot tracking" such as shown in the photo at left and also in the photograph at the top of this page may be found wherever moisture condenses on cool building surfaces.
Warm moisture-laden air touches the cooler surface of a building wall or ceiling, giving up some of its moisture to the surface as condensation. (See DEW POINT TABLE - CONDENSATION POINT GUIDE for details.) That makes some areas on an indoor surface slightly more damp than others.
As air moves by natural convection through the building, it typically flows up walls and across ceilings.
Airborne debris in the air, particularly soot such as that left by airborne house dust, by a heating system that needs service or by burning
candles (scented candles may be more of an IAQ issue), or by cigarette smoking, adheres more to the damp surfaces than to others, leaving black marks or "tracks."
Black thermal tracking stains may appear on interior walls and ceilings, not just on cool exterior building walls. It is also possible that an interior partition wall may be conducting heat out of the building through convective loop heat losses as well. (See Convective Loops & Thermal Bypass Leaks.)
Electrostatic deposition, plating out and thermophoresis of ultra-fine airborne particulate debris also explains black stains, sooting, or ghosting, as has been pointed out by Roger Hankey and Joe Lstiburek and others.
Electrostatic deposition refers to the sticking of particles to a surface due to a difference in electrical charge between the particle and the surface. We observe heavy electrostatic deposition of indoor dust and debris on building walls, ceilings, and other surfaces (most visibly on walls and ceilings) in homes where an ion generator is being used in the belief that it is "purifying" indoor air.
A friend in Rhinebeck, NY cranked up her indoor air ionizer to reduce the level of dog dust in her home - she boards as many as 15 dogs at a time in her home. Indeed over just a few months we observed empirically that there was an increase in the rate of sooting on indoor painted walls and ceilings. Particles were probably sticking to other surfaces as well, but they were less visible.
Watch out: excessive use of indoor air ionizers, especially improperly adjusted, can produce harmful levels of ozone indoors. See OZONE for MOLD OR ODORS.
Brownian motion, or pedesis, describes the random movement of particles, in this case airborne particles, perhaps impelled by energy from heat, light, or ambient air current, possibly plating out by impact collision with building surfaces.
Thermophoresis is a term used by some IH professionals to explain the combined action of particle impact, moisture, and adhesion to surfaces, and is explained below at Thermophoresis as a Factor in ... Indoor Stains
But unlike common thermal tracking, particles that are deposited on building surfaces by electrostatic deposition, brownian motion, or thermophoresis may be expected to occur without the presence of uneven surface moisture, temperature, and thus classic thermal tracking features.
are likely to be more uniform in the areas they cover than particles deposited by thermal tracking
will not specifically map building wall studs, nails, or other cooler or more moist building surfaces
Filtration and Thermal Tracking or Ghosting on Carpeting and Possibly other Fabrics such as wall curtains can indeed explain dark stains on carpeting under doors and at room perimeters where there may be air leaks.
Lstiburek offers a compelling explanation that airborne dust and debris (of all particle sizes) is filtered out by the carpeting or other fabric surface over which air may be passing. So a difference in air pressure between rooms (someone is running an exhaust fan for example), or air leaks at the perimeter of a floor (construction is leaky and cold air is rising from a crawl area or from outdoors into the occupied space of an upper floor,for example) indeed can deposit dark black stains on carpeting.
What Kinds of Particles Make up the Black Stains Found in Thermal Tracking or Electrostatic Deposition
In all three of the mechanisms that cause airborne particles to deposit to form dark stains or "sooting" or "ghosting" on interior building surfaces, the particles that can be expected to make up the stain include
Soot and combustion products produced most often by cigarette smoking (brown wall stains), candles, especially scented candles or incense, soot from poorly-maintained oil fired heating appliances, soot from improperly-operating (and dangerous) gas-fired heating appliances, smoke particles from fireplaces or other indoor combustion activities (burning food on the stove?). Lstiburek opines that pyrolosis of lint in clothes dryers and similar activities may also produce ultra-fine particles plating out on walls as soot or ash.
Skin cells from building occupants (humans, other animals) may also be present, are a common ingredient in house dust
Fabric fibers, in very small fragments may be present as these too are a common ingredient in house dust
What particles are unlikely to make up the black stains associated with thermal tracking or ghosting?
In our forensic lab we have examined surface particles from literally thousands of building samples, including soot stains from dark or dirty surfaces, leading to the opinion about thermal tracking and plating particle makeup. Other indoor particles that may be common in buildings and are cited by some other writers including some building scientists (Lstiburek) are less likely to be found in the black or dark indoor surface stains we describe here, for the reasons we list below. Some of these less-likely sometimes-airborne particles that have been posed as candidates for participating in the thermal tracking or ghosting festival include:
Concrete dust: too heavy, does not remain airborne over long periods, typically gray or white
"Dirt" needs to be defined. Generic "dirt" formed of soil particles or road dust and debris are found at low levels in indoor air samples and are normally too heavy to remain airborne or appear in thermal tracking on walls and ceilings. Dirt will, of course, be present at high levels in carpeting.
Drywall (gypsum board) or plaster dust: these particles are typically white or gray and are easily identified in the microscope
"Gas smoke" - this is an undefined material; burning LP or natural gas produces carbon dioxide and water vapor, both colorless.
Watch out: If LP or natural gas fuel are producing visible smoke (or black soot) a very dangerous condition exists risking fatal carbon monoxide poisoning - shut off the equipment and consult an expert immediately; if smoke alarms or carbon monoxide alarms are sounding, leave the building.
"Insulation smoke" - is also an undefined term. Fiberglass and similar building insulation particles are rarely found on walls and ceilings in dark stained areas, though insulation particles are regularly found in indoor air and on horizontal surfaces in settled dust. Insulation fragments are too large to be part of the thermal tracking deposition process and are not black.
Lint, properly referred to as fabric fibers, is rarely found in thermal tracking stains (too large, heavy) but is very common in indoor horizontal surface dust. Some theorists suggest that some fabric fibers are burned by pyrolosis in clothes dryers. This view can be a bit misleading: pyrolosis is not quite combustion, in that it does not consume a material so much as change it chemically. Pyrolosis is a chemical process that through decomposition lowers the combustion point of a material by decomposing it.
Mold: mold spores can include particles down around the 1micron level (though most are larger). While we find mold growth on indoor surfaces where there have been leaks or other mold-conducive conditions, we do not normally find high levels of mold spores in surface samples from vertical surfaces (walls) or overhead ceilings in buildings that are not themselves already mold contaminated. Details are at MOLD APPEARANCE - WHAT MOLD LOOKS LIKE
Brownian motion? As building scientist Joe Lstiburek points out, brownian motion also can cause particle adhesion to indoor building surfaces by the simple mechanism of mechanical impact of the particle with a building surface. But particles that remain airborne in Brownian motion are ultra small and thus less likely to include most of the particles listed above.
Why does Thermal Tracking or Ghosting Often Appear in Streaks or Lines?
Thermal tracking may mark the location of building framing members: In a conventionally-framed
wood structure, wall and ceiling framing is typically spaced on 16" or 24" centers, and thermal tracking will tend to cause
dust or soot to adhere to the interior surfaces at these locations. You can see this phenomenon in our ceiling stain photo (left).
But thermal tracking or bridging stains may occur on different intervals depending on how the
building was constructed, where air is moving, where air leaks are occurring, and where ever building surfaces are cooler or more moist. This interior black wall stain pattern is particularly easy to identify on walls - see Wall Thermal Tracking Stains.
The reason thermal tracking tends to mark the location of building framing members is because the interior wall or ceiling surface will be
cooler (during the heating season) where framing members (joists or studs) are located.
The insulating value of wood is pretty low (about R1 per inch)
compared with fiberglass insulation or other insulating materials. These points of increased building heat loss, caused by the presence of solid ceiling joists or wall studs separating building insulation are also called points of thermal bridging - points where there is more building heat loss than through the building insulation itself.
The sections of an interior wall or ceiling which are touching wood framing (inside the
ceiling or wall cavity where a ceiling joist or wall stud was placed) will conduct heat to the outdoors faster than the "in between" sections of wall where insulation
has been placed. In sum, the wall or ceiling interior surface will be cooler where the framing is located than will be the spaces which are not touched by framing and which, perhaps, are insulated.
In sum, if you see black streaks up the building wall in a regular 16" or 24" pattern, particularly on cooler exterior walls but potentially anywhere, it may be thermal tracking.
Interior stains help diagnose building conditions: Since thermal tracking, or soot marking, or "thermal bridging" as a few folks call it usually tells us something about a lack of building insulation or about air leaks in buildings, we can use these marks or stains to learn important facts about a building.
Air bypass leak identification: Thermal tracking may also mark the location of air bypass leaks - often a more significant source of building heat loss than thermal bridging at solid joists or studs. If a building top floor ceiling or exterior wall has many air leaks, even though the building is supposed to be well-insulated, the total of all of these air leaks may in fact add up to the same heat loss as leaving one or more windows or doors open in freezing weather.
Air Bypass Leaks Marks on Insulation (such as our photograph at left) shows how to identify air bypass leaks by the dust marks left on building insulation. These black stains are from building dust deposition; in this case they are not mold.
SAFETY WARNING about Thermal Tracking or Ghosting Black Stains Indoors
Ghosting or thermal tracking stains are usually house-dust or soot deposition on walls, ceilings, and perhaps floors. But if that dust or soot are coming from an abnormal source such as gas-fired heating equipment (or in some cases oil fired heating equipment) the equipment could be unsafe: the same conditions that produce indoor soot from an oil or gas fired appliance can be producing dangerous, potentially fatal carbon monoxide gas.
Oil fired heating equipment does not produce carbon monoxide gas as easily as an improperly functioning gas fired system, and conventional oil fired equipment often runs (normally) producing a little internal soot or "smoke".

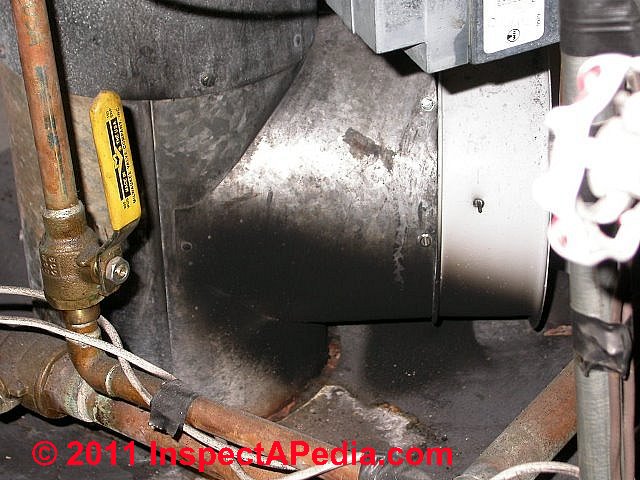

But if your oil heating equipment is producing visible soot indoors or if it's making strange and horrible noises, it's probably not working properly, and it too could be unsafe, risking a "puffback" explosion that can blow soot throughout a building and in severe cases can risk a fire.
A gas fired heater normally burns quite clean, but if there is a combustion air problem or a flue gas venting problem the gas fired equipment can very quickly shift to producing soot and / or dangerous carbon monoxide gas (CO).
If you see soot coming out of a gas fired heater you should turn it off and call an expert service technician right away.
Make sure that your home has working carbon monoxide detectors and smoke detectors installed in the proper locations before moving on to less urgent concerns with indoor stains or thermal tracking.
Air Leaks or Insulation as Causes of Thermal Tracking or Indoor Ghosting Marks
Insulation leaks & thermal bypass defects: We use thermal tracking marks on an area where insulation is visible to identify and correct air bypass leaks, thus saving energy or reducing home heating or air conditioning costs. Details about air leaks in buildings are discussed at AIR BYPASS LEAKS. Building air leak testing is described at BLOWER DOORS & AIR INFILTRATION and at AIR LEAK DETECTION TOOLS.
Insulation adequacy: Clues that suggest Insulation adequacy can be picked up easily if the observer will use thermal tracking marks on larger areas of interior walls or ceilings to tell us areas of the building that are not insulated, or are not well insulated - areas where we should consider adding or improving insulation to save energy by reducing building heating or cooling costs. (See INSULATION INSPECTION & IMPROVEMENT for more information.)
Usually soot marks, thermal bridging, or thermal tracking stains appear, if at all, in the building interior locations listed just below discussed
in the remaining sections of this article.
Humidity as a Factor in the Development of Indoor Stains on Building Surfaces
High indoor humidity: If indoor humidity is excessive (say regularly over 50 or 55% RH) we may be encouraging both staining from soot and house-dust deposition as well as mold growth in a building. Also we may be inviting excessive levels of dust mite activity which in turn increases the level of allergens in the building.
That is because higher humidity indoors provides more moisture to condense on cooler building surfaces whenever the temperature of a building surface reaches the dew point. Stated another way, if a building has low indoor humidity, the amount of moisture available to condense on cool surfaces is less, so the rate of thermal tracking or soot deposition on those surfaces is less - at least due to this factor.
Thermophoresis as a Factor in the Development of Indoor Stains on Building Surfaces
When condensation occurs on a building surface at any level that makes that area more damp (and thus sticker) than its neighbors, the temperature and humidity-related particle deposition described above is almost certainly occurring in any building, and will be more noticeable in a building with high levels of airborne particulates and dust.
But as IAQ consultant Steven Temes, an industrial hygienist and microbial consultant points out,
ultrafine carbonaceous particles (such as candle soot) also accumulate on the colder surfaces due to a little known physical phenomenon called thermophoresis. This has to do with the driving force of the particle motion being its kinetic energy (when not overwhelmed by air currents) and the movement of the particle toward the cold surface, where it "plates out", adhering to the surface.
If the particle has an electrical charge (such as in a home where ozone generators or negative ion generators are in use) this plating-out process will be significantly increased. If you are using an ozone generator as an "air purifier" indoors, be sure to review
OZONE AIR PURIFIER WARNINGS and also
OZONE HAZARDS.
Indoor Air Particle Level as a Factor in the Development of Indoor Stains on Building Surfaces
Even if the building humidity levels are low, high levels of indoor dust and debris can still lead to indoor stains and thermal tracking marks. Significant sources of soot, such as improperly operating heating equipment, use of candles, fireplaces, woodstoves (if they release smoke into the building interior), some pets such as large dogs, or simply generally poor housekeeping can all increase the indoor air particle level and lead to soot and stain marks.
Usually soot marks, thermal bridging, or thermal tracking stains appear, if at all, in the building interior locations discussed
in the remaining sections of this article.
Air Movement Patterns as Factors in the Development of Indoor Stains on Building Surfaces
Specific and non-uniform moment of building air can lead to uneven soot or house dust deposition on building surfaces, and thus will cause stains and dark areas that are non-uniform . Surfaces across which more building air moves are exposed to a greater volume of air and thus a greater volume of dust particles.
Multiple Complex Factors Determine Where Stains Appear in buildings
Conflicting variables are at work in the deposition of soot and debris on building surfaces. Here are some examples:
More dust where more air moves: Building surfaces exposed to more air movement are exposed to more airborne dust and debris - so may become stained.
This phenomenon is most apparent where house dust and debris are deposited on and around air return registers in buildings. Where the air filtration system is not effective or the duct system is dirty, dust and debris are also deposited on and around warm or cool air supply registers. (This dust is most often harmless house dust comprised mostly of skin cells and fabric fibers.)
Less dust where more air moves: Building surfaces exposed to more air movement might, however, also be kept warmer and more dry due to that same movement, so the same areas may become less stained than their neighbors.
This phenomenon is most apparent in a building closet, or on a wall behind a picture or behind drapes, because less air moves over those surfaces, leaving the surface cooler, exposing the surface to higher moisture condensation, and thus causing more house dust (or soot) deposition than in other areas.
Visual Inspection by an Expert can Usually Sort Out the Causes of Building Stains
Conceptually, the deposition of dust, soot, or debris on building surfaces out of moving air in buildings (as opposed to caused by animals or people touching surfaces) is a complex linear equation that is weighing different and conflicting factors.
Luckily, the visual inspection of the stained areas, combined with inspection of the building for moisture problems, insulation and ventilation problems, or for soot and debris sources, can normally identify the dominant effect and can with confidence conclude the cause and thus suggest the cure for these stains.
In the following sections of this article we describe the ways that stains appear in buildings, what causes these stains, what they mean for building condition and safety, and how they can be cleaned, remedied, and prevented in the future.
Questions & Answers regarding this article
Questions & answers about indoor stains and thermal tracking or ghosting on walls and ceilings
Critique, contributions wanted: Contact Us to suggest corrections or additions to articles at this website, and if you wish, to receive online listing and credit as a contributor. Particular thanks are due to the many experts and also consumers who read and critique technical articles at InspectAPedia.com.
Additional technical contributors & reference sources for this article are listed below.
Use links just below or at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.
Thanks to Alan Carson, Carson Dunlop, Associates, Toronto, for technical critique and content suggestions regarding thermal tracking.
Steven Temes, is an industrial hygienist and certified microbial consultant specializing in is investigating the causes of building-related health effects. Mr. Temes can be reached at AirWays Environmental Services, P.O Box 8576, Red Bank, NJ 07701, 732-842-5564 (office) or 732-673-9914 cell, or by email to AIRWAYSENV@cs.com
Roger Hankey is principal of Hankey and Brown home inspectors, Eden Prairie, MN. Mr. Hankey is a past chairman of the ASHI Standards Committee. Mr. Hankey has served in other ASHI professional and leadership roles. Contact Roger Hankey at: 952 829-0044 - rhankey@hankeyandbrown.com. Mr. Hankey is a frequent contributor to InspectAPedia.com.
"BSD-150: Black Stains on Carpets and Ghosting of Framing, Joseph Lstiburek, 12/21/2006, referred by Roger Hankey, web search 11/2/2010, original source: http://www.buildingscience.com/documents
/digests/bsd-150-black-stains-on-carpets-and-ghosting-of-framing?full_view=1
Building Air Leaks & Thermal Tracking Marks at Interior Ceilings
Sooty or dark smudges or stains appearing near the ceiling on the inside of building exterior walls, especially in older homes whose interiors have not been re-painted or cleaned in some time.
Thermal tracking stains may appear at the top of the wall and extend onto the ceiling surface such as shown in this photograph.
Note those dark "stripes" extending along the ceiling and into the room? These ceiling stains probably mark the location of ceiling joists (where the in-room ceiling surface temperature was kept a bit cooler since these locations
in the ceiling cavity are occupied by a wood joist rather than by insulation).
See Ceiling Thermal Tracking Marks for details of diagnosing stain patterns on building ceilings and on cathedral ceilings.
Air Leaks Causing Thermal Tracking Stains on Building Walls
Thermal tracking stains may appear on the building walls themselves, in a pattern of vertical "stripes" which may be roughly 16" or 24" on center, marking the (cooler) location of wall studs or ceiling joists.
Thermal tracking stains may appear as dark black/brown wall stains appearing close to floor level, above heating baseboards mounted on exterior walls are probably due to thermal tracking.
See Wall Thermal Tracking Stains for details of diagnosing stain patterns on building walls and above heat sources.
Heaters can cause other dirt or soot stains on walls: But beware, a baseboard heater itself causes an air convection current up through the heating baseboards and in a dirty home or in a home occupied by pets or smokers
similar stains may appear on other building interior walls (such as in this photograph) even if the wall is well insulated.
If staining appears vertical and at intervals thermal tracking is probably occurring.
How to Recognize Air Bypass Leaks and Thermal Bridging Marks on Fiberglass Insulation
We have frequently observed evidence of air bypass leaks and thermal tracking as dust deposition on attic insulation, a condition some owners have mistaken for mold (and wasted money on mold testing
and remediation).
In this photo we've removed a "nearly new" insulation batt that was installed in a cantilevered floor which was leaking air up through the overhanging floor and into the building wall cavity.
In just a month of exposure the insulation is already showing dust tracking at its lower right corner, marking the air leak path in this building.
See Air Bypass Leaks Marks on Insulation for details of diagnosing stain patterns on building or on building surfaces where insulation is missing or poorly installed.
How to Use Indoor Stains Like Thermal Tracking to Diagnose Building Air Leaks, Insulation Defects, and Indoor Air Quality Problems
Significance of Other Indoor Stains and Marks for Building Framing Location or Defects in Heating & Cooling System Operation
Since thermal tracking, or soot marking, or "thermal bridging" always tell us about missing or openings in building insulation or about air leaks, we can learn other facts about a building such as those listed here:
Location & spacing of building framing members. Indoor stains can help find the location and spacing of wall studs or ceiling joists: use thermal tracking marks on building interior surfaces to spot the location of wall studs or ceiling joists when we need to find those members (for placing a picture nail, for example). Observing the spacing between these stains can tell us how a building has been framed.
Identify unsafe heating equipment or poorly-functioning fireplaces: use thermal tracking marks on interior building walls and ceilings, particularly where they vary from room to room, to diagnose poorly-vented chimneys such as fireplaces that do not work well (also look for soot stains at the hearth face). Such marks may also indicate poor and even unsafe operation of central heating systems since a poorly maintained oil burner will often leak soot into a building interior, and a dangerously un-vented gas appliance may also produce both soot and potentially fatal carbon monoxide gas.
How "Read" Indoor Stains to Identify Indoor Air Quality Concerns
A careful examination of the location of indoor stains permits the observer to use thermal tracking or soot marks on building walls or ceilings as an indicator of possible excessive (seasonal) interior moisture or other potential indoor air quality concerns.
Dark stains on building interior walls may appear in other patterns and could be from other causes - we provide photographs, description, diagnosis, and advice for many of these
indoor stains in this article.
How to Diagnose Stains and Debris at Ceiling and Wall Heating or Cooling Air Supply Registers
Dirty HVAC duct work, lack of air filter maintenance, or furnace malfunctions can all be indicated by black stains that appear around warm or cool air delivery registers in building ceilings or walls. (This is usually a deposition of house dust, rarely is it mold, and rarely is it related to thermal tracking.
An investigation of what was at first called Killer House Dust from an HVAC system showed that the dust of concern turned out to be cotton and other
carpet fibers having nothing to do with the Heating or Cooling equipment was discussed at our Fear of Mold
WebLog or "Blog" where we periodically post results of interesting forensic investigations.
How to Recognize Pet Stains on Building Walls
Evidence of pets in buildings: In buildings where pets are or have been housed, smudge marks on walls and at doors and door trim are sometimes mistaken for thermal tracking - they are not, but these marks, along with others (scratches, urine stains) can tell us the history of pet occupancy in a building, information of use when investigating indoor air quality concerns, especially in spaces occupied by asthmatics or people with pet allergies.
Black marks on interior walls such as painted drywall might be just be where the dog lay on the floor against the wall (as shown in this photograph).
How to Recognize Wall Stains from Human Occupants
Black marks on interior walls such as painted drywall might be also be dark wall stains where people rested their heads in bed (as shown in this photo).
Look at the location of these stains and imagine a bed having been placed with its head against the wall shown in the
photograph. Notice the two wall lights.
This is where a bed was almost certainly placed, and we can easily explain
these black stains on the drywall. No further testing would be appropriate in normal circumstances.
How to Recognize Wall or Ceiling Stains due to use of Candles, Woodstoves, or Fireplaces
Smokers or scented candle hazards: In buildings where occupants are or have been smokers, or where occupants burn candles,
especially scented candles, thermal tracking will often be still more distinctly visible as soot stains in the thermal tracking patterns
we've already discussed. Since scented candles can be a source of indoor air quality problems including toxic lead deposition and perfumes
which are respiratory irritants to some people.
Thermal tracking on buildings combined with this evidence can also be a clue useful in
diagnosing indoor air quality complaints. In these photographs, all of the stains visible appear due to use of candles. Note the absence
of framing-interval staining (16" or 24" on center) which would have been characteristic of thermal tracking, even of the candle soot,
had the building surfaces been cool due to poor insulation.
Excessive indoor humidity: If indoor humidity is too high we may be encouraging mold growth in a building or we may be inviting excessive levels of dust mite activity which in turn increases the level of allergens in the building.
Other Sources of Dark Stains on Indoor Walls & Ceilings
If you have frequent fireplace fires, cooking, or if you burn scented candles, if people smoke in your home, or if your oil-fired or gas-fired
heating system is not working properly, the added soot particle load in the building air
is not only a health concern (soot and potentially lead), it also will mark the building surfaces in this characteristic pattern.
We welcome more thermal tracking, soot tracking, air bypass leaks, and similar photos of indoor stains as well as text suggestions to expand this detail and would be glad to credit contributors.
Books & Articles on Building & Environmental Inspection, Testing, Diagnosis, & Repair
Our recommended books about building & mechanical systems design, inspection, problem diagnosis, and repair, and about indoor environment and IAQ testing, diagnosis, and cleanup are at the InspectAPedia Bookstore. Also see our Book Reviews - InspectAPedia.
The Home Reference Book - the Encyclopedia of Homes, Carson Dunlop & Associates, Toronto, Ontario, 2010, $69.00 U.S., is available from Carson Dunlop. The Home Reference Book is a bound volume of more than 450 illustrated pages that assist home inspectors and home owners in the inspection and detection of problems on buildings. The text is intended as a reference guide to help building owners operate and maintain their home effectively. InspectAPedia.com ® author/editor Daniel Friedman is a contributing author. Field inspection worksheets are included at the back of the volume.
"The Elimination of Unsafe Guardrails, a Progress Report," Elliott O. Stephenson, Building Standards, March-April 1993
"Are Functional Handrails Within Our Grasp" Jake Pauls, Building Standards, January-February 1991
Access Ramp building codes:
UBC 1003.3.4.3
BOCA 1016.3
ADA 4.8.2
IBC 1010.2
Access Ramp Standards:
ADA (Americans with Disabilities Act), Public Law 101-336. 7/26/90 is very often cited by other sources for good design of stairs and ramps etc. even where disabled individuals are not the design target.
ANSI A117.4 Accessible and Usable buildings and Facilities (earlier version was incorporated into the ADA)
ASTM F 1637, Standard Practice for Safe Walking Surfaces, (Similar to the above standards)
American Plywood Association, APA, "Portland Manufacturing Company, No. 1, a series of monographs on the history of plywood manufacturing",Plywood Pioneers Association, 31 March, 1967, www.apawood.org
Animal Allergens: Dog, Cat, and Other Animal Dander - Cleanup & Prevention Information for Asthmatics and regarding Indoor Air Quality.
Asbestos: How to find and recognize asbestos in buildings - visual inspection methods, list of common asbestos-containing materials
Asbestos products and their history and use in various building materials such as asphalt and vinyl flooring includes discussion which draws on Asbestos, Its Industrial Applications, D.V. Rosato, engineering consultant, Newton, MA, Reinhold Publishing, 1959 Library of Congress Catalog Card No.: 59-12535 (out of print).
Asbestos Identification and Testing References
Asbestos Identification, Walter C.McCrone, McCrone Research Institute, Chicago, IL.1987 ISBN 0-904962-11-3. Dr. McCrone literally "wrote the book" on asbestos identification procedures which formed
the basis for current work by asbestos identification laboratories.
Stanton, .F., et al., National Bureau of Standards Special Publication 506: 143-151
Pott, F., Staub-Reinhalf Luft 38, 486-490 (1978) cited by McCrone
ASHRAE resource on dew point and wall condensation - see the ASHRAE Fundamentals Handbook, available in many libraries. The following three ASHRAE Handbooks are also available at the InspectAPedia bookstore in the third page of our Insulate-Ventilate section:
2005 ASHRAE Handbook : Fundamentals : Inch-Pound Edition (2005 ASHRAE HANDBOOK : Fundamentals : I-P Edition) (Hardcover), Thomas H. Kuehn (Contributor), R. J. Couvillion (Contributor), John W. Coleman (Contributor), Narasipur Suryanarayana (Contributor), Zahid Ayub (Contributor), Robert Parsons (Author), ISBN-10: 1931862702 or ISBN-13: 978-1931862707
2004 ASHRAE Handbook : Heating, Ventilating, and Air-Conditioning: Systems and Equipment : Inch-Pound Edition (2004 ASHRAE Handbook : HVAC Systems and Equipment : I-P Edition) (Hardcover)
by American Society of Heating, ISBN-10: 1931862478 or ISBN-13: 978-1931862479
"2004 ASHRAE Handbook - HVAC Systems and Equipment The 2004 ASHRAE HandbookHVAC Systems and Equipment discusses various common systems and the equipment (components or assemblies) that comprise them, and describes features and differences. This information helps system designers and operators in selecting and using equipment. Major sections include Air-Conditioning and Heating Systems (chapters on system analysis and selection, air distribution, in-room terminal systems, centralized and decentralized systems, heat pumps, panel heating and cooling, cogeneration and engine-driven systems, heat recovery, steam and hydronic systems, district systems, small forced-air systems, infrared radiant heating, and water heating); Air-Handling Equipment (chapters on duct construction, air distribution, fans, coils, evaporative air-coolers, humidifiers, mechanical and desiccant dehumidification, air cleaners, industrial gas cleaning and air pollution control); Heating Equipment (chapters on automatic fuel-burning equipment, boilers, furnaces, in-space heaters, chimneys and flue vent systems, unit heaters, makeup air units, radiators, and solar equipment); General Components (chapters on compressors, condensers, cooling towers, liquid coolers, liquid-chilling systems, centrifugal pumps, motors and drives, pipes and fittings, valves, heat exchangers, and energy recovery equipment); and Unitary Equipment (chapters on air conditioners and heat pumps, room air conditioners and packaged terminal equipment, and a new chapter on mechanical dehumidifiers and heat pipes)."
1996 Ashrae Handbook Heating, Ventilating, and Air-Conditioning Systems and Equipment: Inch-Pound Edition (Hardcover), ISBN-10: 1883413346 or ISBN-13: 978-1883413347 ,
"The 1996 HVAC Systems and Equipment Handbook is the result of ASHRAE's continuing effort to update, expand and reorganize the Handbook Series. Over a third of the book has been revised and augmented with new chapters on hydronic heating and cooling systems design; fans; unit ventilator; unit heaters; and makeup air units. Extensive changes have been added to chapters on panel heating and cooling; cogeneration systems and engine and turbine drives; applied heat pump and heat recovery systems; humidifiers; desiccant dehumidification and pressure drying equipment, air-heating coils; chimney, gas vent, fireplace systems; cooling towers; centrifugal pumps; and air-to-air energy recovery. Separate I-P and SI editions."
Principles of Heating, Ventilating, And Air Conditioning: A textbook with Design Data Based on 2005 AShrae Handbook - Fundamentals (Hardcover), Harry J., Jr. Sauer (Author), Ronald H. Howell, ISBN-10: 1931862923 or ISBN-13: 978-1931862929
Brick Nogging, Historical Investigation and Contemporary Repair, Construction Specifier, April 2006. Historical use of brick in timber-framed buildings, drawing on the investigations of the Kent Tavern in Calais, VT.
"Brick nogging is a European method of construction which was brought to the new world in the early-nineteenth century. It was a common construction method that employed masonry as infill between the vertical uprights of wood framing." -- quoting the web article review.
Building Research Council, BRC, nee Small Homes Council, SHC, School of Architecture, University of Illinois at Urbana-Champaign, brc.arch.uiuc.edu. "The Small Homes Council (our original name) was organized in 1944 during the war at the request of the President of the University of Illinois to consider the role of the university in meeting the demand for housing in the United States. Soldiers would be coming home after the war and would be needing good low-cost housing. ... In 1993, the Council became part of the School of Architecture, and since then has been known as the School of Architecture-Building Research Council. ... The Council's researchers answered many critical questions that would affect the quality of the nation's housing stock.
How could homes be designed and built more efficiently?
What kinds of construction and production techniques worked well and which did not?
How did people use different kinds of spaces in their homes?
What roles did community planning, zoning, and interior design play in how neighborhoods worked
"An Example of Colonial Paneling", Norman Morrison Isham, The Metropolitan Museum of Art Bulletin, Vol. 6, No. 5 (May, 1911), pp. 112-116, available by JSTOR.
Dust from the World Trade Center collapse following the 9/11/01 attack: the lower floors of this building contained spray-on fire-proofing asbestos materials.
Energy Savers: Whole House Systems Approach to Energy Efficient Home Design [copy on file as /interiors/Whole_House_Energy_Efficiency_DOE.pdf ] - U.S. Department of Energy
"Energy Savers: Whole-House Supply Ventilation Systems [copy on file as /interiors/Energy_Savers_Whole-House_Supply_Vent.pdf ] - ", U.S. Department of Energy energysavers.gov/your_home/insulation_airsealing/index.cfm/mytopic=11880?print
"Energy Savers: Whole-House Exhaust Ventilation Systems [copy on file as /interiors/Energy_Savers_Whole-House_Exhaust.pdf ] - ", U.S. Department of Energy energysavers.gov/your_home/insulation_airsealing/index.cfm/mytopic=11870
"Energy Savers: Ventilation [copy on file as /interiors/Energy_Savers_Ventilation.pdf ] - ", U.S. Department of Energy
"Energy Savers: Natural Ventilation [copy on file as /interiors/Energy_Savers_Natural_Ventilation.pdf ] - ", U.S. Department of Energy
"Energy Savers: Energy Recovery Ventilation Systems [copy on file as /interiors/Energy_Savers_Energy_Recovery_Venting.pdf ] - ", U.S. Department of Energy energysavers.gov/your_home/insulation_airsealing/index.cfm/mytopic=11900
"Energy Savers: Detecting Air Leaks [copy on file as /interiors/Energy_Savers_Detect_Air_Leaks.pdf ] - ", U.S. Department of Energy
"Energy Savers: Air Sealing [copy on file as /interiors/Energy_Savers_Air_Sealing_1.pdf ] - ", U.S. Department of Energy
Falls and Related Injuries: Slips, Trips, Missteps, and Their Consequences, Lawyers & Judges Publishing, (June 2002), ISBN-10: 0913875430 ISBN-13: 978-0913875438 "Falls in the home and public places are the second leading cause of unintentional injury deaths in the United States, but are overlooked in most literature. This book is unique in that it is entirely devoted to falls. Of use to primary care physicians, nurses, insurance adjusters, architects, writers of building codes, attorneys, or anyone who cares for the elderly, this book will tell you how, why, and when people will likely fall, what most likely will be injured, and how such injuries come about. "
Fiberglass: Indoor Air Quality Investigations: Health Concerns About Airborne Fiberglass: Fiberglass in Indoor Air from HVAC ducts, and Building Insulation
Humidity: What indoor humidity should we maintain in order to avoid a mold problem?
Ice Dam Leaks in building attics and roof cavities, how to inspect for evidence of leaks, identify causes, and correct bad attic ventilation, improper roof venting, and these causes of attic mold or roof structure damage
Insulation: Selecting Insulation for New Home Construction, U.S. Department of Energy - "Your state and local building codes probably include minimum insulation requirements, but to build an energy-efficient home, you may need or want to exceed them. For maximum energy efficiency, you should also consider the interaction between the insulation and other building components. This is called the whole-house systems design approach."
Insulation Types, table of common building insulation properties from U.S. DOE. Readers should see INSULATION R-Values & Properties our own table of insulation properties that includes links to articles describing each insulation material in more detail.
Lighting, proper use of: proper aiming of a good flashlight can disclose hard to see but toxic light or white mold colonies on walls.
The National Institute of Standards and Technology, NIST (nee National Bureau of Standards NBS) is a US government agency - see www.nist.gov
"A Parametric Study of Wall Moisture Contents Using a Revised Variable Indoor Relative Humidity Version of the "Moist" Transient Heat and Moisture Transfer Model [copy on file as/interiors/MOIST_Model_NIST_b95074.pdf ] - ", George Tsongas, Doug Burch, Carolyn Roos, Malcom Cunningham; this paper describes software and the prediction of wall moisture contents. - PDF Document from NIS
Pergo AB, division of Perstorp AB, is a Swedish manufacturer or modern laminate flooring products. Information about the U.S. company can be found at http://www.pergo.com where we obtained historical data used in our discussion of the age of flooring materials in buildings.
Piquet Wall Construction: See this photo of
piquet wall construction - involving timber-framed wall construction with long top girts, diagonal timber bracing, and small diameter logs
placed vertically along with concrete chinking to fill in the wall plane.
Plank House Construction: weblog from plankhouse.wordpress.com/2009/01/25/plank-house-construction/ and where plank houses were built by native Americans, see
Large 1:6 Scale Plank House Construction / P8094228,
Photographer: Mike Meuser
06/12/2007 documented at yurokplankhouse.com where scale model Museum quality Yurok Plank Houses are being sold to raise money for the Blue Creek - Ah Pah Traditional Yurok Village project.
Re-Bath, tub lining products is a bath tub relining manufacturer and distributor located in Tempe, Arizona - see rebath.com
Rubblestone Wall Filler: See this Lartigue House using exterior-exposed rubblestone filler between vertical timbers of a post and beam-framed Canadian building.
Slips, Trips, Missteps and Their Consequences, Second Edition, Gary M. Bakken, H. Harvey Cohen,A. S. Hyde, Jon R. Abele, ISBN-13: 978-1-933264-01-1 or
ISBN 10: 1-933264-01-2,
available from the publisher, Lawyers ^ Judges Publishing Company,Inc., www.lawyersandjudges.com sales@lawyersandjudges.com and also from the InspectAPedia Bookstore (Amazon.com)
The Stairway Manufacturers' Association, (877) 500-5759, provides a pictorial guide to the stair and railing portion of the International Residential Code. [copy on file as http://www.stairways.org/pdf/2006%20Stair%20IRC%20SCREEN.pdf ] -
How to Clean Moldy Wood Framing & Sheathing How to clean/seal mold from/on exposed lumber or plywood subfloor or roof sheathing indoors - some suggestions based on our field and laboratory research
Lighting, proper use of: proper aiming of a good flashlight can disclose hard to see but toxic light or white mold colonies on walls.
Manufactured & Modular Homes: Modular Building Systems Association, MBSA, modularhousing.com, is a trade association promoting and providing links to contact modular builders in North America. Also see the Manufactured Home Owners Association, MHOAA, at www.mhoaa.us. The Manufactured Home Owners Association of America is a National Organization dedicated to the protection of the rights of all people living in Manufactured Housing in the United States.
Stuff that is not mold but is often mistaken for it - things you may not want to test. Also, not all "black mold" is toxic - here are examples of harmless black mold.
Mold-Resistant Building Practices, advice from an expert on how to prevent mold after a building flood and how to prevent mold growth in buildings by selection of building materials and by anti-mold construction details.
Slips, Trips, Missteps and Their Consequences, Gary M. Bakken, H. Harvey Cohen, Jon R. Abele, Alvin S. Hyde, Cindy A. LaRue, Lawyers and Judges Publishing; ISBN-10: 1933264012 ISBN-13: 978-1933264011
Slips, Trips, Missteps and Their Consequences, Second Edition, Gary M. Bakken, H. Harvey Cohen,A. S. Hyde, Jon R. Abele, ISBN-13: 978-1-933264-01-1 or ISBN 10: 1-933264-01-2, available from the publisher, Lawyers & Judges Publishing Company,Inc., www.lawyersandjudges.com sales@lawyersandjudges.com and also from the InspectAPedia Bookstore (Amazon.com)
Steps and Stairways, Cleo Baldon & Ib Melchior, Rizzoli, 1989.
"The Dimensions of Stairs", J. M. Fitch et al., Scientific American, October 1974.
"The Elimination of Unsafe Guardrails, a Progress Report," Elliott O. Stephenson, Building Standards, March-April 1993
"Are Functional Handrails Within Our Grasp" Jake Pauls, Building Standards, January-February 1991
"Weather-Resistive Barriers [copy on file as /interiors/Weather_Resistant_Barriers_DOE.pdf ] - ", how to select and install housewrap and other types of weather resistive barriers, U.S. DOE
Weaver: Beaver Board and Upson Board:
Beaver Board and Upson Board: History and Conservation of Early Wallboard, Shelby Weaver,
APT Bulletin, Vol. 28, No. 2/3 (1997), pp. 71-78, Association for Preservation Technology International (APT), available online at JSTOR.
Mobile View
Electrostatic deposition refers to the sticking of particles to a surface due to a difference in electrical charge between the particle and the surface. We observe heavy electrostatic deposition of indoor dust and debris on building walls, ceilings, and other surfaces (most visibly on walls and ceilings) in homes where an ion generator is being used in the belief that it is "purifying" indoor air.
