This article describes How to Recognize & Diagnose Thermal Tracking, Soot Stains on Building Walls - Diagnosing Causes of High Heating Costs
and discusses other various interior wall and ceiling stains and explains how to recognize thermal tracking, thermal bridging stains,
building air leaks, and building insulation defects. Often these stains are mistaken for toxic indoor mold. When investigating a building for a mold problem, you can save mold test costs by learning
how to recognize Stuff that is Not Mold or is only Harmless Mold but may be mistaken for more serious contamination.
These are substances that cause black sooty marks on building interior ceilings or walls and sometimes also on carpets are from sources and causes that you can easily learn to recognize in buildings. Save your mold test money, and increase the accuracy
of your mold contamination inspection or test for toxic or allergenic mold in buildings: review
these items to learn recognize non-fungal materials or even possibly harmless cosmetic
"black mold" often mistaken for "toxic fungal growth."
Air Leaks Causing Thermal Tracking Stains on Building Walls

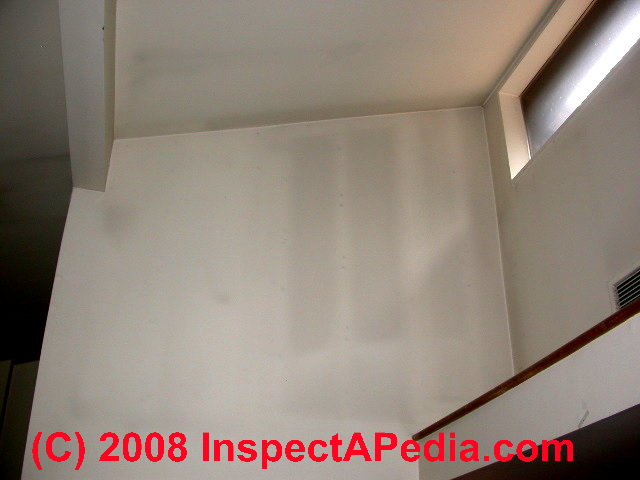

Thermal tracking stains may appear on the building walls themselves, in a pattern of vertical "stripes" which may be roughly 16" or 24" on center, marking the (cooler) location of wall studs or ceiling joists.
In this case the exterior wall surface (see that window at right in the photo) are cooler where the wall studs are located and warmer between the wall studs. Probably the wall cavity is insulated, and the insulated areas have a higher "R" value than the solid wood studs themselves.
So the wall is cooler where the studs are located, increasing condensation on those surface areas, and picking up a greater share of house dust in air moving across those surfaces.
Thermal tracking stains may appear as dark black/brown wall stains appearing close to floor level, above heating baseboards mounted on exterior walls are probably due to thermal tracking.
Wall Stains over Heat Sources such as Hot Water Baseboards
Heaters can cause other dirt or soot stains on walls: But beware, a baseboard heater itself causes an air convection current up through the heating baseboards and in a dirty home or in a home occupied by pets or smokers
similar stains may appear on other building interior walls (such as in this photograph) even if the wall is well insulated.
If staining appears vertical and at intervals thermal tracking is probably occurring.
The stain and soot deposition pattern over heaters is complicated by variations in the heat and air movement coming out of the heat source, and may not always accurately map wall stud or insulation locations.
Why Black Stains May Appear on Building Interior Walls as Well as on Building Exterior Walls

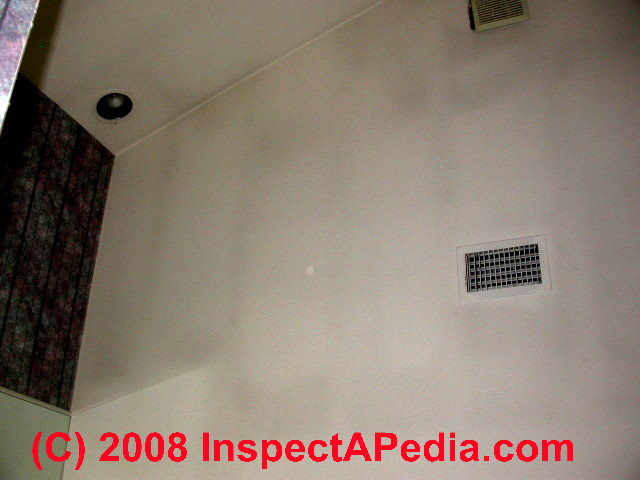

Our photo at below left shows wide black rectangular stains on a wall where insulation was omitted. The photo at below right shows long narrow black stains on a wall where thermal tracking marked the location of wall studs, but where insulation was present. Why did both of these patterns appear in the same building?
High interior moisture (air handlers in wet crawl spaces, a wet basement) was most likely the determining factor in the extent of staining that occurred in this home. Moisture condensed (and caused adhesion of house dust particles) on cooler surfaces. In some areas the un-insulated wall was coolest and got stained (below left) while in other areas the wall studs were cooler than the insulated wall cavity, so the stud-areas got stained (below right).
Black, roughly rectangular stains on building interior or exterior walls: may be present wherever insulation has been omitted. While usually these stains are going to appear on the building exterior walls (which get colder) they may appear on interior walls as well. These stains on interior walls, which may be completely un insulated, may appear with greater severity where other construction details increase the flow of air and/or moisture in certain sections of wall cavity.
An example of the cause of this stain pattern is air movement up through the wall cavity from a cool, damp basement or crawl space. The heated building living space warms the open interior wall cavity, causing air in that cavity to rise by natural convection towards the building attic or roof cavity.
Air movement upwards in the wall cavity draws cooler air from the basement or crawl space. Where some wall sections have more air movement, less insulation, or greater moisture exposure, they may become more darkly stained than their neighbors or more darkly stained than other walls in the building interior.
Usually soot marks, thermal bridging, or thermal tracking stains appear, if at all, in the building interior locations discussed
in the remaining sections of this article.
