Moldy Ceilings? How to Recognize & Diagnose Stains at Heating or Air Conditioning Supply Registers InspectAPedia® -
Examples of problem mold growth on building ceiling surfaces
What Causes & how to We Recognize Wall or Ceiling Stains at Heating or Air Conditioning Supply Registers
How to distinguish between house dust deposits at HVAC registers and mold contamination
A photo-guide to common indoor ceiling and wall stains and what they mean
Links to more photos of indoor ceiling or wall stains that are or are not toxic mold
This article illustrates what mold looks like on interior ceilings and how to distinguish that mold presence from stains found around HVAC air supply registers. We provide details about how to recognize & diagnose stains at heating or air conditioning supply registers
and explains how to distinguish these common debris marks from possibly more serious mold, thermal tracking, thermal bridging stains,
building air leaks, and building insulation defects.
InspectAPedia offers impartial, unbiased advice without conflicts of interest.
We will block advertisements which we discover or readers inform us are associated with bad business practices,
false-advertising, or junk science. Our contact info is at
InspectAPedia.com/Contact.htm.
Dark stains on building interior walls may appear in other patterns and could be from other causes - we provide photographs, description, diagnosis, and advice for many of these
indoor stains in this article.
How to Diagnose Stains and Debris at Ceiling and Wall Heating or Cooling Air Supply Registers
When investigating a building for a mold problem, you can save mold test costs by learning
how to recognize Stuff that is Not Mold or is only Harmless Mold but may be mistaken for more serious contamination
- save your money.
These stains and marks are often substances that you can easily learn to recognize in buildings. Save your mold test money, and increase the accuracy
of your mold contamination inspection or test for toxic or allergenic mold in buildings: review
these items to learn recognize non-fungal materials or even possibly harmless cosmetic
"black mold" often mistaken for "toxic fungal growth." Readers should see HEAT LOSS in buildings. Also see AIR SEALING STRATEGIES and AIR LEAK DETECTION TOOLS as well as AIR LEAK MINIMIZATION. For photos of snow melt on rooftops that also show points of building heat transfer and loss, see STAIN DIAGNOSIS on BUILDING EXTERIORS.
Dirty HVAC duct work, lack of air filter maintenance, or furnace malfunctions can all be indicated by black stains that appear around warm or cool air delivery registers in building ceilings or walls.
This is usually a deposition of house dust (skin cells, fabric fibers). Mold would not be expected to grow in just this pattern around a supply register (though we agree that air movement is related to moisture deposition or condensation which is related to mold growth.)
An investigation of what was at first called Killer House Dust from an HVAC system showed that the dust of concern turned out to be cotton and other
carpet fibers having nothing to do with the Heating or Cooling equipment was discussed at our Fear of Mold
WebLog or "Blog" where we periodically post results of interesting forensic investigations.
We welcome more thermal tracking, soot tracking, air bypass leaks, and similar photos of indoor stains as well as text suggestions to expand this detail and would be glad to credit contributors.
Thermal tracking on a wall above a hot water heating baseboard is shown at Wall Thermal Tracking Stains. See Other Stains on Indoor Walls & Ceilings for further discussion of this photograph and for additional photos and examples of stains on building surfaces that are caused by problems with building heating or air conditioning systems or from other sources.

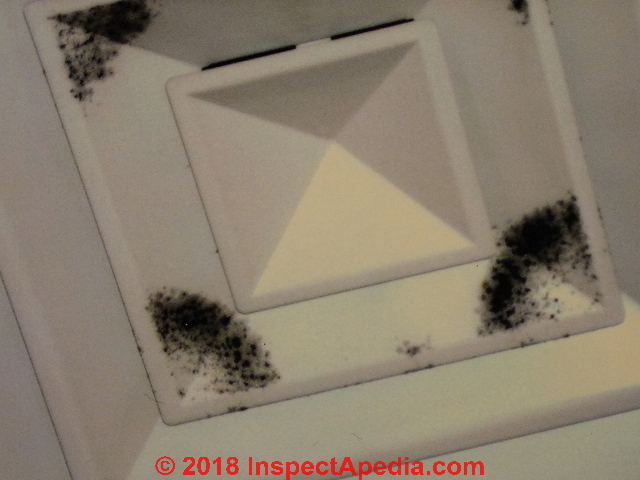

Mold on HVAC Air Supply Registers
By simple visual inspection (by the naked eye) it can be difficult to know if the black or gray debris on air supply registers is moldy crud or common house dust (See BLOWER LEAKS, RUST & MOLD). The ceiling air supply register and aerobiology lab mold photos below show debris deposited on HVAC ceiling air supply registers in a Kentucky building.
In response to a history of a building leak event and odor complaints as well as the appearance of mold on some building walls, we analyzed samples of the dust from the ceiling air supply register shown at left. At right you can see that the domiant particle in the sample was Cladosporium sp. C. sphaerospermum spores were also present in this sample.
Don't panic even if you do find small amounts of mold in an air supply register. Even in a healthy building we might expect condensate forming on ceiling air supply registers in some conditions, and thus an accompanying growth of small areas of mold. If that's the extent of mold contamination, ordinary household cleaning procedures are sufficient.
As we suggest at BLOWER LEAKS, RUST & MOLD, if the building leak history or complaint history suggest that a larger mold reservoir could be present, including other genera/species of mold, further investigation is warranted. Leaks into an air handler unit (blower assembly) or into the building ductwork can increase the mold contamination in those components, and leaks into building ceilings, walls, or crawl spaces can produce large mold reservoirs of a variety of mold genera/species.
While Cladosporium sp. (photo above right) is the most common mold found on earth and while it's just about everywhere, for some people this is an allergenic mold. We don't want it being blown around by our air conditioning system nor its growth improved by mis-handling of HVAC condensate. See MOLD CONTAMINATION LEVELS and Mold Atlas & Particles List for a description of the health effects and air quality complaints associated with various kinds of mold.
Actual Ceiling Mold Contamination - Examples
Mold contamination on building ceiling surfaces can appear in a very wide range extending from trivial to extensive and likely to be unhealthy.
Comparing Two Extents of Mold Growth on a Ceiling

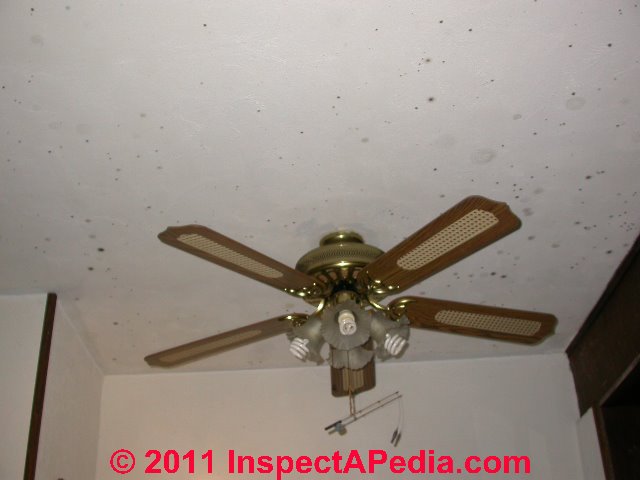

Our ceiling mold photo at below left illustrates a mold growth pattern that appears to follow the properties of a prior rolled-on paint application - we speculated that factor because the edge-delineated mold growth patterns need an explanation, yet they occur at right angles to one another, suggesting that the ceiling framing (joist direction) alone would not explain this pattern.
This growth pattern could have occured either due to high idnoor moisture or due to leaks into the ceiling above. We suspected the former, but further investigation was needed.
Our second moldy ceiling photo (above right - click to enlarge) shows isolated spots of mold over a larger ceiling area. It might be tempting to just surface clean and paint this second ceiling but that option should not be chosen before a more thorough building inspection and mold cause diagnosis.
Depending on the moisture or leak source the mold you see on a building ceiling may be often divided into two location-dependent cases:
Surface mold contamination driven by in-room moisture or high humidity will usually appear more extensively on the exposed or visible ceiling surface than in materials and on surfaces hidden in the ceiling cavity.
Hidden mold contamination within the ceiling cavity will usually be driven by leaks into the ceiling cavity from above, such as from roof or plumbing leaks. Mold within a building cavity can also occur, however, if there is sufficient moist air movement into the cavity from the building interior space.
Critique, contributions wanted: Contact Us to suggest corrections or additions to articles at this website, and if you wish, to receive online listing and credit as a contributor. Particular thanks are due to the many experts and also consumers who read and critique technical articles at InspectAPedia.com.
Additional technical contributors & reference sources for this article are listed below.
